Eggshell strength? No, but a Broken Canopy

Dan 57

Well Known Member
We all know about the propensity of RV-8 canopies to develop a crack... those sometimes happen for obscure reasons, sometimes due to edge tension thanks to a rivet or a screw in a hole of too small a diameter, and/or due to the expansion/retraction of that large piece of acrylic plastic.

My story of canopy breakage is a bit different, so here goes...
Took my friend's -8 for a nice flight thru the Alps 2 days ago, ending with a delicious pizza South of the Alps.
Upon returning to my base, climbed on the left wing, canopy closed and locked, with the intent of cleaning the windshield. Applied cleaner with the spray bottle in my right hand, which I then rested on the junction of the roll bar and the canopy bow. Or so I thought. Leaning forward to wipe the windshield off with my left hand, I also put some pressure with my right hand on the canopy, just behind the canopy frame, almost on top of the arc. This pressure was light, or so I thought, probably well below 1kg (2 lbs).

crack!
Crack? Guess I'll never forget this sound... so light in pitch I thought I had stepped onto something like a cookie. Looking at my feet nothing, but looking at where my right hand rested moments ago, a u-shaped crack.
Many strong holies whatever followed, unfortunately to no avail.

The crack is about 15cm (6") long, and about 7cm (3") wide, on the 1 o'clock position.
We decided to have the canopy fixed, and it has been brought to a company manufacturing/modifying and repairing canopies.

Reasons
I'm sure a zillion experts will jump in, but here are my humble observations.
- material thickness. The top part of the canopy is much thinner than the walls. Yes, it is logical and due to the forming process, but still a good thing to remember
- it seems that the forward edge of the canopy was not properly bonded to the frame. It therefore probably flexed before the acrylic itself let go

Warning
Treat your canopy with the utmost care. I never expected the canopy to be as fragile. And I pride myself on being careful... well, no more.
Clean the windshield with the canopy slid back. Also clean the canopy only when slid back (easier anyway), feet on the ground.
Do the cleaning of this expensive plastic part yourself. What happened to me, a short 171cm (5.6') and light 71kg (156lbs) individual, could easily happen to any well meaning helper...


Attachments

  • IMG_5964.jpg
    230.6 KB · Views: 331
  • IMG_5965.jpg
    320.8 KB · Views: 318
Thanks Dan for your report and advice. Sad outcome.
Reminds us all to take good/kind care of our machines despite their apparent rugedness/toughness (are these correct words??).

When building my canopy a few years ago on my rv7, I cracked the canopy drilling a hole close to the edge so I ordered a new one.. Just a few weeks ago I decided to throw away the cracked canopy. I folded it to break it which surprisingly took very little pressure. I effortlessly broke the canopy into small pieces. I was thinking maybe I received a defective canopy but maybe not.

That's the stuff of nightmares. The only time I want my canopy to break easily is if I'm upside down and trying to get out. Definitely a good reminder to take care of that giant, clear, eggshell!

That was bad luck Dan and an unpleasant ending to an otherwise good day... that sounds like holies with an f.

What was the temp like at the time? Cleaned out my shop the other day and broke up some scrap plexi, which snapped very easily in the cold weather. In the warmer weather a few months back it was more difficult to break.

The Ts on the ground were in the 15°C range, probably not a major factor. Although as we know, low Ts render the stuff brittle...
I had returned from colder air at altitude, but the canopy had had about 15' time to warm up by the time I started the breaking, ooops, cleaning action.

A guess re integrity, is that the -8 is more affected than other models. Many a -8 developed a crack overnight, or during flight, most of the times in the middle or rear part of the canopy. Let's call it tension relief.
This case is different. The bend radius in the top half of the bubble is tight, so the difference in thickness of the plastic between the skirt region to the top bow is probably bigger than on the canopy of other models, and makes it de facto fragile.

Any RV-8 builder out there willing to share the thickness of the canopy at the base and at the forward top?

Following the initial shock, I consulted with the owner, and decided to give it a go, and try to repair that canopy as good as I could.

The oblique and jagged meandering of this crack made it clear that the repair would be particularly challenging. Usually cracks happen in a straight or slightly curved line, and the crack itself perpendicular to the acryl surface... not this time.

I then gathered as much information as I could, as it would be the first time I would tackle such a repair.
There's a company in Germany called Acrylglasprofi, and they have published an excellent step by step repair guide, in German language, called Reparaturanleitung für PLEXIGLAS®, which can be found annexed.
Friend of mine, RV-8 builder/flyer Peter, repaired a huge crack on the rear of his canopy a couple of years ago, with amazing results. He lent me some of the tools used, and gave me plenty of tips too, all of which I used along the repair guide mentioned above. Thanks Peter!

One will need the following to perform a repair in the same way:
- a comprehensive wife since the repair was gonna take place in our living room… thanks Tina :)
- a carving bit driven by a Proxxon, or another brand drill/grinder
- curved and straight wooden sanding blocks
- different grades of sanding paper strips, ranging from 250 to 8000, with double-sided tape to attach them to the blocks
- a roll of polyester tape
- polishing paste, normal & extra fine
- soft polishing tissues
- last but not least, the glue itself. Whilst there are different brands of acrylic glues, I choose one which was locally available, namely the Acrifix 2R 0190 Polymerization Adhesive and its CA 0020 hardener, manufactured by the company Roehm GmbH in Germany.


Attachments

  • Copy of IMG_6012.jpg
    Copy of IMG_6012.jpg
    143.8 KB · Views: 65
  • Copy of IMG_6084.jpg
    Copy of IMG_6084.jpg
    106.2 KB · Views: 87
  • Copy of IMG_6095.jpg
    Copy of IMG_6095.jpg
    134.7 KB · Views: 75
  • Reparaturanleitung-fuer-Plexiglas.pdf
    193.1 KB · Views: 76
The procedure was as follows:
  • stop drill each of the cracks using a 3mm unibit, and using the next size step to chamfer the hole both sides
  • grind a V-groove, e.g. chamfer the top edges of the crack using the carving bit in the drill/grinder. One must not use to high an RPM, and I found a speed of 7K just about right for the given bit. Securely hold the drill/grinder during the operation, and take your time
  • apply polyester tape leaving about 3mm space for the glue to later set on, on both sides of the crack
  • apply polyester tape on the other side of the crack to prevent the glue seeping thru
  • prepare the glue. As the amount of hardener used is small, 3%, the use of a precision (0.001g) scale is advisable. The stuff is quite thick, and care must be taken not to create too many air bubbles whilst mixing. Access to a vacuum bell jar would eliminate those pesky bubbles. And yes, the glue stinks...
  • apply the glue in several layers to fill up the gouge, and more. The glue must reach to, and overlap the tape as this will help in the first step of the sanding down task
  • once dry, turn the canopy over and repeat the last 4 steps above on this side of the crack
  • the drying time for this Acrifix is 24h. Then the sanding starts. Care must be taken not to scratch the surrounding area. The sanding is performed wet, changing the soapy water whenever changing the sandipaper grit size
  • once the vinyl tape starts being touched by the sanding, it is removed
  • the whole area is then covered by the ink of a permanent marker. This will give a precise indication as to which area is now being sanded down
  • the sanding continues using finer and finer grades of paper
  • finally the polishing starts. I used a normal and a super fine grade paste
  • ideally the repair, and the canopy as a whole should then be tempered. A sauna would make a very good oven, as the canopy should be heat treated to 80°C during some 5 hours, with a slowly rising then descending temperature. An enclosure using styrofoam could also be fabricated, as already discussed in other threads here on VAF. Since this crack was not caused by residual tension, I used an alternate procedure which resulted only in partial tempering, so we'll keep our fingers crossed for the future


Attachments

  • Copy of IMG_6037.jpg
    Copy of IMG_6037.jpg
    71.8 KB · Views: 81
  • Copy of IMG_6056.jpg
    Copy of IMG_6056.jpg
    118.4 KB · Views: 82
  • Copy of IMG_6075.jpg
    Copy of IMG_6075.jpg
    128.5 KB · Views: 79
As stated in the first post, one should not assume that the those canopies are strong...
Comparing the plans with the canopy on the aircraft has shown some deviations made by the builder. The attached sketch shows the windscreen in dark blue, the forward bow of the frame in yellow, the sliding canopy in light blue. The red is a bead of Sikaflex which I decided to add after the repair, in the hope it will provide some support to the this area of the canopy.

The repair is done. The results are quite good, though some optical imperfection will of course remain.


Attachments

  • signal-2023-05-12-203229_002.png
    109.4 KB · Views: 70
  • Copy of IMG_6103.jpg
    Copy of IMG_6103.jpg
    130.6 KB · Views: 106
  • Copy of IMG_6106.jpg
    Copy of IMG_6106.jpg
    87.4 KB · Views: 143
  • Copy of IMG_6108.jpg
    Copy of IMG_6108.jpg
    46.3 KB · Views: 127
Nice job !

Nice job Dan !!
That was a serious crack.

Thanks for the report and method for repair.
Sure will be handy to someone if ever their canopy suffers.

Thanks Eric!

Sincerely hope no one has ever to perform this kind of repair… the more so on a friend’s RV… :eek:

Tech speak for you guys in NA (yep, that’s for North America), a more popular glue would be the Weld-On 3, which I understand is much more of a liquid, and therefore to be applied in multiple layers.

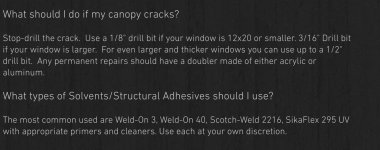

Airplane Plastics, manufacturers of our canopies, offers some advice too, see https://www.airplaneplastics.com/faq
