  #721
Old 07-18-2012, 01:35 AM
rvsxer rvsxer is offline

Join Date: May 2007
Location: Inver Grove Hgts, MN
Posts: 358
Default

My RV-6 first flew with this panel, in 2000:


Changed it a little in 2010:

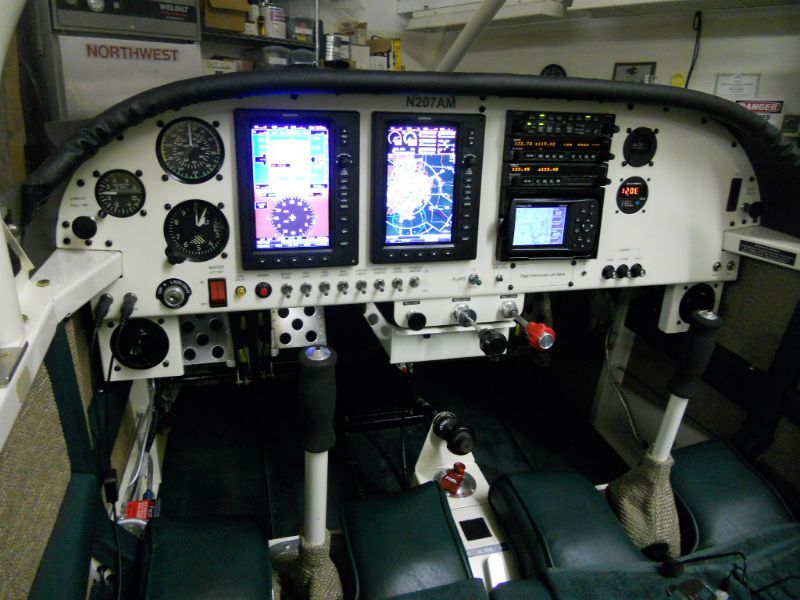

Finally built a new panel in June '12:
__________________
Mike Hilger
RV-6 N207AM w/G3X, 1,800 hours +
South St. Paul, MN (KSGS)
A&P, EAA Tech Counselor

We're all here because we're not all there...
Reply With Quote
  #722
Old 07-18-2012, 04:28 AM
pauldan181 pauldan181 is offline

Join Date: Jan 2006
Posts: 208
Default

Nice upgrade Mikey! Are you bringing it to the Show?

Paul Danclovic
Jamestown NC
RV-8A N181SB
Reply With Quote
  #723
Old 07-18-2012, 06:45 AM
Captain Avgas Captain Avgas is offline

Join Date: Oct 2005
Location: Melbourne, Australia
Posts: 2,011
Default

Quote:
Originally Posted by rvsxer View Post
Finally built a new panel in June '12:
I guess I'm a little bit more critical now than most re interior layouts as a result of being involved as a passenger in a violent RV6A accident some time back. Your new avionics look great but in upgrading it might have made some sense to consider eliminating a few of those quite sharp corners you have in the vicinity of your knees at the bottom of the panel. We aim for the best, but sometimes it's also good to plan for the worst.
__________________
You’re only as good as your last landing
Bob Barrow
RV7A

Last edited by Captain Avgas : 07-18-2012 at 06:51 AM.
Reply With Quote
  #724
Old 07-18-2012, 10:36 AM
rvsxer rvsxer is offline

Join Date: May 2007
Location: Inver Grove Hgts, MN
Posts: 358
Default

Quote:
Originally Posted by pauldan181 View Post
Nice upgrade Mikey! Are you bringing it to the Show?

Paul Danclovic
Jamestown NC
RV-8A N181SB
No, I gotta drive this year but I'll be in the SteinAir booth Mon-Wed. Come and see us.
__________________
Mike Hilger
RV-6 N207AM w/G3X, 1,800 hours +
South St. Paul, MN (KSGS)
A&P, EAA Tech Counselor

We're all here because we're not all there...
Reply With Quote
  #725
Old 07-18-2012, 10:41 AM
rvsxer rvsxer is offline

Join Date: May 2007
Location: Inver Grove Hgts, MN
Posts: 358
Default

Quote:
Originally Posted by Captain Avgas View Post
I guess I'm a little bit more critical now than most re interior layouts as a result of being involved as a passenger in a violent RV6A accident some time back. Your new avionics look great but in upgrading it might have made some sense to consider eliminating a few of those quite sharp corners you have in the vicinity of your knees at the bottom of the panel. We aim for the best, but sometimes it's also good to plan for the worst.
I hadn't given it a thought! I went to all the trouble of putting strong padding on my glareshield and forgot the lower panel area. The stuff in the center is clear of our knees but the vents are quite close to my outboard knee. I'll have to look into some changes. Thanks.
__________________
Mike Hilger
RV-6 N207AM w/G3X, 1,800 hours +
South St. Paul, MN (KSGS)
A&P, EAA Tech Counselor

We're all here because we're not all there...
Reply With Quote
  #726
Old 07-30-2012, 11:05 AM
tmlkbr tmlkbr is offline

Join Date: Mar 2012
Location: S?o Paulo - Brazil
Posts: 13
Default

Quote:
Originally Posted by Tassilo View Post
HI guys,

Here's my new RV-7 (slider) panel.
We hope over the next two months to fly;-)




2x Flymap XL Displays ( www.flymap.de )
1x PowerFlarm Display ( http://www.powerflarm.aero/index.php/en/ )
Std. 57mm Winter Instruments
Becker 4201 radio
Becker Transponder
Hi Tassilo,
I plan to install a TCAS in my RV7, which I'm not the builder, just purchased it a few months ago. How does the PowerFlarm works for you on detecting xponder "C"class signals ? I was going to the Zaon, but than I remembered the PowerFlarm ...

Tks for the help !
__________________
Thomas
RV7 Driver Only

VAF donation valid May 28, 2013
Reply With Quote
  #727
Old 08-04-2012, 03:18 AM
beav's Avatar
beav beav is offline

Join Date: Feb 2009
Location: San Jose, CA
Posts: 164
Default My Panel

I recently finished my panel. I have two 10" SkyView displays, a PS Engineering 8000BT audio panel, Garmin GTN-635 GPS/COMM, and TruTrak Gemini PFD. I'm using the Dynon autopilot and transponder



This is the upper left of the panel. All of the switches here with red boots are only manipulated during startup and shutdown. The other switches should only be used in emergency situations. Separating these switches from the others in the panel means that there is no chance that they will ever be accidentally hit in flight since I have no reason to even put my hand up there on the panel. The Gemini PFD is also right in my line of sight in case I ever need to use it due to a SkyView failure in IMC.



Below the Gemini are a couple of control cables for the alternate air and oil cooler butterfly valve. The alt air cable is red because it's for emergency use only (since it can't be reset from the cockpit). To the right of the control cables are the exterior lights. These are both three position switches.



To the right of the exterior lights are the interior lights (both with dimmers) and the fuel pump and flaps switches. The flaps switch is easily reachable while my hand is on the throttle.



The top of the radio stack has my custom annunciator switches as well as a test button and a dimmer. This dimmer also dims the Gemini PFD screen since it doesn't auto dim.



The engine start switch is near the mixture control which should make starting a little less clumsy. I normally wouldn't have considered putting the engine start switch within reach of the passenger, but the VP-X disables that switch once the engine is running. The parking brake cable is just to the right of the engine controls.



The far right of the panel has the heater controls. There are dimmers for the seat heaters as well as a control cable for the cabin heat.



The top right of the panel has the only two breakers (both pull-able) as well as the Hobbs meter, ELT remote and passenger warning.

__________________
jason
N4VR
RV-7 (Flying)
http://www.jasonbeaver.com/rv7
Reply With Quote
  #728
Old 08-04-2012, 05:41 AM
Sig600 Sig600 is offline

Join Date: Nov 2005
Location: KRTS
Posts: 1,798
Default

Awesome Jason. I love the attention to detail and thought put into location of everything, very logical and thought out.
__________________
Next?, TBD
IAR-823, SOLD
RV-8, SOLD
RV-7, SOLD
Reply With Quote
  #729
Old 08-04-2012, 06:33 AM
pierre smith's Avatar
pierre smith pierre smith is offline

Join Date: Jan 2005
Location: Louisville, Ga
Posts: 7,911
Default Careful, guys.

Jason and Tassilo, beautiful panels both...BUT, both of you guys have the throttles moved far to the left.

I recently checked a new owner out in his new-to-him -9A and when I showed him the correct way to check controls...all the way right and then forward, the engine revved up, much to our surprise! The pilot's stick hit the throttle smack-dab head on and pushed it forward an inch or more.

Carefully check for this before first flight, guys.

Beautiful work,

Best,
__________________
Rv10 Sold
46 years ag pilot/CFI
Air Tractor 502/PT-6
Building RV-12, Wings, fuse, emp complete. FWF in progress.
Reply With Quote
  #730
Old 08-04-2012, 08:55 AM
ColoCardinal's Avatar
ColoCardinal ColoCardinal is offline

Join Date: May 2010
Location: Morrison, CO
Posts: 372
Default

Some really nice panels. What did you guys use for a finish and the labels?
__________________
Carl - - Morrison, CO
N16CB RV7A
Airworthiness cert issued 12/24
best X-mas present I could have hoped for!
paid 'til 10-19
Reply With Quote
