Default Fitting the Cowl - How good is good enough?

Well, I've waited a few days, and the cowl fairy has not flown in to fit my cowl ... guess it's time to get busy.

I've spent a couple of hours trimming the cowl around the spinner area. It's getting closer, but it's not perfect.

Below are a couple of pics of my progress... It looks like in order to get a good circle behind the spinner, I will need to fill in a bit of the joggle on either side of the spinner.

I'm wondering how good is good enough here to drill the one hole on each side where the cowl halves overlap, and move forward to fitting it on the fuselage?




__________________
Jason Tremble
RV-7A (Flying and Sold)
RV-10 in process (@#$$%# Cabin Top & Doors)
Reply With Quote
  #2
Old 04-16-2020, 08:30 PM
Kyle Boatright Kyle Boatright is offline

Join Date: Aug 2005
Location: Atlanta, GA
Posts: 4,680
Default

Do you have the openings sized vertically like the plans (IIRC) call for? Is the round area behind the spinner a true circle? Have you adjusted the flanges to the best of your ability to make the transitions at the front of your cowl smooth? If so, the rest is sandpaper, micro, and reinforcements (as necessary) which means you're ready to move forward.

The one thing I will tell anyone is that (generally) 30 more minutes of alignment/fitting up front will save far more than that in finishing work.

As far as the joggle goes, I had to fill those and also had to use filler at the outside joint on the cowl inlets - either on the top or bottom, I don't remember.
__________________
Kyle Boatright
Marietta, GA
2001 RV-6 N46KB
2019(?) RV-10
Reply With Quote
  #3
Old 04-16-2020, 09:19 PM
togaflyer togaflyer is offline

Join Date: Apr 2013
Location: Fl/Ga
Posts: 769
Default

You may also want to anticipate enough gap for your paint job otherwise you could have edges rubbing after painting. Also, paint will adhere to a rounded edges far better then sharp edges.
Reply With Quote
  #4
Old 04-17-2020, 01:54 AM
rv8ch's Avatar
rv8ch rv8ch is offline

Join Date: Feb 2005
Location: LSGY
Posts: 4,333
Default take time

I read many posts that recommended spending a lot of time here to make it right. That's pretty much what I did. Yes, it took about 10x more time than I thought it would, and of course now with experience I could do it faster.

It helped me when someone reminded me that you can add "meat" behind as well, and sand down the front to get it to fit right. It's a very iterative process.
__________________
Mickey Coggins
http://rv8.ch
"Hello, world!"
Reply With Quote
  #5
Old 04-17-2020, 06:28 AM
rvanstory's Avatar
rvanstory rvanstory is offline

Join Date: Dec 2016
Location: New Braunfels
Posts: 443
Default

Quote:
Originally Posted by UnPossible View Post
I'm wondering how good is good enough here...
I just finished this fitting. Started with two halves in about the same shape it looks like yours are in (close but not perfect). Found that it does make a difference in final fitment! Getting that joggle at spinner hole to fit well was more important than I anticipated. Make sure you grind out inside corners of that joggle well and any high spots on front of top cowl so that they lay flat when joined and that the gap between the two is almost zero (you can sand out for paint gap later). Also make sure that the outside corners of your air inlets are not hitting high spots. That created some issues for me as well. These two parts should "fit like a glove" when your done.

Overall, it took WAY more time here than I thought. The better you make this section fit, the better off you will be when fitting to fuse. Be patient and "sneak up on it" (taking a little off at a time) and you'll be glad you did.
__________________
Randy Vanstory
Flying RV10 - N783V
2021 Sun N Fun Reserve Grand Champion
2021 Oshkosh Bronze Lindy

1st Flight 08/20/2020
Donation Happily Made 2021
Reply With Quote
  #6
Old 04-17-2020, 02:42 PM
rvanstory's Avatar
rvanstory rvanstory is offline

Join Date: Dec 2016
Location: New Braunfels
Posts: 443
Default

One more suggestion....

Look at post #25 on this thread. I made this mod to my lower cowl today. Made a HUGE difference on ease of getting on and off. Should make step your on easier too. Sure as heck will make all the on and off during fitting easier.
http://www.vansairforce.com/communit...t=31770&page=3
__________________
Randy Vanstory
Flying RV10 - N783V
2021 Sun N Fun Reserve Grand Champion
2021 Oshkosh Bronze Lindy

1st Flight 08/20/2020
Donation Happily Made 2021
Reply With Quote
  #7
Old 04-17-2020, 07:44 PM
UnPossible's Avatar
UnPossible UnPossible is offline

Join Date: Jan 2008
Location: Granbury, TX
Posts: 564
Default

Well after messing around for quite a bit this evening, I have the two cowl halves fitting together pretty well.




My only question/concern is that if I measure the height of each opening at the middle of the opening, one measures a bit over 4-1/2" and the other measures a bit under 4-3/4". It is not noticeable, but wondering if I should try and bring down the taller one to match the shorter opening height? Any thoughts before I plow ahead in the morning?
__________________
Jason Tremble
RV-7A (Flying and Sold)
RV-10 in process (@#$$%# Cabin Top & Doors)
Reply With Quote
  #8
Old 04-17-2020, 08:08 PM
crabandy crabandy is offline

Join Date: Jan 2010
Location: Ottawa, Ks
Posts: 2,317
Default

My original inlets weren?t even close to the same shape and size, you couldn?t ever tell by looking at it though. I wouldn?t bother trying to make them the exact same shape and size.
I would check to make sure the opening diverges and gets larger as it moves the couple inches aft toward the baffling, you don?t want it to ?neck? down and get smaller.
__________________
RV 7 590 hours and counting
21 donation done
Reply With Quote
  #9
Old 04-17-2020, 09:17 PM
DanH's Avatar
DanH DanH is offline

Join Date: Oct 2005
Location: 08A
Posts: 10,364
Default

Quote:
Originally Posted by UnPossible View Post
My only question/concern is that if I measure the height of each opening at the middle of the opening, one measures a bit over 4-1/2" and the other measures a bit under 4-3/4". It is not noticeable...
I am always reminded of a 1950's quote from Dear Abby...

Any girl can get married if she sets her sights low enough.

Go for the absolute best you can. You're going to be looking at this thing for a long time, and your name will be on the data plate long after you're dead.
__________________
Dan Horton
RV-8 SS
Barrett IO-390
Reply With Quote
  #10
Old 04-18-2020, 08:10 AM
Bill.Peyton's Avatar
Bill.Peyton Bill.Peyton is offline

Join Date: Sep 2009
Location: St. Louis, MO
Posts: 1,885
Default

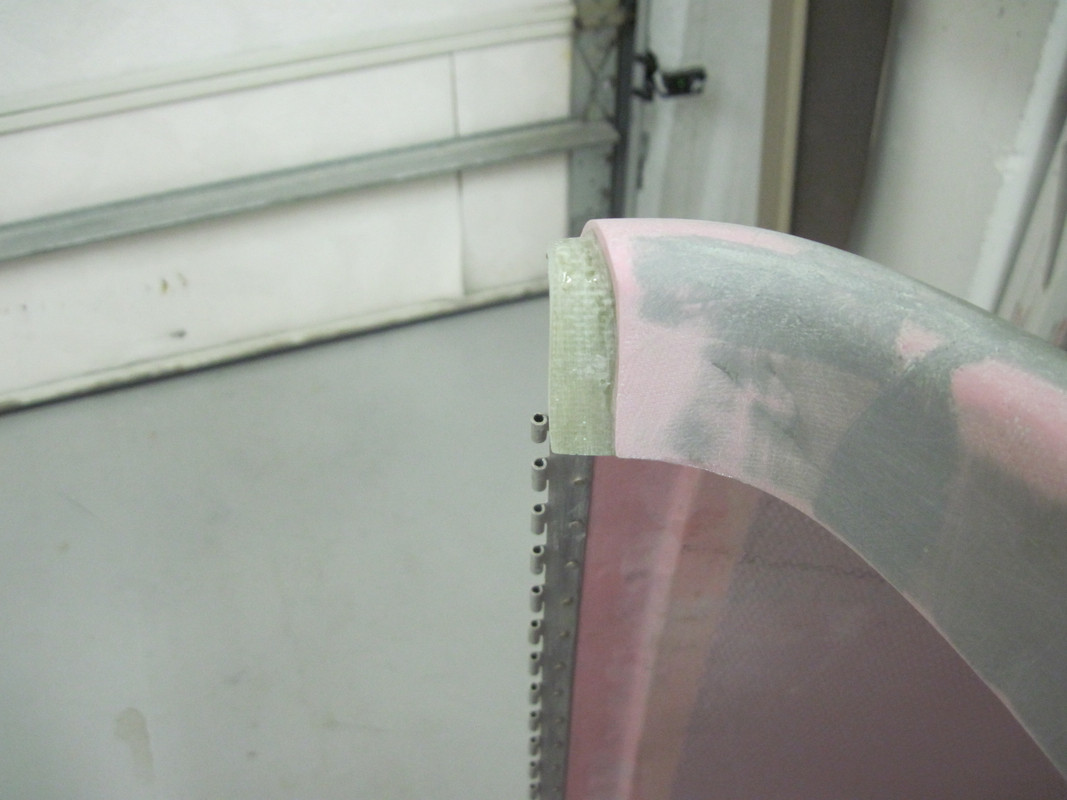

I'm with Dan. I hate to say it, but you still have a ways to go. When I fit mine, I added a joggle to the lower cowl around all the vertical sides in the very front to help seal the gap and to help with alignment.

__________________
Bill Peyton
RV-10 - 1285 hours
N37CP
First Flight Oct 2012
Aviation Partners, LLC


WARNING! Information presented in this post is my opinion. All users of info have sole responsibility for determining accuracy or suitability for their use.

Last edited by Bill.Peyton : 04-18-2020 at 08:23 PM. Reason: posted photo
