Default Show me your Firewall mounted oil cooler (RV-7)

Hey all,

I am installing piston skirt squirts in my Parallel Valve, IO-360 engine and from what I hear, I need to change my oil cooler from the baffle mounted style to another type.

I am aware of the Showplanes style, but am leaning towards the firewall mounted RV-10 (VA-186) setup.

Questions:

1) does the VA-186 fit on the RV-7 firewall adequately?
1b) if so, pictures would help in positioning it correctly. Please provide...

2) In keeping with this RV-10 mount, I plan on using the EA OIL COOLER 20006A with it, as provided from Vans and would like to know if anyone with this setup is willing to share empirical data with regard to oil cooling performance.

Thank you in advance.

John
__________________
RV-7 Flying - 1,400 Hours
TMX-IO-360, G3i ignition & G3X with VP-X
Reply With Quote
  #2
Old 01-17-2022, 09:57 AM
Dan 57's Avatar
Dan 57 Dan 57 is offline

Join Date: Sep 2018
Location: LSZF
Posts: 963
Default

Well, ain't no -7 (almost), nor a VA-186, but a Positech P20002C, might give you some idea. The cooling was too effective, and I've since installed a shutter which works pretty good.
Finding real estate on a firewall is usually the bigger challenge, but I would never install an oil cooler on the engine baffles.
Attached Thumbnails
Click image for larger version

Name:	IMG_6356.JPG
Views:	232
Size:	573.6 KB
ID:	21093
__________________
- ain't the Destination, but the Journey -

www.aerofun.ch

RV-6.9 #25685, slider, O-360-A3A (carb/dual Lightspeed II), MTV-12-B, HB-YLL owner & lover
RV-4 #2062 HB-YVZ airframe builder
Reply With Quote
  #3
Old 01-17-2022, 10:09 AM
wirejock's Avatar
wirejock wirejock is offline

Join Date: Oct 2005
Location: Estes Park, CO
Posts: 5,118
Default Oil cooler

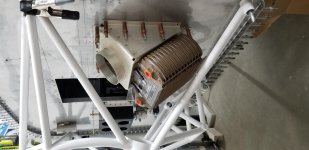

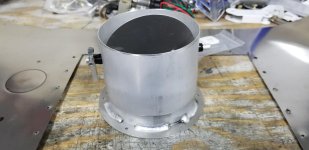

That's how mine is set up. RV10 mount, ccooler and a 4" butterfly valve. I installed nutplates for the mount in case I needed to work in the space. The cooler can be unbolted and the mount removed.
Still working FWF but here's a couple photos.
Sorry, never have figured out how to get a vertical photo to post correctly.
Click image for larger version

Name:	20210220_153525.jpg
Views:	378
Size:	184.1 KB
ID:	21094
Click image for larger version

Name:	20210309_120117.jpg
Views:	254
Size:	167.6 KB
ID:	21096
__________________
Larry Larson
Estes Park, CO
wirejock at yahoo dot com
Donated 12/01/2021, plus a little extra.
RV-7A #73391, N511RV reserved (3,000+ hours)
Empennage, wings, fuse, finishing kit done. Working FWF
Disclaimer
I cannot be, nor will I be, held responsible if you try to do the same things I do and it does not work and/or causes you loss, injury, or even death in the process.
Reply With Quote
  #4
Old 01-17-2022, 10:28 AM
pazmanyflyer's Avatar
pazmanyflyer pazmanyflyer is offline

Join Date: Jul 2007
Location: Litchfield Park, AZ
Posts: 1,158
Default

Quote:
Originally Posted by Captain_John View Post
Hey all,

I am installing piston skirt squirts in my Parallel Valve, IO-360 engine and from what I hear, I need to change my oil cooler from the baffle mounted style to another type.

I am aware of the Showplanes style, but am leaning towards the firewall mounted RV-10 (VA-186) setup.

Questions:

1) does the VA-186 fit on the RV-7 firewall adequately?
1b) if so, pictures would help in positioning it correctly. Please provide...

2) In keeping with this RV-10 mount, I plan on using the EA OIL COOLER 20006A with it, as provided from Vans and would like to know if anyone with this setup is willing to share empirical data with regard to oil cooling performance.

Thank you in advance.

John
My 2 cents...I tried to do this but I could not get the SW8432R to fit on the FW with the mount. There isn't enough room to fit everything without serious fw point relocations. Many may say "sure it does" BUT those are mostly -A models. The -A model engine mounts are trussed differently than the TD's, changing the option of a FW mounted OC tough to accomplish. I finally mounted mine in the stock location off #4's rear baffle. Yes the corner has been reinforced to aid in crack prevention.
__________________
Carlos in Arizona
EAA Chapter 538 www.chapters.eaa.org/eaa538
Wittman Tailwind W8 N53CH (built & sold)
Pazmany PL-1 N2029 (bought & sold)
RV7 - N537TC (reserved & building)
Emp, Wings & Fuse done - working on FWF

"The air is an extremely dangerous, jealous and exacting mistress. Once under the spell most lovers are faithful to the end, which is not always old age." - Winston Churchill
Reply With Quote
  #5
Old 01-17-2022, 10:45 AM
kiwipete kiwipete is online now

Join Date: Oct 2007
Location: Birmingham United Kingdom
Posts: 463
Default

https://vansairforce.net/community/a...1&d=1642440962

https://vansairforce.net/community/a...1&d=1642441173

It’s a tight fit but worked on a angle for me.

Here’s how I did mine. I can control the temperature in the winter to run at 180F and in the summer never see more than about 190F
(Parallel valve IO-360)

Regards

Peter
Attached Thumbnails
Click image for larger version

Name:	0DED62DE-5DAB-4A60-9A0D-842912E40DA2.jpeg
Views:	402
Size:	1.19 MB
ID:	21097  Click image for larger version

Name:	77DB4DEA-8F96-4B4B-BD29-E8F1006E4E97.jpeg
Views:	305
Size:	1.14 MB
ID:	21098
__________________
RV7 G-PBEC Flying
RV10 Finishing
Reply With Quote
  #6
Old 01-17-2022, 02:52 PM
bjdecker's Avatar
bjdecker bjdecker is offline

Join Date: Jun 2005
Location: Georgetown, TX
Posts: 1,135
Default Here's mine

For my 200HP, IO-360-A1B6 (Angle Valve - Piston squirter equipped) I mounted a SW 8406R on the firewall. After a couple of flights, I wanted a bit more cooling margin so I upgraded to a SW 10599R -- I just had to remake the diffuser.

...Pics...
Attached Thumbnails
Click image for larger version

Name:	IMG_0447.jpg
Views:	224
Size:	338.4 KB
ID:	21113  Click image for larger version

Name:	IMG_0448.jpg
Views:	228
Size:	329.3 KB
ID:	21114  Click image for larger version

Name:	IMG_0850.jpg
Views:	202
Size:	361.1 KB
ID:	21117  Click image for larger version

Name:	IMG_1807.jpg
Views:	162
Size:	473.8 KB
ID:	21118
__________________
Brian Decker
RV-7 (Flying)

Last edited by bjdecker : 01-18-2022 at 02:49 PM. Reason: updated/corrected terminology
Reply With Quote
  #7
Old 01-17-2022, 05:10 PM
AlexPeterson's Avatar
AlexPeterson AlexPeterson is offline

Join Date: Sep 2005
Location: Ottertail, MN
Posts: 2,510
Default

This is on a 6A, 7 row cooler with a throttle:
Attached Thumbnails
Click image for larger version

Name:	Oil cooler plenum.jpg
Views:	195
Size:	371.8 KB
ID:	21129
__________________
Alex Peterson
RV6A N66AP 1750+ hours
KADC, Wadena, MN
Reply With Quote
  #8
Old 01-17-2022, 05:42 PM
Scott Hersha Scott Hersha is online now

Join Date: Jan 2005
Location: Cincinnati, OH
Posts: 2,205
Default

This is what I did for my RV6 I’m building. O-360-A1A. It worked well on my first RV6, so here I go again. Easy to install and plenty of room.
Attached Thumbnails
Click image for larger version

Name:	8C4BB1F6-5622-496F-8DEC-246146EE4136.jpg
Views:	259
Size:	375.7 KB
ID:	21132  Click image for larger version

Name:	7B6645CA-85B8-4C96-8940-B5D757711011.jpg
Views:	179
Size:	363.3 KB
ID:	21133
__________________
SH
RV6/2001 built/sold 2005
RV8 Fastback/2008 built/sold 2015
RV4/bought 2016/sold/2017
RV8/2018 built/Sold(sadly)
RV4/bought 2019/sold2021
RV6/Used kit purchased 2021 building
Cincinnati, OH/KHAO
JAN2022
Reply With Quote
  #9
Old 01-18-2022, 09:21 AM
g zero g zero is offline

Join Date: Jun 2007
Location: palm coast fl.
Posts: 1,030
Default Firewall Oil Cooler

This is on my 8 . 13 Row Oil Cooler on its own mount .
Attached Thumbnails
Click image for larger version

Name:	569DC6BF-F664-472D-B59F-0C0D2BAC50E3.jpeg
Views:	209
Size:	550.1 KB
ID:	21154
__________________
Rv8
N 666 TA
First Flight 2-3-2015 🚀
Reply With Quote
  #10
Old 01-18-2022, 01:51 PM
Daida's Avatar
Daida Daida is offline

Join Date: May 2005
Location: Hannover, Germany
Posts: 193
Default

As the -8’s firewall is smaller than the -7’s, the “real estate” was an issue and i ended up putting a 20006’er on the engine mount.

IO-360 with squirters. Had too high oil temps, now it is more than adequate. I installed a shutter, works perfect.
Attached Thumbnails
Click image for larger version

Name:	08273A85-D452-4C9A-8664-8D0183D0089B.jpg
Views:	105
Size:	311.1 KB
ID:	21161  Click image for larger version

Name:	92A49A67-6C35-4700-A582-AFE53C82931C.jpg
Views:	218
Size:	349.4 KB
ID:	21162
__________________
RV-8 QB Germany
ECi XIO-360
Dynon SV

Flying since 11th July 2020
Reply With Quote
