Wing routing for AFS AOA

[Aiki_Aviator]

I am looking at routing the AFS AOA tubing through the wings in the RV-10 and wanted to find some picorial examples of how people have done this.

I think I want to run them through their own grommets back to the cockpit, however placement and options would be good before I do the damage...



[Aiki_Aviator]

Pictures anyone?

Sorry, are there no installation pictures of the AFS AOA routing out there that anyone has? I would really appreciate it if you could spare the time to add the pictures or even email them would be great.

Any help greatly appreciated.



[paul330]

Fron VANS web site FAQS:

http://www.vansaircraft.com/pdf/Wing_Wiring.pdf

As I understand it, provided you comply with the appropriate edge distances, you can pretty much route as you wish within reason. The wing is a stressed skin construction and the ribs do no contribute much to the overall structural integrity.



[CharlieWaffles]

I used the smaller 1/8" holes in the wing ribs, installed a snap bushing and ran through there. You should be able to see some pictures of it on my builder site under the wing section.



[flion]

My Kitlog Entry



[BGS]

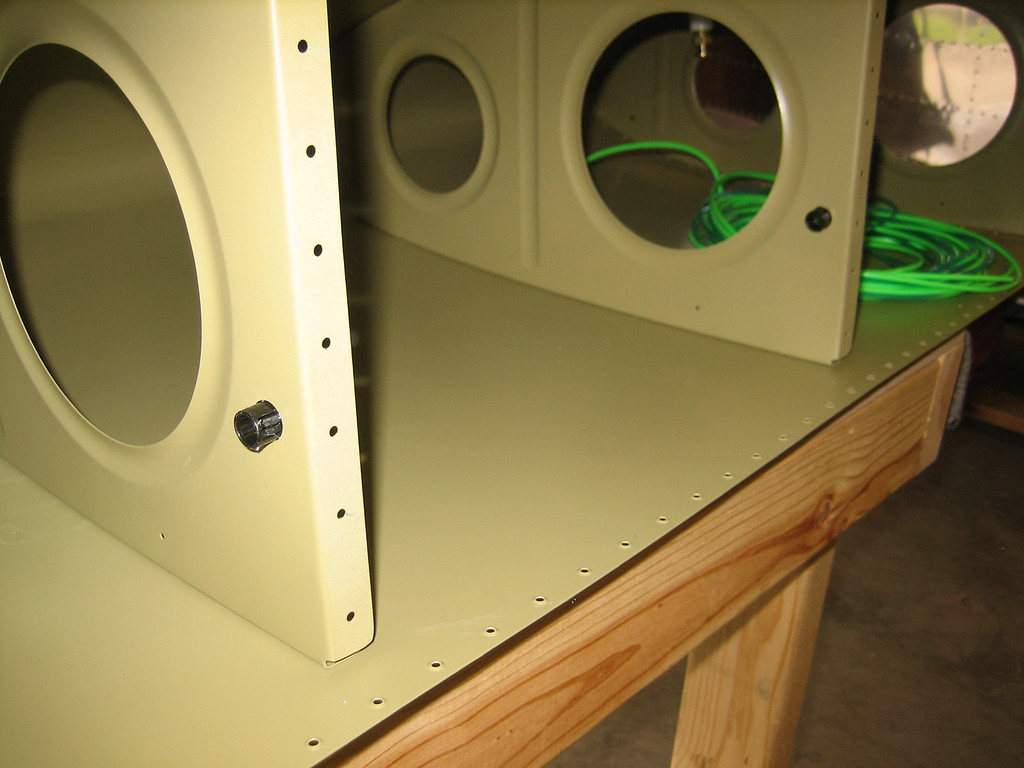

Here is where I put mine.



[jc11378]

AFS Tubing

I ran the AFS tubing down the same holes and the pitot line uses but in the rt wing. Pitot Lt wing along with Stall warning, and AFS AOA in rt win

Work well have not had time to update builders lig but shoot me a email to

[email protected] and i am more then willing to send you pic's



[sportpilot]

AOA

I ran the tubing down a conduit on the right wing to add a layer of protection At the wing tip I brought the tubes around thru a gromet and then into the conduit. scroll down on this link for several views of routing.
http://btconline.net/~sportpilot/RV10/boatright2
