Stall horn wiring

[bhassel]

I've checked most of the builder sites I can find, but I'm having trouble locating pictures of the connector (inboard) end for wiring of the stall horn and lights.

I'm not really sure how it goes or looks. Any pictures or links?

Thanks,

Bob



[John-G]

Bob,

Not sure, but I think the info you may be looking for was documented on my builder site on Feb 9, 2013 at the following link:

http://www.dogaviation.com/2013/02/left-wing-electrical-connector-completed.html

Hope that gets you going in the right direction. I have added a second landing light in the left wing for wig-wag operation so that is why there are so many wires in addition to the stall warning wire and ground.

Happy building,



[MacPara]

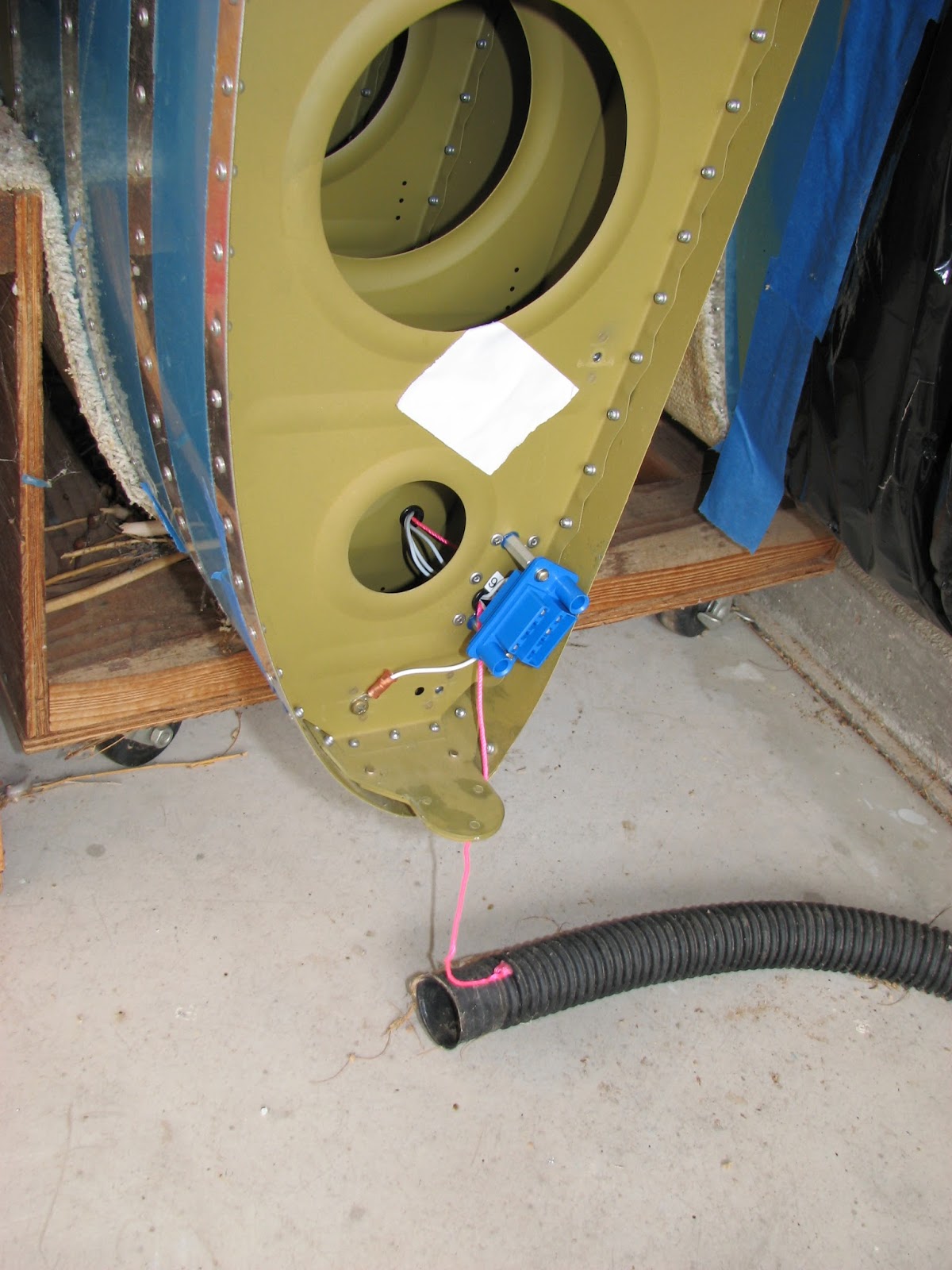

You mean the wing's electrical connectors? I have a picture of the right wing root after changing from the previously used screw heads to a floating plug. Therefore I am not sure if this is part of the wing kit now or if it comes with the fuselage kit.

Also note that the female plug shown in the picture is for the right wing. The left wing would have the male version which has pins in its diagonal corners.



[bhassel]

Perfect pictures! Thanks!

I didn't get the correct pages on either of your websites.

It's been a few decades and a few lifetimes since I was an electronics tech, mostly that was circuit boards and solder...

Bob
