So, I'm exposing my inability to drill straight up while standing on my head with a pan-adapter drill bit...but now that that's out there, I have a question for those who have done this before me.
The F-1093 Rudder Pedal Jig is aligned by the forward holes in the longeron. On the left side, my jig overhangs 1/8" outboard of the longeron; on the right side, 5/16". They should be the same... :-(

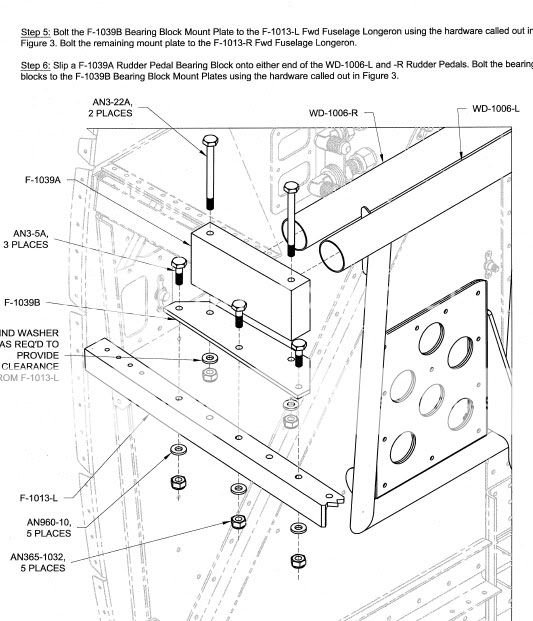

Does anyone remember or have a picture of where it should be positioned so that I can drill those twelve rudder pedal attach holes in the correct place? Or alternatively, how much edge distance is there on the aft most hole?
Thanks!
-Jim
![](/proxy.php?image=http%3A%2F%2Fimg262.imageshack.us%2Fimg262%2F1787%2Frudderjigleft.jpg&hash=af9ef861af39f1fb4d230f8d01939dc5)
![](/proxy.php?image=http%3A%2F%2Fimg824.imageshack.us%2Fimg824%2F673%2Frudderpedaljigright.jpg&hash=62595e47e7b4e93c81d090f71275bb04)
