G3X and Hall Effect device

I am looking for an "easy" way to install a shunt on my -14 battery. g3x system. I have the VPX so no need for main system sensing - just the health and status of the battery.



For a G3X expert, does the shunt have to be on the (+) side of the battery? Chris over at Stein thought the Garmin 900 series had a shunt on the Battery Ground cable and I am wondering could I do that on the g3X? That way it is not always hot and slowly draining the battery as well as having hot wires behind the panel all the time.



I am trying to avoid breaking into the neat buss bar already set up on the -14 between the main contactor and starter solenoid as this is where I have the B leads from both ALT tying into the system.


Option 2 is a Hall effect device on the (+) battery cable - but the AMP Key 100 garmin specifies is +4.5 VDC to +10VDC range Needless to say I am +14VDC........


Thoughts?



Thanks
Mark

I put a shunt in the normal place but I also put a hall sensor on the wire inside the firewall. The hall sensor will show actual ship loads from the battery if the primary alternator fuse opens or the shunt fails. Also did it for the fun of having it. Works great as described. The hall sensor isn?t very cheap but real convenient. It probably would saturate in a non critical way on the battery groundwhen the starter is cranked and be inaccurate for that.

IThat way it is not always hot and slowly draining the battery as well as having hot wires behind the panel all the time.
Thanks
Mark

The shunt does not create a drain on the battery. It only steals a TINY amount of current when the circuit is flowing current. It takes nothing when the device it is connect to (GEA24) is powered down.

Larry

Also the hall ring gets its power from the GEA24 so the power to it is in spec. It doesn?t take a bus connection.

The 4.5 to 10 volt is its output voltage and the g3x can read that fine. I installed a hall effect sensor on the firewall using the existing adel clamp (upsized to a -25) for the wire inbetween the battery and master contactor. It should work as an ammmeter showing current in both directions.

GEA 24 Hall Effect Sensor

I am looking for an "easy" way to install a shunt on my -14 battery. g3x system. I have the VPX so no need for main system sensing - just the health and status of the battery.



For a G3X expert, does the shunt have to be on the (+) side of the battery? Chris over at Stein thought the Garmin 900 series had a shunt on the Battery Ground cable and I am wondering could I do that on the g3X? That way it is not always hot and slowly draining the battery as well as having hot wires behind the panel all the time.



I am trying to avoid breaking into the neat buss bar already set up on the -14 between the main contactor and starter solenoid as this is where I have the B leads from both ALT tying into the system.


Option 2 is a Hall effect device on the (+) battery cable - but the AMP Key 100 garmin specifies is +4.5 VDC to +10VDC range Needless to say I am +14VDC........


Thoughts?



Thanks
Mark

We use the #3 and #4 General purpose inputs on the GEA 24 for Hall effect transducers. The GEA 24 provides 5V supply voltage directly to the Hall effect unit. The AMPLOC KEY100 outputs 2.5V at zero amps, with a sensitivity of 15.9 mV/Amp up to +/- 100 A. There is an interconnect drawing that details this interface on page 30-4 of the AL Revision of the G3X Touch Installation Manual.

If using a shunt to monitor the battery, our recommendation is to mount the shunt between the positive (+) terminal and the battery contractor.

Thanks,

Justin

Old thread, but seemed like a good place to post this as it's often asked. For KEY100 (Amploc) hall sensors, connecting to the G3X, a good connector is the Molex 5051-03 connector (newer part number is 22-01-1032). Available here. Use the Molex 2759 series pins; I use the gold plated ones

Just about any 3 circuit connector with a 2.5mm pitch will work, but I know that the Molex connectors will latch to the sensor, others may not.

Last edited:
Amploc current sensors

I have an application where I want to monitor lower amp draws and don't want to use a shunt that might get damaged rendering my fuel pumps inoperative. I want to use a hall effect current sensor. The Amploc Key100 seems to be the go-to sensor used (I have Garmin G3X systems). Amploc makes another series called the Amp and Pro25. I believe either will work? Anyone have any experience with them? I want to be able to understand if I have a prefilter (before the fuel pump) clogging (There will be a 1-amp reduction when that occurs) or if the post filter (After the fuel pump) starts to clog as their will be a 2-amp increase. Normal amp draw 5 amps. The PRO25 seems to have better sensitivity. I'm assuming I could loop the power line around the coil twice and change the range settings to further improve the sensitivity? Thanks

The G3X system is set up for Amploc KEY100 sensors, so that is what I would probably use since it is known to work. If you want more sensitivity for smaller maximum currents, you can loop the wire through a few times and adjust the sensor scale factor calibration accordingly.

How many loops?

Matt, as always appreciate the input. Since I’m looking to sense in 5 amp range with maximum 10 amps, any reason not to loop 10 times for the Key100 ? Thanks

Matt, as always appreciate the input. Since I’m looking to sense in 5 amp range with maximum 10 amps, any reason not to loop 10 times for the Key100 ? Thanks

I don't see why not. Although, now that I look at the manufacturer's datasheets, I think you actually could also use something like an AMP25 which would give you increased sensitivity. The two main constraints are that your sensor has to have a 2.5V output at 0A, and you have to know the mV/A scale factor. Not having tried it myself, I can't say for sure if it will work, but it seems reasonable.

AMPLOC Hall Sensor Bracket

I wanted to mount AMPLOC hall sensors on my firewall. I 3D printed a complete housing for the sensor that also secures the Molex connector and provides stress relief. Her is a pix of the bracket. The STL files can be found here: https://rv10.ca/3d-printed-stuff/


Attachments

  • IMG_6387-2.jpg
    509.4 KB · Views: 39
Last edited:
I wanted to mount AMPLOC hall sensors on my firewall. I 3D printed a complete housing for the sensor that also secures the Molex connector and provides stress relief. Her is a pix of the bracket. The STL files can be found here: https://rv10.ca/3d-printed-stuff/

Excellent work, always a little surprised AMPLOC don’t provide some mounting points or a holder of some kind for the products. Thanks for sharing the STL file.

I wanted to mount AMPLOC hall sensors on my firewall. I 3D printed a complete housing for the sensor that also secures the Molex connector and provides stress relief. Her is a pix of the bracket. The STL files can be found here: https://rv10.ca/3d-printed-stuff/

Very much appreciated and the link to the Control Approach pedal gust lock is great as well. Thanks for your contributions to the community and especially the SDS testing you do.

I don't see why not. Although, now that I look at the manufacturer's datasheets, I think you actually could also use something like an AMP25 which would give you increased sensitivity. The two main constraints are that your sensor has to have a 2.5V output at 0A, and you have to know the mV/A scale factor. Not having tried it myself, I can't say for sure if it will work, but it seems reasonable.

Hey Matt @mburch ,

I just installed an amploc Key100 (https://amploc.com/products/key100-open-loop-hall-effect-sensor)

And for whatever reason the datasheet says to use 15.9 mv per amp and 2.3v offset, but mine doesn't agree with my amp clamp meter. If I set the calibration for 10.9v AMP offset then the display looks right and agrees with my meter, but I can't find any way that makes sense. Do you have any updated information on setting one of these up?

Thanks!
schu

Hey Matt @mburch ,

I just installed an amploc Key100 (https://amploc.com/products/key100-open-loop-hall-effect-sensor)

And for whatever reason the datasheet says to use 15.9 mv per amp and 2.3v offset, but mine doesn't agree with my amp clamp meter. If I set the calibration for 10.9v AMP offset then the display looks right and agrees with my meter, but I can't find any way that makes sense. Do you have any updated information on setting one of these up?

Sorry, everything I know about these comes from the manufacturer's datasheet. Have you double checked that you are powering yours from 5V and not something else?

Hey Matt @mburch ,

I just installed an amploc Key100 (https://amploc.com/products/key100-open-loop-hall-effect-sensor)

And for whatever reason the datasheet says to use 15.9 mv per amp and 2.3v offset, but mine doesn't agree with my amp clamp meter. If I set the calibration for 10.9v AMP offset then the display looks right and agrees with my meter, but I can't find any way that makes sense. Do you have any updated information on setting one of these up?

Thanks!
schu

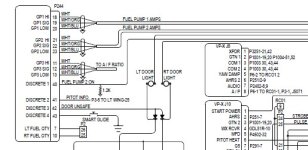

My hall effect sensors (Key 100) are wired per the attached drawing and perform per the data sheet. I did need to wrap the positive lead of the fuel pump around the sensor 10 times to obtain the sensitivity I wanted but the set-up allows for this. Work well.


Attachments

  • Screenshot 2024-06-09 095752.jpg
    Screenshot 2024-06-09 095752.jpg
    44.1 KB · Views: 5
Sorry, everything I know about these comes from the manufacturer's datasheet. Have you double checked that you are powering yours from 5V and not something else?
I powered it from the g3x on pin 11 and confirmed I'm getting 4.999 volts. I noticed the offset isn't listed in volts like the datasheet, it's listed as amps, so I wonder if there is a mathematical way to get from the 10.9A offset to 5/2.3 volts.

I did test a bit by running the the avionics, powering up and down various things as well as putting a charger on it and I can see the amps go up and down positive and negative in line with my amp clamp, so I'm tempted to just call it good and move on.

I noticed the offset isn't listed in volts like the datasheet, it's listed as amps, so I wonder if there is a mathematical way to get from the 10.9A offset to 5/2.3 volts.
Easier still to just adjust the offset until you see a number you like. This is easiest if you remove the bus wire from the sensor, so you can make sure it shows zero when there are zero amps. These sensors have some variability, and there are other factors that can affect the indicated value, so tweaking the offset to give the right amps number is the most straightforward way to go about it.

Appreciate the help. Now to print a mount for it.
RVPLASTICPARTS has a 3D printed mount that works well, I've used it and very secure. FYI


Attachments

  • Screenshot 2024-06-09 162949.jpg
    Screenshot 2024-06-09 162949.jpg
    32.7 KB · Views: 10
  • Screenshot 2024-06-09 162900.jpg
    Screenshot 2024-06-09 162900.jpg
    26.9 KB · Views: 10
  • Screenshot 2024-06-09 162807.jpg
    Screenshot 2024-06-09 162807.jpg
    22.1 KB · Views: 10
appreciate that, but I have a solid coper buss bar between my battery and contactor, so I'll design my own and print it with abs-gf.
