Default Stuck Installing HS-01231C

Hi Everyone,
I am at the step on the Horizontal Stabilator where I finished cleco'ing the skins to the skeleton and before riveting, I am supposed to cleco and then final drill the HS-01231C's. If you look at the attached picture, I have cleco'ed it in one corner and I have pointed out where the other three holes on the long edge aren't lining up. I tried turning it, checked all four and same problem. Has anyone else seen this?

Rob
https://drive.google.com/open?id=1nc...w7EJUtzyxlmWN6
__________________
PPL
RV-12is
Emp. - Complete
Moved to Hangar 8/11/2019
Wings - Complete
Fuselage - In Progress ETC December 31st
Finishing - Ordered ETA May 2022
2021 Dues Paid

Last edited by rgaynor : 01-20-2019 at 01:55 PM. Reason: image not showing
Reply With Quote
  #2
Old 01-20-2019, 02:03 PM
Mich48041 Mich48041 is offline

Join Date: Apr 2008
Location: Riley TWP MI
Posts: 3,237
Default

The rule of thumb for the RV-12 is that if it doesn't fit, the builder did something wrong.
__________________
Joe Gores
RV-12 Flying
Reply With Quote
  #3
Old 01-20-2019, 02:39 PM
rgaynor rgaynor is offline

Join Date: Dec 2018
Location: Boca Raton, FL
Posts: 25
Default

Anything?s possible but I?m not seeing how I could have messed this up.
__________________
PPL
RV-12is
Emp. - Complete
Moved to Hangar 8/11/2019
Wings - Complete
Fuselage - In Progress ETC December 31st
Finishing - Ordered ETA May 2022
2021 Dues Paid
Reply With Quote
  #4
Old 01-20-2019, 03:22 PM
Piper J3's Avatar
Piper J3 Piper J3 is offline

Join Date: Nov 2014
Location: Hinckley, Ohio
Posts: 2,567
Default

Try it this way...

__________________
-
Jim Stricker - EAA #499867
PPL/ASEL 1970 - Sport Pilot since 2007
80 hrs Flying Aeronca Chief 11AC N86203
1130 hrs Flying 46 Piper J-3 Cub N6841H
Bought Flying RV-12 #120058 Oct 2015 with 48TT - Hobbs now 750

LSRM-A Certificate 2016 for RV-12 N633CM
Special Thanks... EJ Trucks - USN Crew Chief A-4 Skyhawk
MJ Stricker (Father - CFI) - USAAF 1st Lt. Captain B-17H
Reply With Quote
  #5
Old 01-20-2019, 03:29 PM
rgaynor rgaynor is offline

Join Date: Dec 2018
Location: Boca Raton, FL
Posts: 25
Default

Thank you Jim. I am putting them on exactly as you have them but only one of the holes at align to the forward spar lines up. The other three don't, no matter which one I try its the same alignment issue.
__________________
PPL
RV-12is
Emp. - Complete
Moved to Hangar 8/11/2019
Wings - Complete
Fuselage - In Progress ETC December 31st
Finishing - Ordered ETA May 2022
2021 Dues Paid
Reply With Quote
  #6
Old 01-20-2019, 03:47 PM
DHeal DHeal is offline

Join Date: Sep 2006
Location: Windsor, California
Posts: 1,006
Default

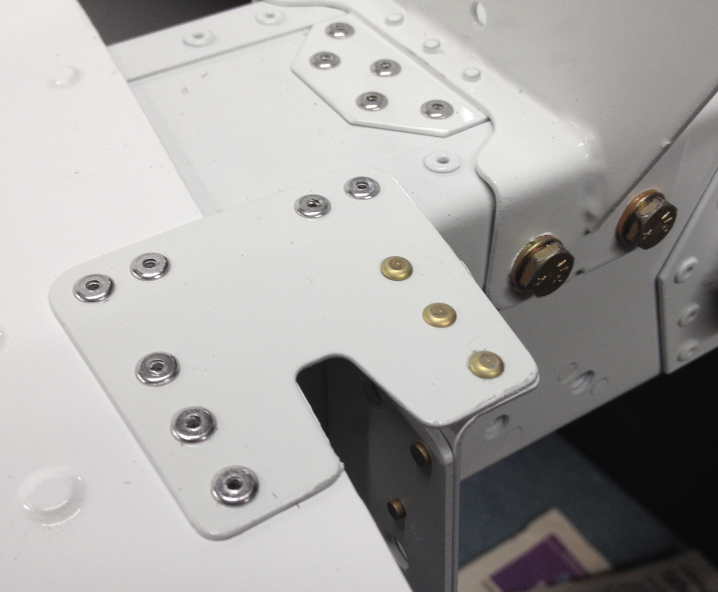

If you look at the two pictures in the above posts, note that the inboard longitudinal rivet pattern is parallel to the edge of the gusset in the OP's pix and the reverse orientation in the #2 pix. Something is amiss here! Flip the gusset over? My plans are out in the hangar so I can't verify the correct orientation.
