Thumbs up TS Flightlines Fuel Lines installed

My TS Flightlines fuel line look great

I fit the wing tank fuel lines today and I'm really happy. Tom does a great job of working with you to get the perfect fit.

All the fuel lines connected to the pump and Andair valve are TS Flightlines. The discharge line can be seen snaking underneath the pump to the firewall.

Edit: solid grommets to be used in final install. See post #8 below

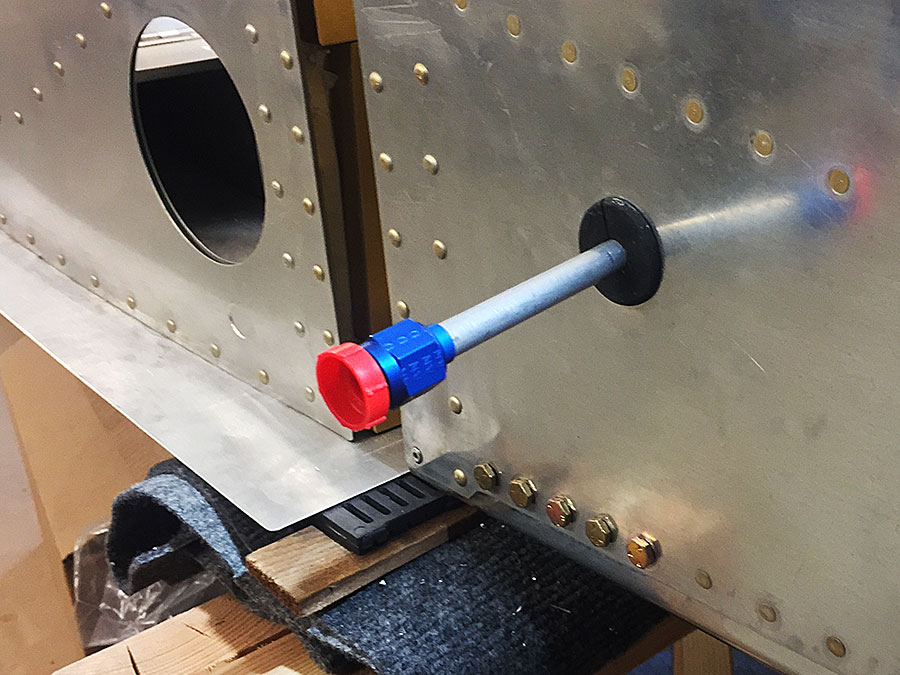

The wing tank TS Flightlines fuel line exiting the kick plate and through the fuselage. Very clean.


The TS Flightlines fuel line exiting the fuselage.
__________________
Michael Fleming
Joseph, OR
sagriver at icloud dot com

RV-7 Slider #74572
Started 11/2016
Empennage completed 11/2016 (sans fiberglass)
Ailerons and flaps completed 3/2017.
Wings completed 12/2017
Started on QB fuselage 01/2018
Sliding canopy mostly completed 10/2020
Wiring and Avionics harness completed 9/2/2021
FWF Started 9/3/2021

Donated for 2021 and so should you

Last edited by mfleming : 11-11-2018 at 12:26 PM.
Reply With Quote
  #2
Old 11-11-2018, 07:12 AM
TS Flightlines TS Flightlines is offline

Join Date: Apr 2010
Location: Ridgeland, SC
Posts: 2,935
Default

Michael wanted rigid tubes at the fuselage side skins. Normally we would a bulkhead fitting and a different rigid tube. After talking about it, he wanted a rigid tube from the tank to the teflon hose, at the fuselage side.

We "may" make this an option for the hose for the RV7/9 series.

Tom
__________________
Tom Swearengen, TS Flightlines LLC, AS Flightlines
Joint Venture with Aircraft Specialty
Teflon Hose Assemblies for Experimentals
Proud Vendor for RV1, Donator to VAF
RV7A Tail Kit Completed, Fuse started-Pay as I go Plan, on hold while we develop new products for RV builders
Ridgeland, SC
www.tsflightlines.com, www.asflightlines.com
Reply With Quote
  #3
Old 11-11-2018, 07:42 AM
krw5927 krw5927 is offline

Join Date: Aug 2010
Location: Wichita, KS
Posts: 1,987
Default

Very clean looking installation.

Michael or Tom, can you help us understand why rigid tube might be preferable here?

Also, what material is the rigid section? I'm wondering if the teflon section can be crimped to aluminum, or if stainless tube was needed.
__________________
Kurt W.
RV9A
FLYING!!!

Last edited by krw5927 : 11-11-2018 at 07:48 AM.
Reply With Quote
  #4
Old 11-11-2018, 07:44 AM
maniago's Avatar
maniago maniago is offline

Join Date: Aug 2014
Location: Bowie MD
Posts: 890
Default

Each to his own, but a split grommet around a fuel line thru a bulkhead would make me nervous.....I've been able to stretch grommets enough to get them over the nut, but probably one size bigger hole.

As an aside, and not sure if anyone does this anyway, but I dont consider a grommet as a positive atch point to the fuse.....

Just my .02.
__________________
Mani
Busby MustangII (FoldingWing) Pending DAR.
Don't be a hater; I'm a cousin with thin wings!
N251Y
Reply With Quote
  #5
Old 11-11-2018, 08:28 AM
6 Gun 6 Gun is offline

Join Date: Jun 2005
Posts: 846
Default Plate

I would think the kick plate needs to be removable for inspection.
Bob
Reply With Quote
  #6
Old 11-11-2018, 10:49 AM
TS Flightlines TS Flightlines is offline

Join Date: Apr 2010
Location: Ridgeland, SC
Posts: 2,935
Default

Kurt, we used 5052O aluminum. Rigid tube can bend alittle tighter that teflon hose, and thats what Michael wanted. There is a slot cut in the covers to be able to remove them for inspection.

Mani---the grommets are not an attachment point, but an insulator between the hole and the rigid tube. 'Probably could" slide on the grommets before crimping the hoses, but we havent seen any issues with a slit grommet. Doesnt mean its a perfect solution, but certainly works well.

Tom
__________________
Tom Swearengen, TS Flightlines LLC, AS Flightlines
Joint Venture with Aircraft Specialty
Teflon Hose Assemblies for Experimentals
Proud Vendor for RV1, Donator to VAF
RV7A Tail Kit Completed, Fuse started-Pay as I go Plan, on hold while we develop new products for RV builders
Ridgeland, SC
www.tsflightlines.com, www.asflightlines.com
Reply With Quote
  #7
Old 11-11-2018, 11:07 AM
maniago's Avatar
maniago maniago is offline

Join Date: Aug 2014
Location: Bowie MD
Posts: 890
Default

Quote:
Originally Posted by TS Flightlines View Post

Mani---the grommets are not an attachment point, but an insulator between the hole and the rigid tube. 'Probably could" slide on the grommets before crimping the hoses, but we havent seen any issues with a slit grommet. Doesnt mean its a perfect solution, but certainly works well.

Tom
re: split, I understand Tom, and I'd get pretty grumpy if I had such and a DAR called me on it. Was more just a comment, like split loom vs snake skin for wiring, if all things were equal.
__________________
Mani
Busby MustangII (FoldingWing) Pending DAR.
Don't be a hater; I'm a cousin with thin wings!
N251Y
Reply With Quote
  #8
Old 11-11-2018, 11:12 AM
mfleming's Avatar
mfleming mfleming is offline

Join Date: Sep 2016
Location: Joseph, Oregon
Posts: 809
Default

Quote:
Originally Posted by maniago View Post
Each to his own, but a split grommet around a fuel line thru a bulkhead would make me nervous.....I've been able to stretch grommets enough to get them over the nut, but probably one size bigger hole.

As an aside, and not sure if anyone does this anyway, but I dont consider a grommet as a positive atch point to the fuse.....

Just my .02.
The split grommet should work fine as Tom mentioned but an intact grommet would be a bonus.

The fuel system is not installed permanently, just a trial fit. On the final fit, I'll experiment on getting a grommet over the nut or maybe using a adhesive to join the butt ends.

Edit: OK, I couldn't wait. I fit a AN931-6-16 grommet over the 'B' nut. This grommet is the ⅜" ID for the tubing section of the fuel line.

Here's a photo of the grommet going over the 'B' nut:



This did not cause any damage to the grommet. The AN931-8-13 grommets are used for the braided section and they have a ID of ?" so they will be even easier.

Solid grommets it is
__________________
Michael Fleming
Joseph, OR
sagriver at icloud dot com

RV-7 Slider #74572
Started 11/2016
Empennage completed 11/2016 (sans fiberglass)
Ailerons and flaps completed 3/2017.
Wings completed 12/2017
Started on QB fuselage 01/2018
Sliding canopy mostly completed 10/2020
Wiring and Avionics harness completed 9/2/2021
FWF Started 9/3/2021

Donated for 2021 and so should you

Last edited by mfleming : 11-11-2018 at 11:44 AM. Reason: Add content
Reply With Quote
  #9
Old 11-11-2018, 12:37 PM
mfleming's Avatar
mfleming mfleming is offline

Join Date: Sep 2016
Location: Joseph, Oregon
Posts: 809
Default

Quote:
Originally Posted by krw5927 View Post
Very clean looking installation.

Michael or Tom, can you help us understand why rigid tube might be preferable here?..............
Tom fitted the rigid tubing to the fuselage exit because in my installation I thought the teflon line was under too much stress trying to make the 'S' bend coming from the kick plate and exiting the fuselage. The final setup is not under any stress and the fuel line lays naturally in the grommets. Tom made sure the angle of the rigid tubing matched the exit line so there is no twisting force on the line either.
__________________
Michael Fleming
Joseph, OR
sagriver at icloud dot com

RV-7 Slider #74572
Started 11/2016
Empennage completed 11/2016 (sans fiberglass)
Ailerons and flaps completed 3/2017.
Wings completed 12/2017
Started on QB fuselage 01/2018
Sliding canopy mostly completed 10/2020
Wiring and Avionics harness completed 9/2/2021
FWF Started 9/3/2021

Donated for 2021 and so should you
Reply With Quote
  #10
Old 11-12-2018, 08:38 AM
TS Flightlines TS Flightlines is offline

Join Date: Apr 2010
Location: Ridgeland, SC
Posts: 2,935
Default

Kurt, oops sorry I missed this part. Crimping teflon hose to aluminum tubing.
Ever seen an aluminum hose end with a crimped teflon hose? Many manufacturers do it. We dont use 3003, but 5052O or 6061T6. Most aluminum hose ends are either 2024 or the new spec of 7075. WE take a thick walled tube .065 for the 3/8 tubes and machine the end so it duplicates a hose end stem. Crimped to spec. We tested them to 3000 psi. I think Steve had a free burst of a tube at 6700 one time, but the crimp was fine.

Think of it this way. A hose end is just a shorter rigid tube with a machined stem. So--forward of the stem you can make the tube to ANYTHING you want to accomplish the desired effect. Bends of different degrees, offset angles and axis, gee most anything you can think up.

304 stainless is great---strong, reliable, looks great, and is tough on machine tools.

Tom
