Default Labeling stick buttons?

Do the buttons on the stick need to be labeled?
I'm assuming they do.

I have the Tosten grips and they just don't have much area for labels.

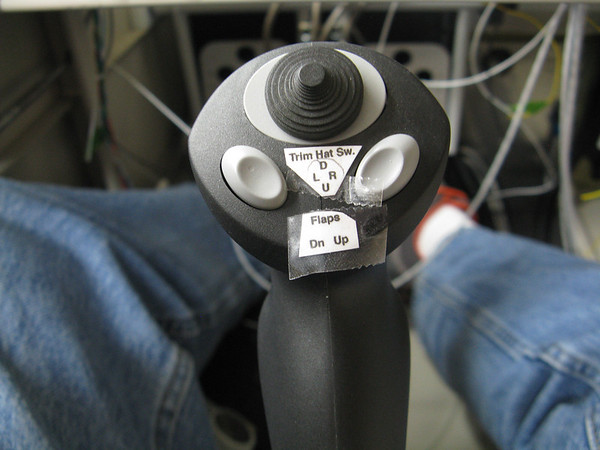

I did some preliminary cut and paste of paper labels in preparation for making labels with Decalpro. It is going to be really tough to get these looking good, and the PTT on the trigger button and AP disconnect button aren't visible from the pilot view.

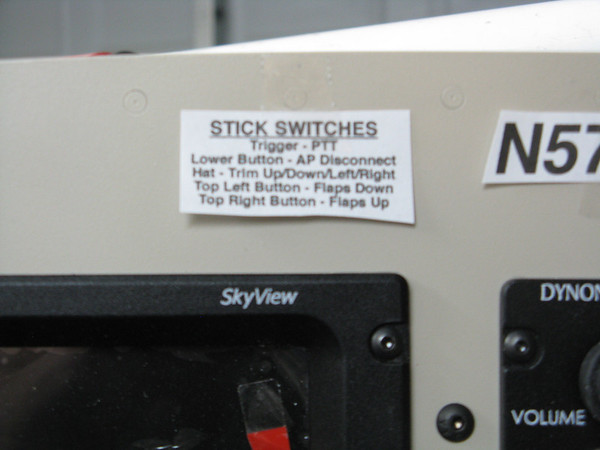

As an alternative, I'm thinking that a simple placard on the panel should suffice for any labeling requirements. Something like this:



Any issues with labeling for the stick switches on the panel?
__________________
Bruce Hill
RV-9A N5771H flown over 900 hours!
http://www.overthehills.com/RV-9A-Project
APRS Tracking for KJ6YRP and Flying Over the Hills Blog
2021 VAF donator
EAA Tech Counselor, Pre Buys, Build assistance - canopy/tanks/fiberglass/electrical/repairs
Reply With Quote
  #2
Old 11-14-2013, 12:02 PM
krw5927 krw5927 is offline

Join Date: Aug 2010
Location: Wichita, KS
Posts: 1,986
Default

Excellent question. Same setup here. Watching intently what some of the AW experts (Mel?) have to say.
__________________
Kurt W.
RV9A
FLYING!!!
Reply With Quote
  #3
Old 11-14-2013, 12:20 PM
N427EF N427EF is offline

Join Date: Oct 2005
Posts: 1,564
Default No, but

The short answer is no, they don't have to be labeled but keep a reference diagram in your operating handbook in case someone else needs to fly your plane someday. I wouldn't clutter up the instrument panel with a look up diagram.
Keep the arrangement conventional as you have and you won't forget what the buttons do.
I have the same grip and the trigger button is push to talk, the little round one underneath serves as the autopilot connect/disconnect.
Lower left and right are rudder trim for me.
__________________
Ernst Freitag
RV-8 finished (sold)
RV-10 IO-540 8.5:1
Running on 91 Octane E10 mogas since 2011
Don't believe everything you know.
Reply With Quote
  #4
Old 11-14-2013, 12:27 PM
BobTurner BobTurner is offline

Join Date: Dec 2011
Location: Livermore, CA
Posts: 7,856
Default

My DAR said I needed labels. I showed him my descriptions in a POH I wrote, he still wanted labels. I made some hand-drawn ones similar to the first photo, while he was there, and he was happy. I did not ask about a placard but I think that should be okay.
Reply With Quote
  #5
Old 11-14-2013, 01:05 PM
Mike S's Avatar
Mike S Mike S is offline
Senior Curmudgeon

Join Date: Sep 2005
Location: Dayton Airpark, NV A34
Posts: 16,096
Default

I have the same stick, and my inspector (FAA, not DAR) did not require them.
__________________
Mike Starkey
VAF 909

Rv-10, N210LM.

Flying as of 12/4/2010

Phase 1 done, 2/4/2011

Sold after 240+ wonderful hours of flight.

"Flying the airplane is more important than radioing your plight to a person on the ground incapable of understanding or doing anything about it."
Reply With Quote
  #6
Old 11-14-2013, 01:09 PM
DanH's Avatar
DanH DanH is offline

Join Date: Oct 2005
Location: 08A
Posts: 10,346
Default

Quote:
Originally Posted by Mike S View Post
I have the same stick, and my inspector (FAA, not DAR) did not require them.
Nor did mine.

Matt Dralle did the best on-panel stick grip illustration I've ever seen. If you can do the artwork I imagine Stein can put it on a decal sheet. It looks so good that I'd probably do it just for decoration.

__________________
Dan Horton
RV-8 SS
Barrett IO-390
Reply With Quote
  #7
Old 11-14-2013, 01:46 PM
Mike S's Avatar
Mike S Mike S is offline
Senior Curmudgeon

Join Date: Sep 2005
Location: Dayton Airpark, NV A34
Posts: 16,096
Default

Dan, do you have a close up of the decal??

And a full panel shot, looks interesting with what is showing.

Thanks,
__________________
Mike Starkey
VAF 909

Rv-10, N210LM.

Flying as of 12/4/2010

Phase 1 done, 2/4/2011

Sold after 240+ wonderful hours of flight.

"Flying the airplane is more important than radioing your plight to a person on the ground incapable of understanding or doing anything about it."
Reply With Quote
  #8
Old 11-14-2013, 02:54 PM
southtarnation's Avatar
southtarnation southtarnation is offline

Join Date: Oct 2008
Location: Punta Gorda, Fl
Posts: 325
Default

Link to grip silk screen as seen above.

http://forums.matronics.com/files/20...ng__0__475.jpg

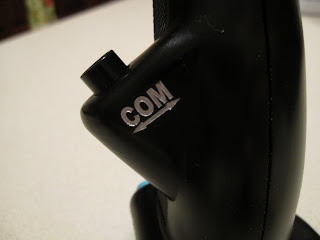

Guy named Mark Riley engraved his infinity grip in his velocity...

http://3.bp.blogspot.com/_ZFtu-X_jj9...0/IMG_2876.jpg

Id like to do both!
__________________
Jesse
'89 RV-4, N2626C - purchased flying
Converted to Fastback - Sliding Canopy - Tall Gear
Dynon Skyview w/ acc. & VP-x Sport
Catto 3-Blade (gen. 1)
Based: KPGD
Reply With Quote
  #9
Old 11-14-2013, 03:00 PM
rleffler's Avatar
rleffler rleffler is offline

Join Date: Jun 2006
Location: Delaware, OH (KDLZ)
Posts: 4,283
Default

I put an illustration similar to Matt's in my POH.

FSDO never asked to see my POH nor commented on the lack of labeling on my sticks.

I like the engraved stick, but I imagine finding somebody to do the engraving without costing an arm or leg to get it done may be problematic.
__________________
Bob Leffler
N410BL - RV10 Flying
http://mykitlog.com/rleffler
Reply With Quote
  #10
Old 11-14-2013, 03:07 PM
DanH's Avatar
DanH DanH is offline

Join Date: Oct 2005
Location: 08A
Posts: 10,346
Default

Quote:
Originally Posted by Mike S View Post
And a full panel shot, looks interesting with what is showing.
Matt's is screened because of the textured panel finish. A decal graphic would look good under a few coats of clear.

More in the RV-8 progress thread:

http://www.vansairforce.com/communit...d.php?p=411284
__________________
Dan Horton
RV-8 SS
Barrett IO-390
Reply With Quote
