  #1
Old 04-21-2021, 11:13 AM
g3xpert's Avatar
g3xpert g3xpert is offline

Join Date: Sep 2010
Location: Olathe, KS
Posts: 3,073
Default G3X Touch Software Update 8.81 (4/21/2021)

Hello,

We released G3X Touch Version 8.81 to the Software Download Area today. Please note from the list shown below that many system LRU's have new software. After updating the software in the PFD1 with the SD card, the display will reset, and at that time it is best to press and hold the Menu button while it starts up in Configuration mode. Go to the System Information page on the PFD1 and watch all devices completing the software update before taking the PFD1 out of configuration mode and verifying proper operation for the updated system.

There are a few frequently requested updates included in this revision, such as the transfer of fuel flow data to GTN (Xi) Navigators. Our primary mission is to increase the margin of safety for owners and operators of EAB aircraft, and we are very happy to also include a number of updates that improve system reliability and redundancy in this release. Several of these updates will be migrated to a GDU 3XX software update, which will be released shortly after this update.

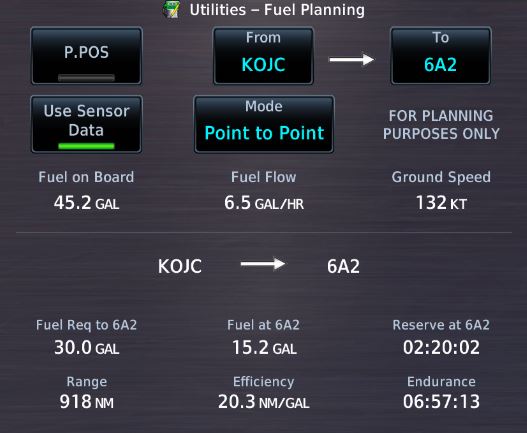

  • One of the most frequently requested updates we have received is to allow fuel flow information to be sent from the G3X Touch to an adjacent GTN (Xi) Series Navigator. This G3X Touch software update will make that data transfer possible. Updated GTN (V6.71+) or GTN Xi (V20.12+) software is required for this to work. The GTN Software update can be found using the same link provided above for the G3X Touch software. Once the GTN is updated, change the ARINC input on the GTN (that is receiving data from the GAD 29) from EFIS FORMAT 2 to GDU FORMAT 2. You will then be able to select Use Sensor Data on the GTN (Xi) Fuel Planning page. No configuration change is required on the G3X Touch side. Fuel Remaining is also sent to the Navigator using this datapath.

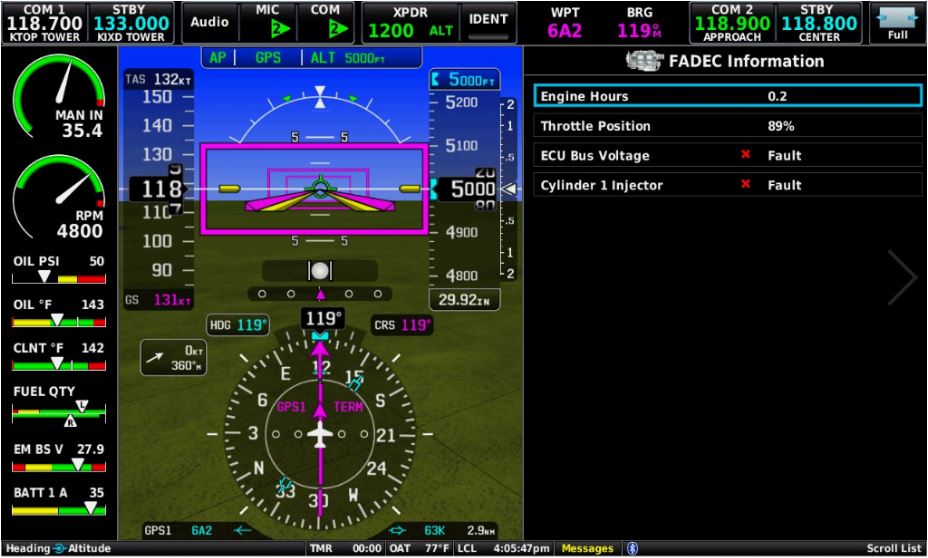

  • Display of Rotax FADEC information in normal mode. This can be accessed from the ENG menu, by pressing the MENU button and selecting FADEC Information. Alternatively, press MENU twice, select Setup, Engine, and then FADEC to view this information.



  • Added support for a second GMC 507 Autopilot Controller. This can be especially helpful in tandem aircraft, as it will be possible to install a dedicated autopilot controller in both positions. Identification of GMC 507 #2 is accomplished by strapping pins 1 and 2 on the GMC mode controller connector.
  • GEA 24 P Lead RPM Sensing. 24.3.5.3 of the G3X Touch Installation manual, revision AN provides specific installation guidance for this type of installation. A MOD 2 GEA 24 is required to make a direct connection from the GEA 24 to a P-lead for these purposes.

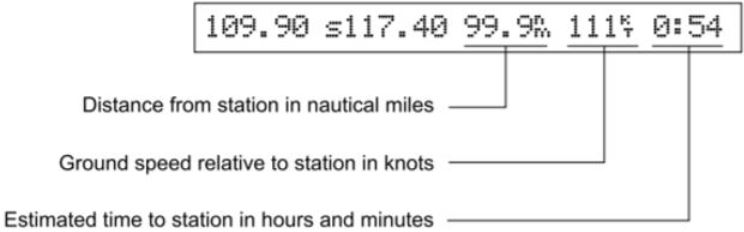

  • Provide DST data on GARMIN VHF NAV output, to an SL 30 NAV/COM. To enable display of this information on the SL-30, Press SEL while in NAV mode. Turn the large knob to the DST datalist. Press ENT to enable the display of DST data.



  • Added 3rd ECS External Light Priority Mode. The new Switch OFF priority mode will cause the external lights to remain off when the corresponding switch is off, regardless of the current flash state. If the switch is on, the lights will either be on or flashing, depending on flash state.
  • Improved redundancy in communication between transponder and GDU. A transponder communicates with the G3X Touch system through a serial connection to the GSU 25. The GSU 25 typically already has a backup RS-232 datapath to the GDU in place for ADAHRS data redundancy purposes. In the event of a CAN bus failure, the transponder can now use that existing backup RS-232 datapath, providing GPS data to the GDU if the transponder is an internal GPS model, and making transponder remote control possible.
  • Further improved redundancy of transponder datapath. We now make possible an RS-232 connection from the transponder to a second GSU 25, in dual GSU 25 installations.
  • Fuel flow can now be configured in the Units menu, to display in pounds or kilograms of avgas.
  • Added miscompare monitoring option to PFD Configuration page. In a system with a single ADAHRS LRU (GSU 25/73), selecting "ADAHRS + SFD" will always perform miscompare monitoring between the standby flight display (G5) and the ADAHRS LRU. In a system with multiple ADAHRS LRUs, selecting "ADAHRS + SFD" will only perform miscompare monitoring between the G5 and GSU 25/73 when the system has been degraded to the equivalent of a single ADAHRS due to the loss of all other ADAHRS LRUs. If set to Disabled or ADAHRS Only, the G5 will not be compared with the GSU 25/73.

    If a miscompare condition is detected, a CAS message will be populated to describe the condition. A miscompare between a G5 and GSU 25 does not disengage the autopilot, but depending on the nature of the miscompare, may disarm envelope protection on one or more axes, which is also annunciated with a CAS message. This feature provides confirmation that your G5 and GSU 25, which calculate attitude differently, agree on the attitude and air data values. If they are in disagreement, we flag the condition to the pilot, and prevent ESP from providing control input based on potentially incorrect GSU 25/73 data.

This is a link to our G3X Touch Manuals page, you can find the most recent revisions of the Pilot's Guide and Installation Manual here for reference, as well as several other helpful links.

Public Release Notes
Add fuel flow/quantity labels to EFIS/Airdata ARINC 429 output format
Add support for multiple GMC 507 AFCS mode control panel LRUs
Add support for miscompare monitoring between ADAHRS and standby flight display
Add ability to control transponder via reversionary ADAHRS RS-232 connection and/or redundant RS-232 connections to multiple ADAHRS LRUs
Add support for RPM sensing via P-lead connection (requires GEA 24 Mod level 2)
Add DST data to VHF Nav/Com RS-232 output format
Add additional data to Text Out RS-232 output format
Add ability to configure aircraft sink rate by entering glide ratio
Add ability to view FADEC maintenance information in normal mode
Add support for Rotax SCU 9iS FADEC interface
Add canard aircraft map symbol
Add Engine Setup page for normal mode access to EIS settings and calibration
Add ability to enable/disable fuel calculator automatic reset of fuel-used quantity in normal mode
Add config mode option to control display of trim/flap gauges on PFD
Add additional GAD 27 landing/taxi light switch priority mode
Add support for displaying fuel quantity and flow values in units of lbs or kg
Add CAS message to indicate ADS-B transmit inhibited by pilot
Add CAS messages to indicate ESP inhibited
Improve heading display when true direction is selected
Improve GNX 375 GPS data processing
Improve GTX 23/33 RS-232 port configuration
Improve audio alert output
Improve ARINC 429 label output
Improve fuel tank reminder
Improve Connext data processing
Improve COM and NAV radio data processing
Change ESP to inhibit protection when a miscompare is detected and specific ADAHRS source is not selected
Change Rotax FADEC CAS alerts based on updated guidance from manufacturer
General improvements to system operation
Includes update to G5 software version 7.10
Includes update to GAD27 software version 2.50
Includes update to GAD29 software version 3.40
Includes update to GEA24 software version 3.80
Includes update to GSA28 software version 4.90
Includes update to GSU25/B software version 4.30
Includes update to GSU25C/D software version 2.60
Includes update to timezone database version 26.00
Includes G5 boot block software version 2.20
Includes GAD13 software version 2.00
Includes GAD13 boot block software version 2.00
Includes GAD27 boot block software version 2.30
Includes GAD29 boot block software version 3.10
Includes GDL39 software version 4.91
Includes GDL5x software version 2.14
Includes GEA24 boot block software version 2.20
Includes GI260 software version 2.80
Includes GI260 boot block software version 2.20
Includes GMA245 audio software version 2.20
Includes GMA245 Bluetooth software version 2.00
Includes GMA245 software version 2.80
Includes GMA245 boot block software version 2.30
Includes GMC507 software version 2.90
Includes GMC507 boot block software version 2.30
Includes GMU11 software version 2.10
Includes GMU11 boot block software version 2.00
Includes GPS20A software version 2.40
Includes GPS20A boot block software version 2.10
Includes GSA28 boot block software version 2.20
Includes GSU25/B boot block software version 2.20
Includes GSU25C/D boot block software version 2.00
Includes GSU73 software version 3.80
Includes GSU73 IGRF database version 1.04 (Base Year 2020)
Includes GTR20/200 software version 3.30
Includes GTR20/200 boot block software version 2.30

As always, please feel free to send any questions our way. You can always contact us at G3Xpert@Garmin.com as well.

Thanks,

Justin
__________________
Garmin G3X Support
g3xpert@garmin.com
1-866-854-8433 - 7 to 7 Central Time M to F
Please email us for support instead of using Private Messaging due to the limitations of the latter.
Reply With Quote
  #2
Old 04-21-2021, 11:36 AM
JTJones's Avatar
JTJones JTJones is offline

Join Date: Jun 2015
Location: Haleiwa, HI
Posts: 148
Default Justin, please clarify...

...allow fuel flow information to be sent from the G3X Touch to an adjacent GTN (Xi) Series Navigator.

Can fuel flow info be sent only to Xi navigators or to GTN750 non Xi navigators as well?

Thanks
__________________
Jeffrey T Jones
RV-14 N588TJ Completed
First Flight July 10, 2018
Flight testing completed August 14, 2018
2021 VAF dues paid plus beer money😜
Reply With Quote
  #3
Old 04-21-2021, 12:02 PM
g3xpert's Avatar
g3xpert g3xpert is offline

Join Date: Sep 2010
Location: Olathe, KS
Posts: 3,073
Default Fuel Flow Transfer

Quote:
Originally Posted by JTJones View Post
...allow fuel flow information to be sent from the G3X Touch to an adjacent GTN (Xi) Series Navigator.

Can fuel flow info be sent only to Xi navigators or to GTN750 non Xi navigators as well?

Thanks
This works for both the GTN and GTN Xi Series Navigators.

Thanks,

Justin
__________________
Garmin G3X Support
g3xpert@garmin.com
1-866-854-8433 - 7 to 7 Central Time M to F
Please email us for support instead of using Private Messaging due to the limitations of the latter.
Reply With Quote
  #4
Old 04-21-2021, 04:26 PM
Wonderboy Wonderboy is offline

Join Date: Aug 2018
Location: New Hampshire
Posts: 15
Default

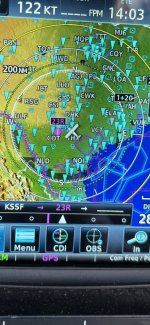

I have a GDL 50R providing traffic and WX to my two G3x Touch units via Bluetooth on one and hardwired to the second. Does this new release support all the WX functions via the hard wire or is it still necessary to use the BT connect for that data?
Reply With Quote
  #5
Old 04-22-2021, 03:36 AM
cderk's Avatar
cderk cderk is offline

Join Date: Sep 2015
Location: Park Ridge, NJ
Posts: 789
Default

... and now that I refreshed, I see the same question above ^^^^^

Justin, because i dont see it, I’m guessing I know the answer, but any updates on when the newer FIS-B weather products will be available over RS232 versus bluetooth?

For some reason I just dont get reliable Bluetooth connections between my G3X and 45R.

Thanks
Reply With Quote
  #6
Old 04-22-2021, 05:35 AM
ShortSnorter ShortSnorter is offline

Join Date: Dec 2013
Location: NOLA
Posts: 340
Default

Quote:
Originally Posted by g3xpert View Post
This works for both the GTN and GTN Xi Series Navigators.

Thanks,

Justin
Justin - I am I correct this will not work with the GNX375? If so, any plans to expand the software revisions?
__________________
Ryan
RV-14 In-Progress
Build Site
Reply With Quote
  #7
Old 04-22-2021, 08:05 AM
iamtheari iamtheari is offline

Join Date: Nov 2017
Location: ND
Posts: 562
Default

Thank you for this update and in general for your interactive approach to experimental avionics customers. Is there a document that gives a deeper description of the improvements? The one I am curious about at the moment is "Improve audio alert output" - what improvements were made?
Reply With Quote
  #8
Old 04-22-2021, 08:27 PM
hom409 hom409 is offline

Join Date: Jul 2012
Location: Cold Lake, AB, Canada
Posts: 32
Default

Quote:
Originally Posted by g3xpert View Post
Hello,
[*]Provide DST data on GARMIN VHF NAV output, to an SL 30 NAV/COM. To enable display of this information on the SL-30, Press SEL while in NAV mode. Turn the large knob to the DST datalist. Press ENT to enable the display of DST data.
[*]Improved redundancy in communication between transponder and GDU. A transponder communicates with the G3X Touch system through a serial connection to the GSU 25. The GSU 25 typically already has a backup RS-232 datapath to the GDU in place for ADAHRS data redundancy purposes. In the event of a CAN bus failure, the transponder can now use that existing backup RS-232 datapath, providing GPS data to the GDU if the transponder is an internal GPS model, and making transponder remote control possible.[*]Further improved redundancy of transponder datapath. We now make possible an RS-232 connection from the transponder to a second GSU 25, in dual GSU 25 installations.
[/list]
This is a link to our G3X Touch Manuals page, you can find the most recent revisions of the Pilot's Guide and Installation Manual here for reference, as well as several other helpful links.

Public Release Notes
Add fuel flow/quantity labels to EFIS/Airdata ARINC 429 output format
Add support for multiple GMC 507 AFCS mode control panel LRUs
Add support for miscompare monitoring between ADAHRS and standby flight display
Add ability to control transponder via reversionary ADAHRS RS-232 connection and/or redundant RS-232 connections to multiple ADAHRS LRUs
Add support for RPM sensing via P-lead connection (requires GEA 24 Mod level 2)
Add DST data to VHF Nav/Com RS-232 output format
Add additional data to Text Out RS-232 output format
Add ability to configure aircraft sink rate by entering glide ratio
Add ability to view FADEC maintenance information in normal mode
Add support for Rotax SCU 9iS FADEC interface
Add canard aircraft map symbol
Add Engine Setup page for normal mode access to EIS settings and calibration
Add ability to enable/disable fuel calculator automatic reset of fuel-used quantity in normal mode
Add config mode option to control display of trim/flap gauges on PFD
Add additional GAD 27 landing/taxi light switch priority mode
Add support for displaying fuel quantity and flow values in units of lbs or kg
Add CAS message to indicate ADS-B transmit inhibited by pilot
Add CAS messages to indicate ESP inhibited
Improve heading display when true direction is selected
Improve GNX 375 GPS data processing
Improve GTX 23/33 RS-232 port configuration
Improve audio alert output
Improve ARINC 429 label output
Improve fuel tank reminder
Improve Connext data processing
Improve COM and NAV radio data processing
Change ESP to inhibit protection when a miscompare is detected and specific ADAHRS source is not selected
Change Rotax FADEC CAS alerts based on updated guidance from manufacturer
General improvements to system operation
Includes update to G5 software version 7.10
Includes update to GAD27 software version 2.50
Includes update to GAD29 software version 3.40
Includes update to GEA24 software version 3.80
Includes update to GSA28 software version 4.90
Includes update to GSU25/B software version 4.30
Includes update to GSU25C/D software version 2.60
Includes update to timezone database version 26.00
Includes G5 boot block software version 2.20
Includes GAD13 software version 2.00
Includes GAD13 boot block software version 2.00
Includes GAD27 boot block software version 2.30
Includes GAD29 boot block software version 3.10
Includes GDL39 software version 4.91
Includes GDL5x software version 2.14
Includes GEA24 boot block software version 2.20
Includes GI260 software version 2.80
Includes GI260 boot block software version 2.20
Includes GMA245 audio software version 2.20
Includes GMA245 Bluetooth software version 2.00
Includes GMA245 software version 2.80
Includes GMA245 boot block software version 2.30
Includes GMC507 software version 2.90
Includes GMC507 boot block software version 2.30
Includes GMU11 software version 2.10
Includes GMU11 boot block software version 2.00
Includes GPS20A software version 2.40
Includes GPS20A boot block software version 2.10
Includes GSA28 boot block software version 2.20
Includes GSU25/B boot block software version 2.20
Includes GSU25C/D boot block software version 2.00
Includes GSU73 software version 3.80
Includes GSU73 IGRF database version 1.04 (Base Year 2020)
Includes GTR20/200 software version 3.30
Includes GTR20/200 boot block software version 2.30

As always, please feel free to send any questions our way. You can always contact us at G3Xpert@Garmin.com as well.

Thanks,

Justin
Justin:

So, still nothing done to improve the interoperability of the GNX375 with the G3X. My IPad can still control my 375 better than either of my 2 x G3X screens. As a PFD or MFD, it is quite sad that an IPad can fully modify before or during flight you entire flight plan. The current G3X software only allow you to switch to internal GPS to make VFR changes to a flight plan. We still have no capability to create a full IFR flight plan to include SID, airways, STARS, or full procedure approaches. All of these are easily achieved with ForeFlight and and iPad. The GNX375 will send update or receive update to the IPad.

Last time we spoke, your software engineers were looking into it. This was back in Aug 2020. Any updates?

Hom
__________________
"Hom"

F1 Harmon Rocket
@hom409 Instagram / Tiktok
CF18 and F1 Rocket
Will fly anything 🤙😎
Cold Lake, AB
Canada
Reply With Quote
  #9
Old 04-23-2021, 07:07 AM
g3xpert's Avatar
g3xpert g3xpert is offline

Join Date: Sep 2010
Location: Olathe, KS
Posts: 3,073
Default GNX 375 Fuel Flow Sensor Information

Quote:
Originally Posted by ShortSnorter View Post
Justin - I am I correct this will not work with the GNX375? If so, any plans to expand the software revisions?
This is something we had considered looking into next. I will bring this back up with the team for discussion.

Thanks,

Justin
__________________
Garmin G3X Support
g3xpert@garmin.com
1-866-854-8433 - 7 to 7 Central Time M to F
Please email us for support instead of using Private Messaging due to the limitations of the latter.
Reply With Quote
  #10
Old 04-23-2021, 07:18 AM
g3xpert's Avatar
g3xpert g3xpert is offline

Join Date: Sep 2010
Location: Olathe, KS
Posts: 3,073
Default FIS-B Weather Products

Quote:
Originally Posted by Wonderboy View Post
I have a GDL 50R providing traffic and WX to my two G3x Touch units via Bluetooth on one and hardwired to the second. Does this new release support all the WX functions via the hard wire or is it still necessary to use the BT connect for that data?
Good Morning,

Here is a quick update on the addition of the newer FIS-B products to the RS-232 datapath. The GTX X45(R) software required for this to work was released in March of this year. We have the required GDU updates planned to be included in the next G3X Touch software update, later this summer. The required GDL 5X software update is planned to be released later this year.

Thanks,

Justin
__________________
Garmin G3X Support
g3xpert@garmin.com
1-866-854-8433 - 7 to 7 Central Time M to F
Please email us for support instead of using Private Messaging due to the limitations of the latter.
Reply With Quote
Reply


Thread Tools Search this Thread
Search this Thread:

Advanced Search
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

vB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Forum Jump


All times are GMT -6. The time now is 07:38 PM.


The VAFForums come to you courtesy Delta Romeo, LLC. By viewing and participating in them you agree to build your plane using standardized methods and practices and to fly it safely and in accordance with the laws governing the country you are located in.
