Default My attempt at a carbon FWD baggage door

It's a good start. The idea is to have 1/4 turn fasteners on the lower corners instead of the key lock and monkey motion.

Noel Simmons
4063664638


[IMG][/IMG]
Reply With Quote
  #2
Old 02-02-2017, 11:19 PM
greghughespdx's Avatar
greghughespdx greghughespdx is offline

Join Date: Nov 2011
Location: Aurora, OR
Posts: 1,168
Default

Cool. Any more pics and details? Any special technique?
__________________
Greg Hughes - Van's Aircraft
Van's web site | Instagram | Facebook
Opinions, information and comments are my own unless stated otherwise. They do not necessarily represent the direction/opinions of my employer.

Building RV-8A since Sept 2014
Dual AFS 5600, Avidyne IFD 440, Whirlwind 74RV, Superior XP IO-360
VAF build thread - Flickr photo album - Project Facebook page
Aurora, OR (EAA Chapter 105)

Reply With Quote
  #3
Old 02-03-2017, 09:13 AM
David Paule David Paule is offline

Join Date: Dec 2009
Location: Boulder, CO
Posts: 5,258
Default

Vacuum bagging might help with those bubbles and voids.

The general technique isn't hard. This shows the basic plan. The fabric and core are your part, the rest is the process:



Here's my vacuum pump and my plumbing:



The stub vertical pipe below the gauge is a trap.

I take the pvc pipe up to the part and put it under the outer bag. That section of pipe has several holes in it, and I lay some bleeder/breather mat under and over those. Here in Boulder we typically see about 12.5 psi of air and I can recover about 9 psi of vacuum with my simple and cheap set-up, so pvc is fine.

I use heavy but common plastic sheet for my outer bag and duct tape it down. That's adequate. The bleeder/breather mat is common padding from a fabric store, an inch or so thick. ACS sells the release film and the peel ply is polyester aircraft covering (the cheaper non-certified stuff). The pump came from McMaster and is rated for continuous use; I had it run for a week on my boat once to dewater a section of core. It was as good after that as before.

Dave
Reply With Quote
  #4
Old 02-03-2017, 08:12 PM
GHRoss3's Avatar
GHRoss3 GHRoss3 is offline

Join Date: Feb 2009
Location: Niceville, FL
Posts: 46
Default Carbon fiber Galvanic Corrosion & Aluminum

I'm surprised this hasn't already been brought up with this thread. Carbon fiber reinforced composites (CFRC) and aluminum causes galvanic corrosion.

Carbon Composites' Drawbacks

Despite all of the excellent properties of CFRCs, there are issues with using CFRC and metals together. Carbon fibers in CFRPs cause this material to become electrically conductive. The carbon fibers are electrically conductive and electrochemically very noble. Therefore, when a metal is electrically connected to a CFRP, it is more susceptible to galvanic corrosion. This situation becomes worse when a large surface area of carbon composite components is coupled to small metallic parts (such as fasteners, bolts and nuts). In these circumstances, the rate of galvanic corrosion is extremely high due to the high cathode to anode surface area ratio (Ac/Aa). . . Aluminum alloys are extremely vulnerable when they are coupled to a carbon composite.

This was copied from https://www.corrosionpedia.com/2/155...orced-polymers

Hopefully the composite master DanH will pipe in on how to isolate the carbon fiber from the aluminum.
Cheers
George
__________________
After Oshkosh '91, began dreaming of my RV-?
Tool kit in hand, May 12
Exempt but still renew VAF Dues each Dec
Reply With Quote
  #5
Old 02-03-2017, 10:40 PM
DanH's Avatar
DanH DanH is offline

Join Date: Oct 2005
Location: 08A
Posts: 10,704
Default

Quote:
Originally Posted by GHRoss3 View Post
...how to isolate the carbon fiber from the aluminum.
The usual approach is a ply of ordinary fiberglass to isolate the carbon. Alternate approach is two coats of epoxy primer and two coats of paint, then hope it doesn't wear though.

If aluminum rivets are used, they too must be isolated from the carbon somehow. Minimum is to wet-set in a moisture proof sealant. Proseal might do.

Good luck finding a titanium lock assembly.

This is not a great application for carbon.

__________________
Dan Horton
RV-8 SS
Barrett IO-390

Last edited by DanH : 02-03-2017 at 10:46 PM.
Reply With Quote
  #6
Old 02-05-2017, 11:13 AM
rvtestpilot rvtestpilot is offline

Join Date: Jul 2016
Location: Lewistown
Posts: 18
Default More picture

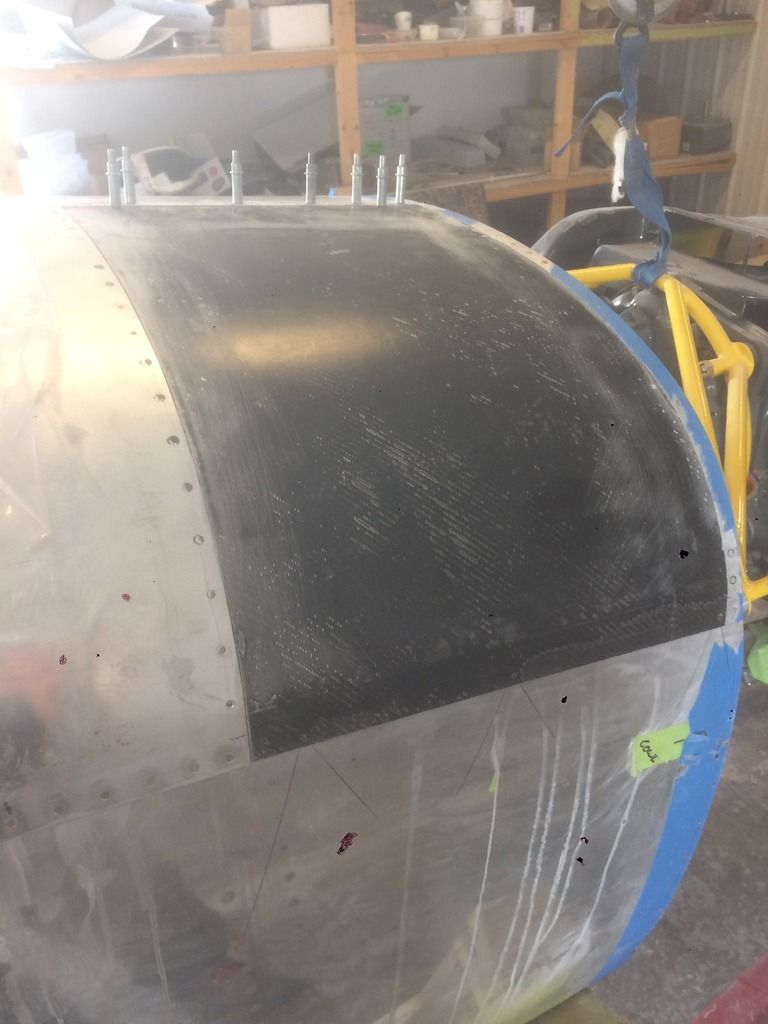

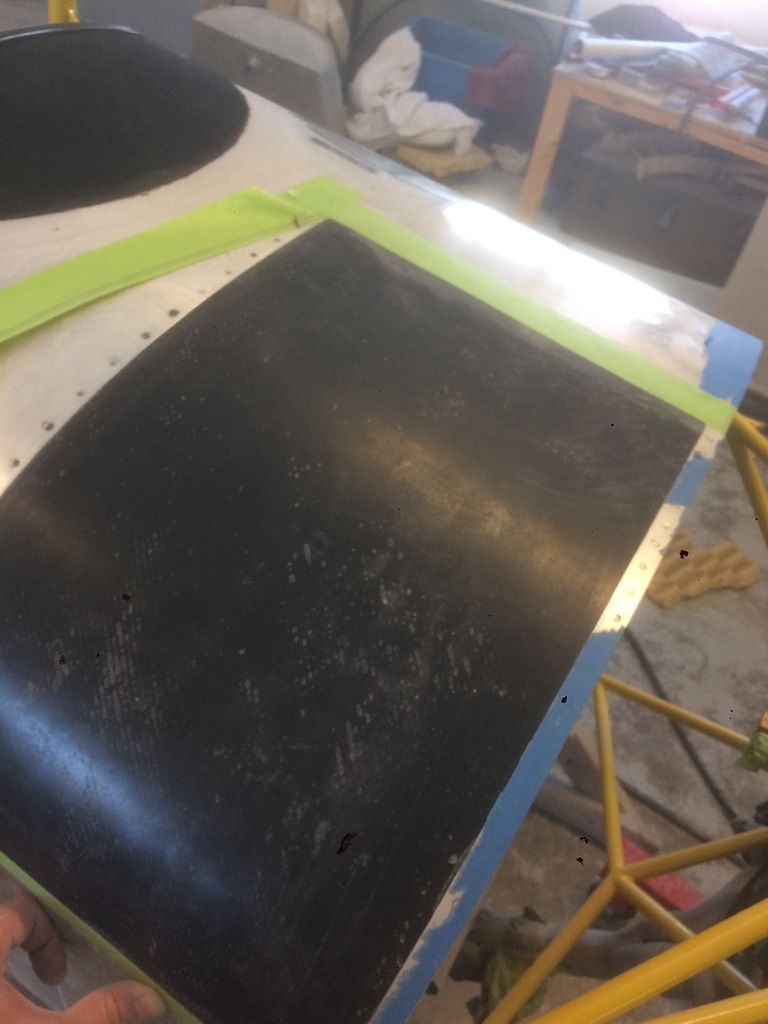

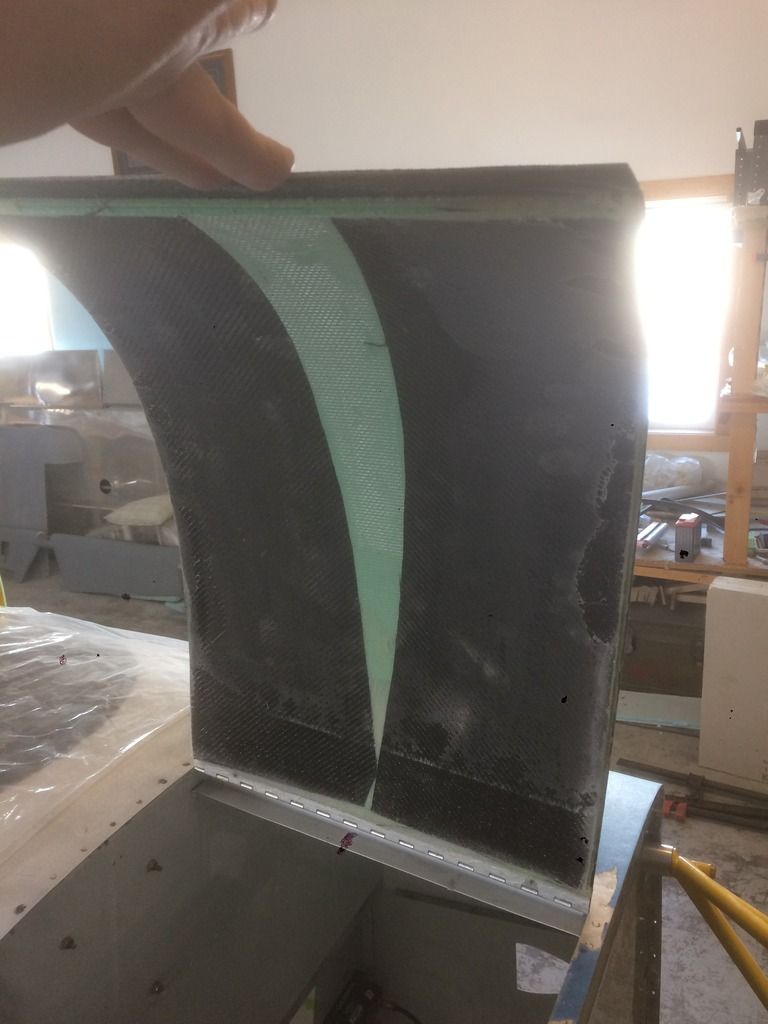

Did the bonding of the foam reinforcing yesterday. And it turned out really nice. The curve of the door needed to be slightly modified as my quick mold was slightly relaxed. But today the door fits really nice! I need to clean up some edges.


And let me add, there is fiberglass on the surface so the carbon won't corrode the aluminum that has been primed, painted, and clear coated.

And vacuum molding only works if you have a proper mold that will not deflect, inside curves require a very very strong mold!!

This particular door along with airplane will be wrapped

In conclusion: this is the "perfect" and proper size part to make a vacuum mold from. Any takers?
