Default New Flap Motor Wiring

I just received the new style Vans flap motor in my kit but I can't find any info on it. Does anyone know what the pinout is?
__________________
Eric Vickery

RV-6A Tip-Up Bought Flying
RV-10 #42451 Empennage complete (except fiberglass)
Received Fuselage and wing kits
Reply With Quote
  #2
Old 05-12-2022, 12:04 PM
AlpineYoda AlpineYoda is offline

Join Date: Nov 2019
Location: Boulder, CO
Posts: 406
Default

What is the "new style" motor? Is it the showplanes system or something else? I may be a year out of date on what is "new".
__________________
RV-10 build blog -- https://eaabuilderslog.org/?blproject&proj=7ZSwfzr2g
Started 12/19/2019
Engine hung 1/9/2021
Hoping to fly in April 2022

N1814T reserved with FAA
Donated Jan 4 for 2022
EAA and AOPA member
Reply With Quote
  #3
Old 05-12-2022, 12:18 PM
Indycanard Indycanard is offline

Join Date: Oct 2007
Location: Lake Stevens A
Posts: 39
Default

The "new" flap motor is made by Progressive Automations. Of significant note is the new motor has built in position sensor (potentiometer) and has a 5 pin connector. No separate position sensor is required. The new motor has both a retrofit installation kit and a new construction drawing. Here is a link to the motor from Van's
https://store.vansaircraft.com/es-fa-pa-450-12-5.html
__________________
__________________
Henry
Frontier Airpark (WN53)
Lake Stevens WA
Indycanard at yahoo dot com
Cozy IV (N85TT)
Long-EZ (building, N925EZ reserved)
RV-10 #42583 Waiting on empennage, but I received the wings and fuselage. I started Chap 21, Ailerons
Reply With Quote
  #4
Old 05-12-2022, 01:03 PM
AlpineYoda AlpineYoda is offline

Join Date: Nov 2019
Location: Boulder, CO
Posts: 406
Default

Sorry - can't help you then. I'm using the showplanes system that was supplied with my kit in 2020. Position sensor would be nice - my SteinAir panel has wiring to attach to one which I am leaving unused. Maybe if I ever replace my flap motor, this would be a good replacement.
__________________
RV-10 build blog -- https://eaabuilderslog.org/?blproject&proj=7ZSwfzr2g
Started 12/19/2019
Engine hung 1/9/2021
Hoping to fly in April 2022

N1814T reserved with FAA
Donated Jan 4 for 2022
EAA and AOPA member
Reply With Quote
  #5
Old 05-12-2022, 01:07 PM
eastonale eastonale is offline

Join Date: Aug 2015
Location: Portland, OR
Posts: 33
Default

Sure looks like the PH Aviation motor that many of us started using a few years ago. I wonder if Vanís is getting them from him. He has instructions on the website for the PH version anyway.

https://phaviation.com/products/prod...flap-actuator/
__________________
Mark Easton
2021 RV-10, done, but never done.
Advanced Flight, EFII S32, Barrett CAI, WW Prop
Portland, OR
2022 dues happily donated
Reply With Quote
  #6
Old 05-13-2022, 08:19 AM
clutch22 clutch22 is offline

Join Date: Jul 2012
Location: Bartlesville, OK
Posts: 251
Default

I just installed mine two days ago.
If you look closely at the wires, the heavier gauge red wire and the only black wire are your power wires. Just reverse polarity to extend/retract.
Sorry for that description, but there aren’t pin numbers on its molex plug.

Progressive automations does have a data sheet on their website for this, but I had a hard time following their pin callouts.
__________________
Andrew Austin

RV-10
-Flying!
Reply With Quote
  #7
Old 05-13-2022, 08:30 AM
Bavafa Bavafa is offline

Join Date: Oct 2007
Location: Sacramento, CA
Posts: 3,900
Default

Does this motor require any modification to the original mounting structure, similar as the PH motor or is it a drop in type?
__________________
Mehrdad
N825SM RV7A - IO360M1B - SOLD
N825MS RV14A - IO390 - SOLD
N258SM RV14A - IO390EXP119 - Out of Paint shop & flying
Dues paid
Reply With Quote
  #8
Old 05-13-2022, 08:47 AM
abaden abaden is offline

Join Date: Feb 2021
Location: El Paso, TX
Posts: 39
Default

Quote:
Originally Posted by Bavafa View Post
Does this motor require any modification to the original mounting structure, similar as the PH motor or is it a drop in type?
Looks like they redesigned the mounting bracket between the inboard footwell rib assemblies. I'm not 100% sure because I have the old style + PH Aviation, but from the online plans it looks like the new brackets are longer and mount on modified F1016D seat belt doublers. This probably has the effect of pushing the flap motor towards the front of the airplane, which is what the PH Aviation brackets are primarily intended to do.
__________________
PA-28R-200 flying
RV-10 Under Construction
Reply With Quote
  #9
Old 05-13-2022, 09:04 AM
clutch22 clutch22 is offline

Join Date: Jul 2012
Location: Bartlesville, OK
Posts: 251
Default

Quote:
Originally Posted by Bavafa View Post
Does this motor require any modification to the original mounting structure, similar as the PH motor or is it a drop in type?
As expected from Vans, the install kit/brackets were very well engineered making the process easy. Nothing sketchy about it.
__________________
Andrew Austin

RV-10
-Flying!
Reply With Quote
  #10
Old 05-13-2022, 09:32 AM
ERushing's Avatar
ERushing ERushing is offline

Join Date: Apr 2014
Location: Molalla, OR
Posts: 449
Default RV-10 PA-12 Flap Motor

The manufacturer's documentation for this flap motor leaves a bit to be desired...

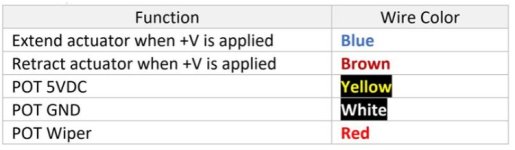

The thick wires are flap motor power. The thin wires are for the potentiometer. Yellow is power. Red (or Blue) is signal. White is ground.

Hope this helps!
__________________
Eric Rushing
RV-10
99% done, 90% to go.
Down to the last bits!!
Molalla, OR

Last edited by ERushing : 05-13-2022 at 09:54 AM. Reason: poor grammar
