Default HS-702 Flange Error & Edge Distance Question

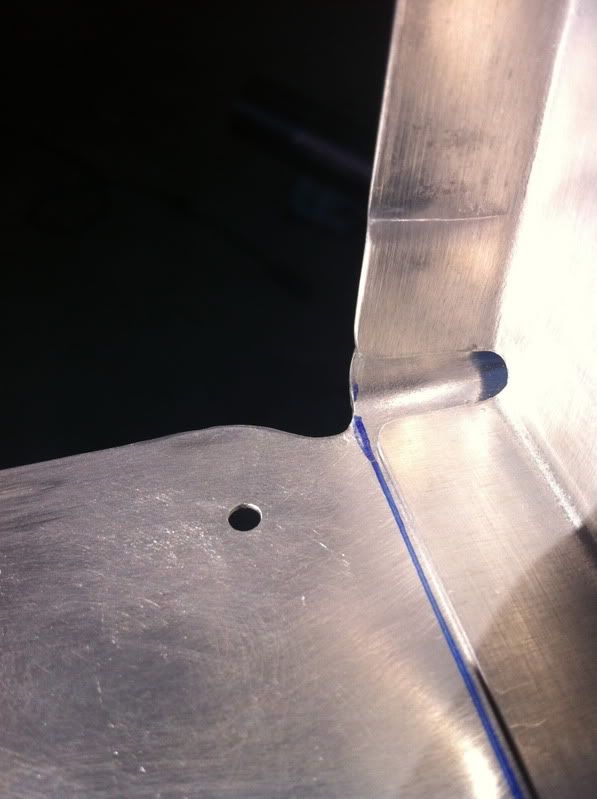

Today, I was cutting the excess off the flange on HS-702. When I started the cut with the snips, I ended up fracturing the flange 1/8" perpendicular to the intended cut line. The blue line perpendicular to the flange cut is the small fracture. See photo:



So my fix was to "round the flange a lil more than required so the fracture would not end up being a crack later on in life. See photo:



Looking from the inside (regardless if I cut the flange to much), it doesn't look like there is enough edge distance for the rivet when the skin attaches at the intersection of HS-702 and the main rib, HS-405. The picture below shows the inside view of what the two pieces mated together would like. Am I sunk here? Did I cut to much off? Has this happened to others? Do I need a new front spar? Thanks in advance for all answers.

__________________
Tom Clark
RV-6 Sold
F1 Rocket
Lake Norman Airpark - 14A
  #2
Old 01-24-2012, 12:48 PM
CPSONE's Avatar
CPSONE CPSONE is offline

Join Date: Nov 2010
Location: BC Canada
Posts: 219
Default crack repair

I'd check with Van's...
Edge distance on that hole is poor at best on the 405 rib in first place.
__________________
Mike
RV-6 emp, done-sold,
RV7A QB. Passed pre-cover and sold!
Disclaimer: Everything I say can be presumed to be wrong. Don't try this at home.
  #3
Old 01-24-2012, 12:53 PM
blueflyer's Avatar
blueflyer blueflyer is offline

Join Date: Nov 2008
Location: Shreveport, LA
Posts: 1,083
Default HS 702

FWIW in making your decision, a new HS-702 is only $20 from Vans. I know because I goofed mine up in the same spot as you are working.
  #4
Old 01-25-2012, 04:25 PM
avq avq is offline

Join Date: Feb 2010
Location: Melbourne, FL
Posts: 31
Default 5 degree bend

does your edge distance get better after making the bend on the spar?
__________________
Anton Quiroz
RV-7 Empennage complete, working on wings
  #5
Old 01-25-2012, 07:00 PM
Clarkie Clarkie is offline

Join Date: Nov 2011
Location: Huntersviile, NC
Posts: 218
Default

It's about the same. Van's called this morning and said that it was fine and to build on. He said that they've been seeing this one a lot lately and agree that the edge distance without the additional cut on the flange is marginal at best.

I tend to think that since the skin, the spar, and the rib are all coming together at this spot, that it would be more critical than Van's says it is, but what do I know.
__________________
Tom Clark
RV-6 Sold
F1 Rocket
Lake Norman Airpark - 14A
  #6
Old 01-25-2012, 07:13 PM
pilotian's Avatar
pilotian pilotian is offline

Join Date: Jul 2010
Location: CMH, OH
Posts: 191
Default Which hole was that again?

im about to do this step myself.... but I am a little confused at what hole you guys are talking about the edge distance on.

Thanks,
__________________
Ian Hoyt

N527DH (reserved) RV-8
Tail Kit: 80% done

Website:
Follow my flying journey on PilotIan.com
Twitter: ianhoyt
  #7
Old 01-25-2012, 07:23 PM
Clarkie Clarkie is offline

Join Date: Nov 2011
Location: Huntersviile, NC
Posts: 218
Default

It's where the flange of HS-702 joins up with HS-405 rib. Regardless if the flange is cut greater than it should, the edge distance at that spot is marginal. Straight from the "horse's" mouth.
__________________
Tom Clark
RV-6 Sold
F1 Rocket
Lake Norman Airpark - 14A
  #8
Old 01-25-2012, 07:36 PM
algrajek algrajek is offline

Join Date: Jun 2006
Location: Boca Raton, Florida
Posts: 441
Default

That looks totally fine.
Build on
Nordo
Repeat offender
Rv8A
RV8
RV8
__________________
Al "Nordo" Grajek
repeat offender
\___(0)___/
RV8
RV8A
RV8
RV6A
Now RV7A!!
  #9
Old 01-25-2012, 07:42 PM
pilotian's Avatar
pilotian pilotian is offline

Join Date: Jul 2010
Location: CMH, OH
Posts: 191
Default

Quote:
Originally Posted by Clarkie View Post
It's where the flange of HS-702 joins up with HS-405 rib. Regardless if the flange is cut greater than it should, the edge distance at that spot is marginal. Straight from the "horse's" mouth.
Oh my bad I though we were talking about the 404 for some reason, but I will keep this in mind when I work on the 405 thanks!
__________________
Ian Hoyt

N527DH (reserved) RV-8
Tail Kit: 80% done

Website:
Follow my flying journey on PilotIan.com
Twitter: ianhoyt
  #10
Old 01-25-2012, 08:03 PM
AlphaCharlieBravo AlphaCharlieBravo is offline

Join Date: Nov 2008
Location: Olympia,WA
Posts: 217
Default

Tom
In the future might I suggest to use the snips to cut within 1/8 or 1/4 to your drawn line and then use a table mount disk sander to bring the part to the blue line and then your scotchbrite wheel to clean up the edges. The disk sander will be one of your most utilized tools in the shop. You can pick up a Sears or Delta brand for around 100 bucks or a little less. Hope this helps.
__________________
Arnie Barros
VAF #1401
(N89269) reserved
"Seek to understand before trying to be understood"
