Originally Posted by Mike S View Post
Yes, that is correct. Dimple the plate, countersink the billet part.

I would suggest that you use screws and nuts to hold the parts instead of riveting them----------much easier to install the parts separately compared to a riveted together assembly.
Is this so that one can thread the billet parts onto the cable jacket ends and then bolt them down as opposed to having to spin the cable into the threaded billet? Not sure of the advantage otherwise, but I haven't scoped out the trim system design from end to end yet, Mike. Thanks for the info.
__________________
Bill Boyd

Hop-Along Aerodrome (12VA)
RV-6A - N30YD - Built '98 / sold '20
RV-10 - N130YD - 50 hours +
65 years running stock DNA
Reply With Quote
  #82
Old 07-22-2016, 04:25 PM
Bill Boyd's Avatar
Bill Boyd Bill Boyd is offline

Join Date: Sep 2006
Location: Landing field "12VA"
Posts: 1,710
Default Mystery RV 10 part

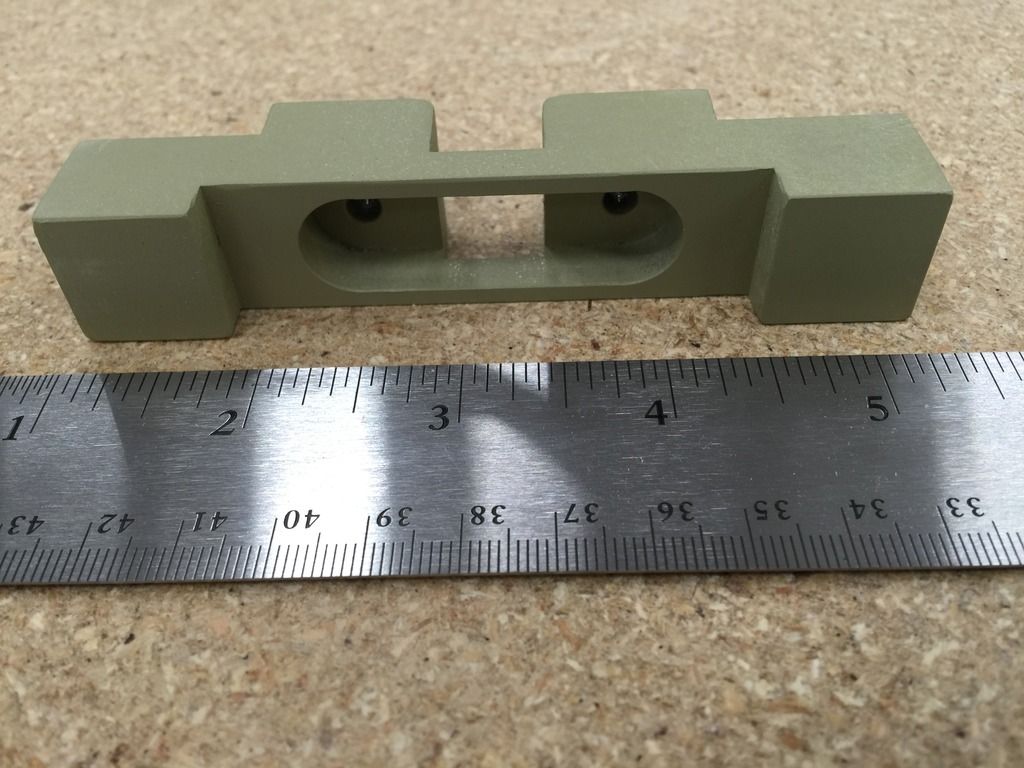

Billet aluminum. Got separated from its bag-mates. From where I found it, I'd suspect section 11... no joy. Maybe I've been staring at these plans too long.

Can anyone ID this so I can tag it and bag it until I need it? Thanks!
__________________
Bill Boyd

Hop-Along Aerodrome (12VA)
RV-6A - N30YD - Built '98 / sold '20
RV-10 - N130YD - 50 hours +
65 years running stock DNA
Reply With Quote
  #83
Old 07-22-2016, 04:36 PM
Mike S's Avatar
Mike S Mike S is offline
Senior Curmudgeon

Join Date: Sep 2005
Location: Dayton Airpark, NV A34
Posts: 16,100
Default

Quote:
Originally Posted by Bill Boyd View Post
Is this so that one can thread the billet parts onto the cable jacket ends and then bolt them down as opposed to having to spin the cable into the threaded billet? Not sure of the advantage otherwise, but I haven't scoped out the trim system design from end to end yet, Mike. Thanks for the info.
The idea is it is a lot easier to spin the billet part onto the cable then attach the plate, vs spinning the two parts when attached to each other.

Will make more sense when you start to do assembly work, the far end of the cable housing is buried in the fuse, and the cable will not spin. The stab will be mounted to the fuse, and there is just barely enough cable sticking out to work with.

Also, another trick when you get that far, insert a couple pieces of plastic tubing through the snap bushings in the stab, before you install the stab on the fuse. Start the trim cables into the tubes, and let the tubes guide the cables into place. The cables will follow the plastic tubing out as you work the stab into position, and push the tubing out as they do so.

__________________
Mike Starkey
VAF 909

Rv-10, N210LM.

Flying as of 12/4/2010

Phase 1 done, 2/4/2011

Sold after 240+ wonderful hours of flight.

"Flying the airplane is more important than radioing your plight to a person on the ground incapable of understanding or doing anything about it."
Reply With Quote
  #84
Old 07-22-2016, 04:37 PM
Mike S's Avatar
Mike S Mike S is offline
Senior Curmudgeon

Join Date: Sep 2005
Location: Dayton Airpark, NV A34
Posts: 16,100
Default

Quote:
Originally Posted by Bill Boyd View Post
Billet aluminum. Got separated from its bag-mates. From where I found it, I'd suspect section 11... no joy. Maybe I've been staring at these plans too long.

Can anyone ID this so I can tag it and bag it until I need it? Thanks!
Methinks this is some aftermarket part, you might not find it on the plans.

No idea what it is........
__________________
Mike Starkey
VAF 909

Rv-10, N210LM.

Flying as of 12/4/2010

Phase 1 done, 2/4/2011

Sold after 240+ wonderful hours of flight.

"Flying the airplane is more important than radioing your plight to a person on the ground incapable of understanding or doing anything about it."
Reply With Quote
  #85
Old 07-22-2016, 07:59 PM
Bill Boyd's Avatar
Bill Boyd Bill Boyd is offline

Join Date: Sep 2006
Location: Landing field "12VA"
Posts: 1,710
Default Thanks, Mike.

Most curious. Maybe part of an alternative plumbing scheme in the tunnel. (If so, don't worry - I'd never depart from Van's fuel system.)

I know! It's a tunnel heat-blocker AND a secure door pin containment system all in one. Made of unobtanium. And I have the only one

Maybe someone else has seen this thing somewhere.
__________________
Bill Boyd

Hop-Along Aerodrome (12VA)
RV-6A - N30YD - Built '98 / sold '20
RV-10 - N130YD - 50 hours +
65 years running stock DNA
Reply With Quote
  #86
Old 07-22-2016, 09:00 PM
6S4 Hugo's Avatar
6S4 Hugo 6S4 Hugo is offline

Join Date: Jul 2007
Posts: 63
Default

A completely screwball idea that has worked for me.

Step 1) Take a photo of the part on a piece of white cloth with nothing else in the photo but the part. (You may want to shoot multiple angles)
Step 2) Go to Google images and click on the camera icon in the search box.
Step 3) Upload your photo and let Google do all of the work

My 2?...
Reply With Quote
  #87
