So I finally bit the bullet and sprang for the new Whelen wingtip/tail LED light kit sold by Mike Stewart. I got the one that goes under cover. Here's what I had before:
![](/community/proxy.php?image=http%3A%2F%2Fi445.photobucket.com%2Falbums%2Fqq178%2Fpat_hatch%2FAirplane%2520Stuff%2FIMG_0387_zps540c1961.jpg&hash=ce34875bcf6e0a1c3f07bae049cb8239)
The most difficult part was pulling the old Whelen power supply out of its location in the baggage floor:
![](/community/proxy.php?image=http%3A%2F%2Fi445.photobucket.com%2Falbums%2Fqq178%2Fpat_hatch%2FAirplane%2520Stuff%2F556438f0-28cc-4159-854f-f5b5e7561ee5_zps1f2c37b6.jpg&hash=69ab27f45ab079950adaab1dc35318ee)

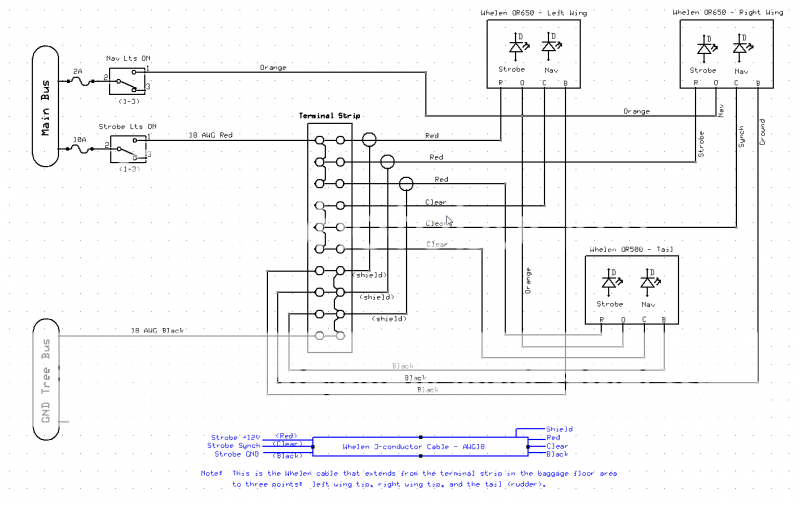

...and rewiring it thus:
![](/community/proxy.php?image=http%3A%2F%2Fi445.photobucket.com%2Falbums%2Fqq178%2Fpat_hatch%2FAirplane%2520Stuff%2F004_zps7afb8fd4.jpg&hash=8c37455069d928df31166f1271bfec35)

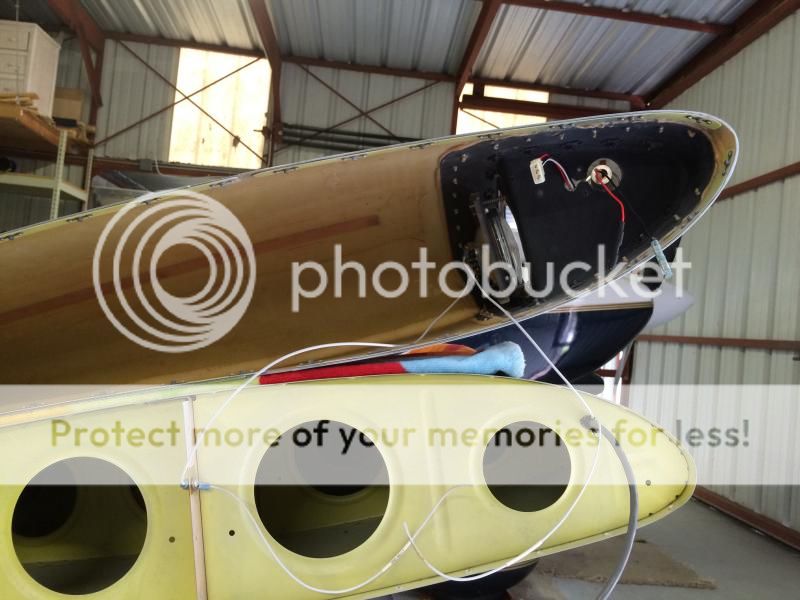

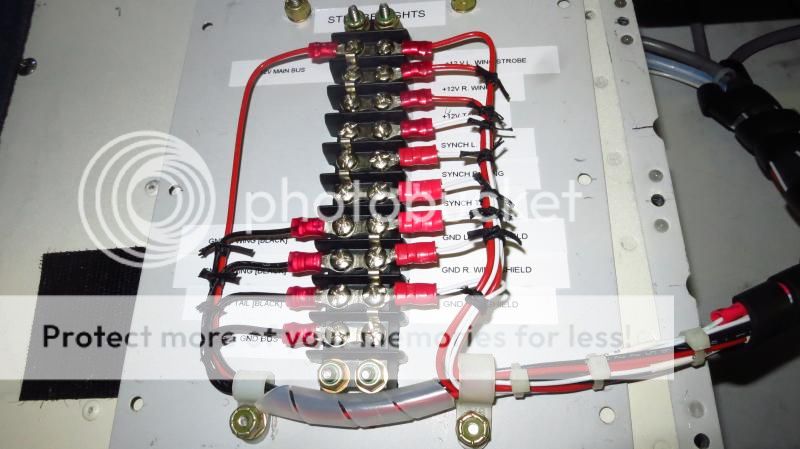

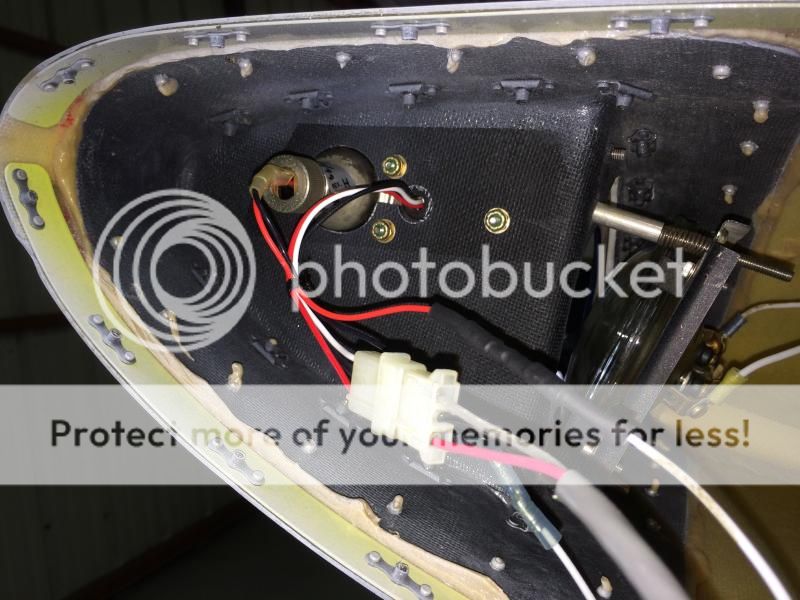

I got rid of about 2 pounds by removing the old power supply. Not to mention the much greater current draw with the old system. I was able to use the original 3-conductor cabling from Whelen although Mike sells the new lightweight 4-conductor cable if you can pull your old wires out. For me it was just easier to use what was already there. I did have to change from the Whelen connectors to some 4-pin Molex connectors that I had on hand. Here's the old:
![](/community/proxy.php?image=http%3A%2F%2Fi445.photobucket.com%2Falbums%2Fqq178%2Fpat_hatch%2FAirplane%2520Stuff%2FIMG_0388_zpsbfddb690.jpg&hash=94d8542c107bdb28bf1633fe89f91b77)
![](/community/proxy.php?image=http%3A%2F%2Fi445.photobucket.com%2Falbums%2Fqq178%2Fpat_hatch%2FAirplane%2520Stuff%2FIMG_0404_zps18cbb0fb.jpg&hash=657d0ab2de04cfd50b5a355071c2142b)

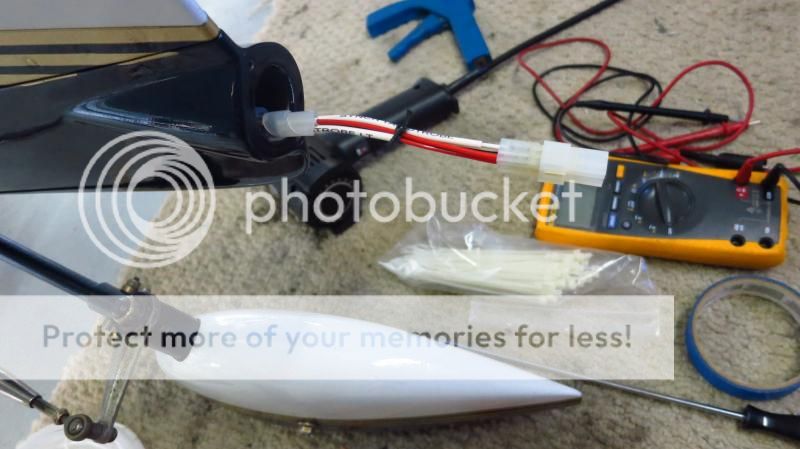

For the tail, I had to convert to the 4-pin Molex connector as well. This one worked well:
![](/community/proxy.php?image=http%3A%2F%2Fi445.photobucket.com%2Falbums%2Fqq178%2Fpat_hatch%2FAirplane%2520Stuff%2F006_zps76980461.jpg&hash=f1f7c6051b2e14256460194c903dbe67)

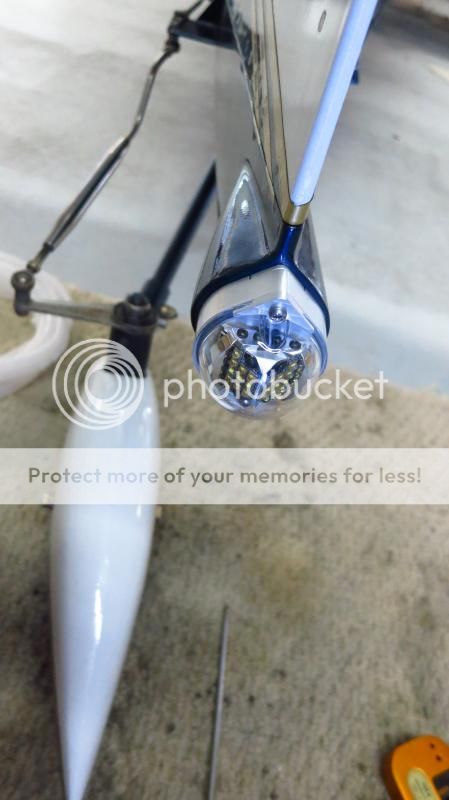

I also had to take a Dremel sanding drum and open up the hole just a little to accommodate the larger tail strobe/nav light. The old mounting screw holes matched up perfectly with the new unit:
![](/community/proxy.php?image=http%3A%2F%2Fi445.photobucket.com%2Falbums%2Fqq178%2Fpat_hatch%2FAirplane%2520Stuff%2F023_zpsf965d1b8.jpg&hash=b1ae8bc79c13381ae47aecf79575aefd)

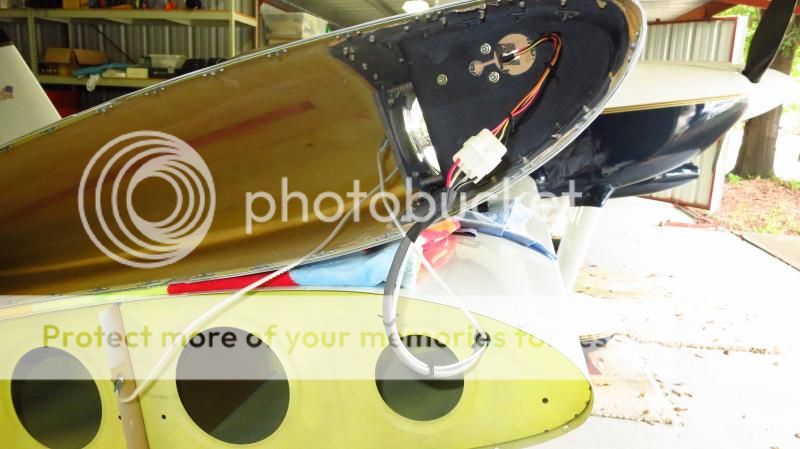

On the wings I used a similar Molex 4-pin connector that I happened to have on hand:
![](/community/proxy.php?image=http%3A%2F%2Fi445.photobucket.com%2Falbums%2Fqq178%2Fpat_hatch%2FAirplane%2520Stuff%2F036_zps600dd305.jpg&hash=d986dcd969f91da6294c580425cee701)

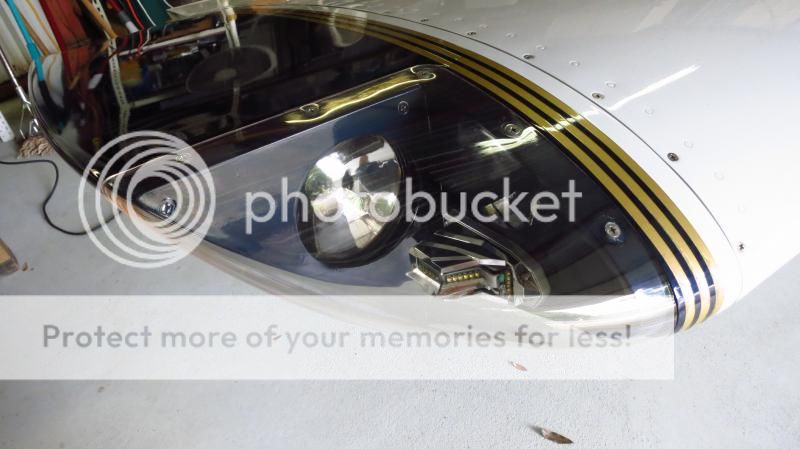

Existing holes in the wing matched up perfectly with the new units as well. You can pretty much do the whole job in a day, but I split it up into several shorter sessions while waiting for the new lights to arrive. Here's everything put back together:
![](/community/proxy.php?image=http%3A%2F%2Fi445.photobucket.com%2Falbums%2Fqq178%2Fpat_hatch%2FAirplane%2520Stuff%2F042_zps09487fe8.jpg&hash=e98a604375dc9f67304820841d6f1a40)
So last night I went for a trial flight at sunset and flew by my buddy Dave von Linsowe's house on a nearby airpark. He filmed my fly-by. I should have turned the wig-wag's off, but you can get the idea from the video (thanks, Dave!):
http://youtu.be/7jXyDBMNk-w
I'm very pleased with the upgrade; Mike Stewart makes it very painless (except for the cash I dropped). Yes, going LED is expensive, but I think it's worth every penny in the long run.
![](/community/proxy.php?image=http%3A%2F%2Fi445.photobucket.com%2Falbums%2Fqq178%2Fpat_hatch%2FAirplane%2520Stuff%2FIMG_0387_zps540c1961.jpg&hash=ce34875bcf6e0a1c3f07bae049cb8239)
The most difficult part was pulling the old Whelen power supply out of its location in the baggage floor:
![](/community/proxy.php?image=http%3A%2F%2Fi445.photobucket.com%2Falbums%2Fqq178%2Fpat_hatch%2FAirplane%2520Stuff%2F556438f0-28cc-4159-854f-f5b5e7561ee5_zps1f2c37b6.jpg&hash=69ab27f45ab079950adaab1dc35318ee)
...and rewiring it thus:
![](/community/proxy.php?image=http%3A%2F%2Fi445.photobucket.com%2Falbums%2Fqq178%2Fpat_hatch%2FAirplane%2520Stuff%2F004_zps7afb8fd4.jpg&hash=8c37455069d928df31166f1271bfec35)
I got rid of about 2 pounds by removing the old power supply. Not to mention the much greater current draw with the old system. I was able to use the original 3-conductor cabling from Whelen although Mike sells the new lightweight 4-conductor cable if you can pull your old wires out. For me it was just easier to use what was already there. I did have to change from the Whelen connectors to some 4-pin Molex connectors that I had on hand. Here's the old:
![](/community/proxy.php?image=http%3A%2F%2Fi445.photobucket.com%2Falbums%2Fqq178%2Fpat_hatch%2FAirplane%2520Stuff%2FIMG_0388_zpsbfddb690.jpg&hash=94d8542c107bdb28bf1633fe89f91b77)
![](/community/proxy.php?image=http%3A%2F%2Fi445.photobucket.com%2Falbums%2Fqq178%2Fpat_hatch%2FAirplane%2520Stuff%2FIMG_0404_zps18cbb0fb.jpg&hash=657d0ab2de04cfd50b5a355071c2142b)
For the tail, I had to convert to the 4-pin Molex connector as well. This one worked well:
![](/community/proxy.php?image=http%3A%2F%2Fi445.photobucket.com%2Falbums%2Fqq178%2Fpat_hatch%2FAirplane%2520Stuff%2F006_zps76980461.jpg&hash=f1f7c6051b2e14256460194c903dbe67)
I also had to take a Dremel sanding drum and open up the hole just a little to accommodate the larger tail strobe/nav light. The old mounting screw holes matched up perfectly with the new unit:
