ArVeeNiner
Well Known Member

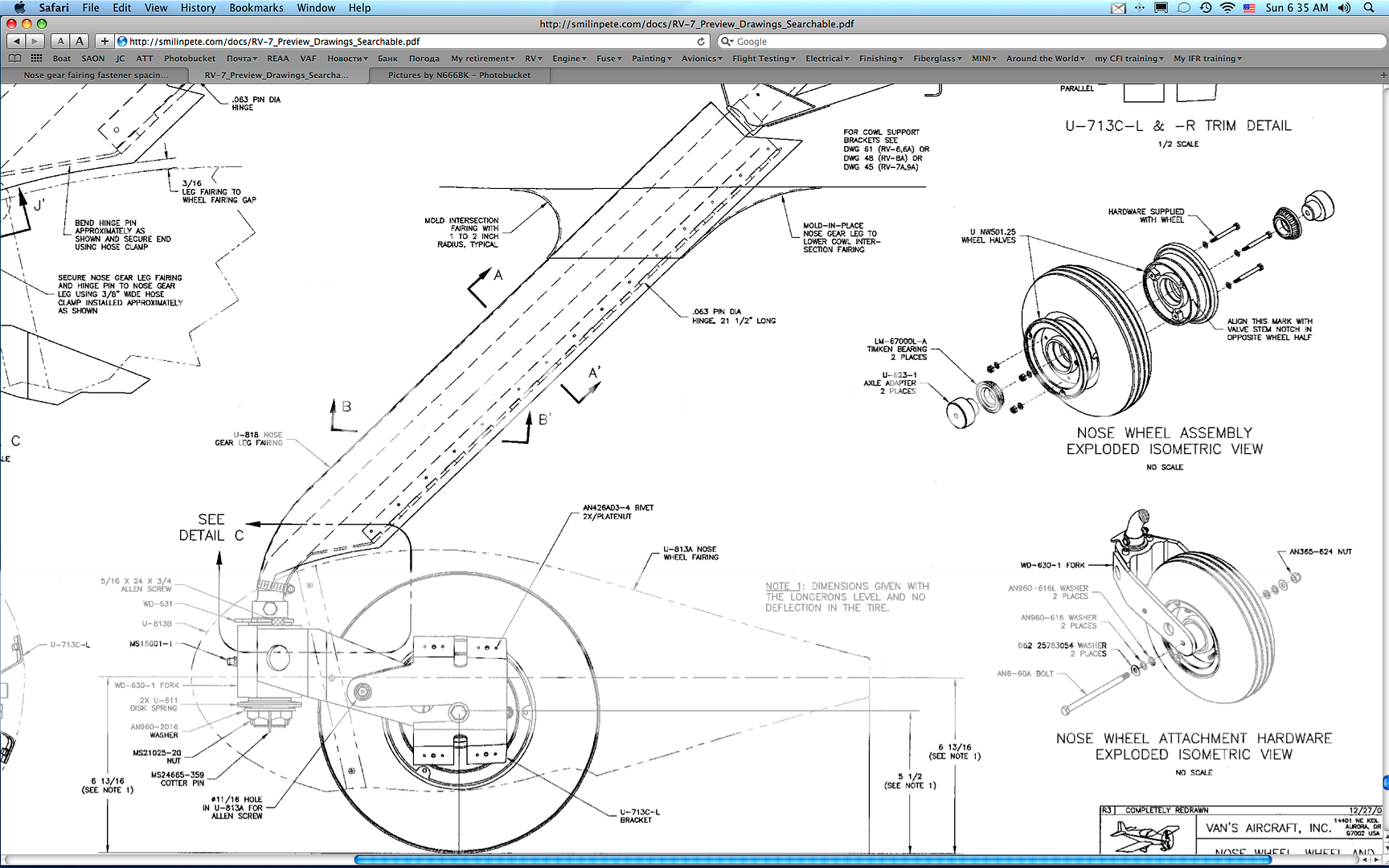

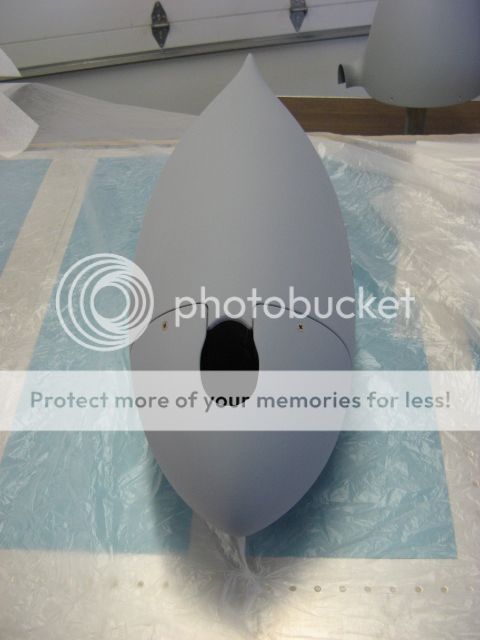

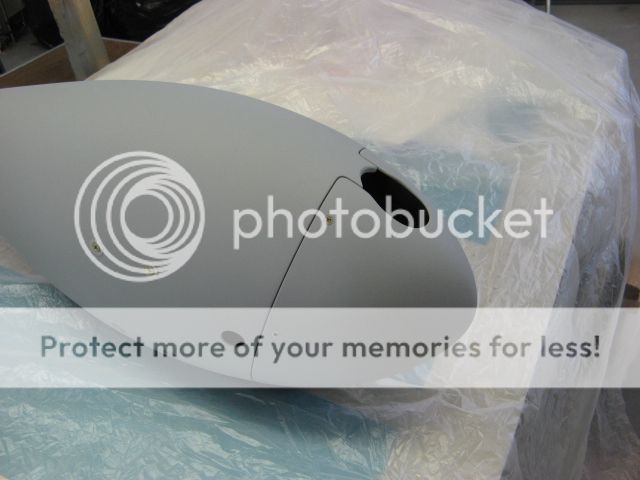

I cannot for the life of me find the call out for the spacing of the screws that hold the nose gear leg fairing halves together. These dimensions are clearly called out on the main gear fairing drawing (C2) but a similar view on the nose wheel fairing drawing (C1) has no dimensions. It would seem that I could use just any spacing but they actually use the middle screw hole as a reference for another dimension on the drawing so I better put those screws in their proper places. What gives?
