HR2 rear spar trim for pushrod update

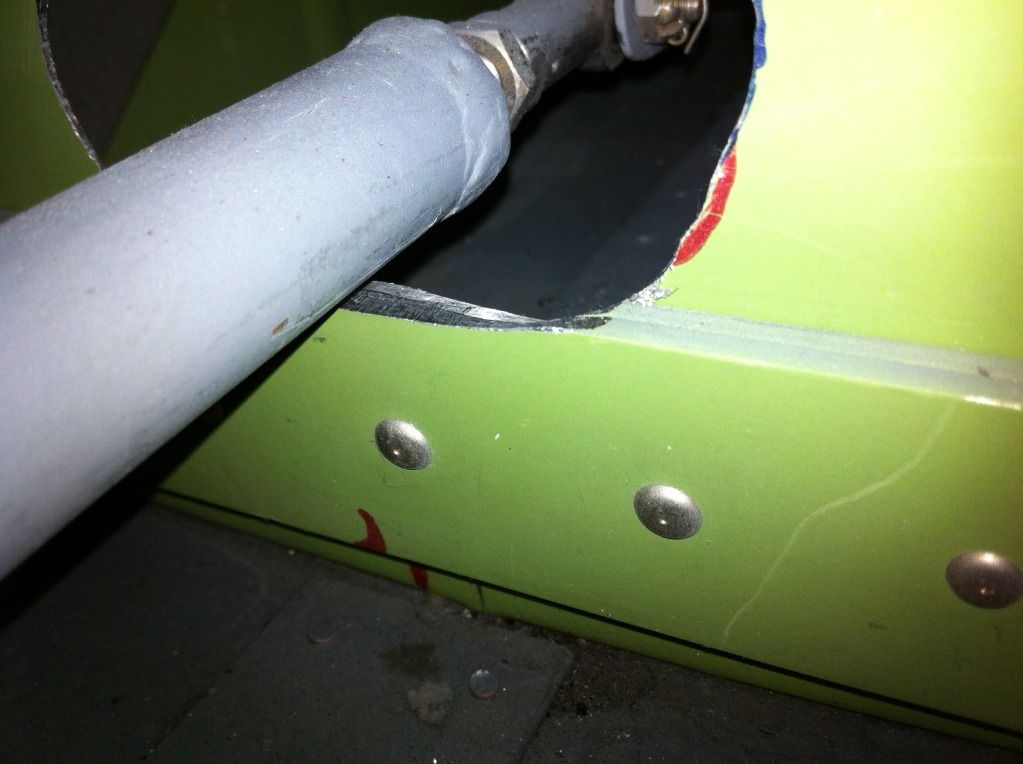

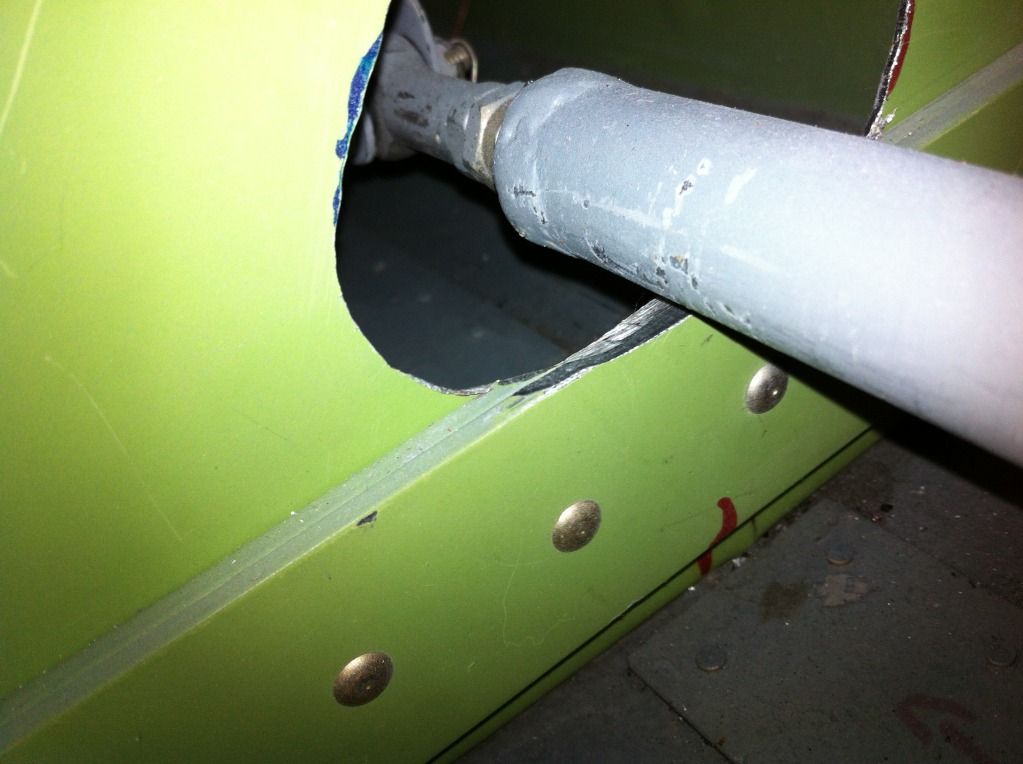

Hello, I have a purchased HR2. During the conditional inspection I noticed the rear spar had alot of material removed so that the push rod would have full range of movement. I worry that too much metal has been removed. The area had not been smoothed or primed. I also noticed that the rod end bearing was set to its lowest setting and not adjusted higher which would give more clearance maybe not requiring so much metal having to be removed from the rear spar. I could smooth out the trimmed aera and prime it and leave it alone. I also could put in a reinforcement to the center section. I have included pics of this area. I would very much appreciate sugestons for this repair. Thanks alot.

[/IMG]

[/IMG]

Last edited:
Remove the pushrod, lay a straightedge on top of the spar bars and across the hole, and measure how much material has been removed.

Common practice; easy repair

I have seen this before. The trick is to raise the torque tube, not trim the spar carrythru. Oh well - the deed is done; damage is minimal.

The 230XX foil, as is used on the HR2, does not put much stress on the aft spar. Flap loads might stress this part, but there is still quite a bit of the original part left. I would not worry about this 'trimming'.
But, I WOULD smooth out the edges a bit. Workmanship here is kinda rough.
If you want to, you could span the area between the inner floor ribs with another layer of 1/8" material, after you raise the aft pivot so the pushrod will clear the carrythru. Use the original rivet holes to install this additional layer; taper the new part from the center to the outer holes so there is a smaller stress rise at the outer fasteners. You could use AN525 #8 fasteners for this repair, but in any case keep your holes as tight as possible.

The castle nut on the rod end is supposed to be a std AN365...change this fastener out, along with any others done this way. Lube the rod ends at the same time.

Make sure the castle nuts on the cable-to-rudder pedal attach area are secured with .040 wire, not cotter pins. This applies to ALL of the RV series too.

Carry on!
Mark

Everything tat Mark said!

FYI - the RV-3 has a curved "saddle" like that in the plans, so conceptually, it is not unusual. Certainly could be executed more elegantly than in your case....

Last edited:
F1Boss said:
Make sure the castle nuts on the cable-to-rudder pedal attach area are secured with .040 wire, not cotter pins. This applies to ALL of the RV series too.
Mark
Click to expand...

Curious as to why. I know on my machine there is some interference with the side wall insulation that can catch a cotter pin. I "massaged" (bent) my pins over so that they would not catch. However, if there is no insulation there, what would be the issue with cotter pins?

Paul (Dye) no wonder you are a writer! You are very elegant in your choice of words. "Certianly could be executed more elegeantly than in your case...."

I was going to say, "It looks like they hacked at it with a dull chainsaw!"

Oh well, I'll stick to my day job...;)

update on HR2 rear spar

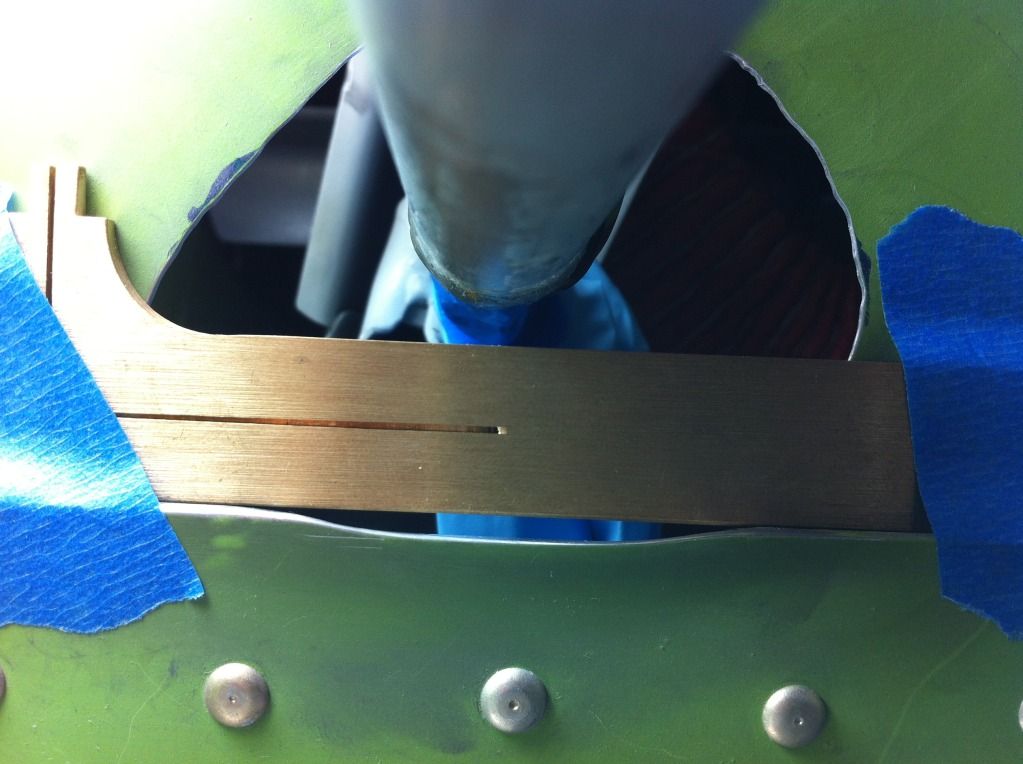

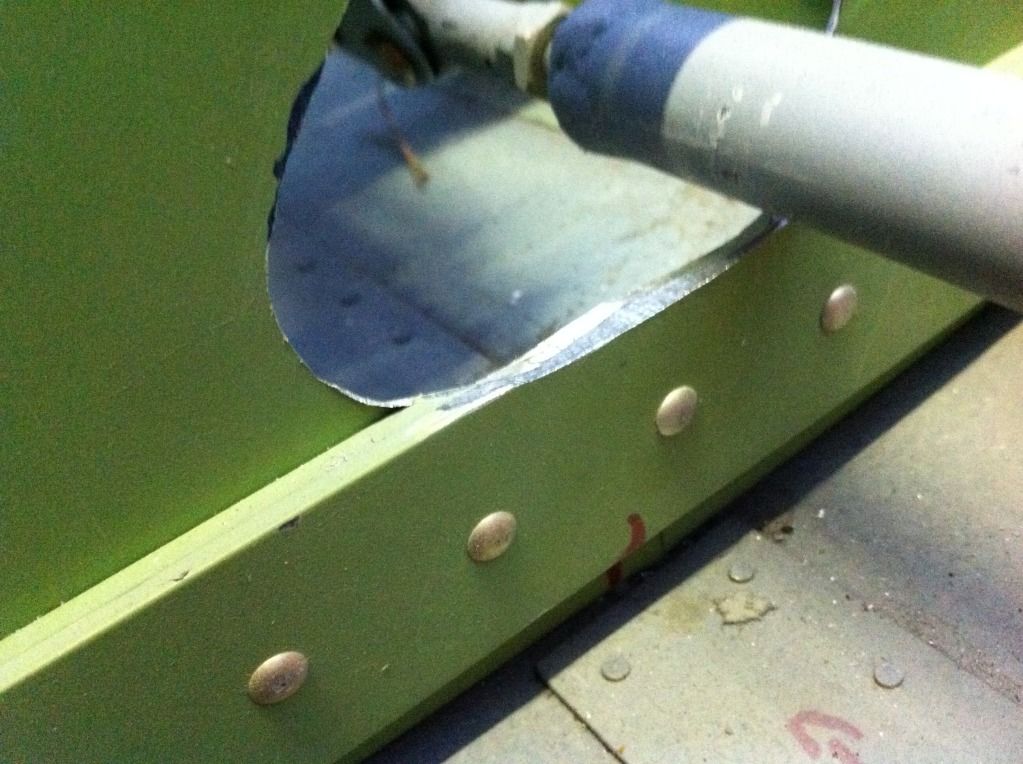

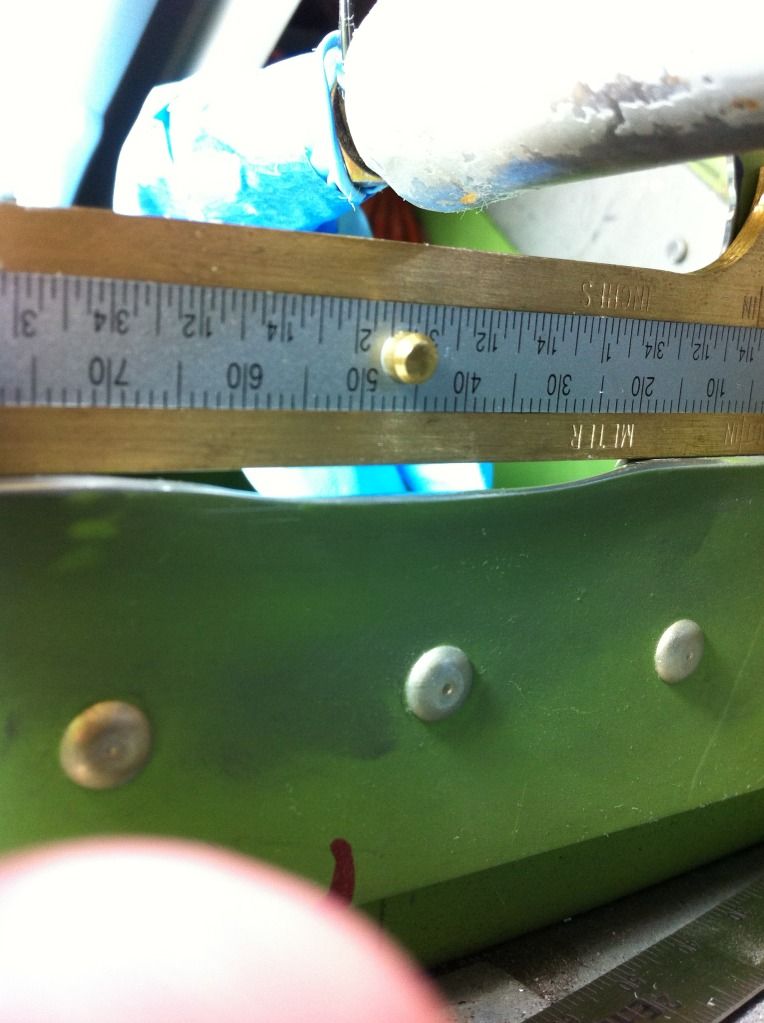

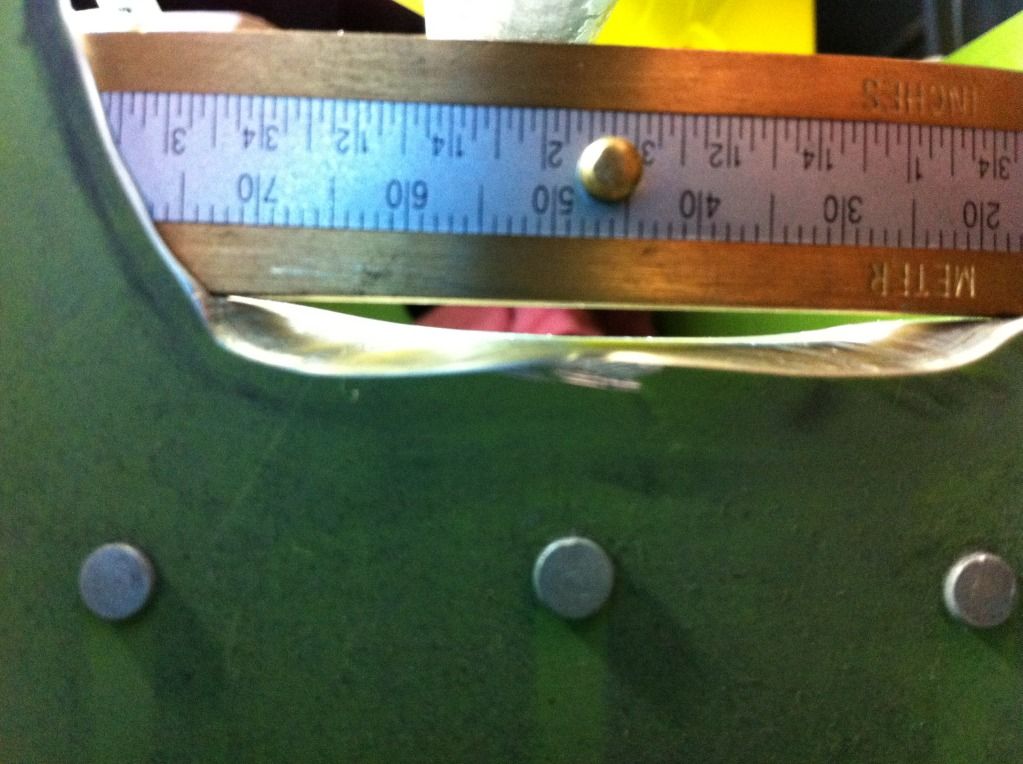

Thankyou everyone for your help! Dan, I enclosed some pics of the damage with a straight edge across the spar. I used a 1/8 dill bit to measure the depth of the removed material. On the rear side of the spar the 1/8 bit would not fit. The front of the spar had alittle more material removed. Mark, I cleaned up the area today and will prime it. Thankyou for the information on the spar mod to make it stronger! I hope to not need to do this mod but will if you feel it is needed to retain the required strength. I will also raise the rodend bearing and put the correct nut on it. I agree, it was pretty hacked up!

[/IMG]

[/IMG]

[/IMG]

Last edited:
JonJay said:
Curious as to why. I know on my machine there is some interference with the side wall insulation that can catch a cotter pin. I "massaged" (bent) my pins over so that they would not catch. However, if there is no insulation there, what would be the issue with cotter pins?
Click to expand...

I'd like to know this, too. Since I just finished hooking up the rudder pedals to the links and the links to the cable on my -7A, I'm loath to crawl up in there again and pull out the cotter pins and replace with safety wire unless there's a good reason. Also, the plans call for cotter pins...?

floridawing said:
Thankyou everyone for your help! Dan, I enclosed some pics of the damage with a straight edge across the spar. I used a 1/8 dill bit to measure the depth of the removed material. On the rear side of the spar the 1/8 bit would not fit. The front of the spar had alittle more material removed. I cleaned up the area today and will prime it. Mark, thankyou for the information on the spar mod to make it stronger! I hope to not need to do this mod but will if needed to retain the required strength. I will also raise the rodend bearing and put the correct nut on it.

[/IMG]

[/IMG]

[/IMG]
Click to expand...

Is the tube itself also damaged or abraded such that it is now weaker?

more pic of repair

[/IMG]

[/IMG]

I sanded the area with 600 grit sand paper, cleaned with MEK and then primed with self etching primer. The builder primed the spar with zinc cromate primer. Thanks again for the help.

Thread drift!

Flying Scotsman said:
I'd like to know this, too. Since I just finished hooking up the rudder pedals to the links and the links to the cable on my -7A, I'm loath to crawl up in there again and pull out the cotter pins and replace with safety wire unless there's a good reason. Also, the plans call for cotter pins...?
Click to expand...

The problem is that the cotter pins can catch on the pilots' footwear, or interior panels, causing the pins to flex until failure. When the pins fall out, well, you can figure out the rest of the tale. As much as it hurts to do it, change the pins to .040 wire please.

HR2 repair: looks good; carry on!

Mark

F1Boss said:
The problem is that the cotter pins can catch on the pilots' footwear, or interior panels, causing the pins to flex until failure. When the pins fall out, well, you can figure out the rest of the tale. As much as it hurts to do it, change the pins to .040 wire please.

Mark
Click to expand...

Something tells me that's not an approved method of safetying a bolt/nut, and would garner some "attention" from a DAR. Seems like a) proper installation of the cotter pin and b) not putting your feet on the sides of the pedals where they don't belong anyway would solve this problem.

I'll stick to cotter pins, per the plans and AC43-13.

Tom Martin said:
In the early years there were a few incidents of RV4s losing control on the runway due to this issue. I have many hours with safety wire in these locations and also quite a few inspections as well.
This is addressed in the VAN's service bulletin, http://www.vansaircraft.com/pdf/sb96-12-1.pdf
Click to expand...

Broken link, can't find this on the new Van's website...

Found it...under RV-4 SBs. Thanks...

No diagram included (to which one is referred in bullet item 3), though. Presumably, that's in the plans.

I do like the idea of covering with some sort of material to prevent snagging on shoes, though.

Last edited:
