Default Garmin Ground Wire Fuse/CB?

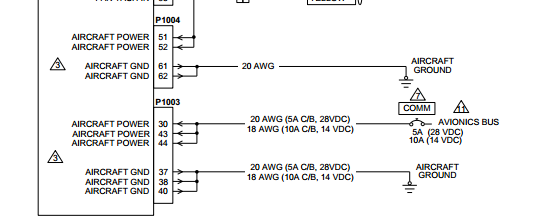

I am looking at the wiring for the Garmin GTN 750 and one of the diagrams (E-4) shows a fuse/Circuit Breaker on some ground wires. See the bottom three pins in this diagram. Is this just a typo?

__________________
CharlieWaffles - But you can call me "Mark"
RV-10
N928MT
Flying - AKA Still Tinkering
Build Project Site
Reply With Quote
  #2
Old 10-16-2012, 11:20 PM
BobTurner BobTurner is offline

Join Date: Dec 2011
Location: Livermore, CA
Posts: 6,767
Default

Typo. No CB's on the ground wires.
Reply With Quote
  #3
Old 10-16-2012, 11:32 PM
az_gila's Avatar
az_gila az_gila is offline

Join Date: Jan 2005
Location: 57AZ - NW Tucson area
Posts: 10,011
Exclamation

Yes minor typo on the bottom three wires. They just cut-n-pasted from the power lines.

The point they were trying to make was 20g wire for a 28V system and 18g wire for a 14 V system on both the ground lines and the power lines.

For the bottom three pins it should read

20 AWG (28 VDC system)
18 AWG (14 VDC system)


You should check what note 3 - the 3 inside the triangle - says though.
__________________
Gil Alexander
EAA Technical Counselor, Airframe Mechanic
Half completed RV-10 QB purchased
RV-6A N61GX - finally flying
Grumman Tiger N12GA - flying
La Cholla Airpark (57AZ) Tucson AZ

Last edited by az_gila : 10-17-2012 at 09:41 AM.
Reply With Quote
  #4
Old 10-17-2012, 07:31 AM
CharlieWaffles's Avatar
CharlieWaffles CharlieWaffles is offline

Join Date: Nov 2010
Location: West Linn, Oregon
Posts: 1,351
Default

Thanks, that's what I figured. Note three just says all power leads are needed.
__________________
CharlieWaffles - But you can call me "Mark"
RV-10
N928MT
Flying - AKA Still Tinkering
Build Project Site
Reply With Quote
  #5
Old 10-17-2012, 08:25 AM
LeeM_2000's Avatar
LeeM_2000 LeeM_2000 is offline

Join Date: May 2009
Location: KS
Posts: 110
Default

This is not a typo. The C/B and voltage call-out helps you verify the ground wire is the correct gauge. This is just a way of reinforcing/reiterating the relationship between the wire gauge, volts, and current rating because getting this wrong would be potentially very bad.
__________________
RV-7
In progress...
Reply With Quote
  #6
Old 10-17-2012, 08:31 AM
CharlieWaffles's Avatar
CharlieWaffles CharlieWaffles is offline

Join Date: Nov 2010
Location: West Linn, Oregon
Posts: 1,351
Default

It must be a typo, none of the other ground wiring in this or other diagrams show a CB/Fuse. Sure they will show a gauge to ensure its the same as the power source, but the inclusion of the CB must be wrong.
__________________
CharlieWaffles - But you can call me "Mark"
RV-10
N928MT
Flying - AKA Still Tinkering
Build Project Site
Reply With Quote
