Default Tip: Stock Vans fuel valve handle mod.

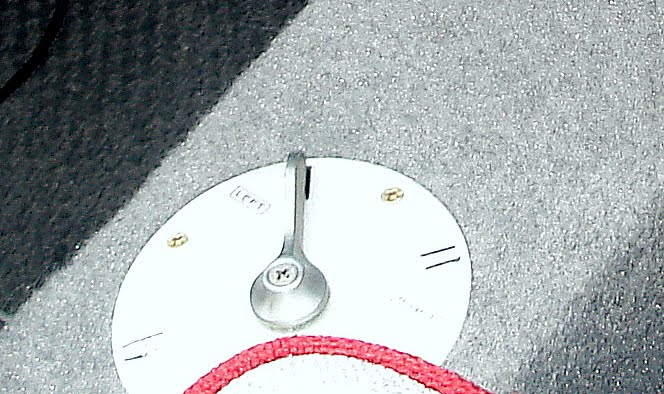

Here is an example of what a buddy did in his RV 10 to make the stock Vans unit more user friendly.

The little pointer end was ground off, leaving just the longer handle part, and the valve was installed in a manner that put the handle forward.

Round plate with Left, Right, and Off positions marked on it finished off the installation.

Sorry for the photo quality, I grabbed a crop out of a larger photo, and lost some detail/clarity.

__________________
Mike Starkey
VAF 909

Rv-10, N210LM.

Flying as of 12/4/2010

Phase 1 done, 2/4/2011

Sold after 240+ wonderful hours of flight.

"Flying the airplane is more important than radioing your plight to a person on the ground incapable of understanding or doing anything about it."

Last edited by Mike S : 12-16-2011 at 03:01 PM.
Reply With Quote
  #2
Old 12-16-2011, 02:44 PM
scsmith scsmith is offline

Join Date: Jan 2008
Location: Ashland, OR
Posts: 2,973
Default Standard

This is the way the RV-8 manual says to install it. Standard procedure.
__________________
Steve Smith
Aeronautical Engineer
RV-8 N825RV
IO-360 A1A
WW 200RV
"The Magic Carpet" Flying since Sept. 2009
Hobbs 700
also
1/4 share in 1959 C-182B (tow plane)
LS6-15/18W sailplane SOLD
bought my old LS6-A back!!
VAF donation Dec 2020
Reply With Quote
  #3
Old 12-16-2011, 05:05 PM
Wayne Gillispie Wayne Gillispie is offline

Join Date: Apr 2009
Location: USA
Posts: 1,499
Default

The one I received and installed on mine is shaped a little different, but does point forward for left and right tank selection. My "tractor valve" does not leak or slip on the shaft. Works great.
__________________
Good judgment comes from experience, and a lot of that comes from bad judgment.
Reply With Quote
  #4
Old 12-16-2011, 05:52 PM
Mike S's Avatar
Mike S Mike S is online now
Senior Curmudgeon

Join Date: Sep 2005
Location: Dayton Airpark, NV A34
Posts: 16,106
Default

The Vans valve handle had a small pointer ----maybe 1/4" long on the side opposite the long wing on the handle.

This is what is normally used to indicate the valve position in many installations, not of an aircraft usage.

The photo in the first post shows the handle with the pointer removed, you can see it here, in this photo I borrowed from Vans website.

__________________
Mike Starkey
VAF 909

Rv-10, N210LM.

Flying as of 12/4/2010

Phase 1 done, 2/4/2011

Sold after 240+ wonderful hours of flight.

"Flying the airplane is more important than radioing your plight to a person on the ground incapable of understanding or doing anything about it."
Reply With Quote
  #5
Old 12-16-2011, 08:53 PM
9GT's Avatar
9GT 9GT is offline

Join Date: Jan 2010
Location: Southern Michigan
Posts: 2,191
Default

Quote:
Originally Posted by Mike S View Post
Here is an example of what a buddy did in his RV 10 to make the stock Vans unit more user friendly.

The little pointer end was ground off, leaving just the longer handle part, and the valve was installed in a manner that put the handle forward.

Round plate with Left, Right, and Off positions marked on it finished off the installation.

Sorry for the photo quality, I grabbed a crop out of a larger photo, and lost some detail/clarity.

This is not the valve handle that came in my -10 kit. Mine came with a handle pointer that had a push button lock-out in order to move the selector valve. I junked it anyways and went with an Andair.
