  #1
Old 04-27-2010, 07:42 PM
rwarre rwarre is offline

Join Date: Jul 2007
Location: Wray, Co
Posts: 584
Default dimmer wiring
Lost my wiring instructions to Vans dimmer. There are four terminals. One is ground and one is 12+ volts, but I don't know the order. Does anyone still have the instructions for this dimmer. Thanks
Reply With Quote
  #2
Old 04-27-2010, 08:46 PM
panhandler1956's Avatar
panhandler1956 panhandler1956 is offline

Join Date: Jun 2006
Location: Ohio
Posts: 1,686

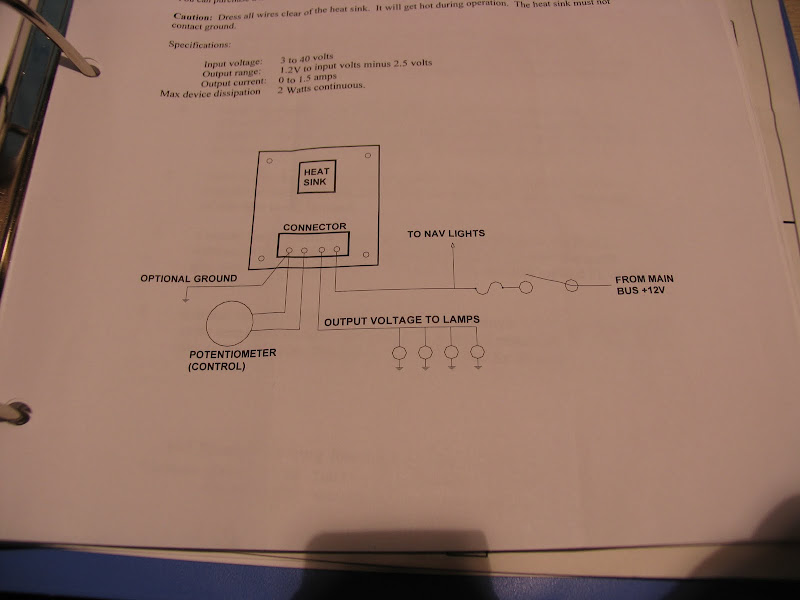

Default Here ya go
Hope this helps.

__________________
Brent Owens
EAA Chapter 9 Tech Counselor/Flight Advisor
Columbus, OH
RV-8 'Contrary Mary' flying
N784DE S/N #82614

www.fixedwingbuddha.com
Follow me on Facebook
Reply With Quote
  #3
Old 04-27-2010, 08:50 PM
N427EF N427EF is offline

Join Date: Oct 2005
Posts: 1,516
Default
Here you go,

__________________
Ernst Freitag
RV-8 finished (sold)
RV-10 Flyer 600 plus hours
Running on E10 mogas
Don't believe everything you know.
Reply With Quote
  #4
Old 04-28-2010, 05:52 AM
rwarre rwarre is offline

Join Date: Jul 2007
Location: Wray, Co
Posts: 584
Default Thanks a bunch
Thanks for the replys. This time I will save the diagrams on my computer. Rware
