Default New cowl vent idea

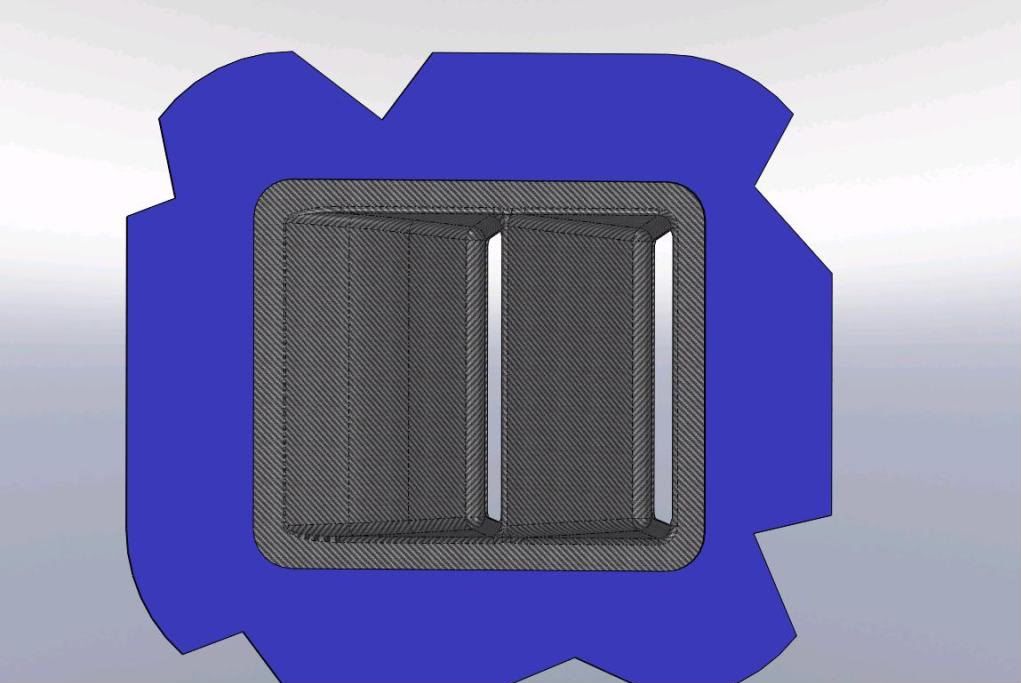

Hey Guys. Some advice on this cowl vent idea. I have a 7a with a 4 pipe exhaust system. I've been told extra venting will be required, but don't like the look of louvers. I'm also in the composite business and think some carbon fiber vents would look really cool. Here's my idea.

So what do you think? Any thoughts on the overall size of vents required? I realize they may produce more drag then louvers but don't know how much. Will this basic design even work. I can mold and produce them without any problems but can use some opinons from the aerodynamic specialists out there. Thanks!
Reply With Quote
  #2
Old 01-24-2010, 02:23 PM
scsmith scsmith is offline

Join Date: Jan 2008
Location: Ashland, OR
Posts: 2,561
Default two things:

First, are you really sure that extra venting is needed? My -8 has the biggest engine that fits in a std cowl (IO-360-A1A, 200 hp) and my CHTs run 275F or so at cruise, and never exceed 360-375F even on hot day climbs.

The key is good baffling. I think many folks have leaks around the inlets and the nose of the engine that they don't know about.


Second, if you do want to make these, some aerodynamics feedback: Try to eliminate the radius lip at the outlets. I know they add lots of stiffness, but find another way to get stiffness. The radius creates problems in both the internal flow trying to get out, and the external flow trying to flow over the vent and pull flow out of the vent as it goes by. Try to have the edges of the opening square and sharp and the surfaces should be parallel to the intended flow direction.
From the picture, its hard to tell if the view is looking at the exterior surface or the interior. They will flow much better if we are looking at the interior. In this case, just remove the lip around the outlet holes completely.

If we are looking at the exterior, i.e. the whole part is below flush to the original surface, they will still flow some, but you want bigger holes in proportion to the ramp area. Eliminate all the lip around the hole, or better yet, reverse the lips so the opening has kind of a radiused intake lip for the flow. It may not be possible to mold such a shape with a one-piece mold.
__________________
Steve Smith
Aeronautical Engineer
RV-8 N825RV
IO-360 A1A
WW 200RV
"The Magic Carpet"
Hobbs 625
LS6-15/18W sailplane SOLD
bought my old LS6-A back!!
VAF donation Jan 2020

Last edited by scsmith : 01-24-2010 at 02:33 PM.
Reply With Quote
  #3
Old 01-24-2010, 03:03 PM
Cfrisella's Avatar
Cfrisella Cfrisella is offline

Join Date: Aug 2008
Location: Sun city, Ca.
Posts: 255
Default Or, maybe something like this?

I guess the issue isn't so much with cooling, but more with leasing pressure. My understanding is the cowl exit is very restricted by the nose gear tubing and then four exhaust pipes. The result causes the cowling to bow out between fasteners.
Reply With Quote
  #4
Old 01-24-2010, 03:14 PM
RV8RIVETER's Avatar
RV8RIVETER RV8RIVETER is offline

Join Date: Sep 2005
Location: 1T7, Kestrel Airpark , Texas
Posts: 773
Default

There is no problem with the outlet being too restrictive. Forgetting about leaks and poor flow control, the problem with the stock set-up is the exit itself. It results in an area of high turbulence and even back flow into the exit, see posts of tuft testing.

If you want to make a mold for production, do something like Larry V. and make a "boat tail" exit.
__________________
Wade Lively
-8, Flying!
N100WL
IO-360A3B6D, WW 200RV
Reply With Quote
  #5
Old 01-24-2010, 03:21 PM
Cfrisella's Avatar
Cfrisella Cfrisella is offline

Join Date: Aug 2008
Location: Sun city, Ca.
Posts: 255
Default

He's the one who said side venting would be needed. I'm also thinging about the boat tail mod.
Reply With Quote
  #6
Old 01-24-2010, 03:22 PM
Mike S's Avatar
Mike S Mike S is offline
Senior Curmudgeon

Join Date: Sep 2005
Location: Dayton Airpark, NV A34
Posts: 15,408
Default

Quote:
Originally Posted by RV8RIVETER View Post
If you want to make a mold for production, do something like Larry V. and make a "boat tail" exit.
That just might be a good idea, I wonder how well a single design would apply to all models of RV??
__________________
Mike Starkey
VAF 909

Rv-10, N210LM.

Flying as of 12/4/2010

Phase 1 done, 2/4/2011

Sold after 240+ wonderful hours of flight.

"Flying the airplane is more important than radioing your plight to a person on the ground incapable of understanding or doing anything about it."
Reply With Quote
  #7
Old 01-24-2010, 03:26 PM
Cfrisella's Avatar
Cfrisella Cfrisella is offline

Join Date: Aug 2008
Location: Sun city, Ca.
Posts: 255
Default

Well. I'm thinging of the relatively flat sections on the sides of the lower halves. I think most RV's have this in their design.
Reply With Quote
  #8
Old 01-24-2010, 03:35 PM
pat pat is offline

Join Date: Jul 2005
Location: Midland, Michigan 3BS Hanger 4B and sometimes at home
Posts: 159
Default boat tail design?

by boat tail mod I assume you mean the teardrop design vetterman built as an extension out of his lower cowl airflow exit where the exhaust would normally go?. If this is the case I believe he put simple louvers in this design in which case this design would look nice.
__________________
Patrick Howe
Citabria 7KCAB - sold
RV8A FB - flying
Reply With Quote
  #9
Old 01-24-2010, 03:37 PM
jsharkey's Avatar
jsharkey jsharkey is offline

Join Date: Nov 2006
Location: Bennington, Vermont USA
Posts: 1,301
Default What CAD are you using?

Quote:
Originally Posted by Cfrisella View Post
Well. I'm thinging of the relatively flat sections on the sides of the lower halves. I think most RV's have this in their design.
Cool carbon fiber look.

Mind you the big trouble here in the North East at the moment is getting the darned engine and oil hot enough

Jim Sharkey
RV-6 Phase 1
Reply With Quote
  #10
Old 01-24-2010, 03:39 PM
Cfrisella's Avatar
Cfrisella Cfrisella is offline

Join Date: Aug 2008
Location: Sun city, Ca.
Posts: 255
Default

Yes it is. Originally he placed them under the cowl . He said they really need to be on the sides to work properly.
Reply With Quote
