Default AFP FM200 Pump and Filter Installation in RV-10

Hi All,

I am wondering how the AFP fuel pump/filter assemblies mount in the tunnel on an RV-10. Is there a standard way of doing this--do I use the Van's supplied brackets or is there another set of mounting brackets I need?

I bought an engine that has an AFP FM200 system (servo, spider, injectors) already installed, but I don't have the fuel pump, filters, etc. as the engine came from a flying RV-10 and the owner was keeping those components for the new installation.

I just realized I need to make a decision about whether to install the factory brackets. I guess I could install them and remove later if need be, but that seems a waste of time, if there is another preferred mounting scheme.

Also, related, how have people mounted the Andair fuel valves--the one I have doesn't seem to fit the factory bracket without modifying the bracket; I'm wondering if I should just fab a whole new bracket or modify the factory one?
Reply With Quote
  #2
Old 01-15-2021, 08:38 PM
Richard Connell Richard Connell is offline

Join Date: Aug 2006
Location: Sydney Australia
Posts: 250
Default

Check out section 37 in the plans for the AFP pump and filter install.

I didnít install the AFP filter and just left the bracket in there behind the pump.

For the Andair valve, I just chopped the already installed bracket and riveted a new 063 plate in there to suit.
All pretty straight forward. Access is reasonable at this stage of the build.
Consider the access plate in the side of the tunnel if you havenít already.

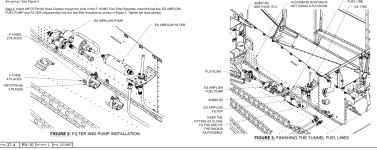

Click image for larger version
