Default Panel Ribs with 10" G3X
Almost time for me to start cutting holes and running wire for my avionics. I've got one of the nice Symmetrical Carbon Panels from Geoff at Aerosport. I'm installing (2) 10" G3X Touchscreens. Anyone have pics of the sub panel ribs and mounting for such a setup? Any other pics of your other components in the sub panel? I'm also installing a Vertical Power Pro. Thanks!
__________________
SEAN BLAIR V7
Colorado Springs, CO
http://www.mykitlog.com/sblair
2020 VAF SUPPORTER
Reply With Quote
  #2
Old 09-03-2016, 05:45 PM
Elwell81 Elwell81 is offline

Join Date: Sep 2012
Location: Western Airpark (06WN) Yelm, WA
Posts: 41
Default I've got the same setup

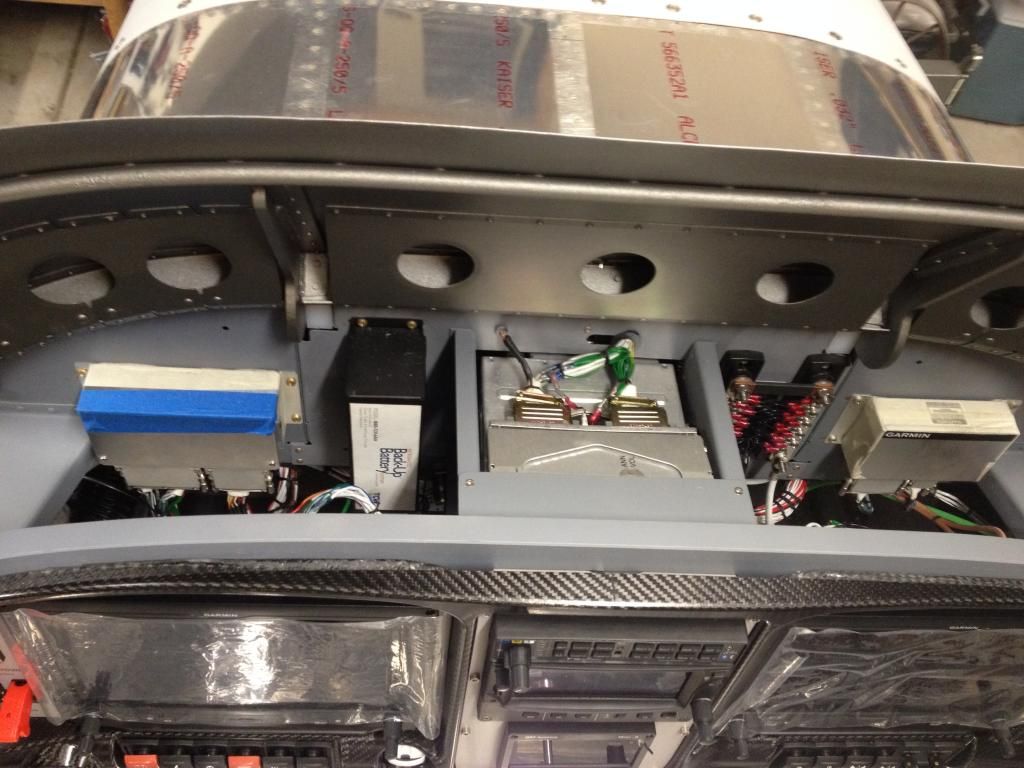

Top Down...

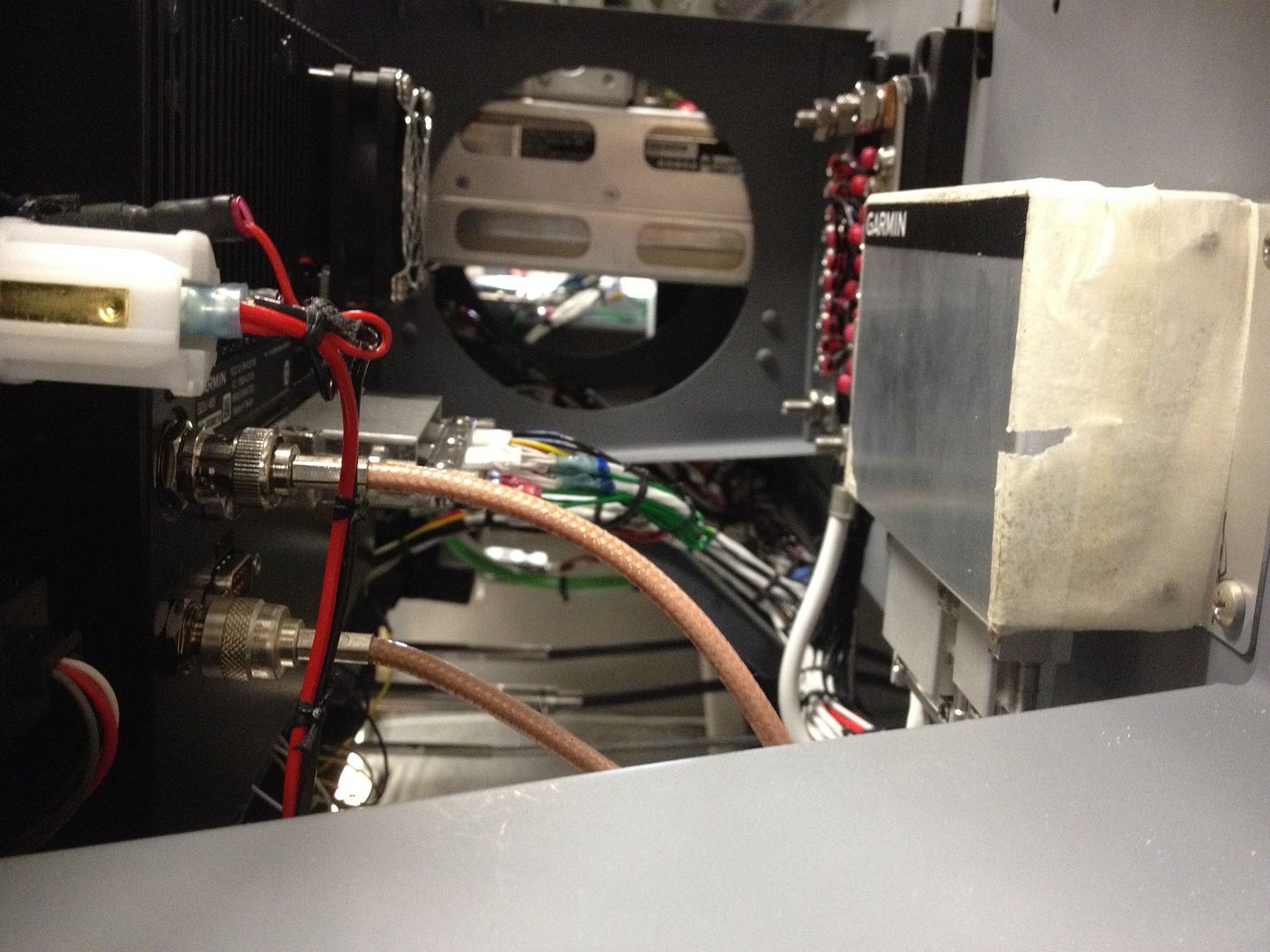

Right Side...



Right Side Again..



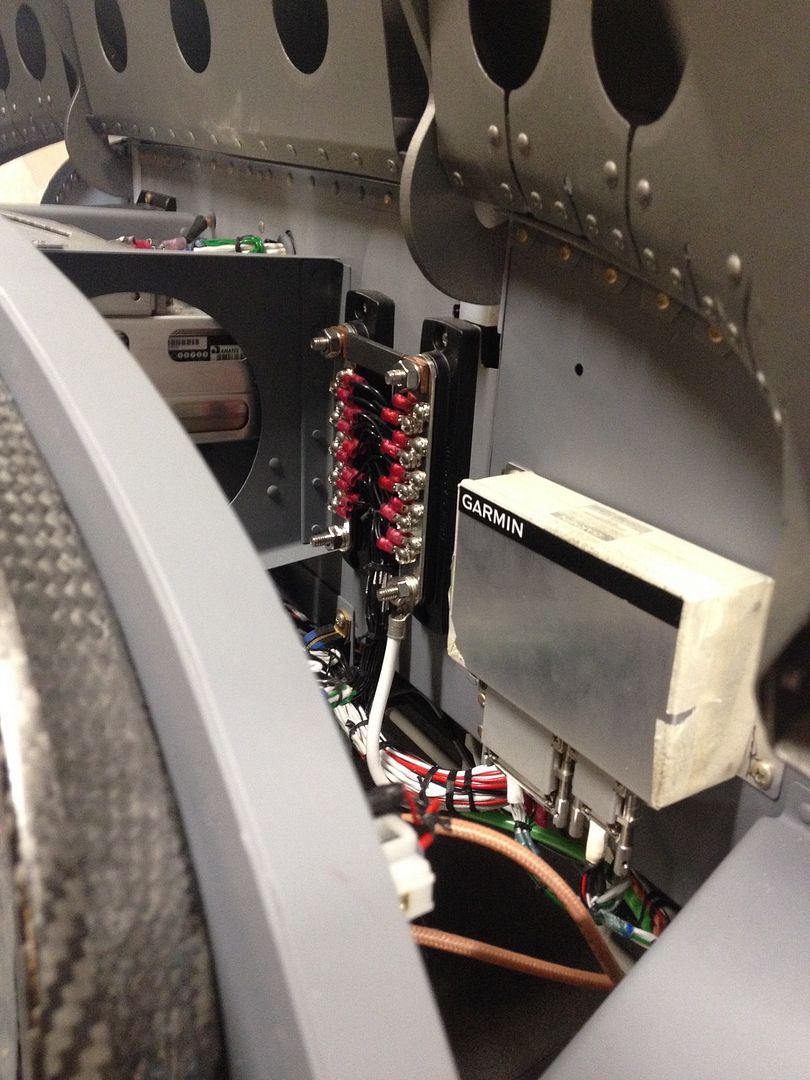

Left side...

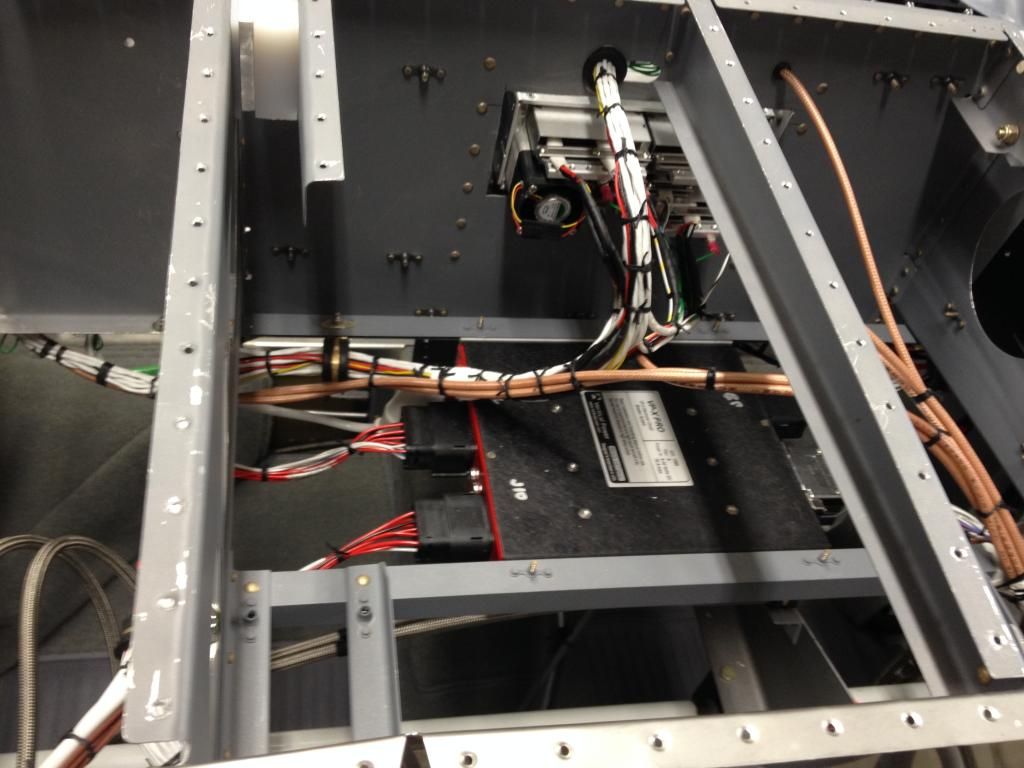

Between sub-panel and firewall, looking aft...

Reply With Quote
  #3
Old 09-03-2016, 07:03 PM
redbaron redbaron is offline

Join Date: Aug 2013
Location: Lucerne,Ca
Posts: 272
Default G3X pnl supports
Check this location RV-12 SECTION 43C.pdf on Vans Aircraft site under support or for your a/c
Reply With Quote
  #4
Old 09-05-2016, 10:33 PM
SeanB's Avatar
SeanB SeanB is offline

Join Date: Dec 2006
Location: Colorado Springs
Posts: 574
Default Perfect
Andy...thanks so much for the pics. Excellent!
