Default Tail cone aft skin

Good morning,

So my wife and baby are off to Connecticut for the weekend which means I get unlimited time to work on my RV (Until I get called out for a trip, I'm on reserve with the airlines). The only problem is that it is very unclear to me how the aft section of the tail cone comes together. When looking at the diagram, it looks like F-1079 aft bottom skin sits inside the side skins and inside of the fwd bottom skin. I originally set it up that way but couldn't get the holes to line up with the bulkhead. Reading ahead in the manual, subsequent diagrams show the f-1079 sitting inside of the side skins but on the outside of the bottom skin. The rivet schematic also shows The F-1079 sitting outside or below the bottom skin. Any clarity here would be much appreciated. Hope everyone enjoys their Easter and or Passover.

Dave
Reply With Quote
  #2
Old 04-03-2015, 07:40 AM
Jasonm Jasonm is offline

Join Date: Jul 2013
Location: KAVL
Posts: 325
Default

IIRC F-1079 does sit inside the side skins and inside the forward bottom skin. I'm looking for a picture now.

Jason
Reply With Quote
  #3
Old 04-03-2015, 07:43 AM
flion's Avatar
flion flion is offline

Join Date: Dec 2007
Location: Flagstaff, AZ
Posts: 2,706
Default

I don't see the orientation you mention in subsequent plans pages and my rivet callout page is an exploded view. But I did it with the aft skin under the forward and side skins. This fits the general rule of thumb for lap joints - forward over aft and top over bottom. That aft skin is so thick, it took a bit of work to get it to cleco in place. The pre-bend is not enough and I had to use a ratchet strap to curl it a bit more before it would lay in place without putting excessive springback forces on my clecos.
__________________
Patrick Kelley - Flagstaff, AZ
RV-6A N156PK - Flying too much to paint
RV-10 14MX(reserved) - Fuselage on gear
http://www.mykitlog.com/flion/
EAA Technical Counselor #5357
Reply With Quote
  #4
Old 04-03-2015, 07:55 AM
NovaBandit's Avatar
NovaBandit NovaBandit is offline

Join Date: Feb 2011
Location: Hastings, MN
Posts: 583
Default

Yup. The 1079 skin is underneath all the other tailcone skins. I remember it being a PITA to get lined up, but if you just keep working with it, it'll go.

Here is the best picture I have of that part of the build:
__________________
Ed Kranz
RV-10 N829EC - Flying
First Flight: 8/29/15
KSGS - Fleming Field, South Saint Paul, Minnesota

YouTube.com/GoodPlaneLiving
-- Build Timelapse and Travel Videos . . GoodPlaneLiving.com -- Build and Travel Blog
Reply With Quote
  #5
Old 04-03-2015, 08:40 AM
wirejock's Avatar
wirejock wirejock is offline

Join Date: Oct 2005
Location: Estes Park, CO
Posts: 4,579
Default Tail cone

Nice to know it's not just the 7. Fitting that skin and bulkheads was a major pain. I rolled the edges with my leading edge rolling jig and 3/4" pipe. Came out pretty close but it took two men to do it.
__________________
Larry Larson
Estes Park, CO
wirejock at yahoo dot com
Donated 01/01/2021, plus a little extra.
RV-7A #73391, N511RV reserved (2,000+ hours)
Empennage, wings, fuse, finishing kit, now FWF
Disclaimer
I cannot be, nor will I be, held responsible if you try to do the same things I do and it does not work and/or causes you loss, injury, or even death in the process.
Reply With Quote
  #6
Old 04-03-2015, 08:54 AM
Wyzepilot Wyzepilot is offline

Join Date: Oct 2013
Location: Red Bank, NJ
Posts: 74
Default

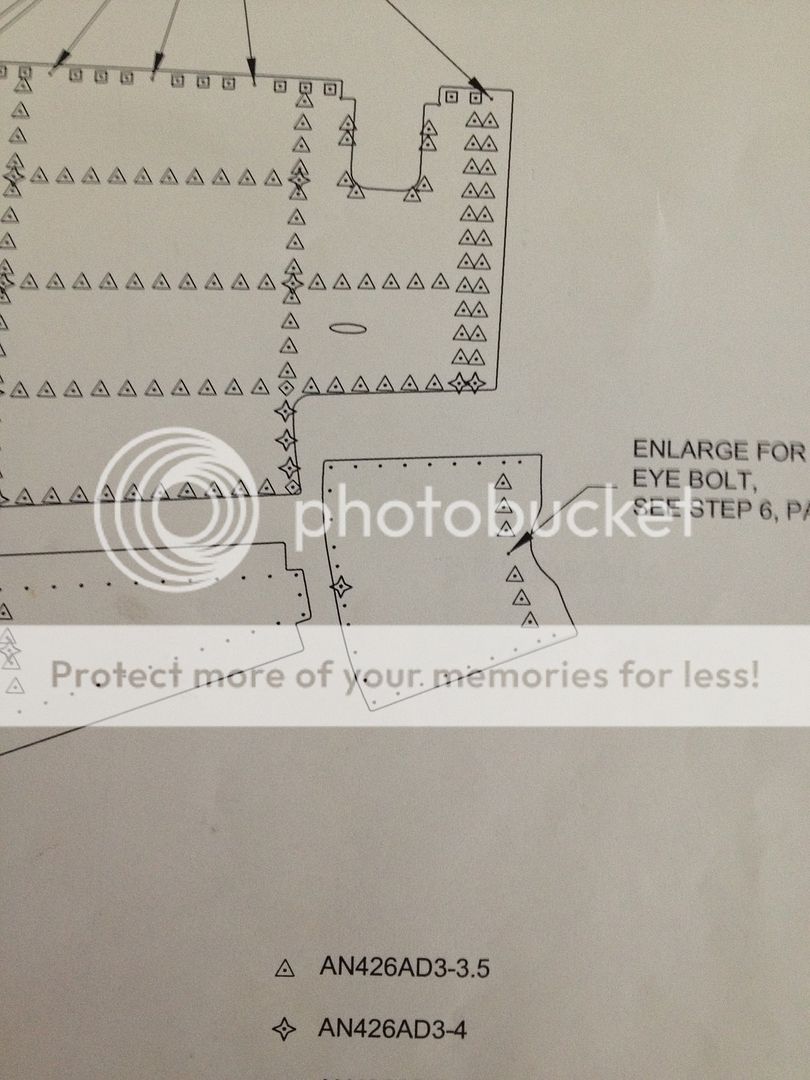

Hey guys thanks for the quick replies. I took a picture of the rivet schematic so you can see what I'm referring to.


It shows the head of the AN426AD3-4 on the Aft bottom skin which would indicate that that piece sits on the outside underneath the fwd bottom skin and inside the side skins. That being said, the figure on page 10-8 clearly shows the Aft bottom skin inside of the fwd bottom skin and the side skins. One thing I noticed is that the diagram on page 10-8 is revision 1 while revet schematic is revision 0. I wonder if there was a change and the rivet schematic wasn't updated?
Reply With Quote
  #7
Old 04-03-2015, 08:56 AM
60av8tor 60av8tor is offline

Join Date: May 2012
Location: Harrisburg, Pa
Posts: 759
Default

Quote:
Originally Posted by NovaBandit View Post
Yup. The 1079 skin is underneath all the other tailcone skins. I remember it being a PITA to get lined up
This is the truth. I remember a fair amount of sweat and a few expletives being spent at this point

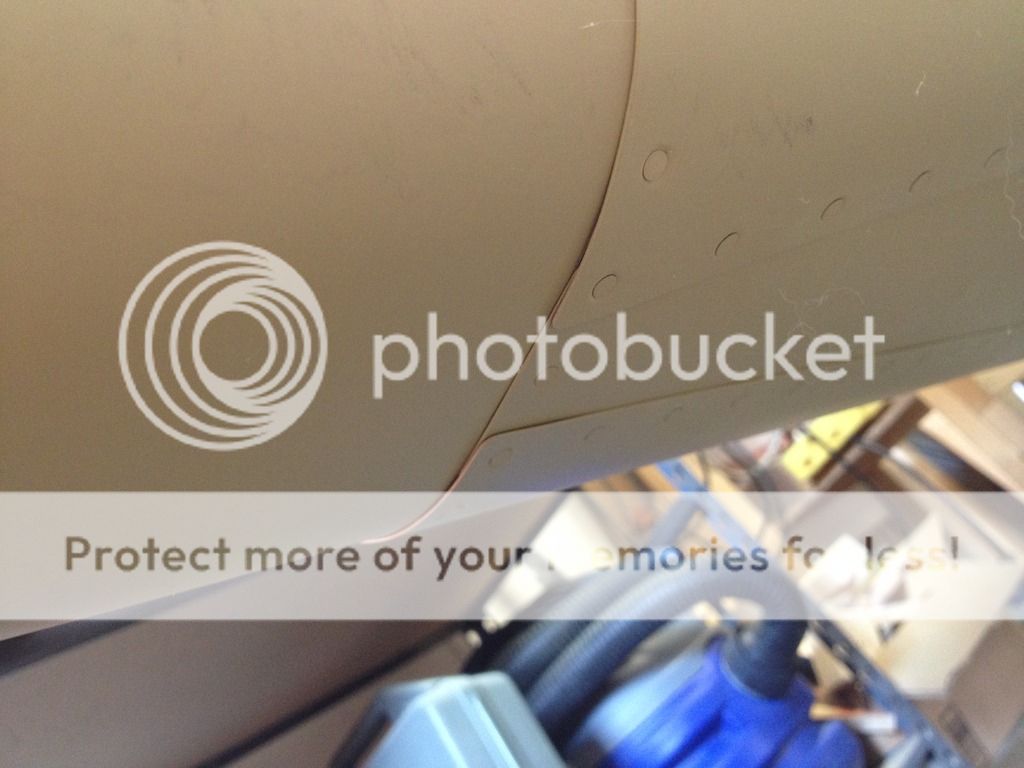

Here is a pic of mine looking forward - awkward angle, but the best I could get laying on the floor. 1079 under everything:


However, now that I go back and look at the rivet call out diagram, it is clear that the 1079 is above the bottom skin
__________________
Jon
RV-7A purchased flying - Sold 6/16
RV-10 empennage delivered 1/22/14 (325JT)

Build: http://hhav8or.blogspot.com/

Last edited by 60av8tor : 04-03-2015 at 10:03 AM.
Reply With Quote
  #8
Old 04-03-2015, 08:57 AM
NovaBandit's Avatar
NovaBandit NovaBandit is offline

Join Date: Feb 2011
Location: Hastings, MN
Posts: 583
Default

Here's the factory RV10:

__________________
Ed Kranz
RV-10 N829EC - Flying
First Flight: 8/29/15
KSGS - Fleming Field, South Saint Paul, Minnesota

YouTube.com/GoodPlaneLiving
-- Build Timelapse and Travel Videos . . GoodPlaneLiving.com -- Build and Travel Blog
Reply With Quote
  #9
Old 04-03-2015, 08:57 AM
60av8tor 60av8tor is offline

Join Date: May 2012
Location: Harrisburg, Pa
Posts: 759
Default

Missed your post by 2 min Wyze, but I def see what you're saying.
__________________
Jon
RV-7A purchased flying - Sold 6/16
RV-10 empennage delivered 1/22/14 (325JT)

Build: http://hhav8or.blogspot.com/
Reply With Quote
  #10
Old 04-03-2015, 09:41 AM
Wyzepilot Wyzepilot is offline

Join Date: Oct 2013
Location: Red Bank, NJ
Posts: 74
Default

You guys are awesome!!! Thanks again for all of the quick help. Looking at the pictures you guys posted the aft bottom skin should tuck neatly inside the side skins and the fwd bottom skin. Now back to the shop to try and "massage" it all together. It's a serious PITA

Dave
Reply With Quote
