Smile RV-10 Gust Lock: 9GT's Version

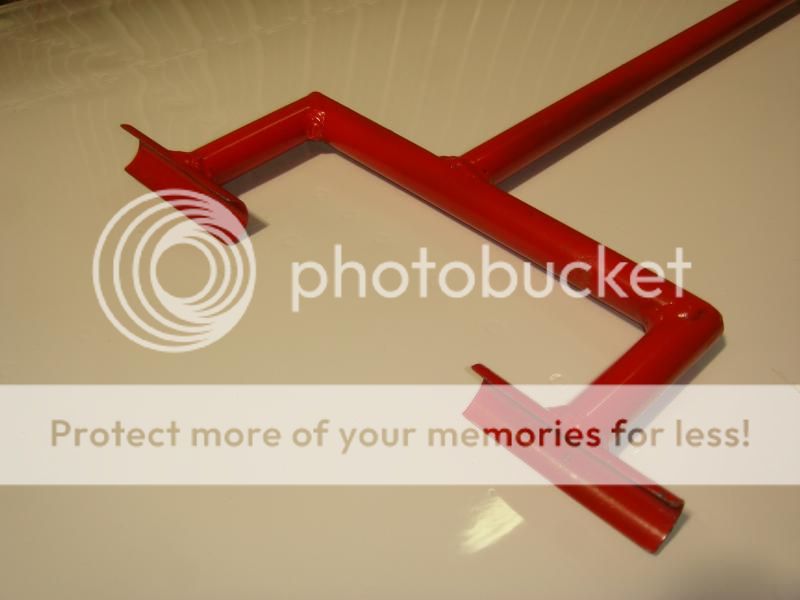

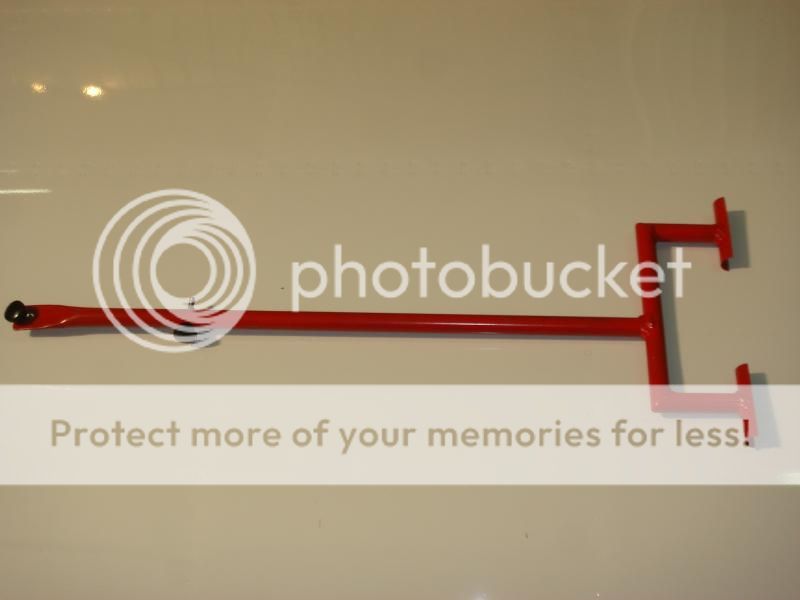

I like to fabricate and have the equipment so I went ahead and made my own gust lock out of light weight 4130. This works whether the wires are inside or outside the control stick.


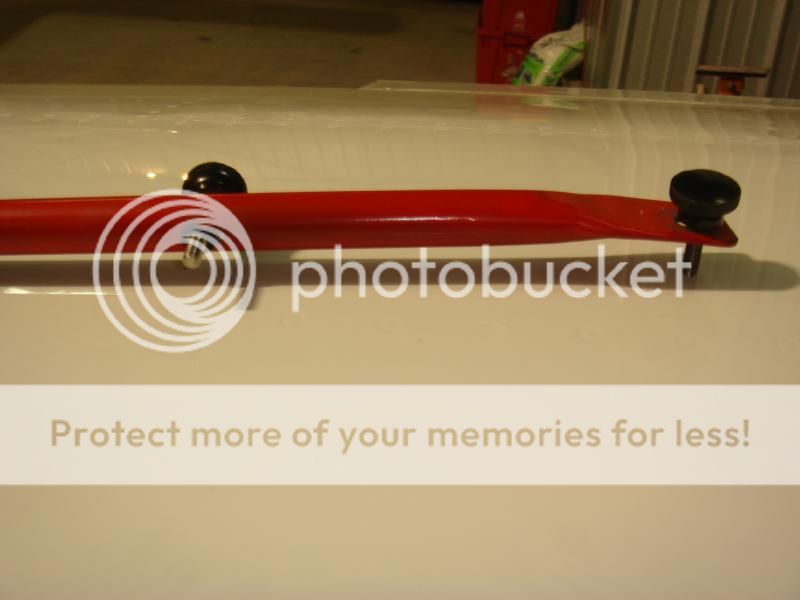

The threaded knobs are 8/32. I cut a relief in the threads on a lathe in the proper location and installed retainer clips to keep them in place at all times. The end that attaches to the seat pedestal is slotted 1/2" for the screw to pivot during installation. It also allows the gust lock to be extended and tightened up.


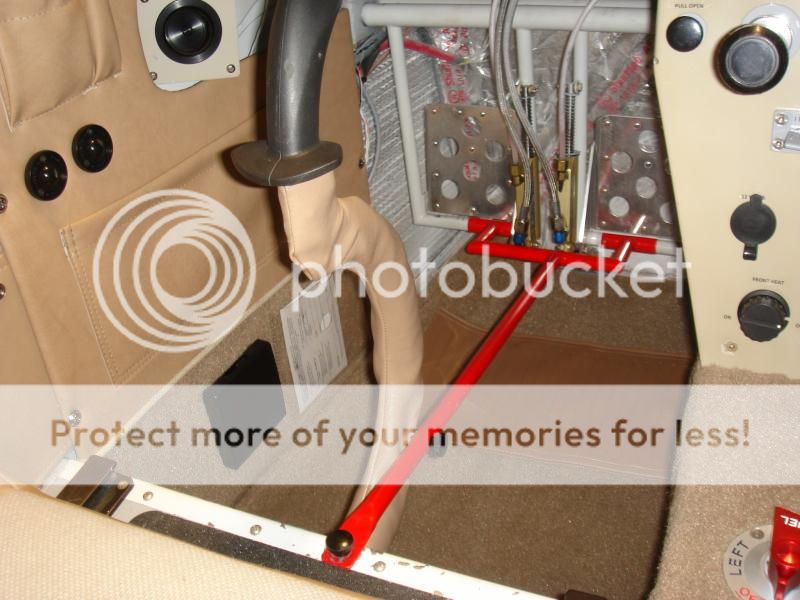

I installed an 8/32 plate nut under the seat pedestal. There is a 5/16" steel insert that is drilled and tapped 8/32 in the control stick TIG welded in. I used a small leather hole punch to make a clean hole in the control stick cover and used a dab of contact cement on the inside of the cover holding the hole location in place. There is also a metal anti crush insert in the gust lock at that location.
__________________
David C.
Howell, MI
RV-10: #41686 Under Construction
RV-9A: #90949 Under Construction
RV-10: #40637 Completed/Sold 2016
Cozy MKIV:#656 Completed/Sold 2007
"Donor Exempt" but donated through Dec. 2021
Reply With Quote
  #2
Old 12-18-2014, 08:15 AM
majuro15's Avatar
majuro15 majuro15 is offline

Join Date: Feb 2013
Location: Charlotte, NC
Posts: 678
Default

David, very nice!!
__________________
www.N1017H.com
Tim Huneycutt, Capt, NCANG
PC-12 Pilot
N1017H RV-10 Flying 2019
EAA #: 1106970
2021 VAF Dues Paid!
Reply With Quote
  #3
Old 12-18-2014, 08:15 AM
Kenny Gene Kenny Gene is offline

Join Date: Aug 2007
Location: Kansas
Posts: 171
Default Awesome

Nice, real nice! Awesome job. Can you post close up pictures of your attachment to the control stick? I cannot see how you were able to drill without tearing up your wires.

Thanks for posting.

Kenny Gene
Wichita Kansas Area
Rv7a 294TC AWC 9-07 690 hours sold 11-11
Rv10 484TC AWC 10-10 418 hours
Reply With Quote
  #4
Old 12-18-2014, 09:37 AM
9GT's Avatar
9GT 9GT is offline

Join Date: Jan 2010
Location: Southern Michigan
Posts: 2,188
Default

Quote:
Originally Posted by Kenny Gene View Post
Nice, real nice! Awesome job. Can you post close up pictures of your attachment to the control stick? I cannot see how you were able to drill without tearing up your wires.

Thanks for posting.

Kenny Gene
Wichita Kansas Area
Rv7a 294TC AWC 9-07 690 hours sold 11-11
Rv10 484TC AWC 10-10 418 hours
Thank you. The control stick was removed from the plane and I also removed the Tosten grip and the associated wires. Both the control stick and the gust lock were drilled on a drill press for the inserts to ensure they were square to each other, and for welding. I used 9 pin Sub-D connectors for the wiring under the seats. It was not too difficult extracting extracting the pinned wires from the connectors. That allowed me to pull the the wires from the stick. It was a little harder to get them past the insert for reassembly but they made it. Where the stick and gust lock meet, I left about 1/32" protruding so they had a squared off mating surface.
__________________
David C.
Howell, MI
RV-10: #41686 Under Construction
RV-9A: #90949 Under Construction
RV-10: #40637 Completed/Sold 2016
Cozy MKIV:#656 Completed/Sold 2007
"Donor Exempt" but donated through Dec. 2021
Reply With Quote
  #5
Old 12-18-2014, 09:59 AM
Mike S's Avatar
Mike S Mike S is offline
Senior Curmudgeon

Join Date: Sep 2005
Location: Dayton Airpark, NV A34
Posts: 16,100
Default

Considering the cover/boot-------why not just run the wires on the outside of the stick??

Much simpler.

I really like your design, may have to do a bit of copying
__________________
Mike Starkey
VAF 909

Rv-10, N210LM.

Flying as of 12/4/2010

Phase 1 done, 2/4/2011

Sold after 240+ wonderful hours of flight.

"Flying the airplane is more important than radioing your plight to a person on the ground incapable of understanding or doing anything about it."
Reply With Quote
  #6
Old 12-18-2014, 11:42 AM
9GT's Avatar
9GT 9GT is offline

Join Date: Jan 2010
Location: Southern Michigan
Posts: 2,188
Default

Quote:
Originally Posted by Mike S View Post
Considering the cover/boot-------why not just run the wires on the outside of the stick??

Much simpler.

I really like your design, may have to do a bit of copying
That is very true Mike. My stick covers were an afterthought so I originally ran the wires inside the sticks. I still did not like the looks of the bare stick control's so I got some interior matching vinyl material from JoAnn Fabrics and sewed up the sock covers and decided to keep the wires inside. I waited as long as I could for ASA to come out with their RV-10 gust lock but a looming cross country trip with ramp tie down forced me to come up with something quick. Nothing against any other designs out there that work, but they were not for me.
__________________
David C.
Howell, MI
RV-10: #41686 Under Construction
RV-9A: #90949 Under Construction
RV-10: #40637 Completed/Sold 2016
Cozy MKIV:#656 Completed/Sold 2007
"Donor Exempt" but donated through Dec. 2021
Reply With Quote
  #7
Old 12-18-2014, 02:03 PM
rightrudder rightrudder is offline

Join Date: Mar 2014
Location: Laguna Hills, CA
Posts: 1,853
Default

Great solution, and clean execution...well done!
__________________
Doug
RV-9A "slider"--sold in July 2021
Flew to Osh in 2017, 2018 & 2019!
Donation made for 2021
You haven't seen a tree until you've seen its shadow from the sky -- Amelia Earhart
Reply With Quote
  #8
Old 12-18-2014, 02:24 PM
BigD BigD is offline

Join Date: Jul 2012
Location: MS
Posts: 328
Default

I'm wondering if something that rotates out from the seat would work - here's a beginning idea:



The part that rotates out to hold the stick could be just a single arm with a curve to match the stick assuming it could provide enough resistance to movement. I'll have to confirm that it could be situated to not be in the way during normal ops.

Then a similar fixture for the rudders. This type of design would allow the lock to stow in place and removes the need for a long connecting pole.

==dave==
Reply With Quote
  #9
Old 12-24-2014, 07:57 AM
johngoodman's Avatar
johngoodman johngoodman is offline

Join Date: Feb 2006
Location: Peachtree City, Georgia
Posts: 440
Default

Quote:
Originally Posted by BigD View Post
I'm wondering if something that rotates out from the seat would work - here's a beginning idea:

The part that rotates out to hold the stick could be just a single arm with a curve to match the stick assuming it could provide enough resistance to movement. I'll have to confirm that it could be situated to not be in the way during normal ops.

Then a similar fixture for the rudders. This type of design would allow the lock to stow in place and removes the need for a long connecting pole.

==dave==
Dave,
I see one problem - the stick will hit it when it's full back. My stick comes within 1/4 inch of the seat pedestal. You will need that when you try to flare in a full flaps landing.
John
__________________
John Goodman - 40572
First flight was 25 June, 2011
N711JG
Reply With Quote
  #10
Old 12-24-2014, 09:59 AM
David Paule David Paule is offline

Join Date: Dec 2009
Location: Boulder, CO
Posts: 5,067
Default

One very desirable feature in any control lock would be to include some provision so that the pilot physically can't sit in the seat when the control lock is engaged.
