Default Eletrical pump install question

Seems like heve a new model airflow pump bought from vans and my dyagram is related to old one, for what I could see there is no return line on this new one,

somebody there to help me ?
__________________
Guilherme Plassmann (Brazil)
RV7A (Mr Flame) slow kit S/N 74285 Finished 04/14/15😀😀😀😀flying
G3X
Superior IO360
Sterba prop
TSFlightlines hoses
LR30,PRM1,C560,C510S,HS125,B350 FAA/ANAC Pilot

Donation made 2016
Reply With Quote
  #2
Old 10-05-2014, 10:26 PM
Dune Dune is offline

Join Date: Sep 2013
Location: Montgomery, TX
Posts: 15
Default

That is correct. The new design does not require a return line. The return is built into the fitiing that comes attached to the pump.

It will also require either a modification to the housing that Van's supplies which was designed for the previous model pump or a somewhat creative routing of the tubing.
Reply With Quote
  #3
Old 10-06-2014, 10:27 AM
Guilhermepilot's Avatar
Guilhermepilot Guilhermepilot is offline

Join Date: Jan 2013
Location: brazil
Posts: 316
Default

many thanks
__________________
Guilherme Plassmann (Brazil)
RV7A (Mr Flame) slow kit S/N 74285 Finished 04/14/15😀😀😀😀flying
G3X
Superior IO360
Sterba prop
TSFlightlines hoses
LR30,PRM1,C560,C510S,HS125,B350 FAA/ANAC Pilot

Donation made 2016
Reply With Quote
  #4
Old 10-06-2014, 11:28 AM
Guilhermepilot's Avatar
Guilhermepilot Guilhermepilot is offline

Join Date: Jan 2013
Location: brazil
Posts: 316
Default

Also If anyone has a pic of this new set up
Would be very welcome
__________________
Guilherme Plassmann (Brazil)
RV7A (Mr Flame) slow kit S/N 74285 Finished 04/14/15😀😀😀😀flying
G3X
Superior IO360
Sterba prop
TSFlightlines hoses
LR30,PRM1,C560,C510S,HS125,B350 FAA/ANAC Pilot

Donation made 2016
Reply With Quote
  #5
Old 10-12-2014, 10:58 AM
rightrudder rightrudder is offline

Join Date: Mar 2014
Location: Laguna Hills, CA
Posts: 1,853
Default

Your timing is good...mine just arrived. Van's is in the process of designing a new attach bracket, but I decided to get the pump right away and will fab my own bracket.

__________________
Doug
RV-9A "slider"--sold in July 2021
Flew to Osh in 2017, 2018 & 2019!
Donation made for 2021
You haven't seen a tree until you've seen its shadow from the sky -- Amelia Earhart
Reply With Quote
  #6
Old 10-13-2014, 11:09 AM
rightrudder rightrudder is offline

Join Date: Mar 2014
Location: Laguna Hills, CA
Posts: 1,853
Default

I'd be curious to see mounting solutions for this too, if anyone has pics.
__________________
Doug
RV-9A "slider"--sold in July 2021
Flew to Osh in 2017, 2018 & 2019!
Donation made for 2021
You haven't seen a tree until you've seen its shadow from the sky -- Amelia Earhart
Reply With Quote
  #7
Old 10-13-2014, 11:31 AM
RV7AJeremy's Avatar
RV7AJeremy RV7AJeremy is offline

Join Date: Aug 2010
Location: Gilbert AZ
Posts: 416
Default My installation

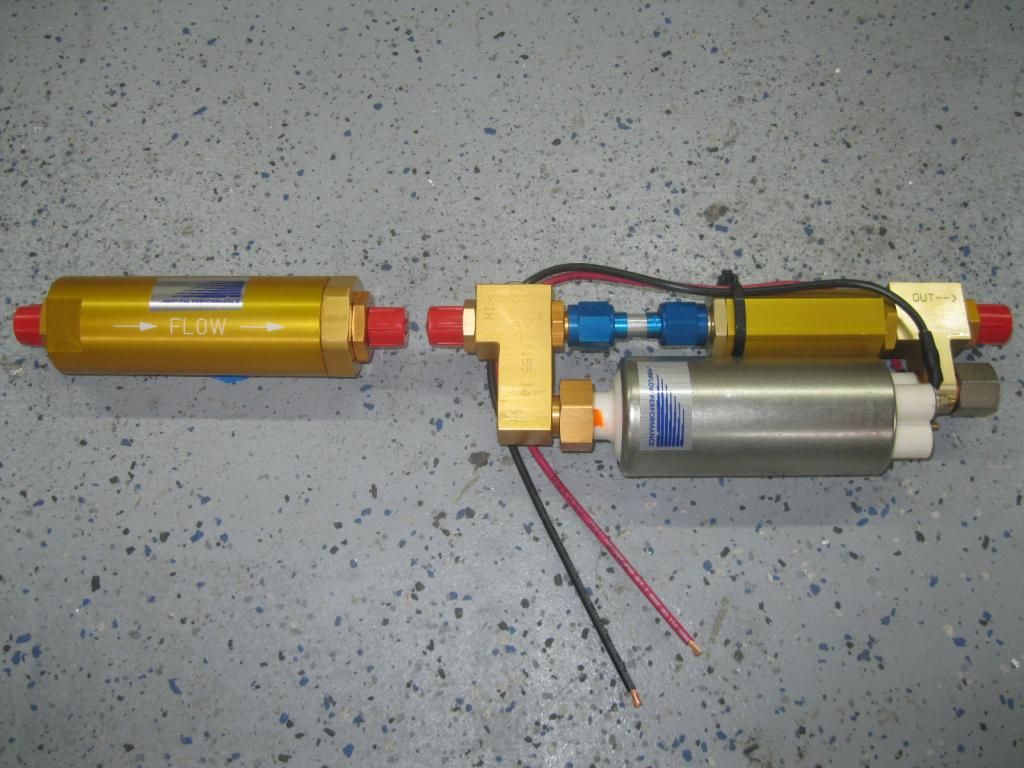

here are some pictures of my installation. No modification of VANS cover required. I am not flying yet but I have had everything hooked up with no issues.
