Spark Plug Wire Routing
I can't seem to locate any pictures of how others have routed their spark plug wires from the mags to the plugs and the diagram that came with my engine isn't a lot of help. Does anyone have pictures of the left and right sides of their engine as well as pictures showing how the upper plugs route from the mags to their respective sides?
__________________
________
Trevor Conroy CFII, MEI
Airbus Pilot
N781TD
RV-7
First Flight - April 12, 2015
Construction Log
|
05-06-2014, 02:53 PM
|
|
|
|
Join Date: Jan 2010
Location: Ottawa, Ks
Posts: 2,188
|
|
Not mags but you can search/browse my build log for some pics of how I did it.
http://www.vansairforce.com/communit...ad.php?t=94648
__________________
RV 7 400 hours and counting
19 donation done
|
05-06-2014, 07:14 PM
|
 |
|
|
Join Date: Mar 2005
Location: DVT Phoenix
Posts: 1,187
|
|
Hi Trevor, Why not come over to KDVT when you are in Scottsdale and look at an RV-7 that is done very well. I would be happy to pull the cowling so you can see some options. 12plus RVs done the same way might work. When you were at AFS I enjoyed talking to you and welcome you to our airport. Larry
|
05-06-2014, 07:44 PM
|
 |
|
|
Join Date: Nov 2010
Location: Okanagan Valley BC, Canada
Posts: 482
|
|
Hope these help...
Added one more adel to support wire below...
__________________
Ron Townson
Okanagan Valley BC, Canada
RV-8 Completed Dec 2013
Membership renewed Sept 8, 2019
|
05-07-2014, 10:14 AM
|
|
|
|
Join Date: Jul 2009
Location: Wilsonville, OR
Posts: 453
|
|
Quote:
Originally Posted by LARCO
Hi Trevor, Why not come over to KDVT when you are in Scottsdale and look at an RV-7 that is done very well. I would be happy to pull the cowling so you can see some options. 12plus RVs done the same way might work. When you were at AFS I enjoyed talking to you and welcome you to our airport. Larry
|
Hi Larry, I will do just that. We go to SDL quite often but not so much during the warmer months. I'll track you down next time we head south.
__________________
________
Trevor Conroy CFII, MEI
Airbus Pilot
N781TD
RV-7
First Flight - April 12, 2015
Construction Log
|
05-07-2014, 03:50 PM
|
|
|
|
Join Date: Mar 2005
Location: DVT Phoenix
Posts: 1,187
|
|
Quote:
Originally Posted by TCONROY
Hi Larry, I will do just that. We go to SDL quite often but not so much during the warmer months. I'll track you down next time we head south.
|
Sent you an email. Larry |
05-07-2014, 03:57 PM
|
|
|
|
Join Date: Mar 2008
Location: Seattle
Posts: 1,412
|
|
The shortest wires go to the bottom plugs.
Right mag fires bottom plugs on right side, top plugs on left side.
Left mag fires bottom plugs on left side, top plugs on right side.
Is that what you meant?
__________________
Scott Emery
http://gallery.eaa326.org/v/members/semery/
EAA 668340, chapter 326 & IAC chapter 67
RV-8 N89SE first flight 12/26/2013
Yak55M, and the wife has an RV-4
There is nothing-absolute nothing-half so much worth doing as simply messing around with Aeroplanes
(with apologies to Ratty)
2019
|
05-07-2014, 09:32 PM
|
 |
|
|
Join Date: Mar 2008
Location: Ramona, CA
Posts: 2,367
|
|
I followed the wiring diagrams in the Lycoming manuals for spark plugs.
Google "lycoming spark plug wiring diagrams" and you should find a decent picture to follow.

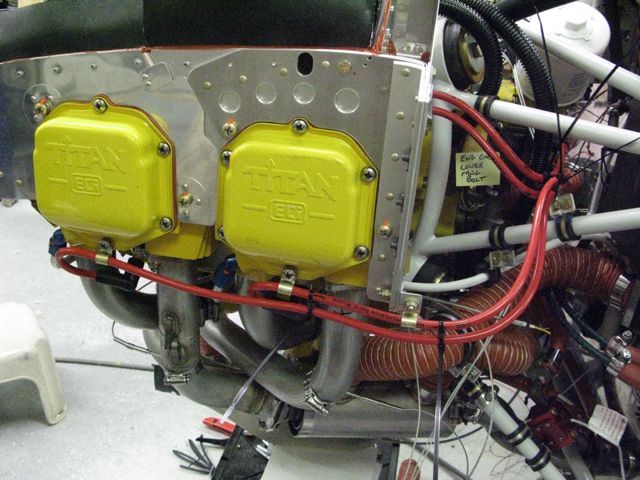

Here are some pictures from my installation.
 |
