Default Dual 7" SV screens

Has anyone tried to put 2 7" SV screens stacked in the center of the panel in a -8 panel yet? I'm thinking about going that direction for redundancy as I will be doing some IFR flying with mine.

Any thoughts and input appreciated.
__________________
Brant Seghetti
Top Cover Aviation
Nut Tree, CA
P-51, RV-8, 90A, S1
ATP, A&P, IA
Dues Gladly Paid
Reply With Quote
  #2
Old 12-30-2013, 11:09 AM
Mark Dickens's Avatar
Mark Dickens Mark Dickens is offline

Join Date: Apr 2012
Location: Collierville, TN (KFYE)
Posts: 1,475
Default

In order to do that, you will either have to cut into the mounting flange at the top or extend the panel at the bottom. I know there's at least one who's done this but when I tried to come up with a panel design to do this with the stock panel, it wouldn't work.

Here's a good video of one who did that:

http://www.youtube.com/watch?v=lvUIjVp2S_I
__________________
RV-8 #81077 Super Slow Build
Dynon Skyview HDX, Titan IOX-370, Dual P-Mags, AFP FM200A FI, Whirlwind 200RV CS Prop
First Flight 11/20/2016
https://www.marksrv8.com
Reply With Quote
  #3
Old 12-30-2013, 11:14 AM
Mark Dickens's Avatar
Mark Dickens Mark Dickens is offline

Join Date: Apr 2012
Location: Collierville, TN (KFYE)
Posts: 1,475
Default

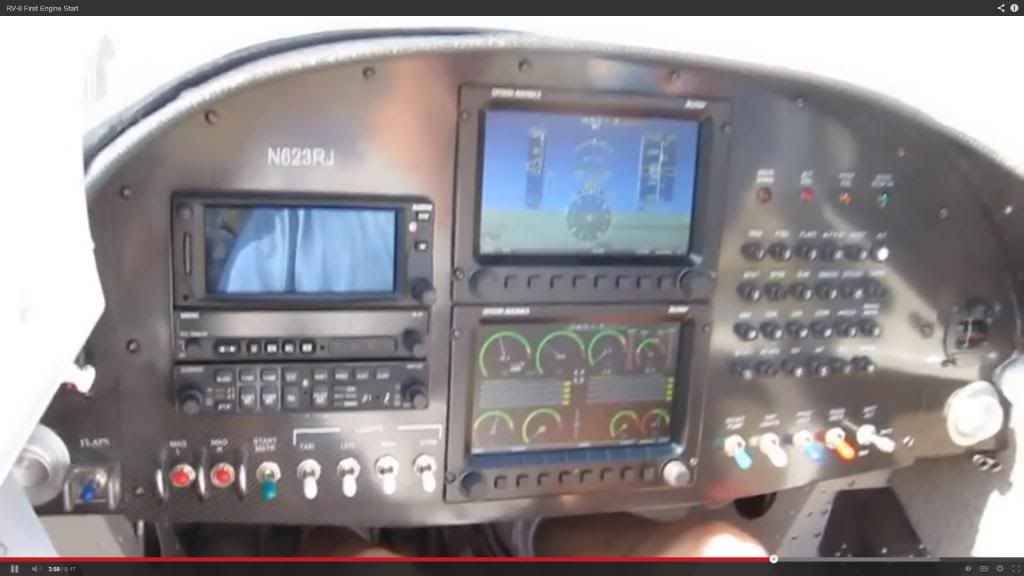

Here's a screen capture from that video. The builder extended his panel at the bottom:

__________________
RV-8 #81077 Super Slow Build
Dynon Skyview HDX, Titan IOX-370, Dual P-Mags, AFP FM200A FI, Whirlwind 200RV CS Prop
First Flight 11/20/2016
https://www.marksrv8.com
Reply With Quote
  #4
Old 12-30-2013, 11:19 AM
flyboykelly's Avatar
flyboykelly flyboykelly is offline

Join Date: Jun 2006
Location: Port Orange, FL (7FL6)
Posts: 312
Default

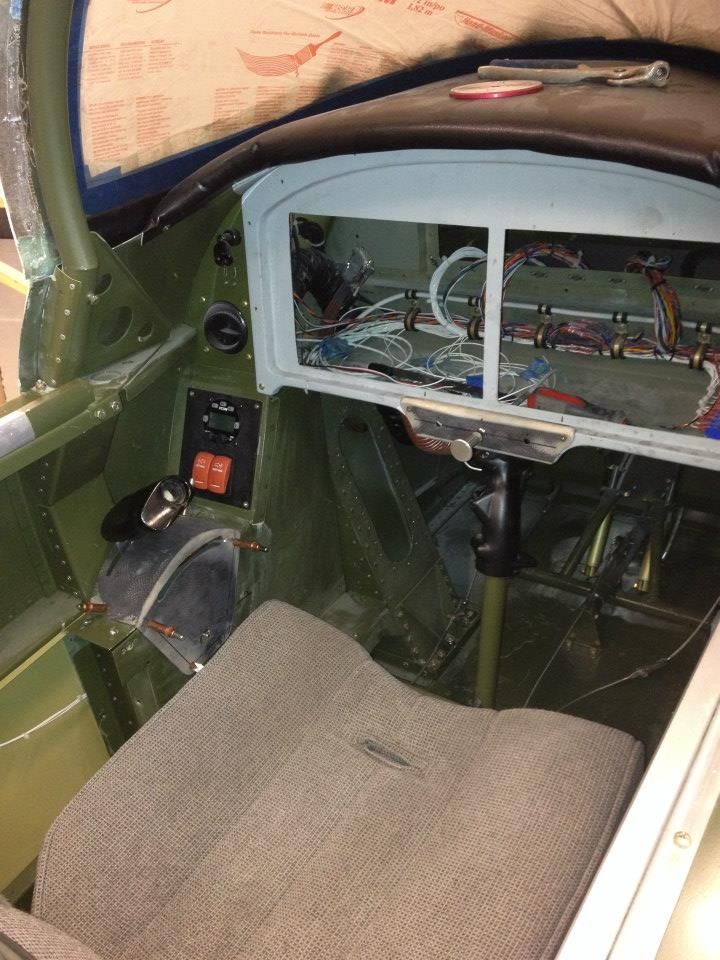

I am installing two 10" screens side by side. In this configuration the two 7" screens should fit just fine.

[IMG][/IMG]
__________________
Flying as of 1-12-2016!!!!!
Reply With Quote
  #5
Old 12-30-2013, 04:08 PM
drill_and_buck's Avatar
drill_and_buck drill_and_buck is offline

Join Date: Feb 2005
Location: Bridgewater, MA - KPYM
Posts: 479
Default

I was able to fit two 7" Dynon screens stacked on my RV-8 panel. Front and back views can be seen on this post: http://www.vansairforce.com/communit...&postcount=127
__________________
Mike Draper
RV-8 N468RV
First Flight 11/13/2011
TMX0360, Dual Pmags, CS
Reply With Quote
  #6
Old 12-30-2013, 05:08 PM
Mark Dickens's Avatar
Mark Dickens Mark Dickens is offline

Join Date: Apr 2012
Location: Collierville, TN (KFYE)
Posts: 1,475
Default

You can do that with the D100 series...SkyViews are a larger unit
__________________
RV-8 #81077 Super Slow Build
Dynon Skyview HDX, Titan IOX-370, Dual P-Mags, AFP FM200A FI, Whirlwind 200RV CS Prop
First Flight 11/20/2016
https://www.marksrv8.com
Reply With Quote
  #7
Old 12-30-2013, 05:30 PM
Mark Dickens's Avatar
Mark Dickens Mark Dickens is offline

Join Date: Apr 2012
Location: Collierville, TN (KFYE)
Posts: 1,475
Default

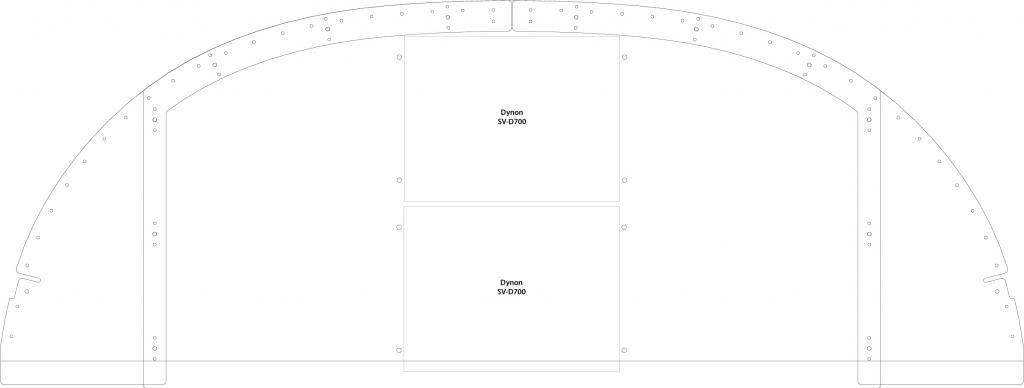

See below...the horizontal line at the bottom is where the panel bend occurs. The cutouts for the 7" SkyView displays are shown and clearly won't fit without enlarging the panel. It wouldn't be that difficult to do and you could have a new panel cut out from a cad drawing. Bill Mercer at Up North Aviation could do it for you.

__________________
RV-8 #81077 Super Slow Build
Dynon Skyview HDX, Titan IOX-370, Dual P-Mags, AFP FM200A FI, Whirlwind 200RV CS Prop
First Flight 11/20/2016
https://www.marksrv8.com
Reply With Quote
  #8
Old 12-30-2013, 05:38 PM
Gash's Avatar
Gash Gash is offline

Join Date: Aug 2009
Location: Goodyear, Arizona
Posts: 953
Default

I have two 7" screens stacked in my -8. I didn't need to cut anything behind the panel to make them fit. Talk to the guys at Steinair. They have all the panel hardware CAD templates and can help you design whatever you need. I think I spent around $200 for their services--totally worth it (and I bought all my avionics from them too because of their service and prices).

The layout works really well for me. Before installation, I was a bit worried that the screens would be too small, but in the -8 you're sitting so close to the panel that they are plenty big. I'm very happy with this setup.

__________________
Karl, Goodyear, Arizona (KGYR) ATP, CFII
RV-14A
Yak 50
=VAF= donor 2021
Reply With Quote
  #9
Old 12-30-2013, 08:41 PM
p51dplt p51dplt is offline

Join Date: Nov 2012
Location: Nut Tree, CA
Posts: 164
Default

Quote:
Originally Posted by Gash View Post
I have two 7" screens stacked in my -8. I didn't need to cut anything behind the panel to make them fit. Talk to the guys at Steinair. They have all the panel hardware CAD templates and can help you design whatever you need. I think I spent around $200 for their services--totally worth it (and I bought all my avionics from them too because of their service and prices).

The layout works really well for me. Before installation, I was a bit worried that the screens would be too small, but in the -8 you're sitting so close to the panel that they are plenty big. I'm very happy with this setup.

At least I know it can be done!
Thanks for posting your panel pic.
__________________
Brant Seghetti
Top Cover Aviation
Nut Tree, CA
P-51, RV-8, 90A, S1
ATP, A&P, IA
Dues Gladly Paid
Reply With Quote
  #10
Old 12-31-2013, 12:48 AM
Mike S's Avatar
Mike S Mike S is offline
Senior Curmudgeon

Join Date: Sep 2005
Location: Dayton Airpark, NV A34
Posts: 16,110
Default

Quote:
Originally Posted by p51dplt View Post
Has anyone tried to put 2 7" SV screens stacked in the center of the panel in a -8 panel yet? I'm thinking about going that direction for redundancy as I will be doing some IFR flying with mine.

Any thoughts and input appreciated.
Are you meaning Sky View or Synthetic Vision ????

Paul Dye has a couple of GRT screens, I believe the 8" ones in his RV 8.

Photos should be in http://www.vansairforce.com/communit...ead.php?t=5018 also, lots of other RV 8 installations.
__________________
Mike Starkey
VAF 909

Rv-10, N210LM.

Flying as of 12/4/2010

Phase 1 done, 2/4/2011

Sold after 240+ wonderful hours of flight.

"Flying the airplane is more important than radioing your plight to a person on the ground incapable of understanding or doing anything about it."
