CAD Schematic symbols library
Does anyone know of a free electronics schematic symbols library in .dwg format?
__________________
Ken W.
Mount Vernon, WA
2020 VAF Supporter
|
07-07-2013, 05:45 AM
|
 |
|
|
Join Date: Nov 2005
Location: Asheville, NC
Posts: 2,690
|
|
Kinda'
I suggest you go here:
Aeroelectric Downloads
and then here (Page per system Drawings)
Page per system drawings
There are all the drawings from Bobs Aeroelectric book in ACAD format.
The drawings have symbols on the face of the drawing of course but there are libraries of blocks nested in the background too.
If you read his book, you may find that there is one of the architecture drawings that you like. It is easy to start there and modify.
__________________
Bill Pendergrass
ME/AE '82
RV-7A: Flying since April 15, 2012. 850 hrs
YIO-360-M1B, mags, CS, GRT EX and WS H1s & A/P, Navworx
Unpainted, polished....kinda'... Eyeballin' vinyl really hard.
Yeah. The boss got a Silhouette Cameo 4 Xmas 2019.
|
07-07-2013, 09:46 AM
|
|
|
|
Join Date: May 2013
Location: Mount Vernon, Wa
Posts: 642
|
|
Perfect! Thanks. That will be a big time saver.
__________________
Ken W.
Mount Vernon, WA
2020 VAF Supporter
|
07-07-2013, 10:45 AM
|
 |
|
|
Join Date: Jan 2005
Location: 57AZ - NW Tucson area
Posts: 10,011
|
|
If you are using the cheaper TurboCAD instead of the expen$ive AutoCAD, then you will find that Bob's .dwg files don't translate well.

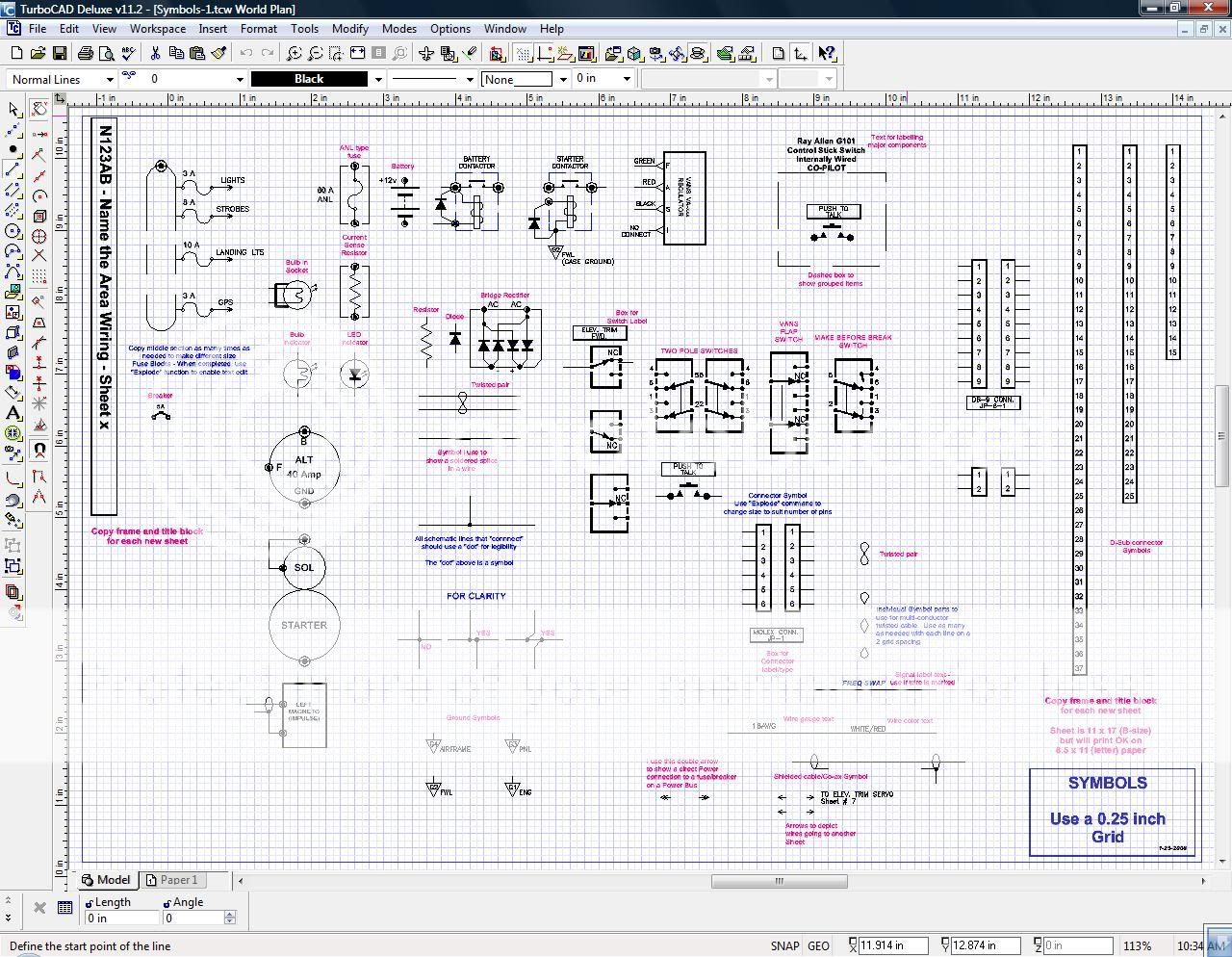

I have a set of TurboCAD symbols and a sheet template available if you want - example here -
__________________
Gil Alexander
EAA Technical Counselor, Airframe Mechanic
Half completed RV-10 QB purchased
RV-6A N61GX - finally flying
Grumman Tiger N12GA - flying
La Cholla Airpark (57AZ) Tucson AZ
|
07-07-2013, 03:04 PM
|
|
|
|
Join Date: Jan 2005
Location: Shorewood, WI (Milwaukee area)
Posts: 1,066
|
|
turbo CAD
Gil: thanks for your post. I'd love to have a set of those symbols if that is possible. My e-mail is billdicus75@gmail.com. Thanks very much.
__________________
Bill Dicus
Shorewood (Milwaukee) Wisconsin
RV-8 N9669D Flying 12/4/14!
Flying Pitts S-2A, Piper Lance
|
07-07-2013, 03:23 PM
|
|
|
|
Join Date: Jan 2005
Location: 57AZ - NW Tucson area
Posts: 10,011
|
|
Quote:
Originally Posted by Bill Dicus
Gil: thanks for your post. I'd love to have a set of those symbols if that is possible. My e-mail is billdicus75@gmail.com. Thanks very much. |
Done, let me know if you can read them.
They are scaled for 11 x 17 paper and are readable on letter size, but I've just discovered my HP printer has been declared obsolete and HP quit making cartridges for it... bummer it's only 15 years old...
__________________
Gil Alexander
EAA Technical Counselor, Airframe Mechanic
Half completed RV-10 QB purchased
RV-6A N61GX - finally flying
Grumman Tiger N12GA - flying
La Cholla Airpark (57AZ) Tucson AZ
Last edited by az_gila : 07-07-2013 at 03:35 PM.
|
07-07-2013, 05:51 PM
|
|
|
|
Join Date: May 2013
Location: Mount Vernon, Wa
Posts: 642
|
|
Quote:
Originally Posted by az_gila
If you are using the cheaper TurboCAD instead of the expen$ive AutoCAD, then you will find that Bob's .dwg files don't translate well.......
|
az_gila, thanks! I'm using InteliCAD. It handles AutoCAD files OK as far as I can tell.
__________________
Ken W.
Mount Vernon, WA
2020 VAF Supporter
|
07-07-2013, 08:17 PM
|
|
|
|
Join Date: Jan 2005
Location: 57AZ - NW Tucson area
Posts: 10,011
|
|
Quote:
Originally Posted by N804RV
az_gila, thanks! I'm using InteliCAD. It handles AutoCAD files OK as far as I can tell.
|
IIRC TurboCAD imported the AutoCAD symbols OK, but lost the reference points.
To draw schematics easily you need a good grid and all of the lines and symbols to accurately "snap to grid"...
My sheet above shows 0.25 grid, but I later changed it to a 0.2 inch grid to get more on top a single sheet. If you go any smaller you probably have trouble reading a letter size printout.
__________________
Gil Alexander
EAA Technical Counselor, Airframe Mechanic
Half completed RV-10 QB purchased
RV-6A N61GX - finally flying
Grumman Tiger N12GA - flying
La Cholla Airpark (57AZ) Tucson AZ
Last edited by az_gila : 07-07-2013 at 08:21 PM.
|
07-16-2013, 12:31 PM
|
|
|
|
Join Date: May 2013
Location: Mount Vernon, Wa
Posts: 642
|
|
Quote:
Originally Posted by rzbill
I suggest you go here:
Aeroelectric Connection
If you read his book, you may find that there is one of the architecture drawings that you like. It is easy to start there and modify. |
Dang, rzbill! That's some useful info. And here I thought I'd have to start with a Cessna 150 wiring diagram and modify it for my needs. Thanks for turning me on to this site, and Bob Nuckoll's book!
__________________
Ken W.
Mount Vernon, WA
2020 VAF Supporter
Last edited by N804RV : 07-16-2013 at 12:38 PM.
Reason: linky no worky
|
