Default CiES Fuel Senders linked to G3X Touch

Has anyone had any success installing CiES digital fuel sending units linked to a Garmin G3X touch?

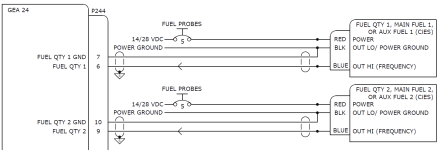

I am in the process of installing 507-101 and 507-102 units in my RV-10 and have so far been unable to get them to work. Sending units are connected to a Garmin GEA 24, red power wires to plug 244, pins 5 (Left) and 8 (Right) Grounds to pins 7 (left) and 10 (Right) and fuel wire to pins 6 (Left) and 9 (Right). My input frequency shows 16.383 all the time and doesn't change with added fuel, float arms have free travel in the tank and are not stuck. Calls to Garmin tech support and CiES tech support hasn't helped. Before I give up and remove them, has anyone got these units to work with a G3X system or have any ideas? Thanks Walter
Reply With Quote
  #2
Old 03-31-2022, 11:34 AM
rocketman1988 rocketman1988 is offline

Join Date: Jun 2010
Location: Sunman, IN
Posts: 3,062
Default answer

Quote:
Originally Posted by ZX-14 View Post
Has anyone had any success installing CiES digital fuel sending units linked to a Garmin G3X touch?
I am in the process of installing 507-101 and 507-102 units in my RV-10 and have so far been unable to get them to work. Sending units are connected to a Garmin GEA 24, red power wires to plug 244, pins 5 (Left) and 8 (Right) Grounds to pins 7 (left) and 10 (Right) and fuel wire to pins 6 (Left) and 9 (Right). My input frequency shows 16.383 all the time and doesn't change with added fuel, float arms have free travel in the tank and are not stuck. Calls to Garmin tech support and CiES tech support hasn't helped. Before I give up and remove them, has anyone got these units to work with a G3X system or have any ideas? Thanks Walter
First, the 5v supply from the GEA24 is not sufficient. The CiES sensors require 9-24 volts.

Second, the CiES output should be in VOLTAGE (0-5) NOT frequency. This can be selected in the G3X configuration page.

Hope that helps...
__________________
Bob
Aerospace Engineer '88

RV-10-ER
N464RL
Going to Paint at Evoke!
Garmin G3X-T, Barrett EFII S32, CAI, MTV-9B

Dues+ Paid 2021,...Thanks DR+
Reply With Quote
  #3
Old 03-31-2022, 12:05 PM
Larry DeCamp Larry DeCamp is offline

Join Date: Apr 2010
Location: Clinton, Indiana
Posts: 1,247
Default ZX-14 response

I just went through this with Ceis and G3Expert. The power is 12v from pin 34 & 35. The signal voltage should be 2.5v from the Ceis sender. I Have not resolved what the GEA24 is looking for. Docs say frequency. Moving the float does not change voltage . My Fluke does not read DC frequency of square wave

BTW, Katie B at G3eexpert was very helpful and made several follow-up contacts to investigate. It seems there is a hang up somewhere in the documentation system between CEIS and or Garmin for Experimental application. Also, LR172 says pressure sensors work fine without shielded wire.
__________________
Larry DeCamp
RV3B sold
RV-4 fastback in process w/ Superior roller 360/AFP/G3X/CPI/Catto3b
Clinton, IN

Last edited by Larry DeCamp : 03-31-2022 at 12:10 PM.
Reply With Quote
  #4
Old 03-31-2022, 12:25 PM
MS19087's Avatar
MS19087 MS19087 is offline

Join Date: Nov 2006
Location: West Chester, PA
Posts: 802
Default Mine work fine

My CiES and Garmin G3X work fine. Yes they are frequency driven. I can check my settings/wiring this weekend.
__________________
Mark
RV-9A; Built, Flown & Sold
RV-14A; Finishing and Flying (Phase 1)
2022 =VAF= donor
Reply With Quote
  #5
Old 03-31-2022, 04:17 PM
ZX-14 ZX-14 is offline

Join Date: Apr 2014
Location: Russell, Manitoba, Canada
Posts: 6
Default

Thanks for the info, I changed my G3X settings over to voltage from digital, and tried calibrating as is with 5v power from the GEA 24, (plug 244, pins 5 and 8,) and again with power wires from the GEA 24 disconnected and a fused 12v power wire jumpered off the main power buss powering the senders, wired either way the CiES output voltage won't settle down, voltage does go up as I add fuel, but it fluctuates up and down over a range that makes accurate calibration impossible. Mmmmmm?
Reply With Quote
  #6
Old 03-31-2022, 04:57 PM
Longez's Avatar
Longez Longez is offline

Join Date: May 2009
Location: KS
Posts: 421
Post

Quote:
Originally Posted by ZX-14 View Post
Thanks for the info, I changed my G3X settings over to voltage from digital, and tried calibrating as is with 5v power from the GEA 24, (plug 244, pins 5 and 8,) and again with power wires from the GEA 24 disconnected and a fused 12v power wire jumpered off the main power buss powering the senders, wired either way the CiES output voltage won't settle down, voltage does go up as I add fuel, but it fluctuates up and down over a range that makes accurate calibration impossible. Mmmmmm?
It is always best to follow published installation guidance instead of just changing things to see what does and does not work.

Do you have a link for the installation manual which should be used for the probes you purchased?

You mention in the first post that you are installing CiES 507-101 and 507-102 probes, but I haven't had any luck searching for an installation manual that covers these probes. I found a CiES STC installation manual, but no mention of these models.

Steve
Reply With Quote
  #7
Old 03-31-2022, 06:41 PM
KatanaPilot KatanaPilot is offline

Join Date: Feb 2015
Location: Locust Grove, GA
Posts: 824
Default

I have two CiES senders in the stock location (inboard) on our RV-10 tanks. They are powered by 12 VDC from a fused source and the output is wired to the GEA. The inputs are configured as digital and were calibrated last week. Absolutely no problems getting them to read from nearly empty to about 23-24 gallons.
__________________
Krea Ellis

Locust Grove, GA
DA20-A1 "Princess Amelia" - gone home to Amelia Island
RV-7A Phase 2 (Honored to be Van's "Miss July" 2021)
RV-10ER officially an airplane as of 4/5/22!
Reply With Quote
  #8
Old 04-01-2022, 09:20 AM
ZX-14 ZX-14 is offline

Join Date: Apr 2014
Location: Russell, Manitoba, Canada
Posts: 6
Default

Thanks to everyone for trying to help me sort this out, it is very much appreciated. Steve, my sending units were installed following CiES installation instructions, CiES then instructed me to wire them in to my G3X as per Garmin's wiring schematics and instructions. When the sending units failed to respond to float arm movement on my displays after doing this, I contacted CiES and they suggested I run power off the buss directly to the sending units and not from my GEA24. When this didn't change anything they suggested I talk to Garmin tech support, who in turn said they were not familiar with the CiES sending units and I should talk to CiES, after going in circles like this for a while, my only choice appeared to be "change things to see what does and what doesn't work", or pull them back out, take my time and money losses and go back to the old school Vans senders.
Mark or Kea, if you could tell me what pins your senders are connected to on the GEA24, and whether on digital or volt settings it would be very much appreciated! Thanks again. Walter
Reply With Quote
  #9
Old 04-01-2022, 01:30 PM
mburch's Avatar
mburch mburch is offline

Join Date: Feb 2005
Location: Oregon
Posts: 1,374
Default

I'm confused - was the manufacturer of your fuel quantity sensors not able to tell you (either through their documentation or verbally) what the electrical output of their product looks like?
__________________
Matt Burch
RV-7 (last 90%)
http://www.rv7blog.com

Any opinions expressed in this message are my own and not those of my employer.
Reply With Quote
  #10
Old 04-01-2022, 01:56 PM
Larry DeCamp Larry DeCamp is offline

Join Date: Apr 2010
Location: Clinton, Indiana
Posts: 1,247
Default Krea question re. Input Config Digital ??

I have been through the config info for GDU460 / GEA24. I do not find a place to choose Digital as opposed to the other two sources resistance or capacitance. Any guidance would be appreciated...Larry
__________________
Larry DeCamp
RV3B sold
RV-4 fastback in process w/ Superior roller 360/AFP/G3X/CPI/Catto3b
Clinton, IN
Reply With Quote
