Question Back side of all of the radio trays....

Does anyone have some pics/ideas of how they managed to deal with the interference of the FWD strut tower brace and the rear of the radio trays. I've seen some nice pics of left side mounted avionics stacks, but nothing really of the rear of the trays and the brace clearances. Working with a friend on his 8 panel and trying to figure this out, he's got some issues with connectors hitting the brace even with nothing connected yet.

Thanks!!
Robert
Reply With Quote
  #2
Old 03-17-2011, 09:54 PM
Ironflight's Avatar
Ironflight Ironflight is offline
VAF Moderator / Line Boy

Join Date: Jan 2005
Location: Dayton, NV
Posts: 12,464
Default

This is a common problem with the taildragger -8's. Like most, I discovered it after I had already laid out my panel and mounted the trays because heck, who thinks that length will determine where they will go? Best to put the short stuff lower, and the long stuff high to clear the forward cross-brace in your initial design. If you didn't, you can get creative with right-angle antenna connectors to salvage the situation, but it will always be very, very tight back there.
__________________
Paul F. Dye
Editor at Large - KITPLANES Magazine
RV-8 - N188PD - "Valkyrie"
RV-6 (By Marriage) - N164MS - "Mikey"
RV-3B - N13PL - "Tsamsiyu"
A&P, EAA Tech Counselor/Flight Advisor
Dayton Valley Airpark (A34)
http://Ironflight.com
Reply With Quote
  #3
Old 03-18-2011, 08:08 AM
William Slaughter's Avatar
William Slaughter William Slaughter is offline

Join Date: Jan 2005
Location: Houston, Texas
Posts: 473
Default Working on this now

For my stack, I have (from the top) PMA8000BT Audio Panel, 430W, 327 xpndr, and an SL-40 (the long one) on the bottom. I originally had the xpndr on the bottom, but the SL-40 hit the brace. By moving it to the bottom, I was able to get it just under the brace. Clearance is rather minimal, but I believe that with good bracing and probably a rubber bumper in there I will be okay. I'll try to take and post some pictures this evening. Even clear of the brace, there's only about a finger's width between the back of the SL-40 and the bulkhead.
__________________
William Slaughter
Houston, TX
RV-8QB
Reply With Quote
  #4
Old 03-18-2011, 08:40 AM
vmirv8bldr's Avatar
vmirv8bldr vmirv8bldr is offline

Join Date: Jun 2005
Location: Eastvale, CA
Posts: 378
Default Short on bottom

I originally had (top to bottom)

Audio Panel
GNS-430
SL-40
X-ponder

It would not fit, so I moved the audio panel to the bottom and it barely fits now,....but it fits. And yes, I used the 90-degree connectors for all the antenna cables. Final config is:

GNS-430
SL-40
X-ponder
Audio Panel

Another option would be half on one side, half on the other mounted at the top.
__________________
Bart Filipiak
Eastvale, CA
RV-8 N74VB

Barrett IO-390
WW200RV
FLYING!!!!!!!
Reply With Quote
  #5
Old 03-18-2011, 10:50 AM
Skyflyer Skyflyer is offline

Join Date: Mar 2007
Location: Sugar Land, TX
Posts: 144
Default Critical line

In the T/W 8, any instrument that requires more than 10.5 inches of clearance including allowance for connectors should be positioned at or above a line 3.375 inches above the lower lip of the panel.

From top to bottom I stacked GNS-430, SL-40, GTX-330, GMA-240 and last but not least the GX pilot flat pack. The last two items are short and lay below the critical line. The GTX-330 is at the line and the coax connector just clears the cross brace. (focus!)





I fabricated a stabilizing support attached to the left rear of the stack and the cross brace.



As you can see things are still tight behind the upper components. Harnesses must be carefully dressed and protected from chafing. I used right angle coax connectors with exception of the SL-40 which includes a right angle connector to a short straight pigtail.
__________________
Chuck McCluggage
Sugar Land, TX
RV-8 IO-375 WW 200RV
Flying
Reply With Quote
  #6
Old 03-18-2011, 11:11 AM
resrob66 resrob66 is offline

Join Date: Nov 2009
Location: Louisville, KY
Posts: 33
Default thanks for the replies....another idea??

Thanks for all the replies. Anyone ever think of duplicating the aft brace which sits lower, mounting it on the front side of the strut towers at the same height as the aft side and then relieve or notch the top fwd brace to allow more clearance. With the addition of the lower brace the structural integrity of the top brace wouldn't be as much of an issue? Think that would pose problems with cracking or stress later on in life?
Reply With Quote
  #7
Old 03-18-2011, 08:19 PM
William Slaughter's Avatar
William Slaughter William Slaughter is offline

Join Date: Jan 2005
Location: Houston, Texas
Posts: 473
Default Pictures, as promised.

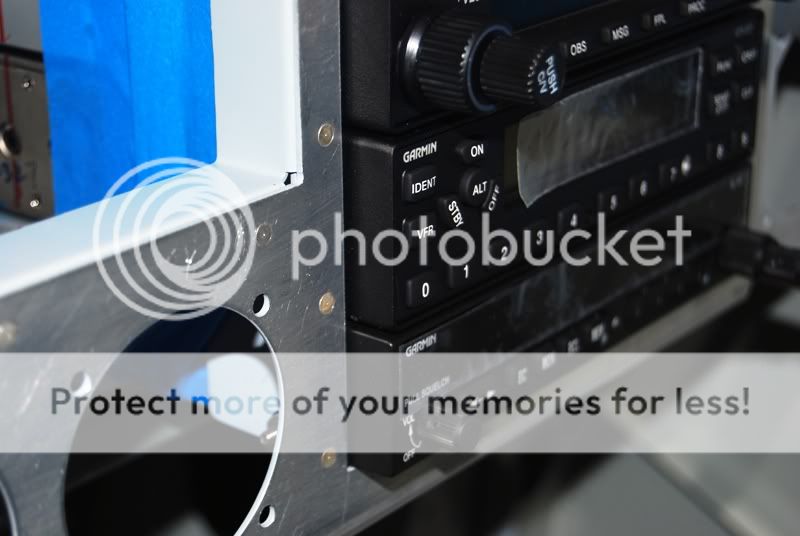

View of the SL-40 under the brace:


Tighter shot:


Bezel alignment relative to the instrument panel face:


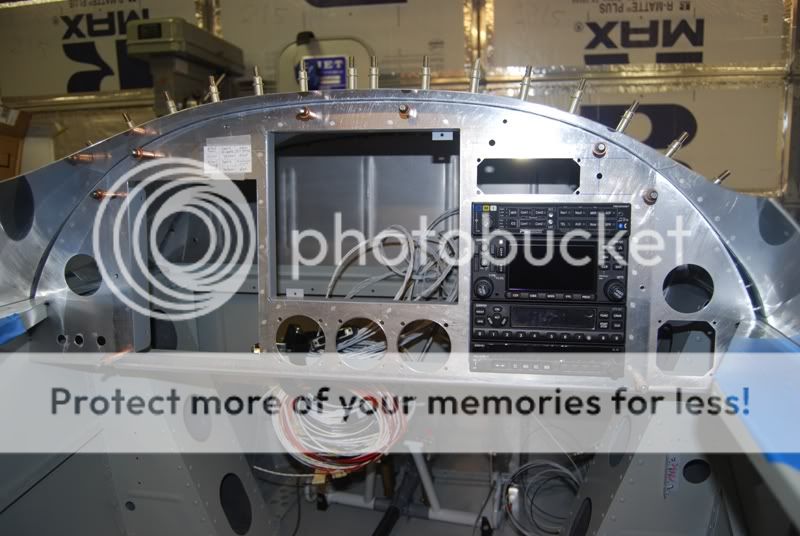

Panel overview:


AFS-4500 in the middle (due to ship in 4weeks), 696 on the left.
__________________
William Slaughter
Houston, TX
RV-8QB
Reply With Quote
