Default James Cowl downdraft carb box install

I am trying to get my carb box installed on my James cowl. I am stumped. My only other idea is to go to a muffler shop and have them fabricate a bend to make it work or try glassing something up. Glassing may be easier in the long run.

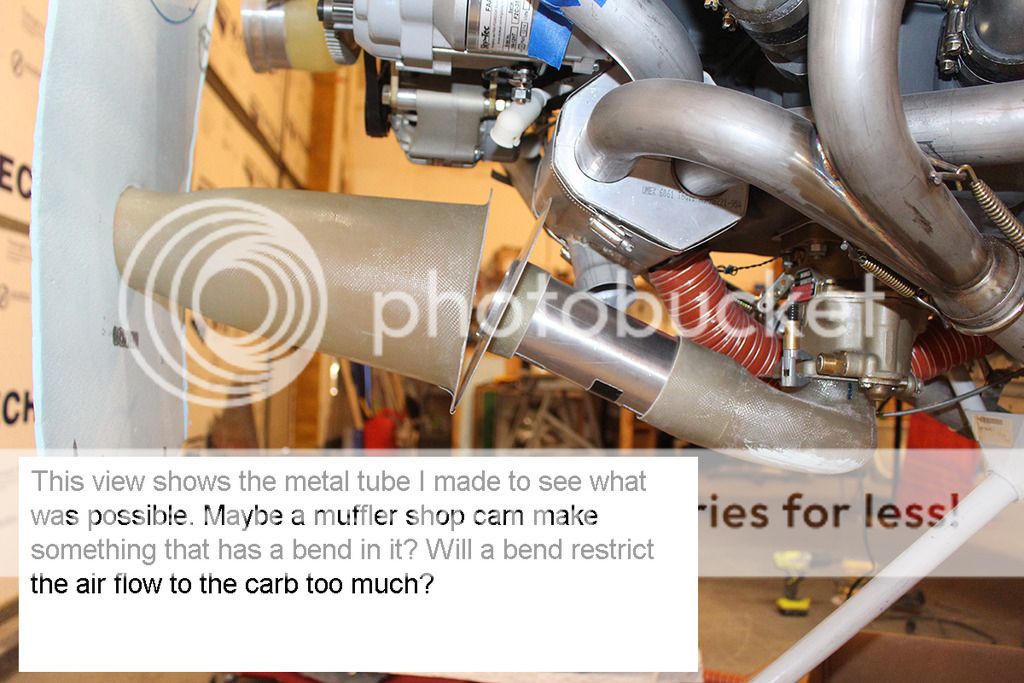

Here are a couple pictures showing the issue. The front of the air filter is at the height where it needs to be to meet the front of the cowl. If you have pictures or ideas, I would sure love to know what you did to solve this. I know I am not the first person to have the James cowl and this exhaust system. Thanks for the help.
[IMG][/IMG]


This one is just a shot of my panel lit up!
[IMG][/IMG]
__________________
rockwoodrv9a
Williamston MI
O-320 D2A
Flying N376E
Reply With Quote
  #2
Old 11-19-2016, 04:54 PM
Radomir's Avatar
Radomir Radomir is offline

Join Date: Jan 2005
Location: Charlotte, NC
Posts: 1,524
Default

See example:

__________________
Radomir
RV-7A sold
Reply With Quote
  #3
Old 11-19-2016, 05:51 PM
rockwoodrv9 rockwoodrv9 is offline

Join Date: Dec 2011
Location: Meridian ID, Aspen CO, Okemos MI
Posts: 2,705
Default

Thanks for the response. I had that photo and I don't believe that is the same exhaust box I have.

I can use SCAT tube to make the bend, but still working on a fix for the carb heat intake. I may have to cut it off the box and move it to the front to allow me to connect it to the air filter tube.

It is always interesting trying to complete a build!
__________________
rockwoodrv9a
Williamston MI
O-320 D2A
Flying N376E
Reply With Quote
  #4
Old 11-19-2016, 08:28 PM
DanH's Avatar
DanH DanH is offline

Join Date: Oct 2005
Location: 08A
Posts: 9,795
Default

Rock, look up the big filter updraft air box Chris Zvatson did on his Lancair.
__________________
Dan Horton
RV-8 SS
Barrett IO-390
Reply With Quote
  #5
Old 11-19-2016, 09:28 PM
rockwoodrv9 rockwoodrv9 is offline

Join Date: Dec 2011
Location: Meridian ID, Aspen CO, Okemos MI
Posts: 2,705
Default

Dan,
I looked up Chris's work. Impressive for sure. I have a great plenum and baffle system I am finishing up now.

With the James cowl, it restricts the air filter to the KN Will supplied with the cowl. Well, I could do major modifications and open up the intake to a larger or even square shape, but that is more than I want to do now.

After speaking with Will and looking at it a bit more, I believe the best option is to use a piece of scat from the carb intake box to the air filter tube. Cut the carb heat fitting from the exhaust muff box, seal the hole, and move it to the front facing surface on the muff. That will allow me to run the SCAT tube and a shut off between the alternator and starter. When I get back to the airport Monday, I will see if that will work.

I had to re-clock the air intake on the muff that goes to the left side cowl inlet to fit around the fuel line. That went pretty well so I hope re-locating the heat outlet will work as well too.

I can't be the first to use a downdraft carb with a James cowl, so not sure why I am having trouble making it work. I have found when it is not going as it should, I am usually the one making the error. I am not sure what it is this time.
__________________
rockwoodrv9a
Williamston MI
O-320 D2A
Flying N376E
Reply With Quote
  #6
Old 11-19-2016, 09:53 PM
Kyle Boatright Kyle Boatright is offline

Join Date: Aug 2005
Location: Atlanta, GA
Posts: 4,366
Default

Quote:
Originally Posted by DanH View Post
Rock, look up the big filter updraft air box Chris Zvatson did on his Lancair.
Here it is:

http://www.n91cz.net/airbox/airbox.htm
__________________
Kyle Boatright
Marietta, GA
2001 RV-6 N46KB
2019(?) RV-10
Reply With Quote
  #7
Old 11-19-2016, 11:36 PM
crabandy crabandy is offline

Join Date: Jan 2010
Location: Ottawa, Ks
Posts: 2,213
Default

rockwood,
It looks like you are trying to fit separate systems together with a "one piece fits it all together" solution. Most likely anything cobbled together from unmatching parts won't meet your standard.
The only way I know for you to gracefully do this is to Make something yourself to fit the front (cowling) and the aft (carb) to fit an air filter and any other required components.
It's worth $10 in foam and a nice 6 pack to cobble something together in a couple nights and see what if????? Odds are you'll scrap the first model but the small investment will steer you onto the path to completion.
Happy building!
__________________
RV 7 500 hours and counting
20 donation done
Reply With Quote
  #8
Old 11-19-2016, 11:44 PM
DanH's Avatar
DanH DanH is offline

Join Date: Oct 2005
Location: 08A
Posts: 9,795
Default

Quote:
Originally Posted by rockwoodrv9 View Post
Dan, I looked up Chris's work. Impressive for sure. I have a great plenum and baffle system I am finishing up now.
I'm not talking about a cooling plenum. Follow the link Kyle posted for you. The large flat filter has far more media area than the little cone filter you're trying to use. Free power.
__________________
Dan Horton
RV-8 SS
Barrett IO-390
Reply With Quote
  #9
Old 11-20-2016, 08:51 AM
N941WR's Avatar
N941WR N941WR is offline

Join Date: Jan 2005
Location: SC
Posts: 12,887
Default

I have never liked how the transition from horizontal to vertical looks so when I installed mine, I modified the FAB.

Here is a picture of my solution.

Notice how the FAB now angles upward towards the cowl opening and that I had to make a custom flapper for the carb heat.

It seems to work very well.
__________________
Bill R.
RV-9 (Yes, it's a dragon tail)
O-360 w/ dual P-mags
Build the plane you want, not the plane others want you to build!
SC86 - Easley, SC
www.repucci.com/bill/baf.html
Reply With Quote
  #10
Old 11-20-2016, 09:38 AM
Rupester Rupester is offline

Join Date: Dec 2005
Location: Mahomet, Illinois
Posts: 2,195
Default

My alt air heater is much smaller than yours, but still required something to link the filter housing to the intake snout. I used a short (3" to 4") piece of scat tube with clamps to do it. Mine is similar, though not identical, to Radomir's pic. I'd post a picture, but I'm not presently at home where I have access to the photos.
__________________
Terry Ruprecht
RV-9A Tip-up; IO-320 D2A
S. James cowl/plenum
(Dues paid thru Nov '18)
Reply With Quote
