Default Stall Horn Washers Question

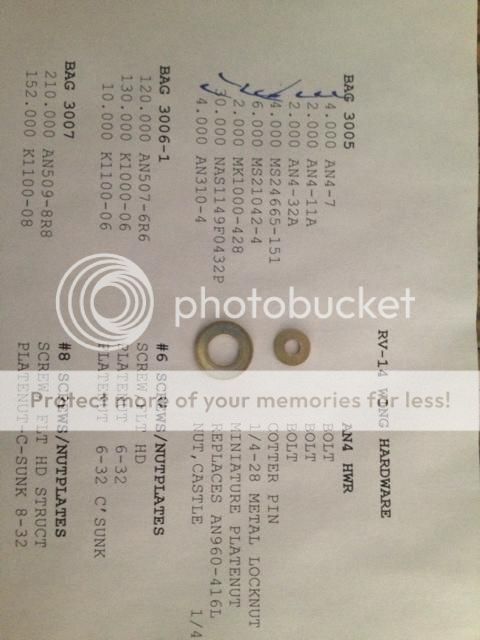

SO I am trying to assemble the stall horn today and can't find the washers. I finally look at the packing list to find 30 of the large washers in the attached picture and none of the correct washers. The small washers were the supposed to be NAS1149FN432P. So now I have a bunch of washers of unknown size.

I happen to have purchased a bunch of random nuts bolts and washers from the yardstore. I would like to know if the one I am using are a good substitute. They are labeled AN960-4. I also have AN960-4L. I think that the latter are too thin and would take a lot more washers to stall horn assembled.

It worries me a bit when the correct parts are not in the bags.


__________________
Ken Stockman
Midland, MI
EAA Chapter 1093 member

FaceBook Page: Ken's RV-14
RV-14a (serial number 140073)
N73XP

Plane at hangar and the wings ON.
Reply With Quote
  #2
Old 11-24-2013, 09:08 AM
Stockmanreef Stockmanreef is offline

Join Date: Nov 2012
Location: Midland, mi
Posts: 963
Default

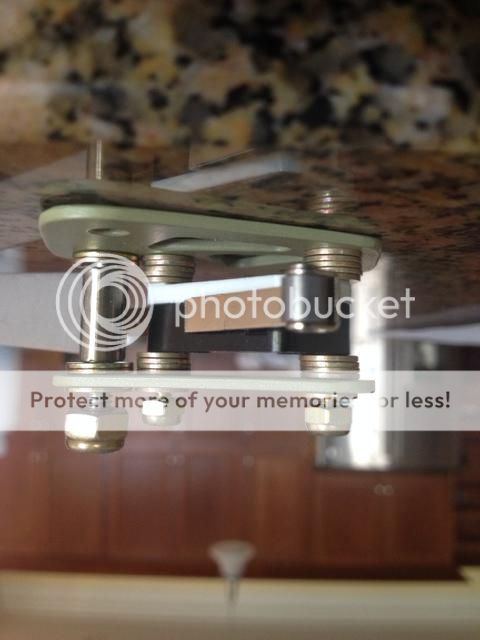

here is a picture of the stallhorn with the AN960-4 washers. It looks OK to me.

__________________
Ken Stockman
Midland, MI
EAA Chapter 1093 member

FaceBook Page: Ken's RV-14
RV-14a (serial number 140073)
N73XP

Plane at hangar and the wings ON.
Reply With Quote
  #3
Old 11-24-2013, 09:56 AM
Ron B. Ron B. is offline

Join Date: Nov 2007
Location: Yarmouth, Nova Scotia
Posts: 2,515
Default

AN960-4L and AN960-4 are the washers called out on the RV-10 stall warning sub assembly which is identical to the RV-14 assembly. I think someone just took the 432 part of the number of the NAS number for the -4. I used the AN960-4 washers on mine.
__________________
Thanks Ron
RV-10 SOLD
RV-14 Flying
AirCam flying
Reply With Quote
  #4
Old 11-24-2013, 10:07 AM
az_gila's Avatar
az_gila az_gila is offline

Join Date: Jan 2005
Location: 57AZ - NW Tucson area
Posts: 10,011
Smile

Must be a typo...

The NAS number is for a much smaller #4 washer...

http://www.fastenal.com/web/products...Punchout=false

Type:Flat Washer
Bolt Size:#4
Outer Diameter:0.312"
Finish:Cadmium
Inner Diameter:0.125"
Mil-Spec Number:NAS1149FN432P
Thickness:0.032"
Material:Steel
__________________
Gil Alexander
EAA Technical Counselor, Airframe Mechanic
Half completed RV-10 QB purchased
RV-6A N61GX - finally flying
Grumman Tiger N12GA - flying
La Cholla Airpark (57AZ) Tucson AZ
Reply With Quote
  #5
Old 11-24-2013, 10:43 AM
Stockmanreef Stockmanreef is offline

Join Date: Nov 2012
Location: Midland, mi
Posts: 963
Default

I think that they put in the wrong washers. I don't think that it is a typo. If it was a typo, then I would have been able to find the washers somewhere.

Luckily, I got them about a month ago when I bought a bunch of stuff from the yardstore.
__________________
Ken Stockman
Midland, MI
EAA Chapter 1093 member

FaceBook Page: Ken's RV-14
RV-14a (serial number 140073)
N73XP

Plane at hangar and the wings ON.
Reply With Quote
  #6
Old 11-24-2013, 01:42 PM
az_gila's Avatar
az_gila az_gila is offline

Join Date: Jan 2005
Location: 57AZ - NW Tucson area
Posts: 10,011
Exclamation

Quote:
Originally Posted by Stockmanreef View Post
I think that they put in the wrong washers. I don't think that it is a typo. If it was a typo, then I would have been able to find the washers somewhere.

Luckily, I got them about a month ago when I bought a bunch of stuff from the yardstore.
Well, something is a typo, because that MS number is not AN4 hardware as the bag calls for...

It does not replace an AN960-416L as the typed description says.
__________________
Gil Alexander
EAA Technical Counselor, Airframe Mechanic
Half completed RV-10 QB purchased
RV-6A N61GX - finally flying
Grumman Tiger N12GA - flying
La Cholla Airpark (57AZ) Tucson AZ
Reply With Quote
  #7
Old 11-24-2013, 02:00 PM
Ron B. Ron B. is offline

Join Date: Nov 2007
Location: Yarmouth, Nova Scotia
Posts: 2,515
Default

I would say the plans are in error here and whom ever made the list used the plans to as a reference. The bag has what the RV-14 plans call for, but that is not what the RV-10 plans call for. The washers called out for the RV-10 application make more sense and that is what I used. I have been wrong once before!!
__________________
Thanks Ron
RV-10 SOLD
RV-14 Flying
AirCam flying
Reply With Quote
  #8
Old 11-24-2013, 02:08 PM
rvbuilder2002's Avatar
rvbuilder2002 rvbuilder2002 is offline

Join Date: Jul 2005
Location: Hubbard Oregon
Posts: 9,295
Default

Quote:
Originally Posted by Stockmanreef View Post
SO I am trying to assemble the stall horn today and can't find the washers. I finally look at the packing list to find 30 of the large washers in the attached picture and none of the correct washers. The small washers were the supposed to be NAS1149FN432P. So now I have a bunch of washers of unknown size.

I happen to have purchased a bunch of random nuts bolts and washers from the yardstore. I would like to know if the one I am using are a good substitute. They are labeled AN960-4. I also have AN960-4L. I think that the latter are too thin and would take a lot more washers to stall horn assembled.

It worries me a bit when the correct parts are not in the bags.


I think you are looking in the wrong bag.
The portion of the list you posted (AN4 hardware) is 1/4" inch sized fasteners. An AN960-416 Washer has a 1/4 " hole. An AN960-4 has a hole sized for a #4 screw. Leaving a couple of digits of a part # can make it and entirely different part.
I admit it can get confusing with the conversion from AN to MS part #'s, but it is what it is.
__________________
Opinions, information and comments are my own unless stated otherwise. They do not necessarily represent the direction/opinions of my employer.

Scott McDaniels
Van's Aircraft Engineering Prototype Shop Manager
Hubbard, Oregon
RV-6A (aka "Junkyard Special ")
Reply With Quote
  #9
Old 11-24-2013, 02:55 PM
Ron B. Ron B. is offline

Join Date: Nov 2007
Location: Yarmouth, Nova Scotia
Posts: 2,515
Default

Yep , I'm wrong again. Man those part numbers are long. The bag the OP needs is 3017. 20 washers there.
__________________
Thanks Ron
RV-10 SOLD
RV-14 Flying
AirCam flying
Reply With Quote
  #10
Old 11-24-2013, 05:50 PM
Stockmanreef Stockmanreef is offline

Join Date: Nov 2012
Location: Midland, mi
Posts: 963
Default

Thanks Ron. I finally found them.
__________________
Ken Stockman
Midland, MI
EAA Chapter 1093 member

FaceBook Page: Ken's RV-14
RV-14a (serial number 140073)
N73XP

Plane at hangar and the wings ON.
Reply With Quote
