Clay,

They are just "Legend Lights" available at Spruce.

http://www.aircraftspruce.com/catalo...gendlights.php

They are made in several colors including clear. Stack em horizontally, vertically, or just position as desired. I arranged 6 into a modular prewired package and the unit is attached to the back of the instrument panel with 2 nutplates. For custom lettering not available from among those commonly sold...such as "Canopy Lock" use your word program and a suitable font or a Brother electronic labeler.

__________________
Rick Galati
RV6A N307R"Darla!"
RV-8 N308R "LuLu"
EAA Technical Counselor

Last edited by Rick6a : 12-06-2007 at 02:56 PM.
Reply With Quote
  #102
Old 12-07-2007, 07:31 AM
claycookiemonster's Avatar
claycookiemonster claycookiemonster is offline

Join Date: Oct 2007
Location: Midway, UT
Posts: 425
Default Legend Lights

Rick;
Just curious; for switchable functions like landing lights or boost pump, why use both a switch and a separate annunciator light instead of a single illuminated pushbutton switch?
Also, will your EFIS panels give you any of these warnings? I'm interested in having certain functions and situations annunciated too, but most EFIS screens provide a way to do this. Just how attention-getting the warning will be in the middle of an EFIS display is my question. If you provide a second warning light for the same function, and they're both driven by the same sensor, then are you really accomplishing anything?
I'm trying to please both the KISS principle as well as the, "I'd rather die than look bad" pilot-mentality-reality. Tough.
Your panel looks to be just primed right now, what's the final color?
Clay Cook
I'm getting to like the smell of Pro-Seal, should I worry?
Reply With Quote
  #103
Old 12-07-2007, 08:39 AM
Rick6a's Avatar
Rick6a Rick6a is offline

Join Date: Jan 2005
Location: Lake St. Louis, MO.
Posts: 2,346
Default

Clay,

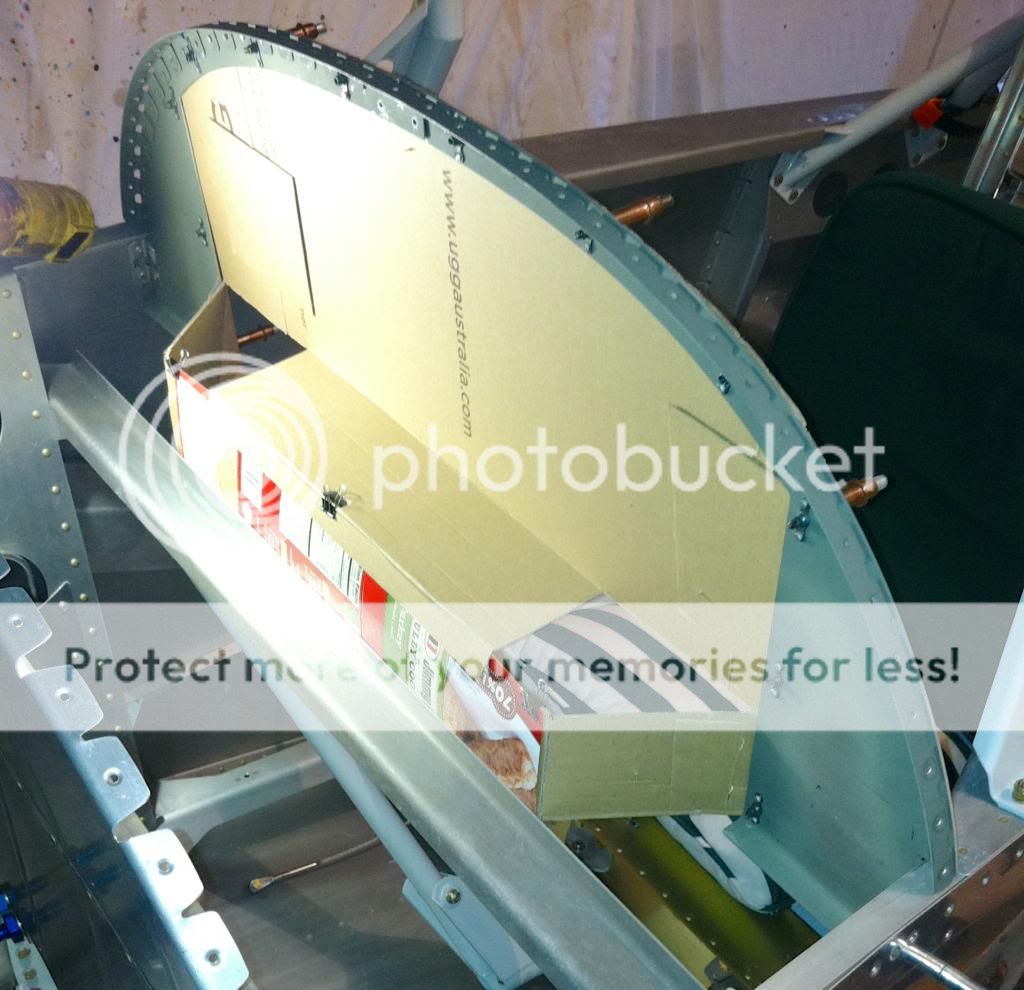

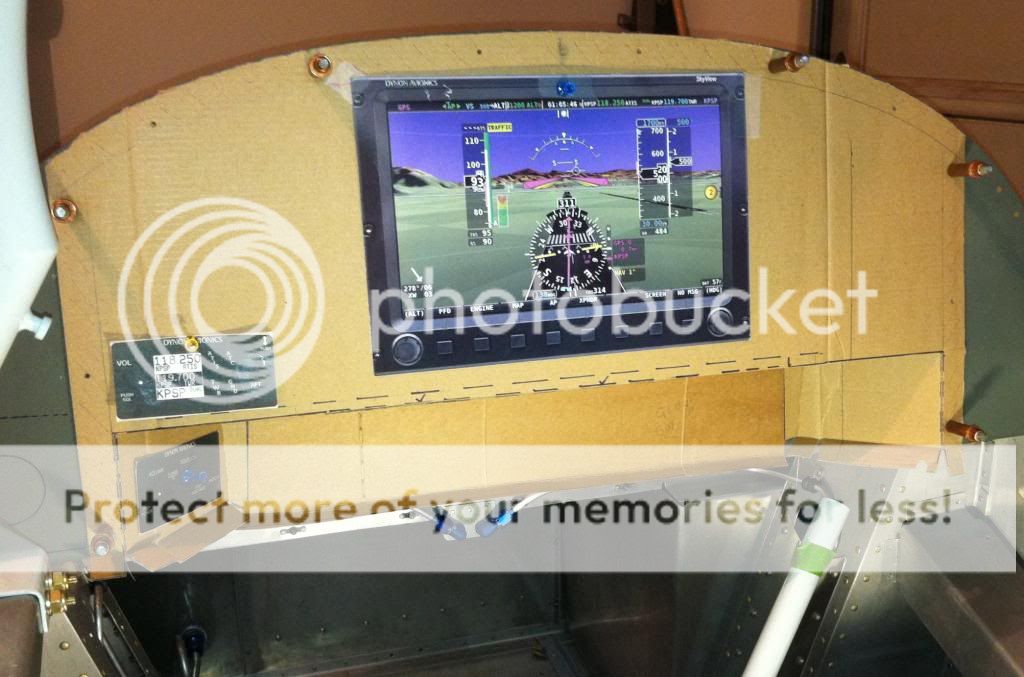

You CAN use illuminated pushbutton switches. When it comes to panel design, there are so many variables that at some point the builder simply has to take a certain tack and just run with it. I wanted to minimize switches and breakers on the panel. You can blame Paul Dye for some of my design influences. First, I was so enamored of his Space Shuttle toggle switch guards that I knew I had to have them. Then his homemade annunciator panel looked so cool I had to make something similiar (and colorful). Lucky for me, the parts I used are available off the shelf. My light configuration is (mostly) wired to illuminate when the circuit is on so they are not really "warning lights" per se. The builder always reserves the option to make things as simple or complex as desired. Finally, simple fellow I am, I shot the panel with Tempo black wrinkle paint marketed for such use. From past experience, I know it is tough stuff for rattle can paint and holds up really well. Even though slightly textured, it readily accepts dry transfers.

__________________
Rick Galati
RV6A N307R"Darla!"
RV-8 N308R "LuLu"
EAA Technical Counselor
Reply With Quote
  #104
Old 12-07-2007, 09:16 AM
Randy Randy is offline

Join Date: Jan 2005
Location: Sedona Arizona
Posts: 349
Default Brighter Legend Lights

"They are made in several colors including clear. Stack em horizontally, vertically, or just position as desired. I arranged 6 into a modular prewired package and the unit is attached to the back of the instrument panel with 2 nutplates. For custom lettering not available from among those commonly sold...such as "Canopy Lock" use your word program and a suitable font or a Brother electronic labeler. "

I find that the Legend Lights are not bright enough to grab my attention in sunlit conditions. To cure the problem I am in the process of replacing the little "grain of wheat" bulbs with bright LED lights. I can't report results yet but thought I would mention it.

Randy C
RV7A SUBE STI
Reply With Quote
  #105
Old 12-07-2007, 01:48 PM
RV8RIVETER's Avatar
RV8RIVETER RV8RIVETER is offline

Join Date: Sep 2005
Location: 1T7, Kestrel Airpark , Texas
Posts: 782
Default

I bought OMRON M165 square 12vdc LED indicator lights at mouser. 18mm square with 16mm hole mount, already colored and have built in resistor.

http://www.mouser.com/search/refine....hts&Mpcn=65338
__________________
Wade Lively
-8, Flying!
N100WL
formerly IO-360A3B6D, Dual SDS CPI now, WW 200RV
Reply With Quote
  #106
Old 12-08-2007, 03:17 PM
mgomez's Avatar
mgomez mgomez is offline

Join Date: Mar 2005
Location: Northern California, USA
Posts: 537
Default LEDs or incandescent?

Quote:
Originally Posted by Rick6a View Post
Clay,

They are just "Legend Lights" available at Spruce.
Are they LEDs or incandescents? And how visible are they in the daytime?

Thanks,
Martin
__________________
Martin Gomez
Redwood City, CA
"My RV-7 is a composite airplane: it's made of aluminum, blood, sweat, and money"
RV-7 Slider QB
Reply With Quote
  #107
Old 12-09-2007, 04:58 AM
Rick6a's Avatar
Rick6a Rick6a is offline

Join Date: Jan 2005
Location: Lake St. Louis, MO.
Posts: 2,346
Default

Quote:
Originally Posted by mgomez View Post
Are they LEDs or incandescents? And how visible are they in the daytime?

Thanks,
Martin
Martin,

The bulbs are incandescent. Cannot comment on flight visibility issues yet, however if you scroll to bottom of the page linked, the photograph may (or may not) give you some insight as to the quality of it's undimmed brightness.

http://www.vansairforce.com/communit...ad.php?t=21490
__________________
Rick Galati
RV6A N307R"Darla!"
RV-8 N308R "LuLu"
EAA Technical Counselor
Reply With Quote
  #108
Old 12-10-2007, 07:33 PM
Guy Prevost's Avatar
Guy Prevost Guy Prevost is offline

Join Date: Jan 2005
Location: Albuquerque, nm
Posts: 1,193
Talking I've been waiting years for this post!

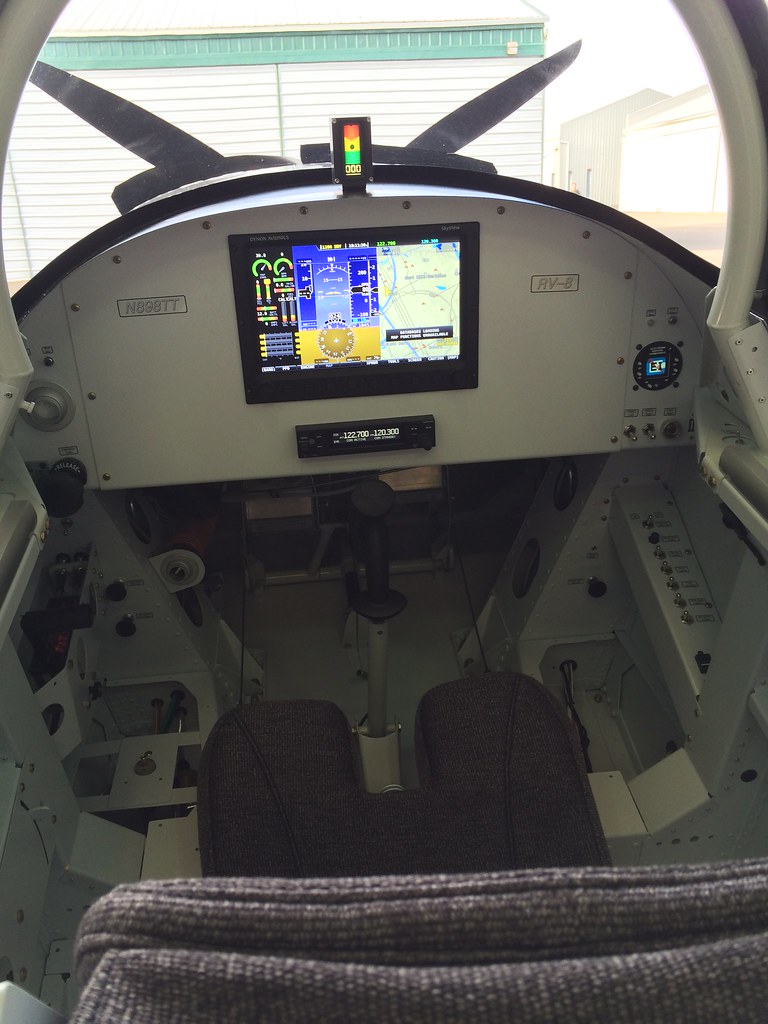

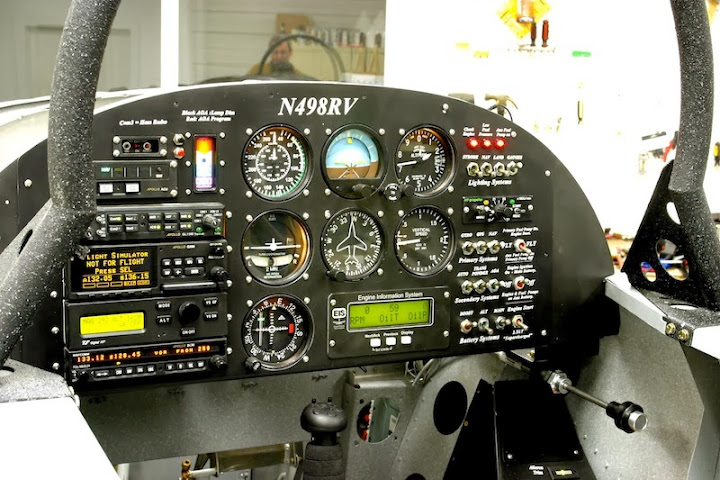

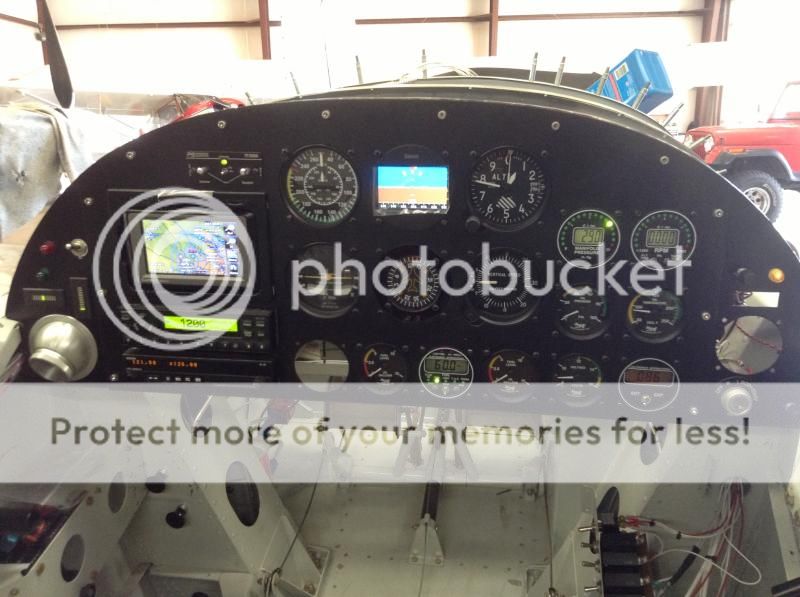

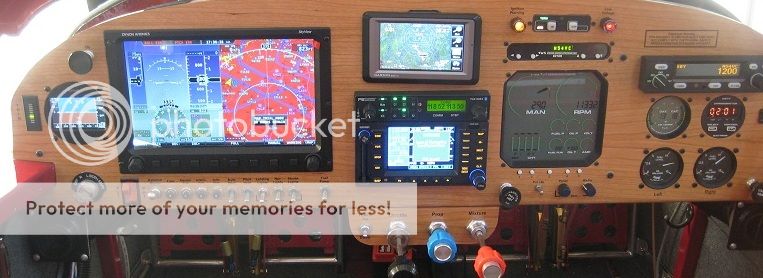

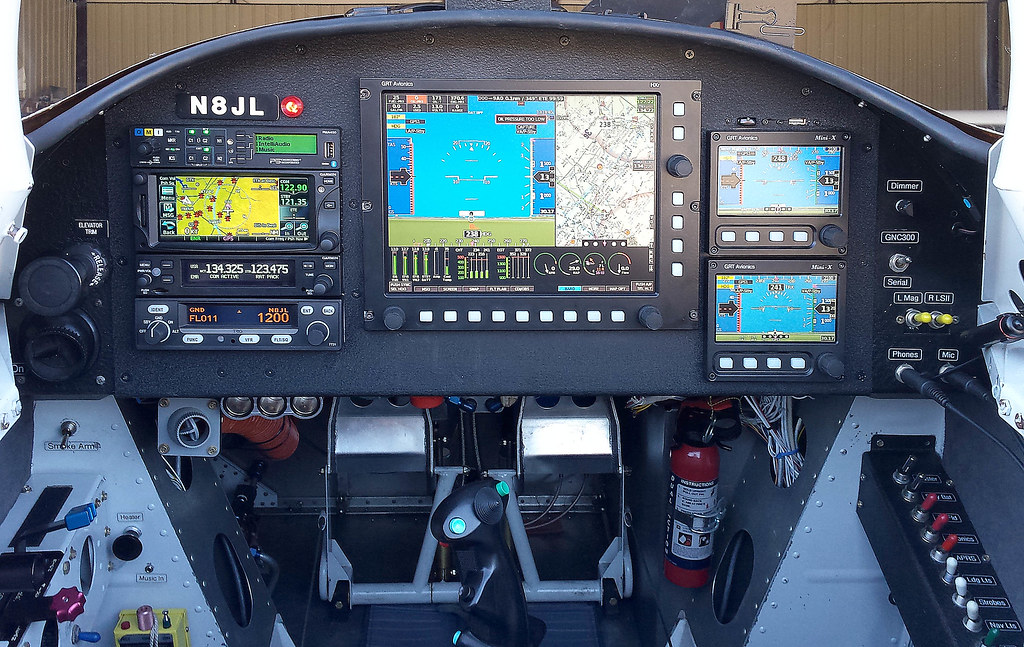

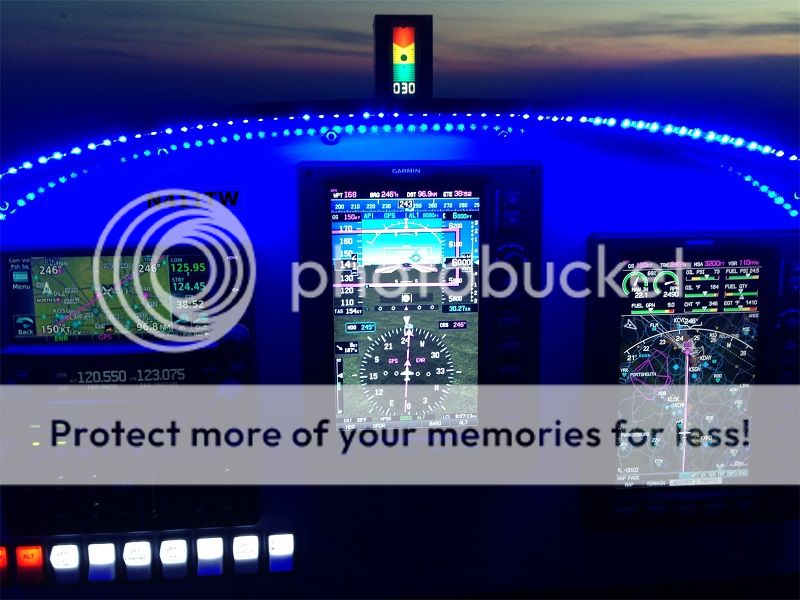

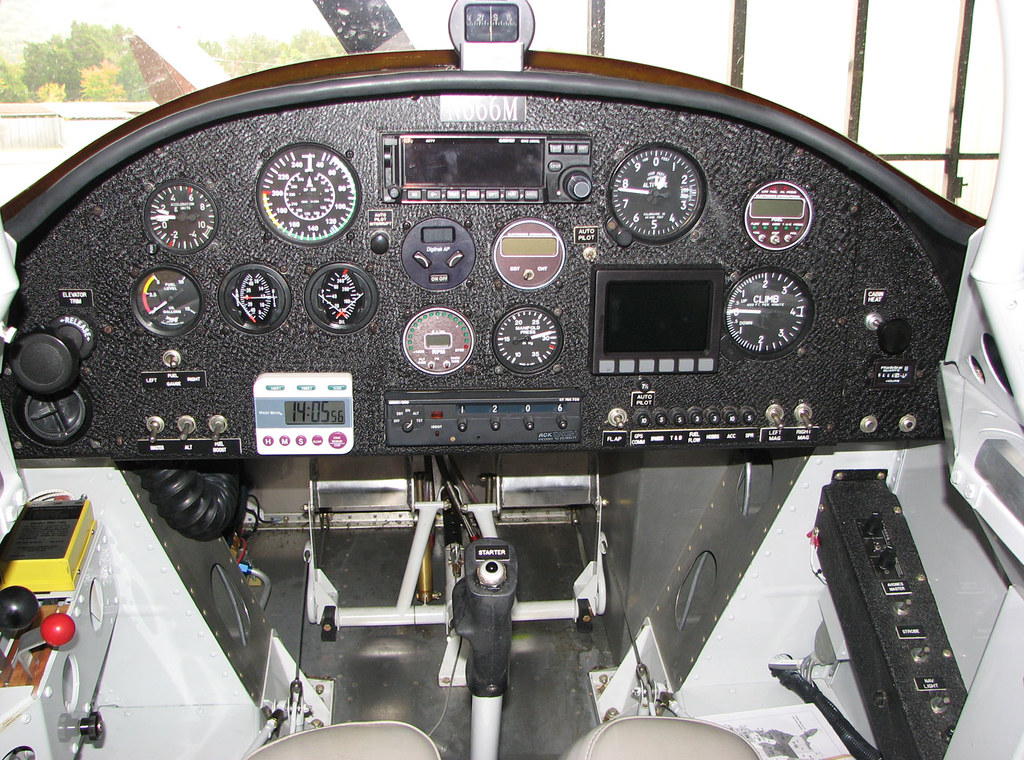

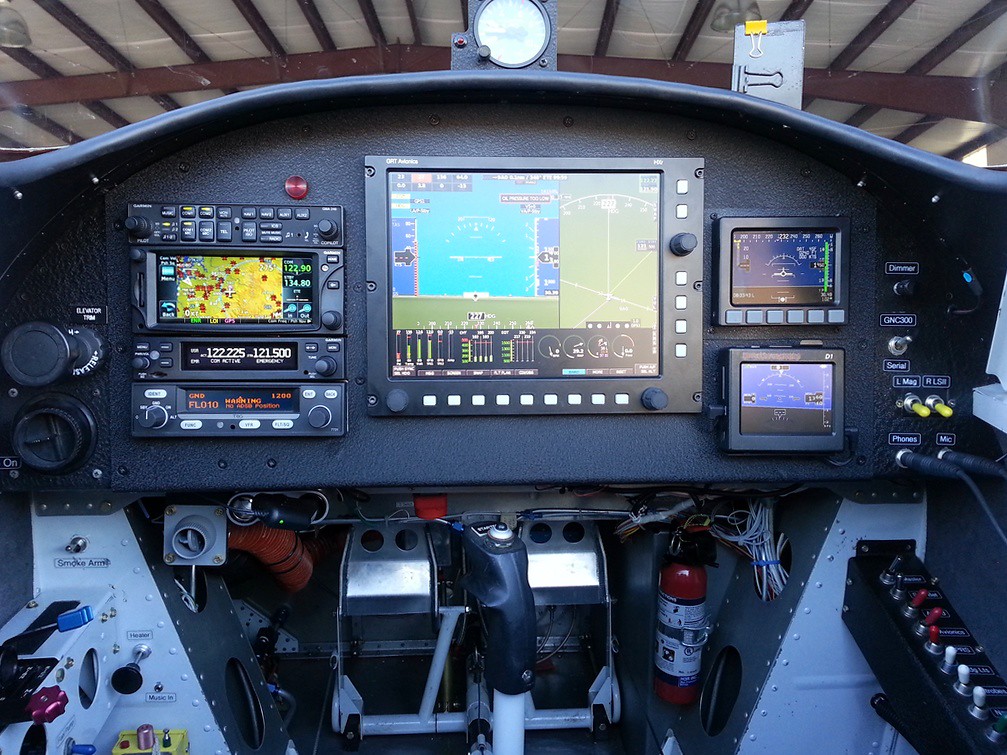

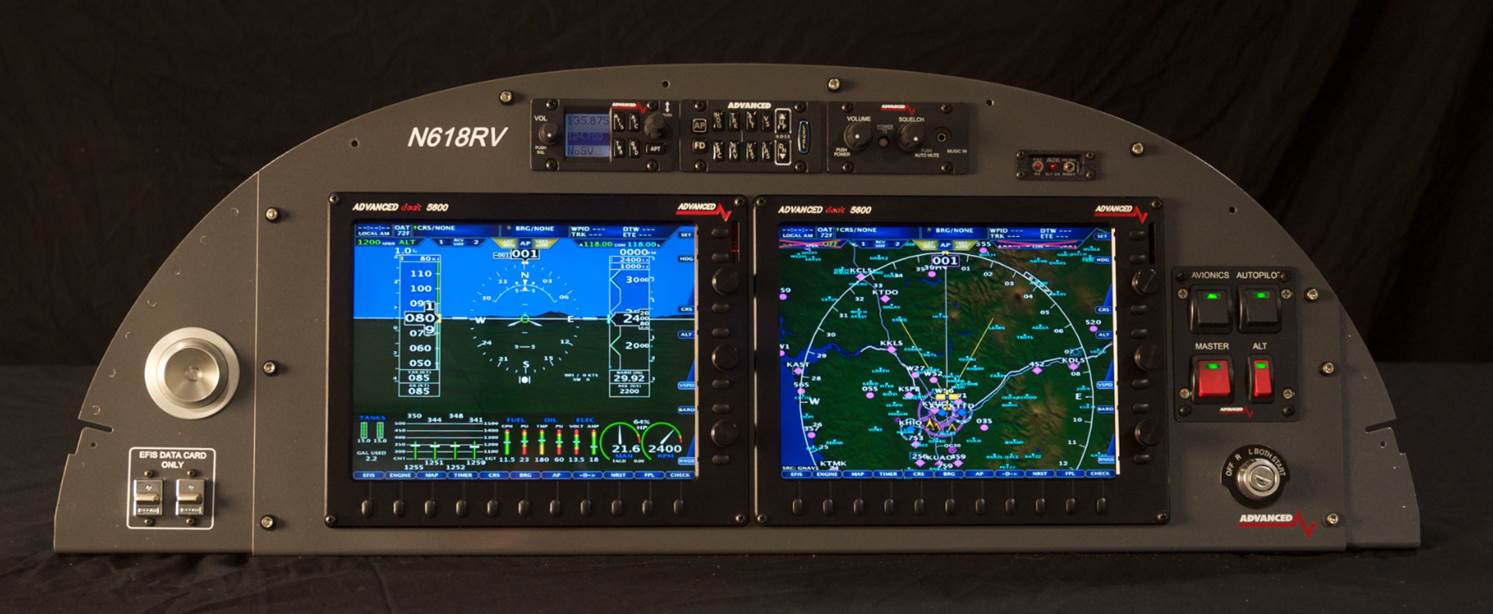

OK, here it is. Nothing's wired for real, but the EFIS is running off of my power supply.





Cheers!
Guy
__________________
Guy Prevost
Albuquerque, NM
RV-8a Built, Enjoyed, Sold
Two Kids: Built, Enjoying
RV-10, Bought, Rebuilt, Enjoying
Build / First Flight Video: http://www.youtube.com/watch?v=8f9HXzZT1dE

Arguing on the internet is like having a competition to see who can hit a brick wall the hardest. You may win, but you're still an idiot.
Reply With Quote
  #109
Old 12-11-2007, 06:35 AM
hecilopter's Avatar
hecilopter hecilopter is offline

Join Date: Mar 2005
Posts: 398
Default Congrats Guy

Looks great! Glad to see you getting closer!
__________________
Rusty "Rooster" Williams
N357RV RV-7A Tip Up (flying and Painted!) - 1560+ hrs.
Superior XP-360, carbureted, Hartzell 74" Blended Airfoil Prop
Grand Prairie, TX
KGPM
Reply With Quote
  #110
Old 12-11-2007, 06:39 AM
Lionclaw's Avatar
Lionclaw Lionclaw is offline

Join Date: Sep 2007
Location: Satellite Beach, FL (KTIX)
Posts: 673
Default

Very nice Guy. I like the symmetric layout.
__________________
Andy Compton, PhD EE
RV-10 #41414, N643AC (building)
RV-7A #72158, N808PA (flying)
RV-9A #91638 (built,flew,sold,missed)
Reply With Quote
