VansAirForceForums
Home > VansAirForceForums

-POSTING RULES
-Advertise in here!
- Today's Posts | Insert Pics

Keep VAF Going
Donate methods

Point your
camera app here
to donate fast.

  #31
Old 08-18-2013, 08:55 PM
Pat Hatch's Avatar
Pat Hatch Pat Hatch is offline

Join Date: Jun 2006
Location: Vero Beach, FL
Posts: 885
Default Update

Slowly grinding my way to the end of this project. All wiring is done, final assembly in process. Next step is installing boxes and the configuration and calibration process, but I have a trip up north for the coming week, so, alas, it will have to wait until the following week. I began the project on June 23rd so two months to here and my target completion date (first flight) is September 1st. Actually, I am still waiting for the GDL 39R to be delivered which should be while I'm gone, so that will work out well. It's all wired and provisioned for, so it will be just a matter of making the connector and bolting it in. My only complaint is that I could have used an air conditioned hangar!



Oh yeah, I did flip on both masters and all seems OK to this point. Also was able to put a charger on both batteries all day (I used two dual-purpose cigarette lighters on the lower right for aux power and charging the batteries).
__________________
Pat Hatch
RV-4 (Gone to RV heaven)
RV-6 (N44PH - Flying)
RV-7 (Sold)
RV-8 (Builder & Avionics Installer)
www.phaviation.com Trim Relay Boards/Flap Actuators
www.pathatch.com/blog (Photography)
Track Me
Reply With Quote
  #32
Old 08-19-2013, 07:55 AM
turbo's Avatar
turbo turbo is offline

Join Date: Jan 2007
Location: Stuart, FL /Hartford, CT/Virgin Gorda,BVI
Posts: 3,139
Default

still waiting your arrival in the north east.
__________________
TURBO YES =VAF= Payed Jan2021
Ed D'Arcy
RV6-A 5,200+ hrs, R-44 1,600 hrs, Helicycle traded for 33 FFR coupe, gyro sold,35,000 miles flown in 2015
Stuart, Fl / S WINDSOR,Ct / Virgin Gorda, BVI - under major repair from hurricane damage
VAF #840 EAA AOPA FAC FABA QB SPA
addicted pickle ball player
https://i.postimg.cc/tn3h4svg/IMG-3101.jpg
Reply With Quote
  #33
Old 08-26-2013, 05:09 PM
Pat Hatch's Avatar
Pat Hatch Pat Hatch is offline

Join Date: Jun 2006
Location: Vero Beach, FL
Posts: 885
Default Progress

I got the panel lit up yesterday and today started the configuration and calibration process.



I found a wiring mistake with help from Steve at Garmin. The second ADHRS gets a jumper to make it number 2 and I did it incorrectly. I jumped pins 4 and 5 of the 9-pin connector when it should have been on the 15-pin connector, so I had two ADHRS fighting to be number one. Once I moved the jumper over to the proper connector everything was normal. This in spite of triple-checking every pin position. I still made a mistake. Oh well, if this is the only one, I'll be happy.

Nice troubleshooting job, Steve. Thanks!
__________________
Pat Hatch
RV-4 (Gone to RV heaven)
RV-6 (N44PH - Flying)
RV-7 (Sold)
RV-8 (Builder & Avionics Installer)
www.phaviation.com Trim Relay Boards/Flap Actuators
www.pathatch.com/blog (Photography)
Track Me
Reply With Quote
  #34
Old 08-29-2013, 04:25 PM
Pat Hatch's Avatar
Pat Hatch Pat Hatch is offline

Join Date: Jun 2006
Location: Vero Beach, FL
Posts: 885
Default

Well, I guess it's time for the before-and-after photos. Today I officially declared the panel done (well, it's never done, still have to install the GDL 39R in the morning). But the configuration and calibration are done and the engine has been run, magnetometer calibrated on the compass rose. Here's the before (started the project on June 23rd):



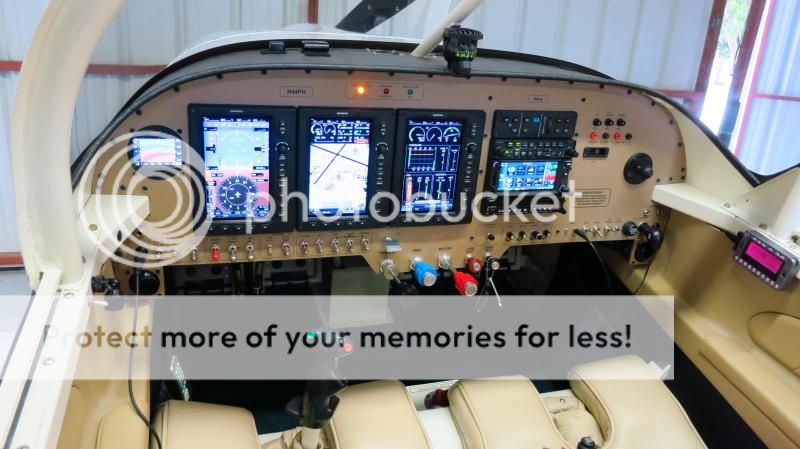

And this is the completed panel with the interior back in. Probably will fly on Saturday and I'll post a writeup on the new GMC 305 autopilot:



Here are a couple more:



__________________
Pat Hatch
RV-4 (Gone to RV heaven)
RV-6 (N44PH - Flying)
RV-7 (Sold)
RV-8 (Builder & Avionics Installer)
www.phaviation.com Trim Relay Boards/Flap Actuators
www.pathatch.com/blog (Photography)
Track Me

Last edited by Pat Hatch : 08-29-2013 at 07:51 PM. Reason: Typo
Reply With Quote
  #35
Old 08-29-2013, 05:10 PM
N941WR's Avatar
N941WR N941WR is offline

Join Date: Jan 2005
Location: SC
Posts: 12,887
Default

Nice upgrade Pat! I'll call you when I get ready to upgrade mine in a few years!
__________________
Bill R.
RV-9 (Yes, it's a dragon tail)
O-360 w/ dual P-mags
Build the plane you want, not the plane others want you to build!
SC86 - Easley, SC
www.repucci.com/bill/baf.html
Reply With Quote
  #36
Old 08-30-2013, 08:16 AM
RV6Bldr's Avatar
RV6Bldr RV6Bldr is offline

Join Date: Jul 2009
Location: Anthony, New Mexico
Posts: 9
Default Panel Upgrade

Wow Pat!

What a nice panel. Be careful when you fly with this new panel, it's going to be hard to see whats going on outside, while looking @ that new panel!

Lloyd
Reply With Quote
  #37
Old 08-30-2013, 10:58 AM
Steve Melton's Avatar
Steve Melton Steve Melton is offline

Join Date: Apr 2011
Location: Cincinnati, OH
Posts: 3,032
Default artwork!

your panel is boardering on artwork!
__________________
Steve Melton
Cincinnati, OH
RV-9A, Tip-up, Superior O-320, roller lifters, 160HP, WW 200RV, dual impulse slick mags, oil pressure = 65 psi, EGT = 1300F, flight hours = 800+ for all

Simplicity is the art in design.
I was born an airplane nut. I have no explanation for it.
My Artwork is freely given and published and cannot be patented.
www.rvplasticparts.com
Reply With Quote
  #38
Old 08-30-2013, 12:25 PM
johntuck johntuck is offline

Join Date: May 2008
Location: Lenoir City
Posts: 64
Default Beautiful!

Fall is a great time to check out East TN again! No Hurricanes! Let me know if you are going to be flying through!
__________________
John Tuck
Commercial Pilot
RV 7 started but sold
1998 Maule MXT-7-180 Gone West (SOLD)
2003 American Champion GCBC Building Tail time
RV8 or 14 Next...
80TN Private Airport
Reply With Quote
  #39
Old 08-31-2013, 03:08 PM
Pat Hatch's Avatar
Pat Hatch Pat Hatch is offline

Join Date: Jun 2006
Location: Vero Beach, FL
Posts: 885
Default

Thanks for all the positive comments, guys!

I flew for an hour today and all I can say is, WOW!. Here are some quick observations...

Autopilot is very solid. Just like on the big planes. Altitude hold was perfect, no pitch oscillations at all. VNAV worked great; being able to program a crossing restriction is a great new feature. Didn't have time to do a coupled approach, maybe next flight. Auto trim worked as advertised. I gave it a good workout, I think I tried to break it but couldn't. I'm very impressed with this autopilot!

The traffic and weather returns were amazing! Great coverage here in Florida and the GDL39R was working perfectly.

Too much to absorb in one hour.

Next project is to get the fuel quantity calibration done and then the angle-of-attack calibration in flight.

All in all, I?m very pleased with the new panel! Ecstatic might be a better word.
__________________
Pat Hatch
RV-4 (Gone to RV heaven)
RV-6 (N44PH - Flying)
RV-7 (Sold)
RV-8 (Builder & Avionics Installer)
www.phaviation.com Trim Relay Boards/Flap Actuators
www.pathatch.com/blog (Photography)
Track Me
Reply With Quote
  #40
Old 08-31-2013, 10:50 PM
turbo's Avatar
turbo turbo is offline

Join Date: Jan 2007
Location: Stuart, FL /Hartford, CT/Virgin Gorda,BVI
Posts: 3,139
Default

Congrats on the completion of the master piece. One of the nicest I have seen in a long time. Enjoy it. Watch out for those slippery wet wings.
__________________
TURBO YES =VAF= Payed Jan2021
Ed D'Arcy
RV6-A 5,200+ hrs, R-44 1,600 hrs, Helicycle traded for 33 FFR coupe, gyro sold,35,000 miles flown in 2015
Stuart, Fl / S WINDSOR,Ct / Virgin Gorda, BVI - under major repair from hurricane damage
VAF #840 EAA AOPA FAC FABA QB SPA
addicted pickle ball player
https://i.postimg.cc/tn3h4svg/IMG-3101.jpg
Reply With Quote
Reply


Thread Tools Search this Thread
Search this Thread:

Advanced Search
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

vB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Forum Jump


All times are GMT -6. The time now is 05:49 PM.


The VAFForums come to you courtesy Delta Romeo, LLC. By viewing and participating in them you agree to build your plane using standardized methods and practices and to fly it safely and in accordance with the laws governing the country you are located in.
