Default Opinions on my RV-12 panel (Garmin GPS 175??)

Wishing a very Happy New Year to all my RV friends and the VAF/Van's community. I have not been an active instrument pilot for over 30 years (I let my CFII expire in 1988) and I find myself missing the IFR world. I was recently asked to be a safety pilot for my neighbor in his V35 Bonanza, as he did 3 approaches at a few of the local airports. It was the first time I ever got to experience an RNAV GPS approach (they did not exist in General Aviation in 1988). I only knew ILS, LOC, VOR and NDB approaches. I never wanted to add Nav radios to my panel, I was just happy to build my little VFR RV-12. My ELSA OpLims were issued with the IFR/IMC approval if I have the required 91.205(d) equipment.

Now I really want to install a certified GPS navigator in my panel and I'm looking for opinions/experience. I think I have settled on the new 175 from Garmin, it's only 2" high and 6" wide and only has a current draw of .6 - .9 amps which is good for my anemic 912ULS electrical system.

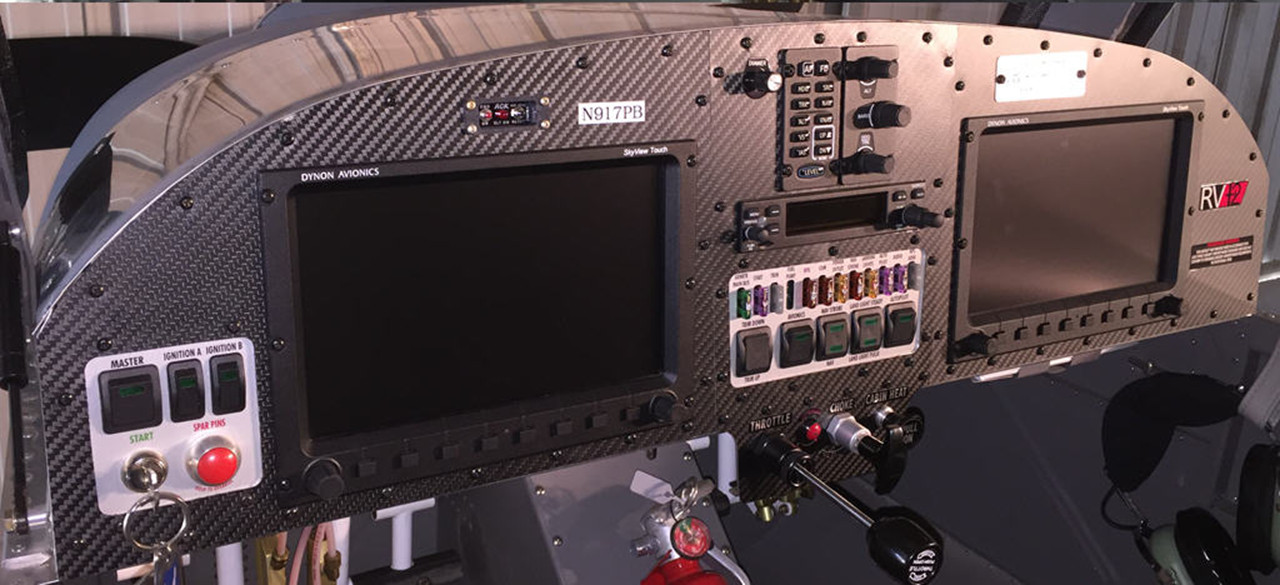

I have a Dynon dual Skyview panel. I'd like to install the 175 in the upper center of my panel. It should integrate with my Dynon EFIS via an ARINC-429 module. I have to make room, so I think I will relocate or just remove my knob modules. Any thoughts/ideas are appreciated. I am including a picture of my panel as it looks today. I removed the map box and added the 2nd EFIS about 6 months after I built the plane. I could easily be overlooking something and I really respect the experience/knowledge out there. Thanks for any thoughts or ideas, general or specific. Paul

__________________
Paul Straub, First Flight May 5, 2017
N917PB, SN 120971
205 hours and counting.....
Reply With Quote
  #2
Old 12-31-2020, 10:39 AM
Crafting N112DR's Avatar
Crafting N112DR Crafting N112DR is offline

Join Date: Oct 2013
Location: Powell, OH
Posts: 289
Default

Quote:
Originally Posted by pstraub View Post
Wishing a very Happy New Year to all my RV friends and the VAF/Van's community. I have not been an active instrument pilot for over 30 years (I let my CFII expire in 1988) and I find myself missing the IFR world. I was recently asked to be a safety pilot for my neighbor in his V35 Bonanza, as he did 3 approaches at a few of the local airports. It was the first time I ever got to experience an RNAV GPS approach (they did not exist in General Aviation in 1988). I only knew ILS, LOC, VOR and NDB approaches. I never wanted to add Nav radios to my panel, I was just happy to build my little VFR RV-12. My ELSA OpLims were issued with the IFR/IMC approval if I have the required 91.205(d) equipment.

Now I really want to install a certified GPS navigator in my panel and I'm looking for opinions/experience. I think I have settled on the new 175 from Garmin, it's only 2" high and 6" wide and only has a current draw of .6 - .9 amps which is good for my anemic 912ULS electrical system.

I have a Dynon dual Skyview panel. I'd like to install the 175 in the upper center of my panel. It should integrate with my Dynon EFIS via an ARINC-429 module. I have to make room, so I think I will relocate or just remove my knob modules. Any thoughts/ideas are appreciated. I am including a picture of my panel as it looks today. I removed the map box and added the 2nd EFIS about 6 months after I built the plane. I could easily be overlooking something and I really respect the experience/knowledge out there. Thanks for any thoughts or ideas, general or specific. Paul

Paul I was thinking the same thing, add a Garmin GPS 175 on the center stack. I would love to train in the IFR environment and fly IFR on a nice day X country. It is definitely cheeper and easter to install the say a GTN 650. I was talking about it with the Garmin guys and the GPS 175 is going to be connected to the system via RS-232 to the GDU and ARINC 429 to the GAD 29. Not sure how it will integrate with the Dynon Skyview?
__________________
___________
David Rohrlick
PPSEL, A&P
N112DR (RV-12iS)
Airworthiness signed off by the FAA 1/23/2020
First Flight on 3/14/2020
Phase I Finished on 5/7/2020

Need:
Paint?
Serial#12-0864
https://youtube.com/c/CraftingN112DR
VAF donation made for 2021
Reply With Quote
  #3
Old 12-31-2020, 11:42 AM
pstraub's Avatar
pstraub pstraub is offline

Join Date: Nov 2015
Location: Hensley Airpark, TN
Posts: 157
Default

Hi guys, thanks for the comments, good things to think about. With the AP knob module, I would find another spot for it. The other knob module is just a convenience and I could live without it if I can't find room.
__________________
Paul Straub, First Flight May 5, 2017
N917PB, SN 120971
205 hours and counting.....
Reply With Quote
  #4
Old 12-31-2020, 12:13 PM
D&M Dan D&M Dan is offline

Join Date: Sep 2006
Location: Webster, NY
Posts: 92
Default

You may be able to mount the Garmin 175 above the Com radio and then purchase the Dynon horizontal AP control to mount above that.
__________________
RV12 Flying
N930DD
Home Field KSDC
Paid 2020
Reply With Quote
  #5
Old 12-31-2020, 01:40 PM
pstraub's Avatar
pstraub pstraub is offline

Join Date: Nov 2015
Location: Hensley Airpark, TN
Posts: 157
Default

Quote:
Originally Posted by D&M Dan View Post
You may be able to mount the Garmin 175 above the Com radio and then purchase the Dynon horizontal AP control to mount above that.
That's a good point, I could sell the vertical module and buy the horizontal. I will look at that spacing. Thanks!!
__________________
Paul Straub, First Flight May 5, 2017
N917PB, SN 120971
205 hours and counting.....
Reply With Quote
  #6
Old 12-31-2020, 06:46 PM
NinerBikes NinerBikes is offline

Join Date: Dec 2018
Location: Granada Hills
Posts: 1,131
Default

You could also sell the spare Dynon SkyView Touch and lighten your current load and strain on the Voltage Regulator, too, before adding the Garmin 196.
__________________
Donated
2012 RV-12, #212 N72DJ KWHP based.
Reply With Quote
  #7
Old 01-01-2021, 07:22 AM
Rrhsch Rrhsch is offline

Join Date: Aug 2013
Location: Oconomowoc, WI
Posts: 78
Default

The GPS 175 displays on the PFD. If you replace the MFD with the GPS175, power budget isn’t a problem. If you keep the MFD, the easiest location is to mount it is directly under the PFD. You will need to use it for selecting procedures and modifying flight plans. I believe that location still meets the definition for proper field of view.

A search on VAF has a lot of information regarding the power budget. I believe the second screen that you added depleted the remaining power available from the alternator. The Ducati voltage regulator is prone to failures. A HS VR replacement kit is available from Van’s but, IMO you are still going to be over the power budget.

In case of a power failure you will not have the reserve needed to satisfy the power reserve requirements for an IFR installation. The GPS 175 only has a single power source. You could give it pass through power from a TWC back up power supply. The current TWC is not big enough to handle the load/time required. I believe you will need to up size it.

All said, this is your plane. Build it as you wish but, please be safe.
Reply With Quote
  #8
Old 01-01-2021, 09:00 AM
BoydBirchler BoydBirchler is offline

Join Date: Jul 2020
Location: Indianapolis
Posts: 74
Default

Is there room above the Left flight display, perhaps shifted slightly to the right?

The original position of the 430w in my RV7 was there, I initially thought it was a bad place but came to like it.
Reply With Quote
  #9
Old 01-01-2021, 09:36 AM
pstraub's Avatar
pstraub pstraub is offline

Join Date: Nov 2015
Location: Hensley Airpark, TN
Posts: 157
Default

Hi all, thanks for the very thoughtful comments, this is all good food for thought and I really appreciate the opinions/ideas. I am a little 'all over the map' right now, from the power budget with my stock, still original Ducati VR that has not yet failed! (should I minimally upgrade to the SH VR available from Van's) to the physical install within the panel (again, you guys have given me several ideas). Also, how well will the G175 integrate with my Skyview PFD (CDI performance, etc). I feel a bit like a child with my rudimentary questions, but I would be a fool to not take advantage of the wealth of knowledge in the VAF community. Thanks again!
__________________
Paul Straub, First Flight May 5, 2017
N917PB, SN 120971
205 hours and counting.....
Reply With Quote
  #10
Old 01-01-2021, 09:38 PM
SeattleAviator SeattleAviator is offline

Join Date: Nov 2020
Location: Seattle, WA
Posts: 18
Default

I'm no expert on panel design but I would definitely put the navigator in the center stack. Put the 3 knob Dynon controller over the PFD since it controls functions on that side. Move the AP controller to the right perhaps at the same height as the 3 knob controller. if its still reachable at that location. I have seen this sort of arrangement on a Sport Cruiser. Of course lots to consider when look at the issue of arranging the wiring in the Avionics bay.
__________________
Greg
Analog Man Living in a Digital World
Donation December 2020
Reply With Quote
