Default List of Switches - Toggle

Just about to start drilling holes for toggle switches in the panel. Can anyone add or subtract to this switch list?

* NAV/Strobe - NAV (combination switch - ON - OFF - ON)
* Fuel pump (ON - OFF)
* AP cutout (in addition to what's on the stick) (ON - OFF)
* Landing light (ON - OFF)
* Taxi Light (ON - OFF)
* Pitot heat (ON - OFF)
* Seat heat (ON - OFF)
* Interior lighting (will be a dimmer)

This list doesn't include ELT, master and/or ignition switches
Suggested groupings would be appreciated too.

Lighting group
Heat group
Critical group (fuel pump - AP C/O)
__________________
VAF# 835
RV-7A- Instrument Panel/FWF/Engine Mounted
Slow build --- ALL THE WAY
Victim of SB-632-B
2020 Dues Paid
Reply With Quote
  #2
Old 01-17-2015, 02:27 PM
David Paule David Paule is offline

Join Date: Dec 2009
Location: Boulder, CO
Posts: 4,435
Default

How about changing the taxi and landing light switches so there's just one combination switch? (OFF - TAXI - LANDING)

My Cessna 180 is set up this way. I don't remember if the taxi light is on when the landing light is. I think it is but I'm not sure. That would be (OFF - TAXI - BOTH).

Dave
Reply With Quote
  #3
Old 01-17-2015, 02:30 PM
Caummisar's Avatar
Caummisar Caummisar is offline

Join Date: Jun 2007
Location: Idaho Falls, ID
Posts: 134
Default VP-X Pro in the mix too.

I've got the VP-X Pro in the mix, so I'll probably be using its wig-wag function, so I have to figure that out with respect to the switches.

Quote:
Originally Posted by David Paule View Post
How about changing the taxi and landing light switches so there's just one combination switch? (OFF - TAXI - LANDING)

My Cessna 180 is set up this way. I don't remember if the taxi light is on when the landing light is. I think it is but I'm not sure. That would be (OFF - TAXI - BOTH).

Dave
__________________
VAF# 835
RV-7A- Instrument Panel/FWF/Engine Mounted
Slow build --- ALL THE WAY
Victim of SB-632-B
2020 Dues Paid
Reply With Quote
  #4
Old 01-17-2015, 04:01 PM
rmartingt's Avatar
rmartingt rmartingt is offline

Join Date: Nov 2006
Location: Savannah, GA
Posts: 1,029
Default

Quote:
Originally Posted by Caummisar View Post
* NAV/Strobe - NAV (combination switch - ON - OFF - ON)
Since you're including interior lighting and taxi/landing lights, I assume you intend to do evening and night flying. So, why would you have either nav lights or strobe? I would think you'd want them either separated, or if combined, then off - nav - both or off - strobe - both
__________________
RV-7ER - finishing kit and systems installation
There are two kinds of fool in the world. The first says "this is old, and therefore good"; the second says "this is new, and therefore better".
Reply With Quote
  #5
Old 01-17-2015, 06:39 PM
maus92 maus92 is offline

Join Date: Nov 2013
Location: Annapolis MD
Posts: 457
Default

Quote:
Originally Posted by Caummisar View Post
I've got the VP-X Pro in the mix, so I'll probably be using its wig-wag function, so I have to figure that out with respect to the switches.
The wig-wag function in the VP-X is enabled when the lights are switched on and you are wiring the taxi / landing light switch(es) through the VP-X. The wig-wag function is airspeed dependent and configurable when setting up the VP-X. For instance, you could set up the wig wag to start flashing at 90kts (below that speed both lights would be steady.) I am installing progressive switches (on-on-on) for the nav/strobes and taxi/landing. The far left position (my switches are installed with a horizontal orientation) is off; the middle is nav; the right is nav+strobe. Same idea for the taxi / landing lts.
__________________
CA
2000 RV-8A | O-360, SDS CPI, FP, G3X Touch, VP-X, EarthX | Eastern Shore | KESN

Last edited by maus92 : 01-17-2015 at 06:45 PM.
Reply With Quote
  #6
Old 01-17-2015, 06:50 PM
flyboy1963's Avatar
flyboy1963 flyboy1963 is offline

Join Date: Oct 2008
Location: Lake Country, B.C. Canada
Posts: 2,416
Default groupings, position, sequence, colour???

In a way this is a follow-on to the cockpit ergonomics etc. DR recently discussed.....sightlines, reach etc.

I'd want to consider which switches are turned 'on' , preferably left to right, in a pre-start sequence.
then also, a group that may be activated at run-up, and those the you will want to use in an emergency.

for example, I'd like mine grouped so that upon any engine stumble, I can immediately hit
carb heat - hot
mags-both
fuel pump-on
mixture-rich
tanks-switch

...or whatever your systems dictate.
Mine is pretty close to being able to do without looking, but not perfect.
I added a big rubber sleeve on some of the critical ones so that they looked and FELT different than the others.

just another $.02
__________________
Perry Y.
RV-9a - SOLD!....
Lake Country, BC

Last edited by flyboy1963 : 01-17-2015 at 06:57 PM.
Reply With Quote
  #7
Old 01-17-2015, 06:55 PM
larrynew's Avatar
larrynew larrynew is offline

Join Date: Oct 2007
Location: In New Braunfels, ist das Leben schön!
Posts: 871
Default

Here's a 2nd draft proof sheet of the switch and panel labels I'm using. I've made a few changes since this but might help a little.

http://larrys-airplane.blogspot.com/...el-labels.html
__________________
Larry New
RV-7A - Built, flying 900+ hrs
RV-10 - Built, flying 2.9 hrs
??? - RV-12, Subsonex
48 States in 7 Days!
VAF Paid - Annual Autodraft
Reply With Quote
  #8
Old 01-17-2015, 07:37 PM
bruceh's Avatar
bruceh bruceh is offline

Join Date: Mar 2008
Location: Ramona, CA
Posts: 2,370
Default

I also have a switch for the APRS tracker circuit. Stealth and ON!

Today's flight from Ramona to Camarillo for tri-tip lunch (yum!).
__________________
Bruce Hill
RV-9A N5771H flown over 800 hours!
http://www.overthehills.com/RV-9A-Project
APRS Tracking for KJ6YRP and New Flying Blog
2020 VAF donator
EAA Tech Counselor, Build assistance - canopy/tanks/fiberglass/electrical/repairs
Reply With Quote
  #9
Old 01-17-2015, 08:08 PM
ScottA's Avatar
ScottA ScottA is offline

Join Date: Nov 2014
Location: Dallas, TX
Posts: 43
Default

Quote:
I also have a switch for the APRS tracker circuit. Stealth and ON!
I like it!!
__________________
Scott & Sheryl Allison
Dallas, TX
RV-8 Preview Plans Received 12-10-2014
Empennage Kit Received!! 2/10/2015
KB5JAX - Extra Class
http://www.mykitlog.com/RV8Scott/
Reply With Quote
  #10
Old 01-17-2015, 10:38 PM
rightrudder rightrudder is offline

Join Date: Mar 2014
Location: Laguna Hills, CA
Posts: 1,805
Default

I'd add Alternator Field to the list of toggles, and put it next to Master.

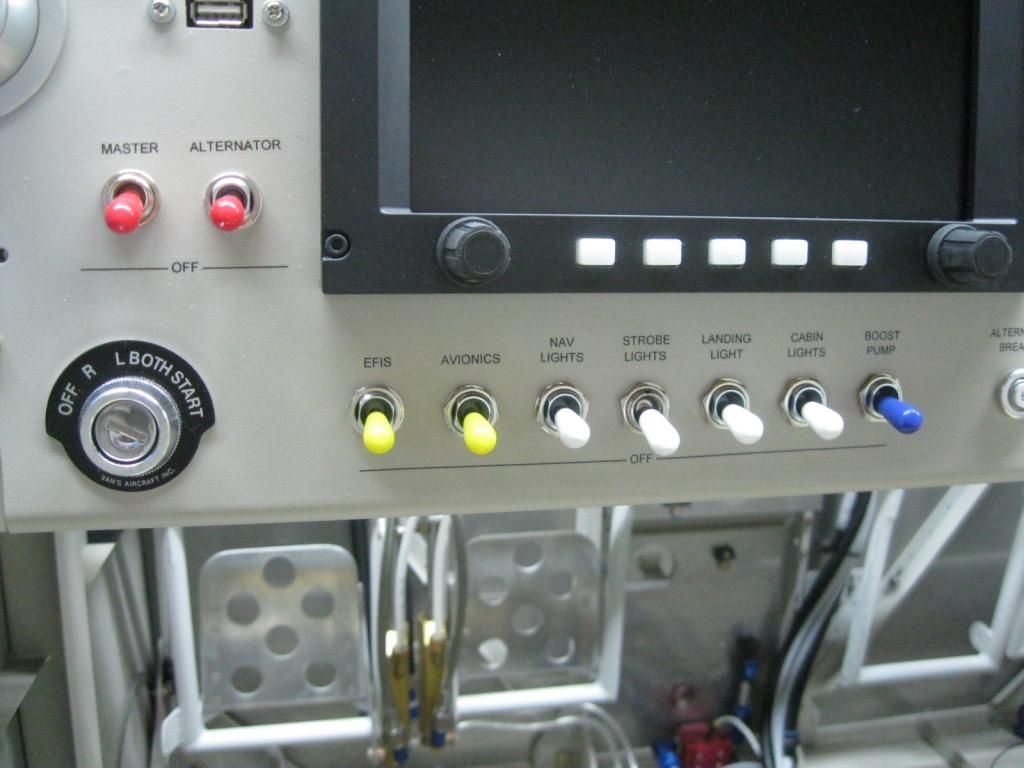

Here's a pic of my switch layout. The spacing is at 1-inch intervals; too close and you risk flipping two switches at once, and labeling gets crowded in a hurry. Another option is to install switch guards for critical functions.
