Default Headphone/mic jack mounting

Hi guys,

A couple of quick questions. I bought the harness for my comm pre-made from ACS.

1) When mounting these, do you drill a hole for the size of the threads, or a larger hole for the boss at the base of the threads?

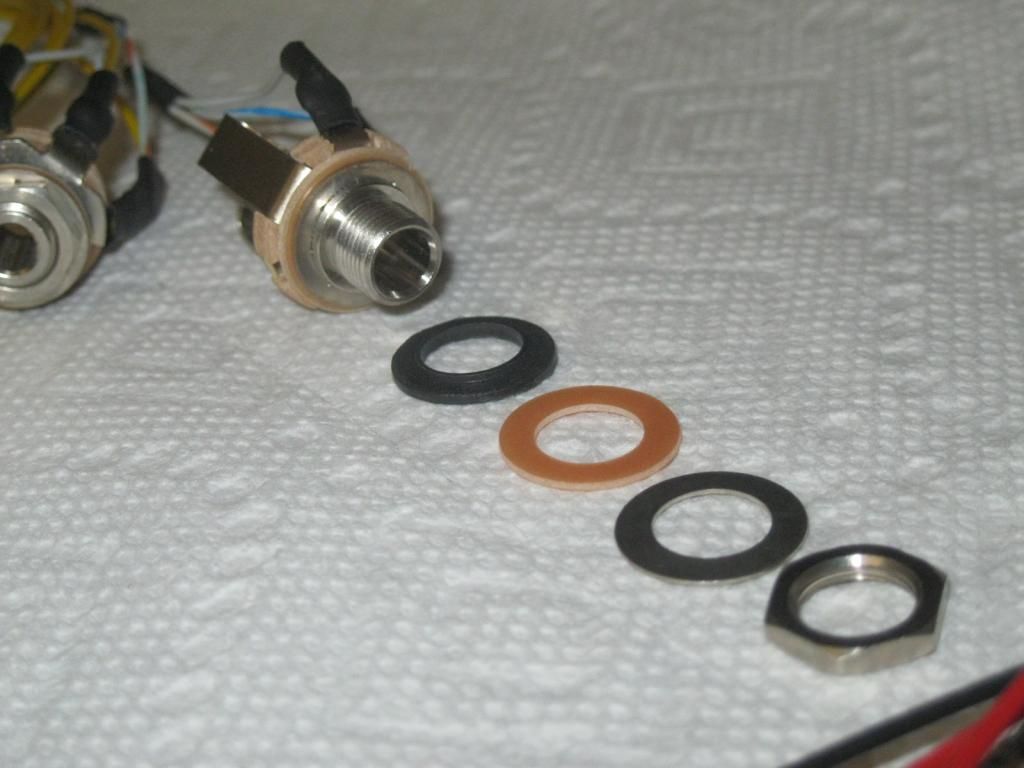

2) The photo shows how all the various washers were mounted on the jack. When installing, does it go nut/metal washer/fiber washer/panel/shoulder washer/jack? And does the shoulder portion fit up inside of the hole, or point toward the jack?

If it makes any difference, the harness is wired with PTT ground leads.

I was Googling this like mad, trying to find a simple drawing, but couldn't find a thing.

Thanks!

__________________
Doug
RV-9A "slider"
Flew to Osh in 2017, 2018 & 2019!
Tail number N427DK
Donation made for 2020
You haven't seen a tree until you've seen its shadow from the sky -- Amelia Earhart
Reply With Quote
  #2
Old 12-27-2014, 06:52 PM
Mike S's Avatar
Mike S Mike S is offline
Senior Curmudgeon

Join Date: Sep 2005
Location: Dayton Airpark, NV A34
Posts: 15,420
Default

Drill the hole to fit the raised portion on the black washer. The shoulder fits inside the panel hole.

When correctly done, the shell of the jack is electrically insulated from the panel.

Quote:
Originally Posted by rightrudder View Post

When installing, does it go nut/metal washer/fiber washer/panel/shoulder washer/jack? And does the shoulder portion fit up inside of the hole,
Yes.

Quote:
Originally Posted by rightrudder View Post
or point toward the jack?
No.
__________________
Mike Starkey
VAF 909

Rv-10, N210LM.

Flying as of 12/4/2010

Phase 1 done, 2/4/2011

Sold after 240+ wonderful hours of flight.

"Flying the airplane is more important than radioing your plight to a person on the ground incapable of understanding or doing anything about it."

Last edited by Mike S : 12-27-2014 at 06:56 PM.
Reply With Quote
  #3
Old 12-27-2014, 07:40 PM
Jesse's Avatar
Jesse Jesse is offline

Join Date: May 2005
Location: X35 - Ocala, FL
Posts: 3,679
Default

Exactly as mike said. No part of metal on the jack should be grounded to the airframe, hence the shoulder washer and fiber washer.
__________________
Jesse Saint
Reply With Quote
  #4
Old 12-27-2014, 07:50 PM
rightrudder rightrudder is offline

Join Date: Mar 2014
Location: Laguna Hills, CA
Posts: 1,805
Default

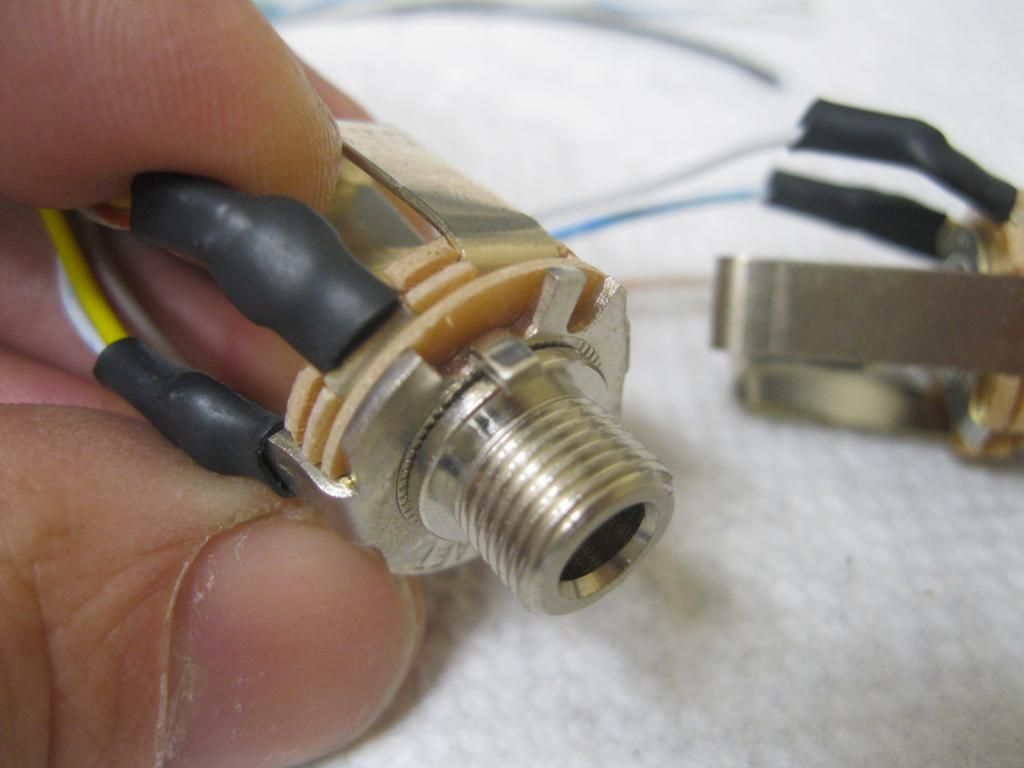

Thanks, guys. That all makes perfect sense. Now here's a wrinkle: the Mic jacks have what looks to be an index or anti-rotation tab, oriented so the collared washer won't sit flat at the base of the threads. ????? Should I grind it off or bend it flat?

__________________
Doug
RV-9A "slider"
Flew to Osh in 2017, 2018 & 2019!
Tail number N427DK
Donation made for 2020
You haven't seen a tree until you've seen its shadow from the sky -- Amelia Earhart

Last edited by rightrudder : 12-27-2014 at 07:52 PM.
Reply With Quote
  #5
Old 12-27-2014, 08:24 PM
BobTurner BobTurner is offline

Join Date: Dec 2011
Location: Livermore, CA
Posts: 6,797
Default

grind it off.
Reply With Quote
  #6
Old 12-27-2014, 09:15 PM
Walt's Avatar
Walt Walt is offline

Join Date: Aug 2005
Location: Dallas/Ft Worth, TX
Posts: 5,687
Default

or slipping a standard 3/8 (or 7/16) washer on it will work also.
__________________
Walt Aronow, DFW, TX (52F)

EXP Aircraft Services LLC
Specializing in RV Condition Inspections, Maintenance, Avionics Upgrades
Dynamic Prop Balancing, Pitot-Static Altmeter/Transponder Certification
FAA Certified Repair Station, AP/IA/FCC GROL, EAA Technical Counselor
Authorized Garmin G3X Dealer/Installer
RV7A built 2004, 1700+ hrs, New Titan IO-370, Bendix Mags
Website: ExpAircraft.com, Email: walt@expaircraft.com, Cell: 972-746-5154
Reply With Quote
  #7
Old 12-27-2014, 10:59 PM
rightrudder rightrudder is offline

Join Date: Mar 2014
Location: Laguna Hills, CA
Posts: 1,805
Default

Thanks a ton, guys. I appreciate the quick and knowledgeable responses.
__________________
Doug
RV-9A "slider"
Flew to Osh in 2017, 2018 & 2019!
Tail number N427DK
Donation made for 2020
You haven't seen a tree until you've seen its shadow from the sky -- Amelia Earhart
Reply With Quote
  #8
Old 12-27-2014, 11:04 PM
rapid_ascent rapid_ascent is offline

Join Date: Mar 2008
Location: Dublin, CA
Posts: 1,261
Default

Yeah I bought those same jacks from Aircraft Spruce. I used my diagonal cutters and a couple of quick hits with the file and no more anti-rotation tabs.
__________________
Ray Tonks
2020 Donation Paid
Titan IOX-370, Dual PMAGs, 9.6:1 Pistons, FM-150
RV-7 Fuselage in progress
* Cabin Interior - In progress
RV-7 SB Wings
* Both Wings fully skinned
* Fuel Tanks Complete - No leaks finally
* Ailerons Complete
* Flaps Complete
RV-7 Empennage - Complete (a little fiberglass work left)
Vans Training Kit # 2 - Complete
RV-7 Preview Plans
Vans Training Kit #1 - Complete
EAA Sheet Metal Class - Complete
Reply With Quote
  #9
Old 01-17-2015, 04:09 PM
Caummisar's Avatar
Caummisar Caummisar is offline

Join Date: Jun 2007
Location: Idaho Falls, ID
Posts: 134
Default Insulating Washers

If you drill the mounting hole to the standard 0.50 inches and then find that the raised portion of the washer is too small for the 0.50" opening, B&C Specialty Products sell insulating washers for 50 cents a set that will fit the standard hole size. Their part number S892. The ACS washers were 7/16" for the raised part of the washer and too small for the 0.50 hole.
