If you want to use 2 switches and 1 LED (BiColor) you're going to need some CMOS logic or at least some DPDT relays. If the float switches were DPDT you'd have a chance but they aren't, SPST. If you want to switch an LED on/off with a SPST you'll need logic.
Reply With Quote
  #12
Old 08-11-2014, 03:00 PM
fl-mike's Avatar
fl-mike fl-mike is offline

Join Date: Jul 2005
Posts: 1,341
Default

Quote:
Originally Posted by Toobuilder View Post
Yes, by "floating", I meant that literally - probably a poor description. anyway, it is in regards to the fuel level. I didn't define open or closed because I'm not sure what the circut needs. With these switches I think I can configure them to open or close when high and dry or submerged.
Right, by orienting the switch float one way or the other you can make it close when "fuller" or "emptier" than the mounting location. (as long as Mr. Gravity is pointing the right way!)
__________________
Mike W
Venice, FL
RV-6A. Mattituck TMX O-360, FP, GRT Sport EFIS, L3 Lynx NGT-9000
N164WM
N184WM reserved (RV-8)....finishing kit in progress. Titan IOX-370
Reply With Quote
  #13
Old 08-11-2014, 03:18 PM
fl-mike's Avatar
fl-mike fl-mike is offline

Join Date: Jul 2005
Posts: 1,341
Default

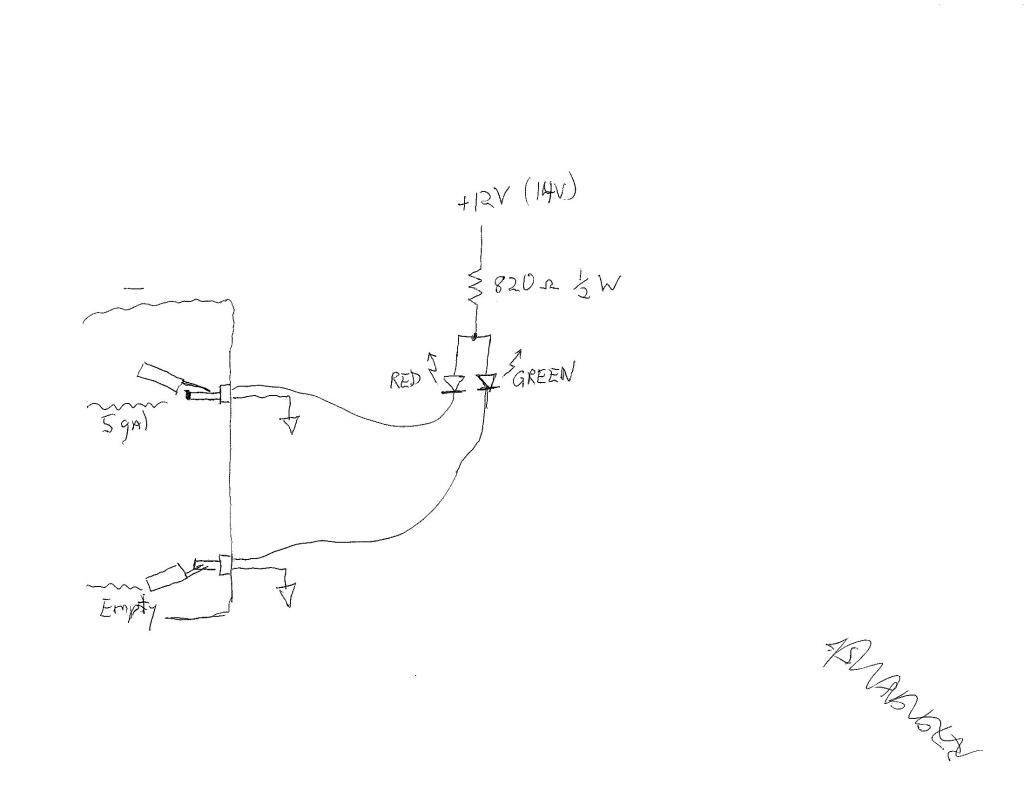

This is what I was talking about. No CMOS or relays or other stuff should be needed. Common anode RGB LED, leave the blue disconnected.
__________________
Mike W
Venice, FL
RV-6A. Mattituck TMX O-360, FP, GRT Sport EFIS, L3 Lynx NGT-9000
N164WM
N184WM reserved (RV-8)....finishing kit in progress. Titan IOX-370
Reply With Quote
  #14
Old 08-11-2014, 03:46 PM
Toobuilder's Avatar
Toobuilder Toobuilder is offline

Join Date: Jul 2009
Location: Mojave
Posts: 4,642
Default

Great!

...Even I get it. Time to buy some LED's and switches and breadboard this thing.

Thanks much!
__________________
WARNING! Incorrect design and/or fabrication of aircraft and/or components may result in injury or death. Information presented in this post is based on my own experience - Reader has sole responsibility for determining accuracy or suitability for use.

Michael Robinson
______________
Harmon Rocket II -SDS EFI
RV-8 - SDS CPI
1940 Taylorcraft BL-65
1984 L39C
Reply With Quote
  #15
Old 08-12-2014, 12:39 PM
n468ac's Avatar
n468ac n468ac is offline

Join Date: Jun 2005
Location: C09 - Morris
Posts: 579
Lightbulb

just an FYI ... use two independent LED's ... if you have someone on board that is color blind ... the multi-color LED will be meaningless.
__________________
(This post by: Christopher Checca EAA Lifetime Member #799388)

Allen Checca (father)
Christopher Checca (son)

RV-6A - N468AC
ENGINE: Lycoming 180 HP O-360-A1A
PROPELLER: Senisentch 72FM859-1-85
WEIGHT: Empty Aircraft 1152 lbs
BASED: KC09 - Morris, IL.
Flying since June 6, 2005
N468AC Web Site
Reply With Quote
  #16
Old 08-23-2014, 03:47 PM
Toobuilder's Avatar
Toobuilder Toobuilder is offline

Join Date: Jul 2009
Location: Mojave
Posts: 4,642
Default

Quote:
Originally Posted by fl-mike View Post
This is what I was talking about...
Hey Mike- I purchased the LEDs and float switches and have been playing with them on the bench. I have the common anode tied to a 1k ohm resistor (not the 850 ohm you specified, but that's all I had on hand), and a dead Odyssey battery (10.5 v). I can get the red segment to light, but not the green or blue. I understand that red is the lowest power of all the LED colors... Is the higher value resistor and dead battery dragging the voltage down so far that blue or green don't light off?
__________________
WARNING! Incorrect design and/or fabrication of aircraft and/or components may result in injury or death. Information presented in this post is based on my own experience - Reader has sole responsibility for determining accuracy or suitability for use.

Michael Robinson
______________
Harmon Rocket II -SDS EFI
RV-8 - SDS CPI
1940 Taylorcraft BL-65
1984 L39C
Reply With Quote
  #17
Old 08-23-2014, 09:07 PM
fl-mike's Avatar
fl-mike fl-mike is offline

Join Date: Jul 2005
Posts: 1,341
Default

I probably should have specified two different resistor values in the cathode legs to optimize the current in each LED to 20mA. Rev A!
I'm surprised you are not seeing anything on the green, but green and blue do have a higher forward voltage than the red. Parallel two 1k resistors and try again. That should be safe for a 10V supply. Let's try and get light, then you can finalize the values.
__________________
Mike W
Venice, FL
RV-6A. Mattituck TMX O-360, FP, GRT Sport EFIS, L3 Lynx NGT-9000
N164WM
N184WM reserved (RV-8)....finishing kit in progress. Titan IOX-370
Reply With Quote
  #18
Old 08-23-2014, 09:33 PM
GalinHdz's Avatar
GalinHdz GalinHdz is offline

Join Date: Mar 2010
Location: KSGJ / TJBQ
Posts: 2,034
Default

I would add a 5.1v Zener diode in parallel with the LED's to ground to help regulate the voltage seen by the LED's.

Reply With Quote
  #19
Old 08-23-2014, 10:39 PM
rapid_ascent rapid_ascent is offline

Join Date: Mar 2008
Location: Dublin, CA
Posts: 1,259
Default

LEDs operate on current. Change the current and you will change the luminace. You need two resistors one for each led. The resistor is selected by first picking the desired current. 20mA is a good starting point. Different LEDs have different operating currents. The resistor is determined by (Vbatt - VLED)/20mA. VLED is based on the forward voltage of the LED. No Zener is required for this type of circuit. Look at the datasheet for your LEDs to get the actual values for VLED and the current
__________________
Ray Tonks
2020 Donation Paid
Titan IOX-370, Dual PMAGs, 9.6:1 Pistons, FM-150
RV-7 Fuselage in progress
* Cabin Interior - In progress
RV-7 SB Wings
* Both Wings fully skinned
* Fuel Tanks Complete - No leaks finally
* Ailerons Complete
* Flaps Complete
RV-7 Empennage - Complete (a little fiberglass work left)
Vans Training Kit # 2 - Complete
RV-7 Preview Plans
Vans Training Kit #1 - Complete
EAA Sheet Metal Class - Complete
Reply With Quote
  #20
Old 08-24-2014, 04:56 AM
GalinHdz's Avatar
GalinHdz GalinHdz is offline

Join Date: Mar 2010
Location: KSGJ / TJBQ
Posts: 2,034
Default

Quote:
Originally Posted by fl-mike View Post
I probably should have specified two different resistor values in the cathode legs to optimize the current in each LED to 20mA. Rev A!
Quote:
Originally Posted by rapid_ascent View Post
No Zener is required for this type of circuit.
A Zener is not required but will keep the brightness at a more constant level.


Last edited by GalinHdz : 08-30-2014 at 07:43 AM.
