Setting up F-404, F-407, and F-414,F415
I'm struggling here to get this area of the fuselage sorted. The seat ribs don't insert cleanly into the recesses on the bulkheads and need a bit of cutting, filing. That's OK, I have learned not to do anything without a lot of thought. My problem is that I cannot see a detail on how to make the joints around the bits of angle that run across the F-404 (spar box). Should I cut them away, joggle them or what?
Also any thoughts on how to put this area together accurately will be much appreciated!
Thanks
Chris
__________________
Chris Mitchell
Repeat offender;
RV-8, QB, built, flown 150 hours, sold;
RV-4 - attempted repair, rebuild and remediation - abandoned and junked   ;
RV-4 fuselage and wing kits - both at QB stage;
2015-2018 dues paid!
|
08-05-2014, 04:32 PM
|
|
|
|
Join Date: Jan 2011
Location: Sydney, Australia
Posts: 86
|
|
I think this may assist
Hi,

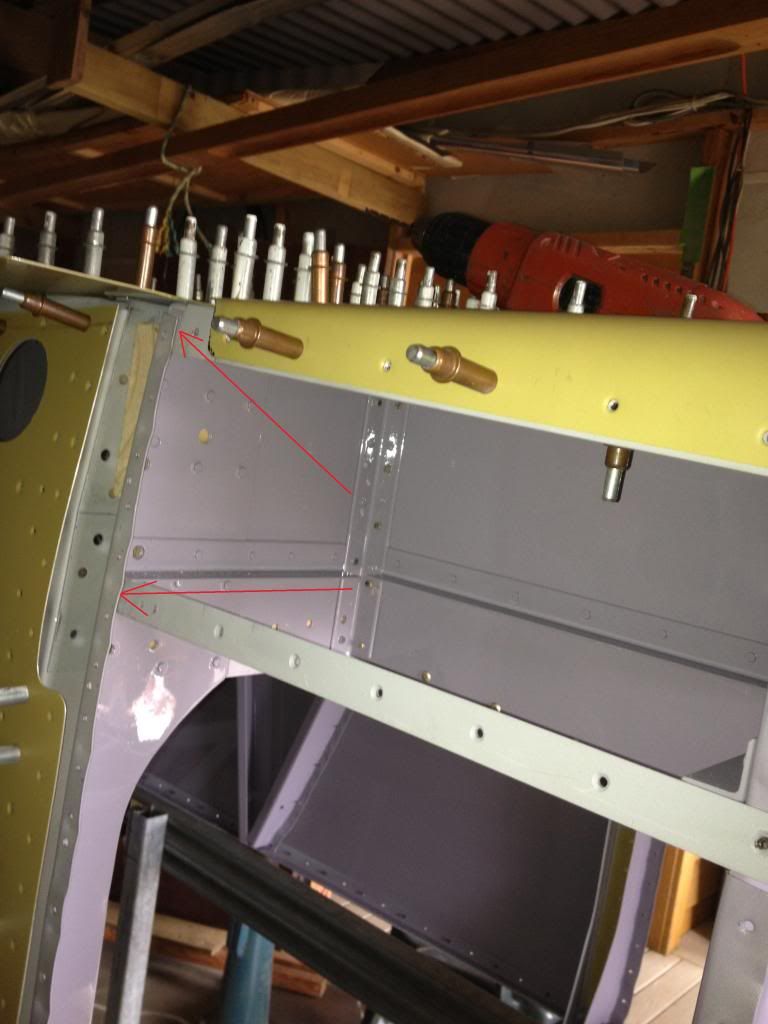

If your question relates to how the 2 pieces of angle intersect the spar box former ( apologies I dont have my plans handy, so I cant quote part No's) here's what i did. The 2 red arrows indicate where i notched the angle to accomodate the thickness of the former. Hope this helps, if not let me know and I may have another picture.
 |
08-05-2014, 09:16 PM
|
|
|
|
Join Date: Oct 2009
Location: River Falls, WI
Posts: 38
|
|
My builders manual addresses your question on page 8-35. If you have one I am sure you've read it. If you would like to see what I have I could send a copy. I completed my four about two years ago. It is a great airplane. One mistake I made in that area was not setting the angle of the 404 bulkhead to insure the bottom of the wing sits flush with the bottom of the fuselage. Probably cosmetic more than anything but I got it right the second time. Good Luck.
|
08-06-2014, 12:34 AM
|
|
|
|
Join Date: Jul 2006
Location: near Harrogate, England
Posts: 391
|
|
Thanks - I don't have a page 8-35. The section stops at page 8-12??!! I've read and reread the whole of section 8 and can't see anything relevant!
I understand about riveting the ends of floor and seat webs to the angles on F404.
Thanks
Chris
__________________
Chris Mitchell
Repeat offender;
RV-8, QB, built, flown 150 hours, sold;
RV-4 - attempted repair, rebuild and remediation - abandoned and junked ;
RV-4 fuselage and wing kits - both at QB stage;
2015-2018 dues paid!
|
08-06-2014, 06:30 AM
|
 |
|
|
Join Date: Jan 2006
Location: North Yorkshire UK
Posts: 152
|
|
closer look !
Hi Chris,
My BIG move is now complete and after 4 years of no progress my -4 is in it's new workshop.
Feel free to pop up and take a look any time.
__________________
Andy
RV-4
#4411
G-RATC
|
08-06-2014, 12:32 PM
|
|
|
|
Join Date: Oct 2009
Location: River Falls, WI
Posts: 38
|
|
If you want to see page 3-35 of the manual, send me an email address and I will get it to you. I believe it does address your question.
I too installed flop tubes in both tanks. Seemed like a good idea at the time. It works fine but was unnecessary.
|
