Dynon autopilot servo install photo
Hallo.
I would like to install both roll and pitch Dynon servos on my -4.
I found here a message suggesting to use the -6 roll servo bracket. This is installed on the fuselage. The -6 Dynon drawing shows a different column, so I was wondering what could be the actual connection.
On Dynon forum it is said there are on VAF photos on such installation.
Does anyone has them?
Thanks.
Camillo
__________________
RV4 IO-320, Catto 3-blade, Christen, I-BILT
Flight time: 1 hour
Status: test flights
www.rv4.it
ROME, Italy
---
RV9A O-320 D1A, Hartzell C/S prop, slider, I-PRCA
Flight time: 350 hours
Status: SOLD
http://nuke.rv9.it
|
06-12-2014, 09:22 AM
|
|
|
|
Join Date: May 2005
Posts: 377
|
|
stick well
I put the roll servo in the stick well with a short rod attached to the stick bracket. I did reinforce the side of the stick well with a backup plate. Works great.
__________________
Charlie "T.Bear" Guarino
Springtown, TX
RV-4 Flying again with a fresh overhaul
Exempt but paid
|
06-13-2014, 12:15 AM
|
|
|
|
Join Date: Sep 2006
Location: Roma, Italy
Posts: 510
|
|
Thanks, Charlie.
Do you have a photo of your installation?
__________________
RV4 IO-320, Catto 3-blade, Christen, I-BILT
Flight time: 1 hour
Status: test flights
www.rv4.it
ROME, Italy
---
RV9A O-320 D1A, Hartzell C/S prop, slider, I-PRCA
Flight time: 350 hours
Status: SOLD
http://nuke.rv9.it
|
06-13-2014, 09:29 PM
|
 |
|
|
Join Date: Jan 2008
Location: McKinney, Texas
Posts: 10
|
|
I installed the roll servo using the RV-6 bracket. I fab'd a bracket on the control column that copied the aileron push tube connection located so the servo didn't interfere with the passenger footwells. Since I don't own a welder I had the bracket welded on by a local welder. I'll try to remember and post a pic or two this weekend.
__________________
AcroBoy
Brad
McKinney, Tx
RV-4 still not done after 24 years but getting close!
Dynon Skyview w/ Autopilot, ADS-B, MGL Comm
ECI Titan OX-360 w/Pmag, Rotec TBI, Catto 3-blade
|
06-13-2014, 11:02 PM
|
 |
|
|
Join Date: Jun 2005
Location: SoCal
Posts: 2,452
|
|
You can look on my fuselage picasa folder. Also one pic on my fastback thread post 234. Links are below on my signature.
__________________
Axel
RV-4 fastback thread and Pics
VAF 2020 paid VAF 704
The information that I post is just that; information and my own personal experiences. You need to weight out the pros and cons and make up your own mind/decisions. The pictures posted may not show the final stage or configuration. Build at your own risk.
|
06-15-2014, 04:11 PM
|
|
|
|
Join Date: Jan 2011
Location: Sydney, Australia
Posts: 86
|
|

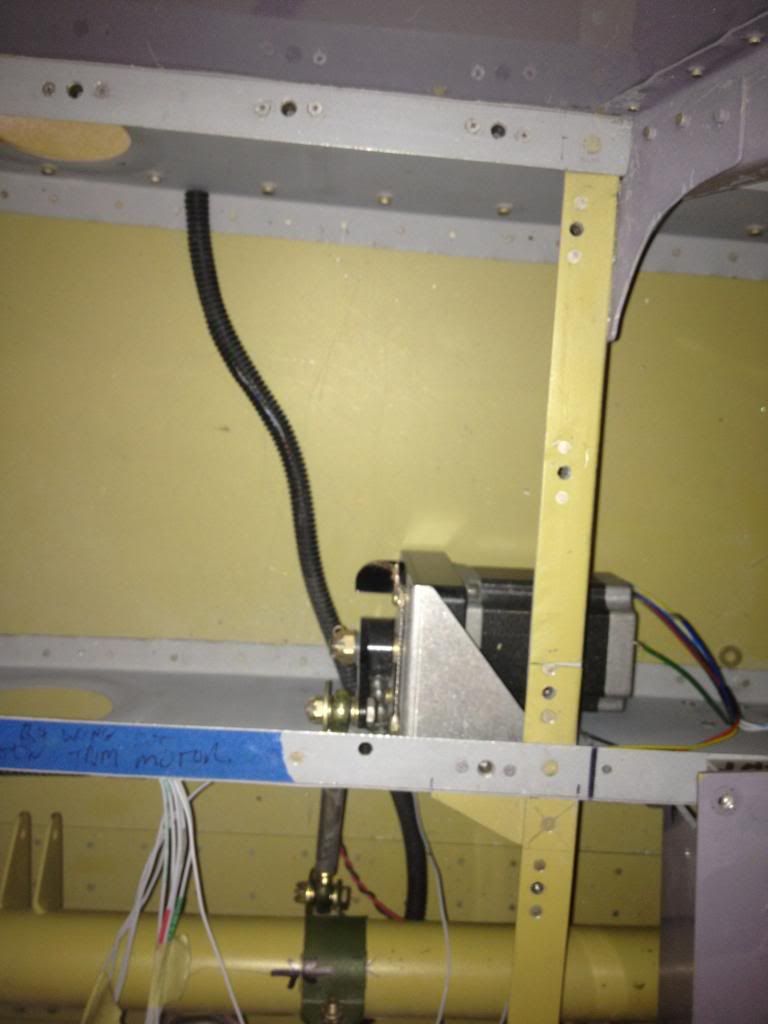

Here is what I did.
For the Dynon AP roll servo installation, either one or both of the brackets came from True Track. I'll need to check.
Last edited by Derek : 06-15-2014 at 04:23 PM.
Reason: added photo
|
06-16-2014, 05:34 AM
|
|
|
|
Join Date: Jun 2005
Posts: 375
|
|
Search the archives
|
07-11-2014, 08:36 AM
|
|
|
|
Join Date: May 2008
Location: COlumbia, SC
Posts: 36
|
|
I installed both pitch and roll A/P servos in our -4. I used the mounting bracket from a -6 mounted on the floor. I got the bracket and collar for the torque tube from Stein. I mounted my roll servo on its side. Works great
|
07-11-2014, 08:39 AM
|
|
|
|
Join Date: May 2008
Location: COlumbia, SC
Posts: 36
|
|
I mounted the roll servo outside of the box containing the sticks. It is mounted just behind the rear seat foot wells I installed. I got the pushrod from Dynon and it goes through a hole in the longitudinal floor former. It is on the right side.
|
07-20-2014, 05:39 PM
|
 |
|
|
Join Date: Aug 2012
Location: Kansas
Posts: 49
|
|
Sorry just seen this thread.. Done my 4 several months ago
