Question Dynon SkyView owners: thumb drive port ?

Cut holes in panel for my two Skyviews. Main 10" and pass 7" . I understand updating the skyview with a thumb drive is needed. I wanted to put a connection point on the instrument panel for this drive. ( I see Garmin already did this with their new EFISs.) What have you done to accomplish this? Will I need two Locations or just one? Pics helpful too!

Thanks
Ron in oregon RV9A N421HJ
Reply With Quote
  #2
Old 09-14-2013, 01:07 PM
txaviator's Avatar
txaviator txaviator is offline

Join Date: Jan 2005
Location: Arlington, TX (DFW)
Posts: 1,164
Default

Ron,
They include one with the RV-12. It mounts flush to the bottom shelf of the panel (facing down toward the floor). Maybe you can order one from Van's and integrate it the same on your RV9? The plans don't have a number for it. It's simply called "USB".
__________________
Gary Robertson
Arlington, TX

RV-12 Built / Sold / Flying
Currently Flying: Cessna Skyhawk 172
Rebuilding a true barn find J-3 Cub
Reply With Quote
  #3
Old 09-14-2013, 01:13 PM
Bob'sRV6A Bob'sRV6A is offline

Join Date: Jun 2009
Location: Arroyo Grande, CA
Posts: 227
Default

Stein included USB ports for both my Skyviews. He has them in his catalog:

USB Extension Cable

Product ID: USBCABLE3

Allows you to "panel mount" the USB access port for avionics or EFIS's such as the GRT / Grand Rapids Avionics EFIS Screens. These cables are 3' (36") in length. You simply cut a small hole in your panel and insert/mount the cable from the rear. NO more reaching behind the panel for software updates!
__________________
Bob Marshall
Reply With Quote
  #4
Old 09-14-2013, 01:15 PM
rgmwa rgmwa is offline

Join Date: Feb 2010
Location: Perth, Western Australia
Posts: 1,647
Default

On the -12, Van's provides a USB port as part of the wiring harness. It's fixed to the instrument panel shelf, and is out of sight and not all that accessible. Some builders have put a second USB port on the panel using a pigtail from one of the two ports on the back of the Skyview screen. Mine is just above the screen on the right as per the pic. Others have put it to the left of the screen. One builder installed his in the map box.

__________________
rgmwa
RV-12LR 912ULS
120346
Reply With Quote
  #5
Old 09-14-2013, 02:12 PM
Mark Dickens's Avatar
Mark Dickens Mark Dickens is offline

Join Date: Apr 2012
Location: Collierville, TN (KFYE)
Posts: 1,433
Default

You need one for each display. Just asked this question the other day on the Dynon support forum:

http://dynonavionics.com/cgi-bin/yab...m=1379029880/3
__________________
RV-8 #81077 Super Slow Build
Dynon Skyview HDX, Titan IOX-370, Dual P-Mags, AFP FM200A FI, Whirlwind 200RV CS Prop
First Flight 11/20/2016
www.marksrv8.com
Reply With Quote
  #6
Old 09-14-2013, 02:34 PM
bpattonsoa bpattonsoa is offline

Join Date: Apr 2005
Location: Indepenence, Oregon
Posts: 342
Default

[IMG][/IMG]

Look below the 7" skyview. These are my two USP ports for the system. The ports are ECF504B-UAA from L-Com.com. They are A to A connectors. The USB wire on the Skyview cable is not a type A, it is something I didn't research. I just got an A-A cable, cut it to appropriate lengths, put on pins and replaced the connector on the factory cable.

Or you could just use any A to A cable and plug it into the back of the Skyview and then the panel mounted connector.
__________________
Bruce Patton
Rans S-20 Raven 796S flying since 2019 (slowly)
RV-6A 596S flying since '99 (Sold)
HP-18 5596S flying since '89
RV-10 996S flying since 2014, quick build wing and slow build fues., - dual Skyviews with complete system, two radio and not much else. Interior completely finished with Zolatone. CF plenum. 1624 lbs, FLYING after a 21.5 month build.
Reply With Quote
  #7
Old 09-14-2013, 05:57 PM
turbosaaber turbosaaber is offline

Join Date: Aug 2006
Location: boynton beach fl
Posts: 210
Default icom

I used two mounted above my radio rack, I will post a pic. They work great. It is a separate unit with two cables, all lcom.

Take care,

[IMG]/Users/carlbridges/Pictures/iPhoto Library/Originals/2012/Dec 20, 2012/IMG_0993.JPG[/IMG]
__________________
Carl Bridges
RV7 N278RV
NOW FLYING

Last edited by turbosaaber : 09-14-2013 at 06:00 PM.
Reply With Quote
  #8
Old 09-14-2013, 07:42 PM
N941WR's Avatar
N941WR N941WR is offline

Join Date: Jan 2005
Location: SC
Posts: 12,887
Default Tip-up or slider?

I have a tip-up and rather than cutting the hole for the USB, I simply open the canopy and reach in and plug in the drive.

My SkyView came with the USB extension. Check with Dynon, you may have one in the box.
__________________
Bill R.
RV-9 (Yes, it's a dragon tail)
O-360 w/ dual P-mags
Build the plane you want, not the plane others want you to build!
SC86 - Easley, SC
www.repucci.com/bill/baf.html
Reply With Quote
  #9
Old 09-14-2013, 08:35 PM
GalinHdz's Avatar
GalinHdz GalinHdz is offline

Join Date: Mar 2010
Location: KSGJ / TJBQ
Posts: 2,039
Default

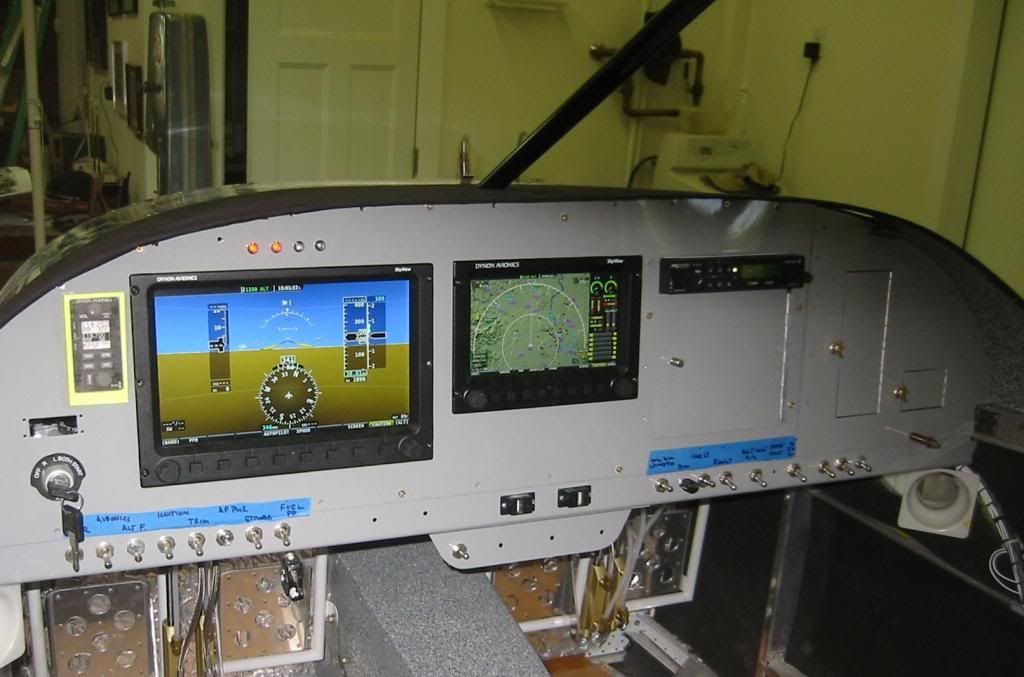

The DYNON Skyview displays have two USB ports in the back of each display. However, getting to them to update the display can be a hassle. I connected a 12" USB port extension cable from one of the available USB ports on each display to a panel cut out just to the lower left of each display as seen in the picture.
