Default Numatx 3060 C-frame

Here is a picture of my C frame with the 3060 squeezer from Numatx. I epoxied the bottom plate in place instead of welding or screwing in place.


Reply With Quote
  #2
Old 07-11-2013, 03:57 PM
Stockmanreef Stockmanreef is offline

Join Date: Nov 2012
Location: Midland, mi
Posts: 962
Default

not sure if that picture posted.
Reply With Quote
  #3
Old 07-11-2013, 03:59 PM
Stockmanreef Stockmanreef is offline

Join Date: Nov 2012
Location: Midland, mi
Posts: 962
Default

Reply With Quote
  #4
Old 07-11-2013, 04:01 PM
Stockmanreef Stockmanreef is offline

Join Date: Nov 2012
Location: Midland, mi
Posts: 962
Default

I put on two hinged leaves on the bench to extend up for dimpling skins.

http://i1335.photobucket.com/albums/...ps48f61f64.jpg
Reply With Quote
  #5
Old 08-15-2013, 07:47 PM
CSJohnson's Avatar
CSJohnson CSJohnson is offline

Join Date: Jul 2011
Location: Tampa, FL
Posts: 65
Default Numatx C-Frame and Table

Hi Ken - Did you construct the C-Frame and Table using Numatx's plans? I took his drawings to a metal shop a couple of years ago and it was going to be close to $1,000 for them to build it for me. I know he's redesigned it since then, so maybe not so much now.

Please let us know your experience with Numatx's tools. When I first saw their demo at Sun N' Fun it seemed like a great way to go.

Chris
__________________
Chris S. Johnson
Tampa, FL
RV-8, Empennage
2015 VAF Dues paid!
Reply With Quote
  #6
Old 09-11-2013, 02:53 PM
ROTARY7 ROTARY7 is offline

Join Date: Nov 2007
Location: Dayton, OH
Posts: 146
Default Numatx C-Frames

Chris,

Yes, Ken built the C-Frame from Numatx Plans (dwg 3430). There are 3 versions available:

1. 3422 - C-Frame waterjet cut from 1.5" thk plate steel.
2. 3430 - C-Frame which will directly accept Model 3060 C-squeezer
3. 3440 - C-Frame which mounts a Model 3400 powered head.

An adapter plate on dwg 3440 allows the 3400 powered head to fit the popular DRDT frame as well, for those that already have a DRDT frame. The 3400 powered head, is redesigned for part commonality with the 3060, which means you can buy the mount block only, and screw in the cylinder from the 3060 when you want to do dimpling or light riveting. Or you can buy the complete 3400 head, if you prefer not to be screwing the cylinder in and out. Your choice.

The $1,000 you were referring to was for the 3422 waterjet version. The price you were given sounds a bit high, but that may have been a polite way for the machine shop to say "we are too busy to do the job".

I purchased a 60" long 3" x 6" x 1/4" wall CRS tube, which is what it takes to make a 3440 C-Frame. This tube was a drop-off purchased from Alro Steel for $40, in virgin condition. I asked on a price for ordering the steel tube, and was told $90. There are a couple of other small steel pcs to complete the frame, and of course the tubing needs to be bandsaw cut square and welded.

Pictures and a video will be posted on the Numatx website when the C-frame unit is completed.
__________________
Mark Swinford
Aeronautical Engineer
RV-7 N65NX
Reply With Quote
  #7
Old 09-11-2013, 03:26 PM
ROTARY7 ROTARY7 is offline

Join Date: Nov 2007
Location: Dayton, OH
Posts: 146
Default Intensifier tubing routing

One note:

If you look at Ken’s link to his setup (link re-posted below), the pressure intensifier does not need to be on the floor, it can be on the table, by the wall, or even hanging from the wall. Inverted is ok. The plastic lines that feed from the intensifier can be routed at the wall, under the table, and to the foot valve at the floor. That would tidy the routing a bit.

http://i1335.photobucket.com/albums/...ps48f61f64.jpg
__________________
Mark Swinford
Aeronautical Engineer
RV-7 N65NX

Last edited by ROTARY7 : 09-11-2013 at 03:30 PM. Reason: typo again
Reply With Quote
  #8
Old 09-11-2013, 07:15 PM
Randle Randle is offline

Join Date: Dec 2012
Location: Atascosa, TX
Posts: 106
Default

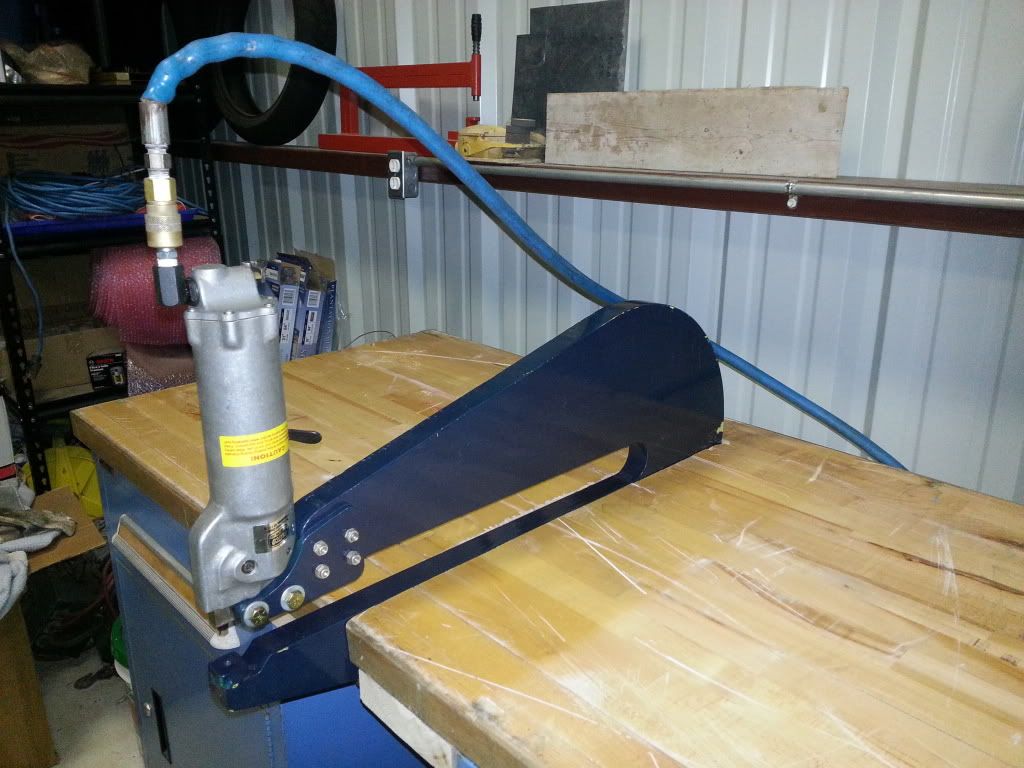

I purchased a steel plate from a metal recycler for .25 cents a pound which was a little over 100 lbs ($26.49) and took it and the 3422 .DXF to a machinist to have it cut. They said they would do it for $200 if I wasn't in a hurry. A month and a half later I picked up the C-frame and gave them a DXF I created to use the common CP-214 squeezer. After about 45 minutes I was headed home to throw the brackets on the Bridgeport and cut them down to hold my squeezer. It took some time and a few email exchanges with Mark (thanks again), but I would say it was well worth it when dimpling the ailerons and wing skins. I have to say Marks generous gift of these free drawings that he put hours and hours into designing has saved me a ton of time and shows the great people we have in this hobby of ours. I have a video of me using it to dimple the aileron and how fast it is on my phone, I will try and get it on youtube this week. Here is a picture of it while I was constructing a table for it. Sorry about the large picture, it won't let me bring the size down.

__________________
If you are 90% efficient, and your buddy who checks the 10% you missed is also 90% efficient, together you're 99% efficient.

RV-7A - empennage done minus glass
wings nearing completion
Reply With Quote
  #9
Old 09-11-2013, 07:42 PM
Stockmanreef Stockmanreef is offline

Join Date: Nov 2012
Location: Midland, mi
Posts: 962
Default

so far the 3060 works great. i have not used it attached to the Cframe yet, since there has been opportunity to need it yet on the wings. I will as soon as I start to dimple the skins.

My father-in-law and brother in law built the Cframe. they bought the metal and had a machine shop cut up the pieces. they then welded it for me. I made the bottom plate for to hold the dies and epoxied it in place. That was easy. I think that the metal coast about $200 and $50 bucks or so to cut out the part that holds the 3060. It took about 1.5 hours to weld. My father-in-law and my brother-in-law were/are professional welders.

I am sure that they would build them for much less than $1000. Not sure how much it would cost to ship one of these things. It has to weigh 75 lbs. They live in VA.

If anyone is interested I can ask if they are interested in building another one. The other alternative would be to have a place cut the metal, then advertise on craiglist's list for welding services.

The table was my own design. Essentially an EAA table attached to the wall. Well two tables with an inset for the cframe between the tables. And then I put on leafs that I can put up for dimpling skins.
__________________
Ken Stockman
Midland, MI
EAA Chapter 1093 member

FaceBook Page: Ken's RV-14
RV-14a (serial number 140073)
N73XP

Plane at hangar and the wings ON.
Reply With Quote
  #10
Old 11-14-2013, 04:14 PM
CSJohnson's Avatar
CSJohnson CSJohnson is offline

Join Date: Jul 2011
Location: Tampa, FL
Posts: 65
Default Local Alro Steel

Thanks for the replies guys, and offer to assist with C-Frame construction Ken. Very helpful.

Mark, you mentioned Alro Steel and I see that they have several locations in the Tampa area. It looks like they may be able to provide the steel and the cutting and I'm sure I can find a welder. I still have the DXF file for the 3422 so I can take that to them and see what they can do.
