Default Hinge fuse panel layout

Rough sketch and layout for my under the panel hinged fuse tray, planning on hinge closest to fuse blocks (left side of pic is hinge side to subpanel) with room for avionics and seat heat relays above fuse blocks. 1 main buss, 1 avionics with I be backup battery.
Is 2 inches adequate spacing to run the wires between fuse blocks?
Should I make it larger?
Hinge/fuse blocks oriented the best way?
The IBBS battery says not to mount behind panel, where have others mounted it?
Thanks,
Andy
Reply With Quote
  #2
Old 02-08-2013, 12:38 PM
PaulR PaulR is offline

Join Date: Oct 2005
Location: Geneva, AL
Posts: 491
Default Fuse Block

Andy,

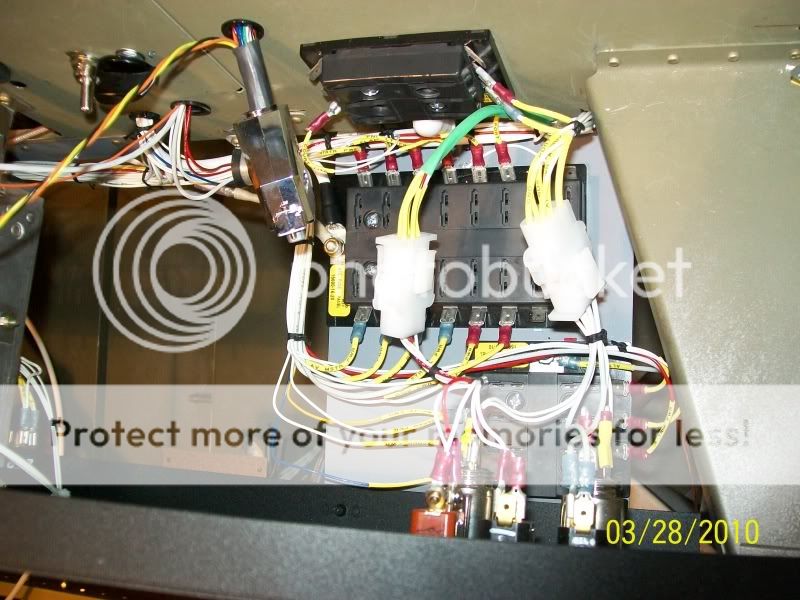

Here's what I did and it worked out fine. Maybe not the best picture but the two busses on the panel are main and avionics. The third fuse block is the battery buss and I mounted in on the sub panel just above the other two. On the tipper that seemed to work out the best for me and the way I routed wires. If I had it to do over again, I would have used 1/4 turn fasteners to hold it up rather than screws.



Found another picture if it helps:

__________________
Paul Rose
RV-9A 91300
N417PR
SERFI 2013 Awards
Inspection Complete!!! 7/7/12
First Flight 7/22/12

Last edited by PaulR : 02-08-2013 at 12:41 PM. Reason: added picture
Reply With Quote
  #3
Old 02-08-2013, 01:30 PM
crabandy crabandy is offline

Join Date: Jan 2010
Location: Ottawa, Ks
Posts: 2,188
Default

I have the leftover the fastners Vans sent for the oil door (I used flush buttons) that I might use, have to mount them horizontally to keep them out of the passengers knees though.
Reply With Quote
  #4
Old 02-08-2013, 03:53 PM
polishpilot's Avatar
polishpilot polishpilot is offline

Join Date: Feb 2011
Location: Prescott, AZ
Posts: 156
Default

Here are a couple of photos of the location I used for an Avionics and Main fuse block.

http://s233.beta.photobucket.com/use...tml?sort=3&o=0

http://s233.beta.photobucket.com/use...tml?sort=3&o=1

Attached a piece of angle to the two braces between the sub-panel and the firewall. They drop down with fuses facing forward. The hinge pin will be tie wired so removal is easy, if necessary. They are attached on the forward end to the sub-panel flange with a spring loaded twist fastener.
Jim
__________________
N96LV
RV-9A started April 2011
Flying May 2014
Sold Oct 2014-Not one of my best decisions

2020 Dues Paid
Reply With Quote
  #5
Old 02-08-2013, 04:32 PM
Walt's Avatar
Walt Walt is offline

Join Date: Aug 2005
Location: Dallas/Ft Worth, TX
Posts: 5,686
Default

The problems I've seen with hinged fuse panels is by the time you get all the wires installed the bundle has become quite rigid, consequently the panel does not like to pivot without undue stress on the wires.
__________________
Walt Aronow, DFW, TX (52F)

EXP Aircraft Services LLC
Specializing in RV Condition Inspections, Maintenance, Avionics Upgrades
Dynamic Prop Balancing, Pitot-Static Altmeter/Transponder Certification
FAA Certified Repair Station, AP/IA/FCC GROL, EAA Technical Counselor
Authorized Garmin G3X Dealer/Installer
RV7A built 2004, 1700+ hrs, New Titan IO-370, Bendix Mags
Website: ExpAircraft.com, Email: walt@expaircraft.com, Cell: 972-746-5154
Reply With Quote
  #6
Old 02-08-2013, 09:52 PM
az_gila's Avatar
az_gila az_gila is offline

Join Date: Jan 2005
Location: 57AZ - NW Tucson area
Posts: 10,011
Smile Allow for twist

Quote:
Originally Posted by Walt View Post
The problems I've seen with hinged fuse panels is by the time you get all the wires installed the bundle has become quite rigid, consequently the panel does not like to pivot without undue stress on the wires.
I agree.... so I routed all of my incoming power wires in a single bundle with about a 9 inch straight section and two Adel clamps. If I keep the closest Adel clamp a little oversize I plan on letting the straight length of the bundle just twist over the 9 inches.

We'll see how this works out, but it looks OK so far with over 50% of the wires connected - the rest are in process....


The 2 inch spacing is OK since all of the 1/4 inch tabs are at a 45 degree angle or so. The wires running in between the two blocks can be made into a single bundle.
__________________
Gil Alexander
EAA Technical Counselor, Airframe Mechanic
Half completed RV-10 QB purchased
RV-6A N61GX - finally flying
Grumman Tiger N12GA - flying
La Cholla Airpark (57AZ) Tucson AZ

Last edited by az_gila : 02-08-2013 at 09:54 PM.
Reply With Quote
  #7
Old 02-09-2013, 12:21 PM
JonJay's Avatar
JonJay JonJay is offline

Join Date: Jan 2007
Location: Battleground
Posts: 4,348
Default

I just went through a power wiring upgrade. (Thanks Stien). I looked at a hinge set up but ended up just screwing the tray down. Much simpler. The odds of needing ready access to your fuse panel is about the same as in your car. When was the last time you blew a fuse in your car?
Also, if you do blow a fuse in the air, what do you intend to do about it? The only resettable breaker I have access to is my Alt. field.
__________________
Smart People do Stupid things all the time. I know, I've seen me do'em.

RV6 - Builder/Flying
Bucker Jungmann
Fiat G.46 -(restoration in progress, if I have enough life left in me)
RV1 - Proud Pilot.
Reply With Quote
  #8
Old 02-10-2013, 07:27 AM
crabandy crabandy is offline

Join Date: Jan 2010
Location: Ottawa, Ks
Posts: 2,188
Default Hhmmmm...

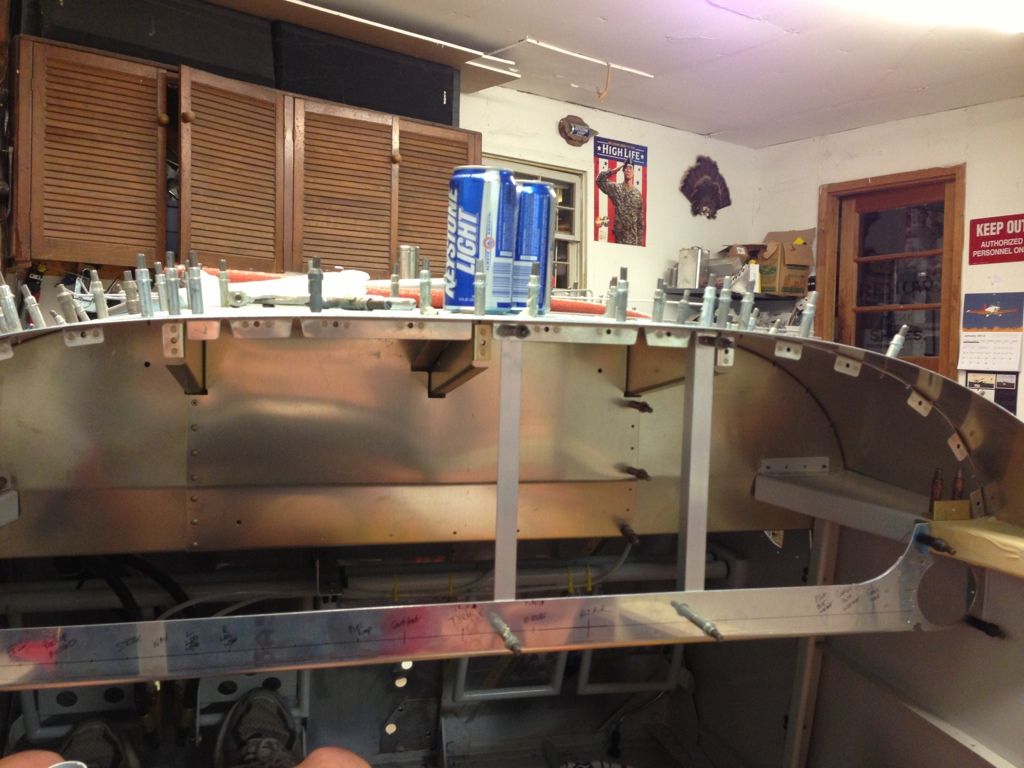

Here's a shot of my panel layout, what about making a solid floor behind the co-pilot side of the panel and mounting the circuit breakers there and accessing through a removable front plate. I don't plan on putting any instruments on the copilot side so the size in the pic should be the size of the access panel. The pilot side will house the GSU73 for a 2 screen G3X.
