Thumbs up Wing Jig done, thanks Rudi!

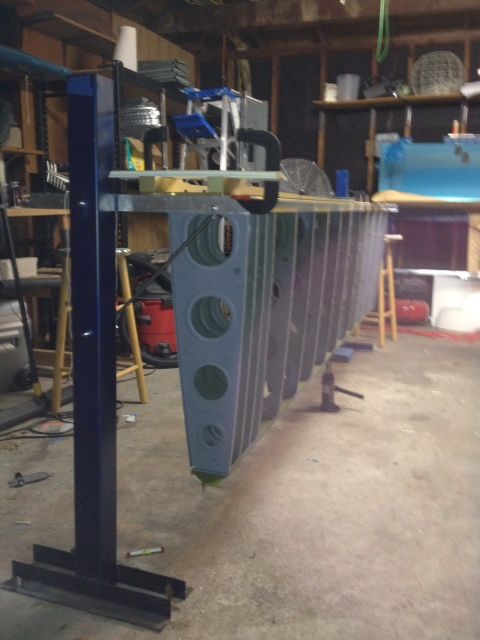

It's been a long time coming! Feeling like I've made a big step forward after stepping away from the build for almost two years.

Big thanks to Rudi for having his jig plans online. A few changes made to fit my situation, but over all a great design. Still want to build some supports for each ends of the rear spar.

FYI, the photo doesn't do it justice, but the blue I painted the posts are going to be the main color of the plane.

__________________
Matt Sturgis
RV-8, Wings
N43MS Reserved.
Paid VAF 2012
www.mattsairplane.com
Reply With Quote
  #2
Old 03-25-2012, 11:03 AM
SilverEagle2's Avatar
SilverEagle2 SilverEagle2 is offline

Join Date: Dec 2009
Location: West Jordan, Utah
Posts: 228
Default

I too am planning to use Rudi's design, but I am torn with the prospect of drilling my brand new shop floor for the feet. Having straight Wings sure outweighs a few holes in the floor though.

Since I have yet to do the epoxy floor coating, I figure I can get the Wings done, remove the stands, fill the holes and expansion joints and paint away and the next owner will never know.

I like the blue!
__________________
Jason Hess
N777JH - Reserved
RV-7 - Builders Log Tail complete, wings nearly done, starting fuselage!
RV Factory - Complete sans floor coating, Slideshow Here

Quote:
People are not excellent because they achieve great things; they achieve great things because they choose to be excellent.
Gerald G. Probst, Beloved Grandfather, WWII B-24 Pilot, Successful Businessman
Reply With Quote
  #3
Old 03-25-2012, 12:16 PM
msturgis's Avatar
msturgis msturgis is offline

Join Date: Feb 2009
Location: Houston,Tx
Posts: 292
Default

Quote:
Originally Posted by SilverEagle2 View Post
I too am planning to use Rudi's design, but I am torn with the prospect of drilling my brand new shop floor for the feet. Having straight Wings sure outweighs a few holes in the floor though.

Since I have yet to do the epoxy floor coating, I figure I can get the Wings done, remove the stands, fill the holes and expansion joints and paint away and the next owner will never know.

I like the blue!
Im with you. Once you cut off the anchors and patch them, no one will know. Small price to pay in order to have a solid foundation for our expensive wings. I only had to drill two holes per post and they are solid as a rock

Rudi's plans call for 2x4 metal posts. I found some 3x3 at a local metal supplier for half the price. They even cut the posts to size for me.
__________________
Matt Sturgis
RV-8, Wings
N43MS Reserved.
Paid VAF 2012
www.mattsairplane.com

Last edited by msturgis : 03-25-2012 at 12:18 PM.
Reply With Quote
  #4
Old 03-17-2013, 12:47 PM
Mopar591 Mopar591 is offline

Join Date: Sep 2012
Location: SW Louisiana
Posts: 119
Default

Where can I find a link to the Jig Plans Online?
__________________
Tyler Arnold
Iowa, La
Piper Colt
RV-4 wings and empennage
VAF Supporter! 2012, 2013
Reply With Quote
  #5
Old 03-17-2013, 01:08 PM
bkthomps bkthomps is offline

Join Date: Jan 2010
Location: Destin
Posts: 1,546
Default

recommend some sort of padding on the right angles on the floor pieces

ask me how i know
Reply With Quote
  #6
Old 03-18-2013, 12:22 PM
Flyin'Bryan's Avatar
Flyin'Bryan Flyin'Bryan is offline

Join Date: Nov 2009
Location: Littleton, Colorado
Posts: 270
Default Jig plans online

Quote:
Originally Posted by Mopar591 View Post
Where can I find a link to the Jig Plans Online?
Are you referring to the Vans plans or Rudi's plans? Vans are not online but are in the Preview plans for each M&M of aircraft kit that Vans Sells. if you are looking for Rudi's plans for the metal stands, here is the link to his website:

http://www.rudigreyling.com/rv_tip_stands.html

For some details about the hardware that I used, you can refer to my blog entries by clicking on the Wing stand label.
__________________
Bryan Raley
http://bryansrv8project.blogspot.com/
Building RV8
EAA Chapter 301
CFII/MEI, ATP
SportAir Workshop Graduate x 4: Sheet Metal, RV Building, Electrical, and Composite classes.
Tail Wheel Endorsement Completed
Empennage done, Wings in progress, N462AK reserved.
Reply With Quote
  #7
Old 03-18-2013, 12:29 PM
Flyin'Bryan's Avatar
Flyin'Bryan Flyin'Bryan is offline

Join Date: Nov 2009
Location: Littleton, Colorado
Posts: 270
Default I already know how you know!

Quote:
Originally Posted by bkthomps View Post
recommend some sort of padding on the right angles on the floor pieces

ask me how i know
I beveled the upper ends of my angles at the advice of other builders, and that helps a little. But as you point out, maneuvering around the stands while bulding the wings may very well result in catching a toe or two before the wings are off the stands and ready for the cradle. Steel is very hard and unforgiving to the human body!
__________________
Bryan Raley
http://bryansrv8project.blogspot.com/
Building RV8
EAA Chapter 301
CFII/MEI, ATP
SportAir Workshop Graduate x 4: Sheet Metal, RV Building, Electrical, and Composite classes.
Tail Wheel Endorsement Completed
Empennage done, Wings in progress, N462AK reserved.
Reply With Quote
  #8
Old 03-18-2013, 12:57 PM
David Paule David Paule is offline

Join Date: Dec 2009
Location: Boulder, CO
Posts: 5,070
Default

I avoided the toe-stubbing issue and the holes in the concrete with this RV-3B wing jig. It also lets me build both wings together.

The adjustment bolts on the bottom of each leg are Bondoed to the garage floor. When done, that chips off.

Note the cross-wires in the top. They add rigidity.

Toe stubbing wasn't so much what I was concerned about as tripping and bashing my partly-built wings.



Dave
Reply With Quote
  #9
Old 03-18-2013, 04:39 PM
wirejock's Avatar
wirejock wirejock is offline

Join Date: Oct 2005
Location: Estes Park, CO
Posts: 4,772
Default wing jig

Awesome idea Dave. I'm going that route. I may call when the time comes. Looks like it could be used as a paint booth if no wing were in it. I just took both HS apart for rebutting, dumpling, sanding and priming. Wings are a month or two away.
__________________
Larry Larson
Estes Park, CO
wirejock at yahoo dot com
Donated 12/01/2021, plus a little extra.
RV-7A #73391, N511RV reserved (3,000+ hours)
Empennage, wings, fuse, finishing kit done. Working FWF
Disclaimer
I cannot be, nor will I be, held responsible if you try to do the same things I do and it does not work and/or causes you loss, injury, or even death in the process.
Reply With Quote
  #10
Old 03-18-2013, 04:56 PM
larrynew's Avatar
larrynew larrynew is offline

Join Date: Oct 2007
Location: In New Braunfels, ist das Leben schön!
Posts: 919
Default

Quote:
Originally Posted by msturgis View Post
...but the blue I painted the posts are going to be the main color of the plane...
I used Rudi's plans and they worked great. Painted the left wing stand red and right green to help prevent stupid mistakes while building both at the same time.



Got a little help with the left ones.

__________________
Larry New
RV-7A - Built, flew 950+ hrs, sold
RV-10 - Built, flying 250+ hrs
RV-12iS - All kits ordered!
VAF on Annual Autopay
Reply With Quote
