Trio Gold pitch servo installation

PeteP · #1 10-23-2011, 07:44 PM

Any one installed a Trio gold pitch servo is a 9A. Just wondering if you might have good mounting deminisions especially the distance between the servo arm and the bell crank.

Pete
RV-9A

Doug Rohrer · #2 10-24-2011, 11:55 AM

I mounted the Trio Gold servo in my -9A. I don't have the dimension you are asking for, but it was not hard to adjust it close before installation and tweak it after it was in the wing. Works great!

aerhed · #3 10-24-2011, 01:25 PM

Not in a 9, but in a 10, I used VANS AHRS bracket. I think the 9 has similar? Its a little bigger than you need, but the placement is good. So cleco it in, position/mark the servo for nutplates. You need to add one or two angles longitudinallly beneath the plate. The servo needs to be on a stiff mount.

This had to be changed to a higher hole on the bellcrank and the center hole on the servo arm to work right.

Garage Guy · #4 10-24-2011, 01:26 PM

Quote:

Originally Posted by PeteP

Any one installed a Trio gold pitch servo is a 9A.

Trio has a -9 in their hangar they have been using as their main RV testbed. Give them a call, they can probably answer your question.

--Paul

CraigM · #5 10-24-2011, 01:33 PM

Chuck and Sid are top notch for support. I just upgraded my Navaid to a lightly used Trio Pro Pilot on my 7A. Even though I bought it in the used market, on my first phone call they sent me pics and helped me with everything I needed for the install. I purchased a wiring harness from them and brackets and they even sent me some extra little goodies that I needed to move the arms on the servos etc. I tried to post one of the pics but can't seem to get it to go. If you would like pm me your email address and I will forward them to you.

mcattell · #6 10-24-2011, 02:37 PM

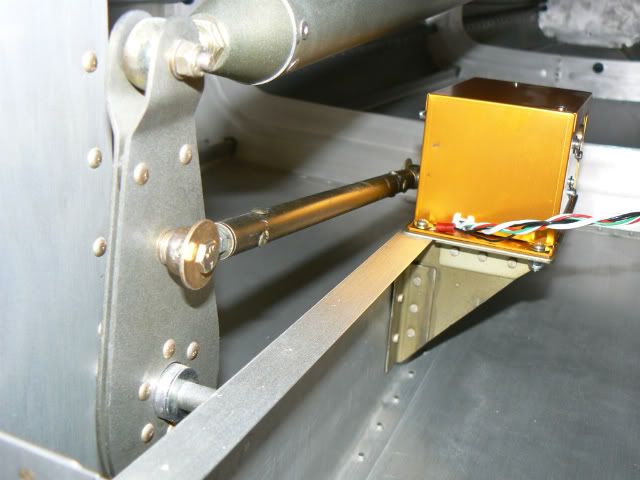

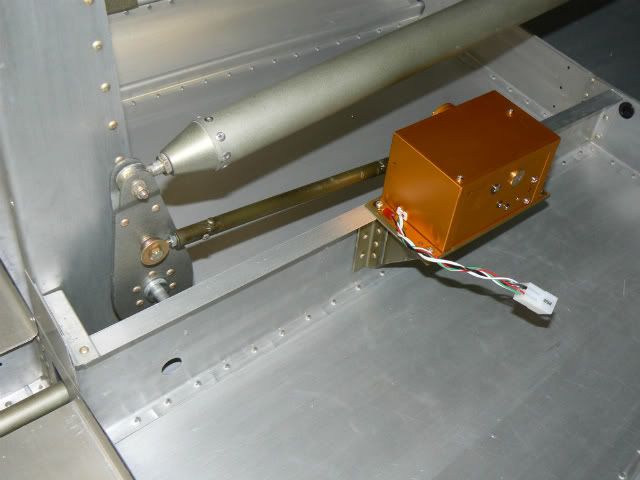

Here are a couple photos of mine. I think the directions from Trio indicated placement.

FlyingArcher · #7 10-24-2011, 02:46 PM

Hi Pete,

This is still work in progress for me, but I've just installed the mounting bracket that Trio provided with the servo.

Here is a pic of my setting.

I've measured 7" from the center of the mounting plate to the vertical axis of the arm.

As you can see, I've made a provision of 3 holes in case I need to adjust the rod anchor point, and also used a bigger doubler than the one provided by Van's.

You can find a picture of an RV-6 setup at page 71 of the Pro Pilot Operations and Installation Manual availabe on Trio's web site
