Show us your RV-10 Panel - Page 47

Aerosport1 · #**461** 03-18-2020, 08:20 PM

Randy your panel looks great

Aerosport1 · #**462** 03-18-2020, 08:26 PM

Quote:

Originally Posted by Walt

Looks great, only downside may be working in the tunnel will become 'challenging' with the center stack.

If panel is installed properly and you add the access panels on the side of the tunnel it is not a problem at all. It takes me less then 10 minutes to remove lower center console. I feel the the access panels should be installed on all RV-10s. It makes tunnel access much easier for maintenance and condition inspections.

KatanaPilot · #**463** 05-28-2020, 11:12 AM

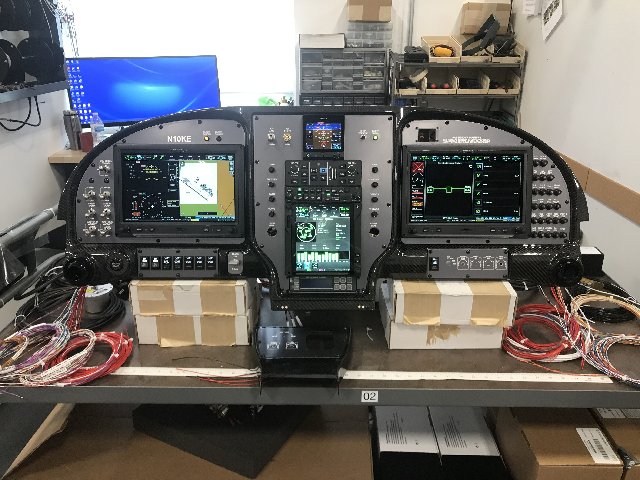

Just got this photo from SteinAir. Looking forward to installing the panel very soon.

[IMG]

[/IMG]

AdamB · #**464** 05-28-2020, 02:45 PM

Looks great, Krea!

oren_rokach · #**465** 05-28-2020, 11:20 PM

Looks amazin!
great color pick as well

Plummit · #**466** 05-29-2020, 01:26 AM

But they got my N number wrong... Nice looking panel Krea!

-Marc

KatanaPilot · #**467** 05-29-2020, 04:41 AM

I'm really happy with the way it turned out. The insert color was chosen to coordinate with the interior colors. The Aerosport carbon fiber panel clear coated very nicely.

The folks at Stein were incredibly patient with our multiple changes and very knowledgeable. We were fortunate that the Garmin GTN750Xi was announced just as we were finalizing the design.

There was a lot of lost sleep about the electrical system architecture given the desire for redundant and independent power sources for the dual channel SDS EFII - this drove the switch layout for the panel. Ultimately, I think we achieved our goal. And yes, we have CB's for the hot battery busses plus one main bus and VPX for the other.

AdamB · #**468** 05-31-2020, 07:13 PM

Krea,

I'd love to see your switch layout a little closer if you're willing and able to share.
I'm working through some of these details on mine.

pawaide · #**469** 07-25-2020, 08:08 PM

Quote:

Originally Posted by N402RH

I just updated to the new Aerosport switches with graphics in my RV-10. Photo taken last night about 50 miles east of Van's during a software test flight.

Rob Hickman
Advanced Flight Systems
N402RH RV-10

This is the panel I am going to show my wife when I make the pitch for the trimmings and panel.

Gorgeous Sir.....

Bill Boyd · #**470** 07-26-2020, 07:18 AM

I'd say that's a good plan.
