Default Engine Bridge iPad Interface for PMags

I've had PMags on my engine from the start. I recently had the chance to install and fly with an "Engine Bridge" module from http://www.enginebridge.com. The deal was I got one of the early prototypes in return for providing the developer feedback.

The unit is designed as a display for the PMag ignition settings, ignition advance, coil/plug health and also as an interface to make changes to the PMag settings.

The unit is connected to each PMag Tx, Rx and Tach line. The unit also needs power and ground. There is also an option for an LED that can warn of a timing disparity between two ignitions or be used as a timer. The resulting wiring bundle connects to the unit via a DB9 connector. Not hard to do even if your aircraft is already flying.

The unit does not have a screen but instead links to your iPad via Bluetooth and displays the various values via a dedicated App. As the module has no screen there is no need to mount it in the front of the panel, where space can be at a premium. I mounted mine behind the panel on top of the map box. The unit is approximately 4.5" long, 3" wide and 1" thick.

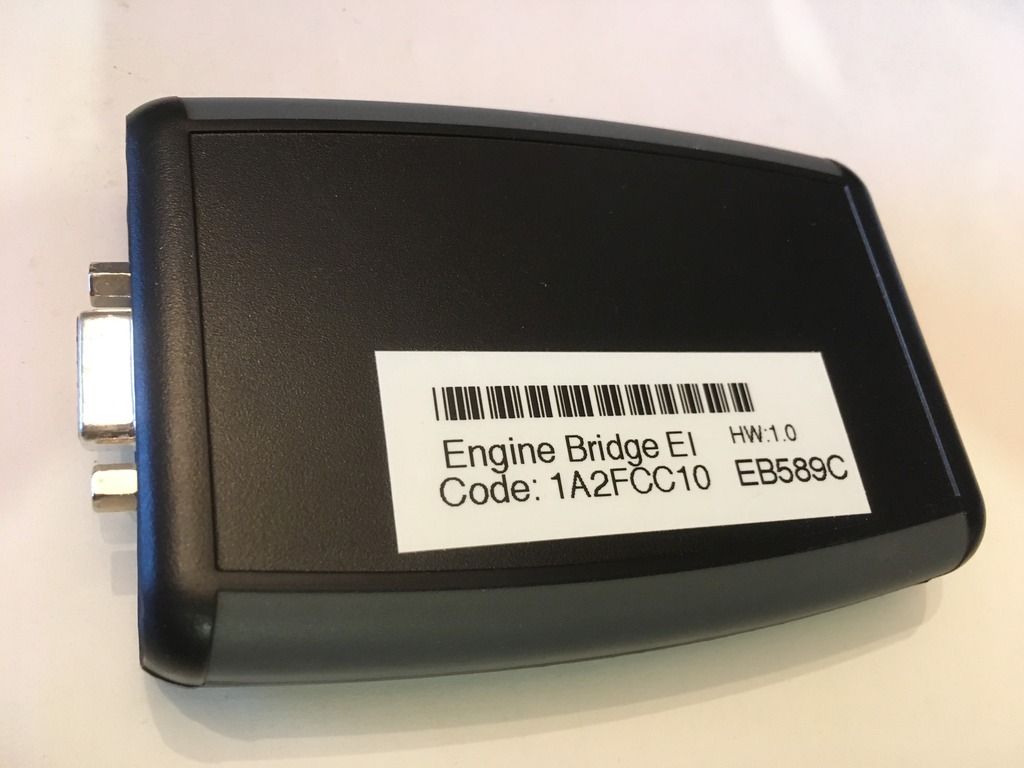

Engine Bridge Module
[IMG][/IMG]

After downloading the App connecting to the Engine Bridge was relatively easy and just needs the device serial number to be entered.

One concern you might have with iPad via Bluetooth to PMag is what happens if the connection is lost, the iPad fails or the wiring to the PMags fail. Good news is that the engine keeps on running. The Engine Bridge is designed to operate as a display of PMag values and is not needed by the PMags for function.

The App has several screens as shown below.

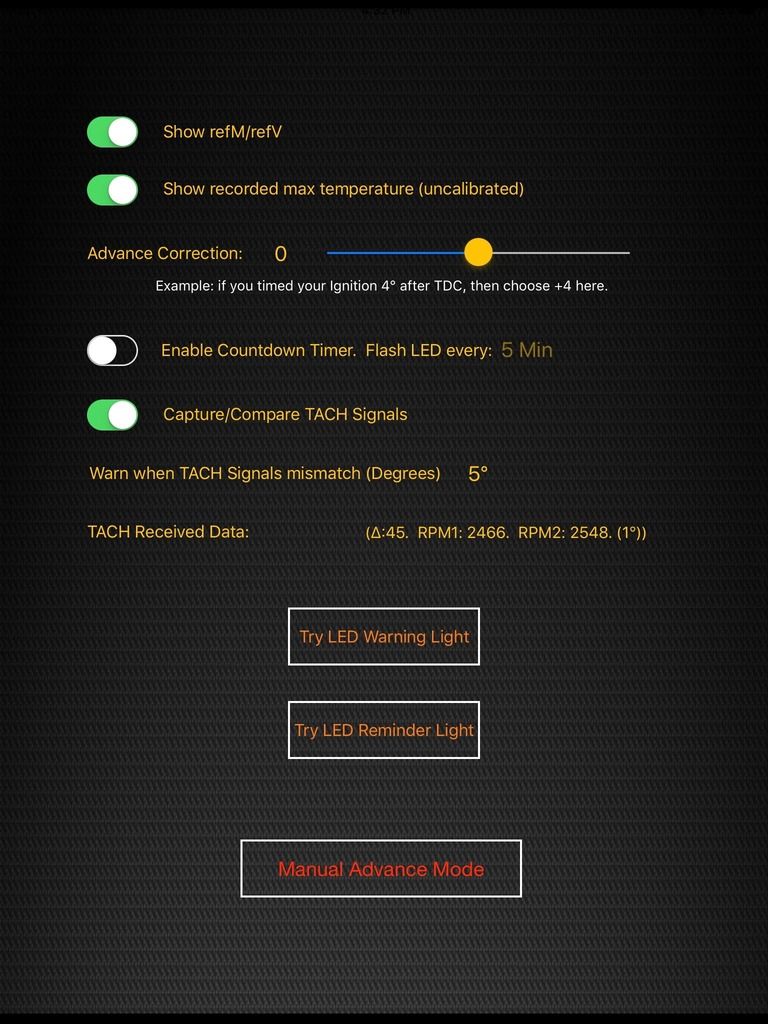

Configuration Page
[IMG][/IMG]

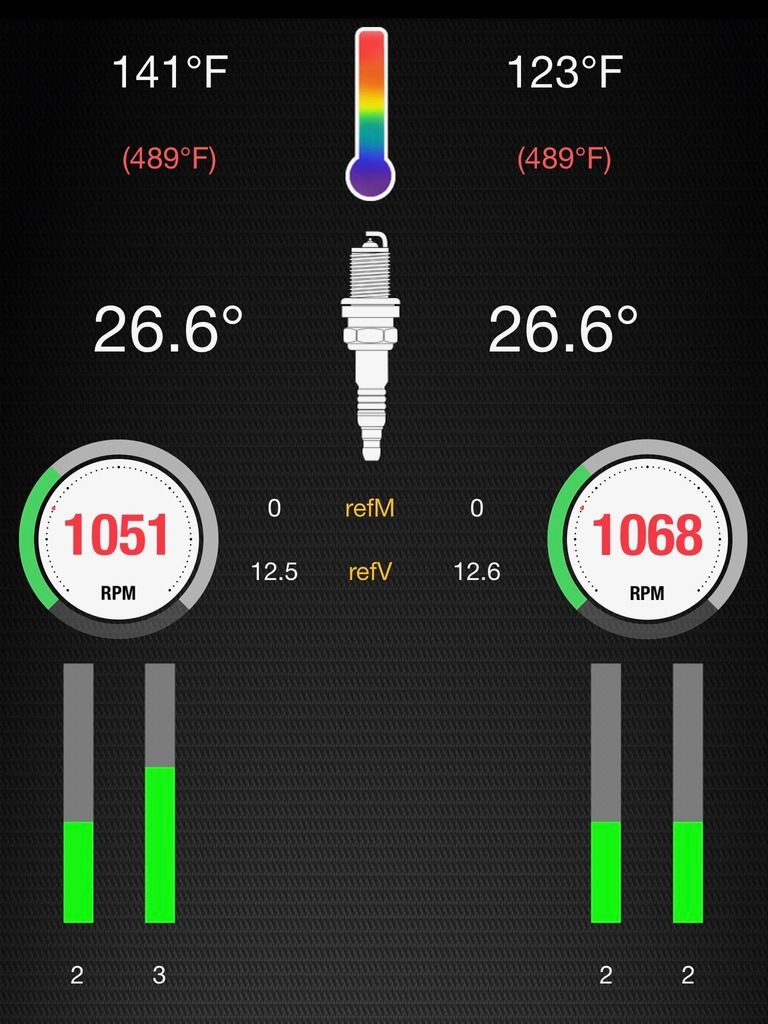

Ignition Operation Page
[IMG][/IMG]

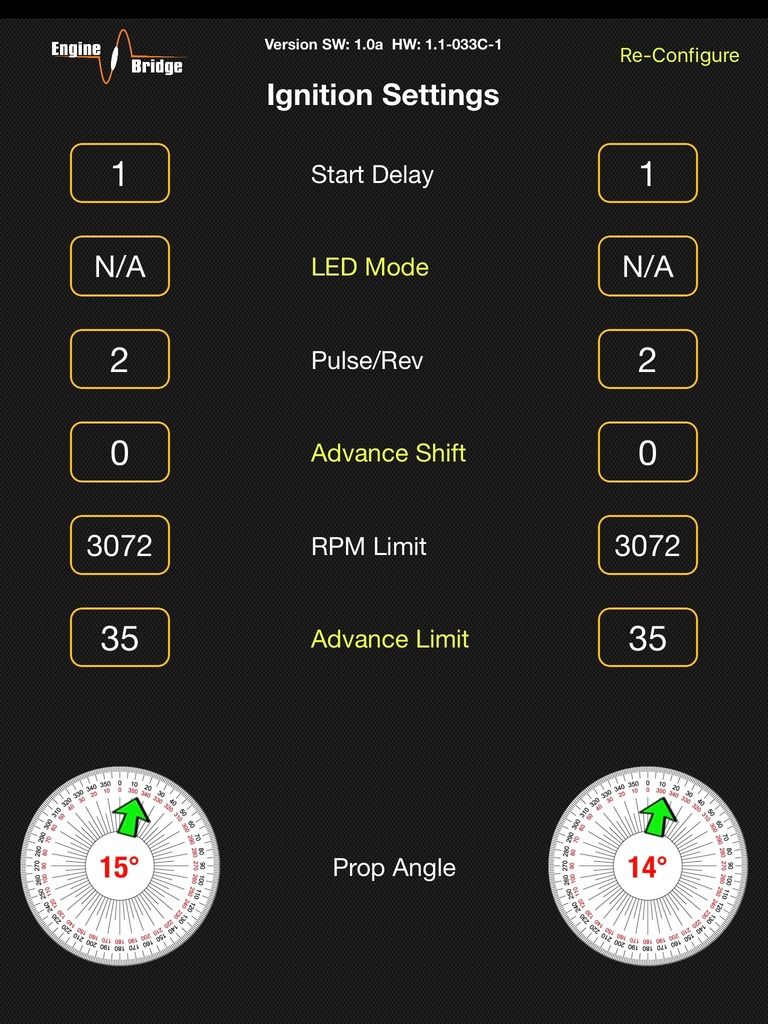

Ignition Settings Page
[IMG][/IMG]

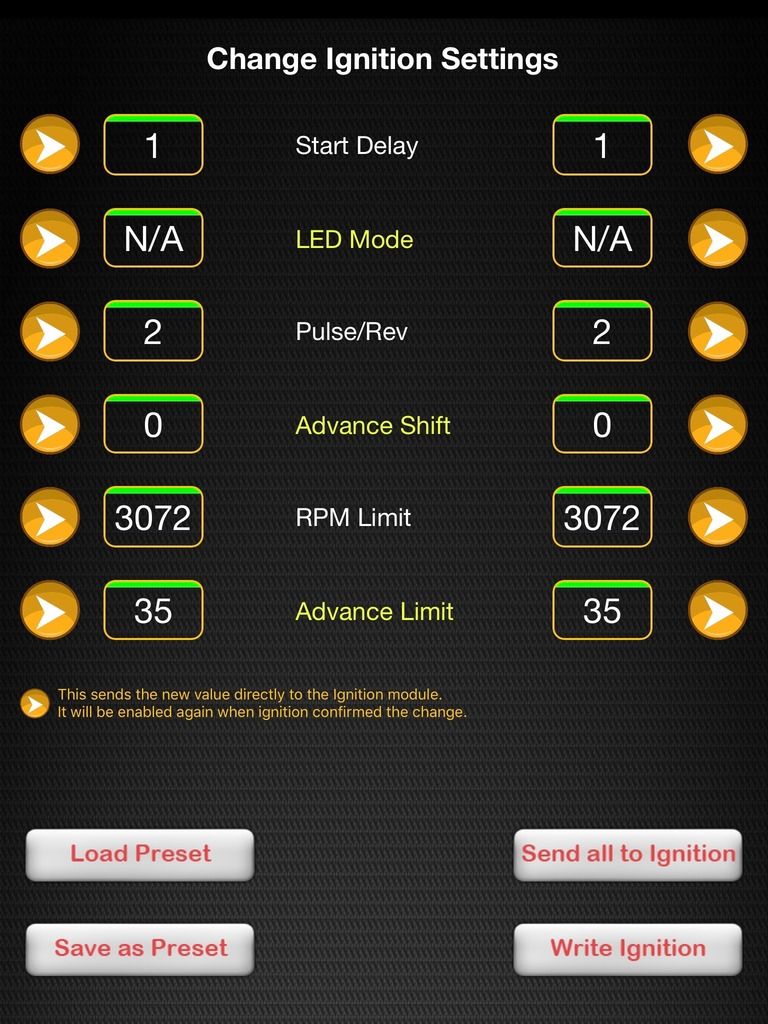

Change Settings Page
[IMG][/IMG]

The App menu structure is simple, a lateral swipe takes you from one page to the next.

In some case I feel the icons or text were a little small. Good news is that iPad screen real estate is plentiful and these simple changes could be done in software during an App update.

The App has a simulator mode so that users can get competent in its use prior to flight.

Similar to my experience with the EICommander if you write new settings to the PMags while the engine is running the PMags suspend firing briefly (~0.5 seconds). This feels like an inflight mag check and the higher the power setting at the time the more abrupt this feels.

On the Ignition Operation Page there is the option to display the refM and refV (a PMag internal reference to the MAP and self generated Voltage). In my experience these values were not representative of actual MAP (as displayed on my Skyview EMS) or voltage and are of no practical value. They are user selectable so you can simply chose not to have them displayed.

If there is no user interaction with the App the iPad will go to sleep. I would like to see a suspend sleep mode option (such as in ForeFlight) added.

Price at time of writing for the module was $285 and the App was $2 from the Apple Store (which is refundable against the purchase price of the module).

If you are after a display for your PMags, or want an easy way to make changes to the various settings then the Engine Bridge is worthy of consideration. The large screen size of the iPad and simple menu structure makes interface with the ignition system quick and easy.

Although it can be done I don't recommend using the Engine Bridge for making ignition timing changes while the engine is running. Think ignition display vice ignition inflight controller. If you want total control of your engine ignition then you should chose a different ignition system (which is no fault of Engine Bridge, just a limitation of the manipulations possible with the PMag timing base map).

Cheers

Nige
__________________
Nigel Speedy
RV-8
Flying
Tehachapi CA
I paid my -VAF- dues July 2018
Reply With Quote
  #2
Old 06-21-2017, 09:02 AM
JohnInReno's Avatar
JohnInReno JohnInReno is offline

Join Date: Jun 2005
Location: Prescott Valley/Chandler AZ
Posts: 351
Default Android

Any word on an Android version?
__________________
John Morgensen
RV-9A N946PM 600+ hours since 2013
Nevada/Arizona
Reply With Quote
  #3
Old 12-11-2018, 03:24 PM
SJordan SJordan is offline

Join Date: Sep 2016
Location: Scottsdale, AZ
Posts: 216
Default

Just found this. Surprised it’s not more used or talked about. Anyone using this?

Thanks.
__________________
Shawn Jordan
KDVT
RV4. N11XZ
2018 dues paid.
Reply With Quote
  #4
Old 12-30-2018, 07:07 PM
Maverick972 Maverick972 is offline

Join Date: Sep 2017
Location: Plano, TX
Posts: 115
Default

I also just stumbled across this and it looks like a very useful tool. Especially at CI time.
__________________
Sean P. McGrath
RV7 730JK
2020 Dues Paid.
Reply With Quote
  #5
Old 07-03-2019, 12:22 AM
EngineBridge EngineBridge is offline

Join Date: Mar 2019
Location: Chicago
Posts: 25
Default

Quote:
Originally Posted by JohnInReno View Post
Any word on an Android version?
Sorry, I know it is an old post. But just for those doing a "search" and notice got the same question.

A newer model is now available. This one allows connecting from any device (iOS, Android, PCs) and offer Analog Outputs to see the data on a Glass Panel as well.

Here is the new VAF post about it with photos:

http://www.vansairforce.com/communit...d.php?t=172957

Thanks
__________________
Checkout http://EngineBridge.com
- EMag/PMag Settings Controller
- Audio & Vocal Alert System - Make your own
- Height Call out like the big boys down to 0 feet.
- Pump Pressure Controller
- Custom Speed Switch and Auto-Extend option
- VAF Advertiser
Reply With Quote
  #6
Old 07-03-2019, 09:43 AM
isosceles isosceles is offline

Join Date: Jan 2018
Location: Fremont
Posts: 59
Default

Quote:
Originally Posted by EngineBridge View Post
A newer model is now available.
You should add a propeller balancing feature! You already know the prop position...
Reply With Quote
  #7
Old 07-03-2019, 11:50 AM
EngineBridge EngineBridge is offline

Join Date: Mar 2019
Location: Chicago
Posts: 25
Default

Quote:
Originally Posted by isosceles View Post
You should add a propeller balancing feature! You already know the prop position...
Thanks for sharing. The Prop position is accurate while the engine is not running. Seeing the data while the engine is running won't work for such a precise need for Dynamic balancing. I would say the prop pick-up externally with a tape/sensor or Hall-Effect sensor will be better and eliminate any possible slight error from the PMag readings. Though interesting idea.
__________________
Checkout http://EngineBridge.com
- EMag/PMag Settings Controller
- Audio & Vocal Alert System - Make your own
- Height Call out like the big boys down to 0 feet.
- Pump Pressure Controller
- Custom Speed Switch and Auto-Extend option
- VAF Advertiser
Reply With Quote
  #8
Old 07-03-2019, 12:20 PM
Bavafa Bavafa is offline

Join Date: Oct 2007
Location: Sacramento, CA
Posts: 3,351
Default

Does this have the ability to change the timing advance, etc while the engine running and in the air or is mostly monitoring the status?
__________________
Mehrdad
N825SM RV7A - IO360M1B - SOLD
N825MS RV14A - IO390 - Flying
Dues paid
Reply With Quote
  #9
Old 07-03-2019, 12:27 PM
EngineBridge EngineBridge is offline

Join Date: Mar 2019
Location: Chicago
Posts: 25
Default

Quote:
Originally Posted by Bavafa View Post
Does this have the ability to change the timing advance, etc while the engine running and in the air or is mostly monitoring the status?
Yes, Settings can be changed in-flight, on ground, engine running or not. Though keep in mind changing Settings in-flight will make the engine "miss" as PMag needs few milliseconds to save the new settings in its internal flash memory, this is fine, you just need to expect it. Hence the recommendation in the manual to do changes on ground. Many uses it in-flight though.
__________________
Checkout http://EngineBridge.com
- EMag/PMag Settings Controller
- Audio & Vocal Alert System - Make your own
- Height Call out like the big boys down to 0 feet.
- Pump Pressure Controller
- Custom Speed Switch and Auto-Extend option
- VAF Advertiser
Reply With Quote
  #10
Old 07-03-2019, 12:44 PM
isosceles isosceles is offline

Join Date: Jan 2018
Location: Fremont
Posts: 59
Default

Quote:
Originally Posted by EngineBridge View Post
The Prop position is accurate while the engine is not running. .
Somehow EI commander can report p-mags "timing mismatch". my guess is that probably the tach signal is synchronized with the TDC and it's probably accurate... I doubt that the professional prob balancers have precision better than maybe 5 degrees, simply because of the size of the reflective tape.
